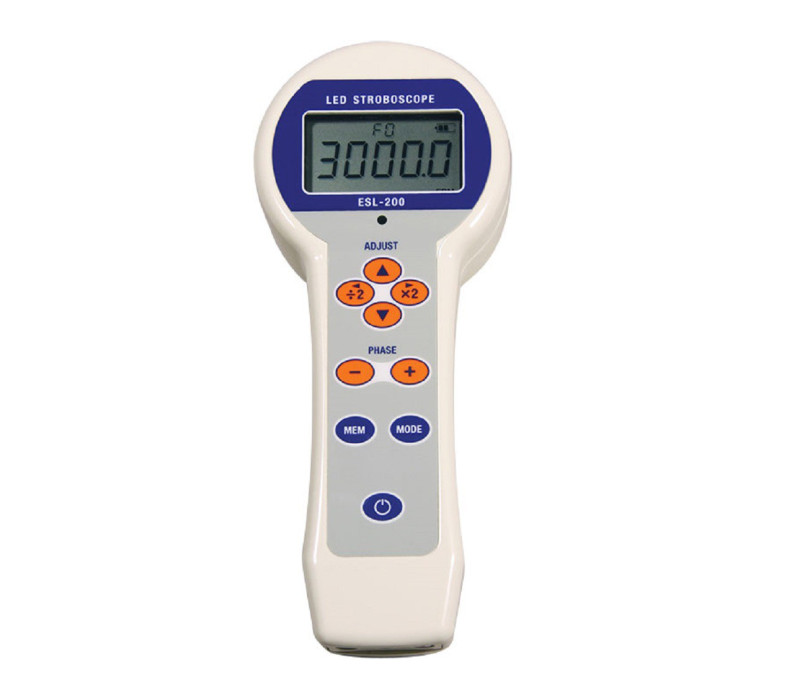

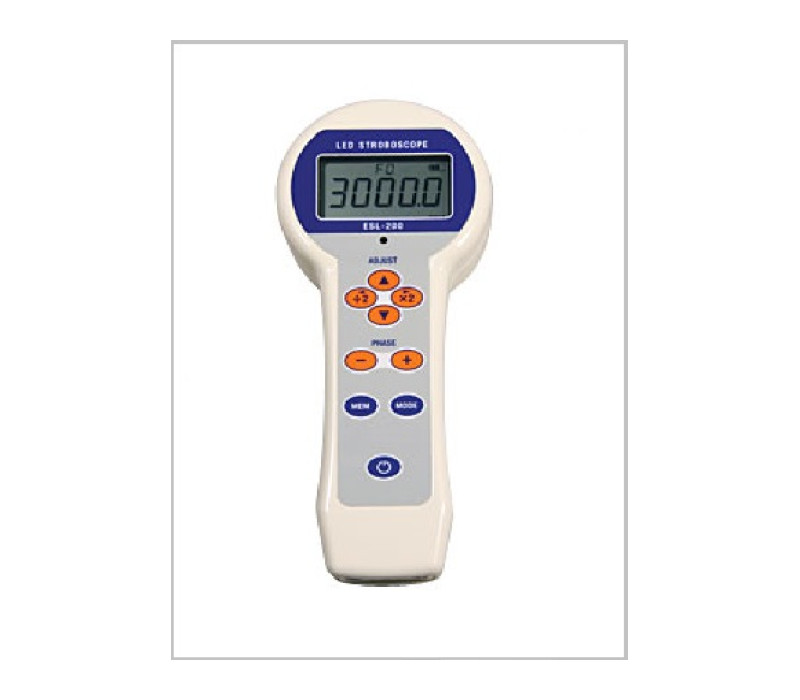

Name: ESL-200 LED Stroboscope
SKU: 127118

The ESL-200 LED is a super bright, battery operated, LED stroboscope designed to measure and observe rotating, reciprocating and linear motion in a variety
of production, quality control and academic applications. It generates an extremely bright light relative to its compact s led strobe

ize.
The ESL-200 LED stroboscope is designed to measure the speed of rotating or cycling linear motion objects without contact or reflective tape, as well as freeze motion visually. Lifetime LED lights using pulse width modulation, encased in an aluminum housing, and powered by a NiMH rechargeable battery, make this pocket strobe extremely durable and capable of high flash rates.
The ESL-200 LED is an ideal inspection strobe for speed, motion and vibration analysis, such as rotating shafts, fans, cams, etc.

led strobe

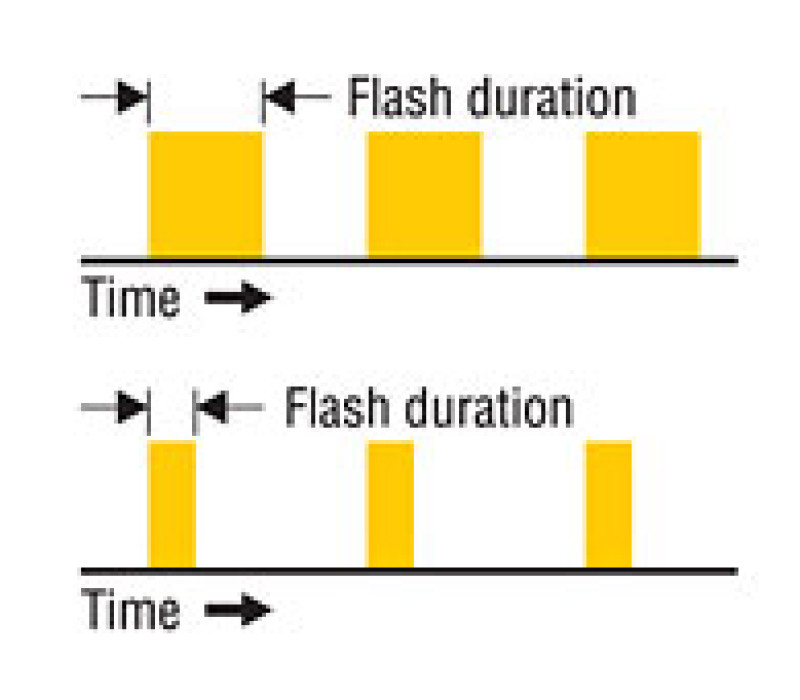

Adjustable Flash Duration
For most applications standard flash duration works without adjustment. For ultra high speed applications, objects may move during the brief period of a single flash, resulting in a blurred image. By decreasing flash duration, objects have less time to move and the image appears sharper.

Pulse Width Modulation for sharp images at high speed
Extended battery life of 6 hours continuous use at 6,000 fpm/rpm
Auto wide measuring range – up to 150,000 fpm/rpm (over 100,000 display flashes)
359° Digital phase shift adjustment by 1° increments
Rugged aluminum housing – compact size – weighs only 540 g
Highly stable drift free operation
High efficiency LED solid-state light source
Push button operation with x2 and ÷2 buttons for easy and precise adjustment
Store up to 9 flash rates in memory for records or quick retests (Restarts at the last flash rate)
Easy-to-read 5 digit, 12 mm high LCD
External trigger input and output
Tripod mountable

The ESL-200 is supplied in foam-fitted carrying case with LED Stroboscope, Universal AC-Adapter/Charger, Instruction manual and NIST-Traceable Calibration Certificate

Optional ET-1 External Trigger Kit

led strobe The External Trigger immediately synchronizes the stroboscope with a rotating object. The sensor is aimed at a ferrous target mounted on the drive shaft and triggers the strobe to flash each time the target passes the sensor. ET-1 is complete with sensor, cables and AC adapter. Ferrous target not-included. led strobe

ESL-200 LED Data Sheet

Measuring Range	6.0 - 150,000 fpm/rpm
Resolution	±0.1 fpm/rpm (6.0 to 9999.9 fpm/rpm) ±1 fpm/rpm (10000 to 120000 fpm/rpm)
Accuracy	±0.01%, ±1 LSD
Display	12mm high, 5 digit LCD
Brightness	4300 LUX 6,000 FPM, at 20cm distance, flash duration F0
Power	NiMH Rechargeable battery with Universal 100-240V adapter
Battery Life	6 hours continuous use at 6,000 fpm/rpm, Power save mode 12 hours continuous use at 6,000 fpm/rpm
Operating Temp	0 to 45° C
Weight	540g
Housing Material	Aluminum
Tripod Mount	1/4-20 UNC on backside
Phase Shift	with external trigger: 0 - 359 degrees in 1 degree increments
Warranty	2 years
Target Size	4mm dia. (minimum)
Target Material	Ferrous material
Sensing Distance	3mm (based on 10 mm dia. target)
Max Speed	50 m/min (using 10mm dia. target)
Max Frequency	1 KHz
Sensor size	12 mm dia. x 45 mm; M12 connector
Power	AC adapter (up to 240VAC)
