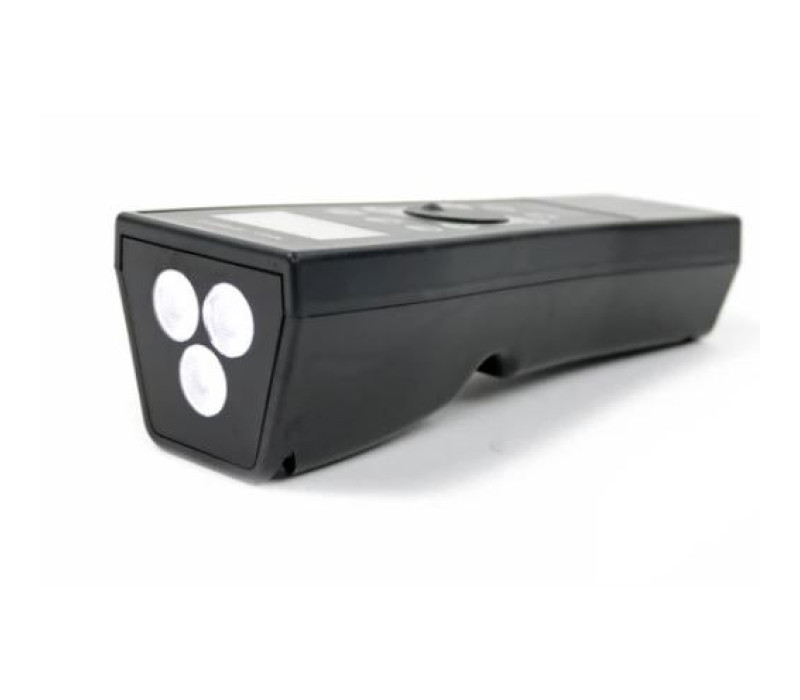

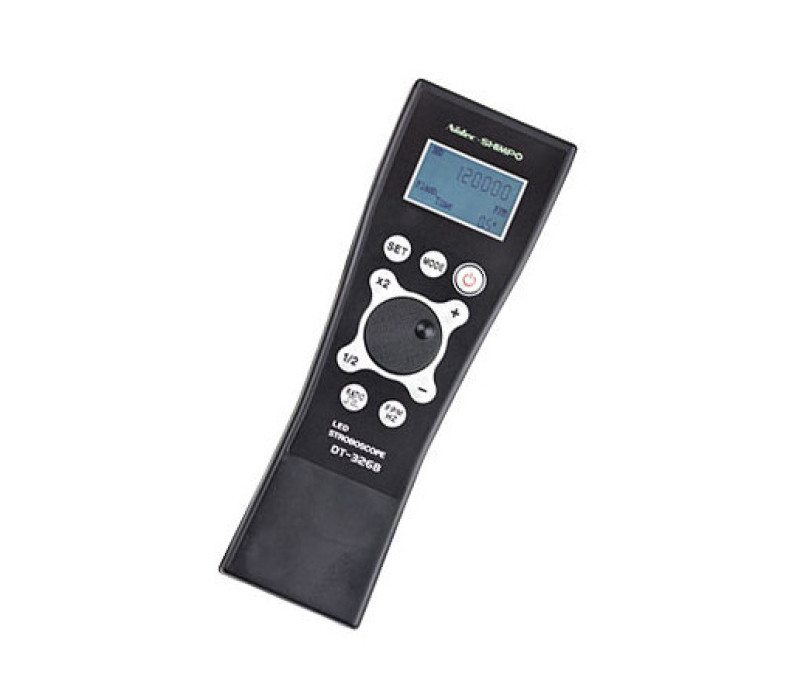

DT-326B light weight LED Stroboscope
This LED Stroboscope DT-326B is a lightweight and battery powered handheld stroboscope. It provides an accurate and stable flash. The innovative design allows a longer flash tube life, with a longer life than traditional xenon flash tubes. This handy LED Stroboscope has a rechargeable lithium battery, with one charge cycle lasting up to 12 hours.
The DT-326B is designed for speed and frequency measurements in motion and vibration analysis applications. It is ideal for a number of maintenance applications in many different industries such as the printing, packaging, textile, automotive, cable, mining, steel, chemical, optics, medical and marine industries.
Features
- AC Operation:100 – 240 VAC Line Power Operation with AC adapter for continuous use or rechargeable battery for maximum portability
- Wide Flash Range: 60-120,000 flashes per minute, can be applied to meet almost any HIGH-SPEED application
- Ratio Control (Flash Pulse Duration): Adjustable Flash Pulse duration achieves sharper images for critical inspection
- ECO Mode: Brightness control extends battery life
- Phase Shift: Advance or retard flash timing for viewing gear teeth, cutting surfaces, repeats or “drifting” images
- All Metal Construction: Durable, comfortable, hand-held, fixed or swing arm mounted
- Input/Output Interface: Input sensor triggers or Output synchronization controls
- With traceable calibration certificate
Specifications
| Measuring Units: | FPM, Hz |
| Flash range: | High range: 60 - 120000 FPM / 1 - 2000Hz Low range: 60 - 12000 FPM / 1 - 200 Hz |
| Precision: | 0.01%±1 digit of F.S. @ 25°C |
| Light source: | Bright LED's |
| Flash mode: | Normal and ECO (Energy saving mode) |
| Operating temperature: | 0 °C - 35 °C |
| Battery Life: | 12 hours |
| Dimensions: | 208 x 70 x 60mm |
| Weight: | Device 380 gr, with Packaging 1,6 kg |
