ZT Digital Force Gauge with Luminescent EL Display

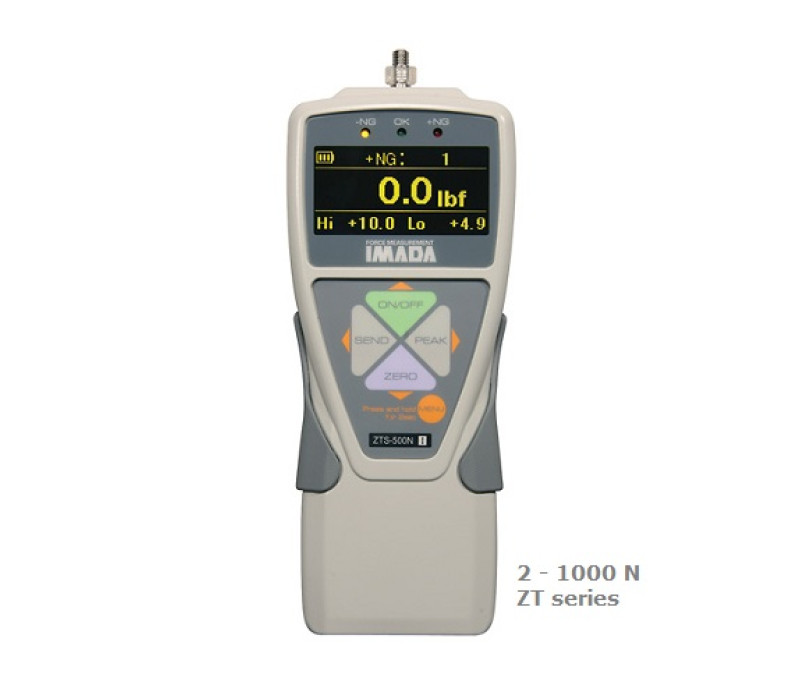

The digital force gauge ZT has a luminiscent display.

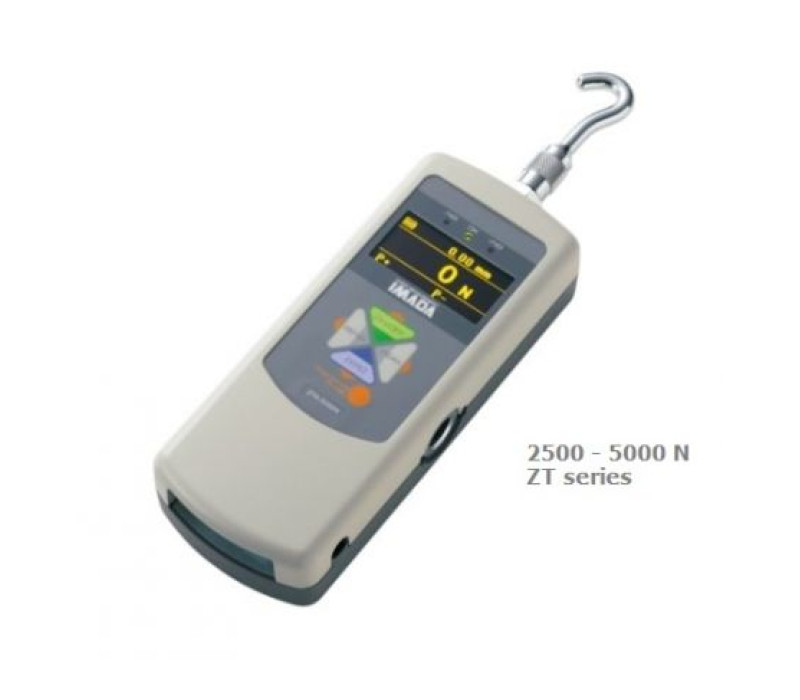

Front side of the ZT digital force gauge.

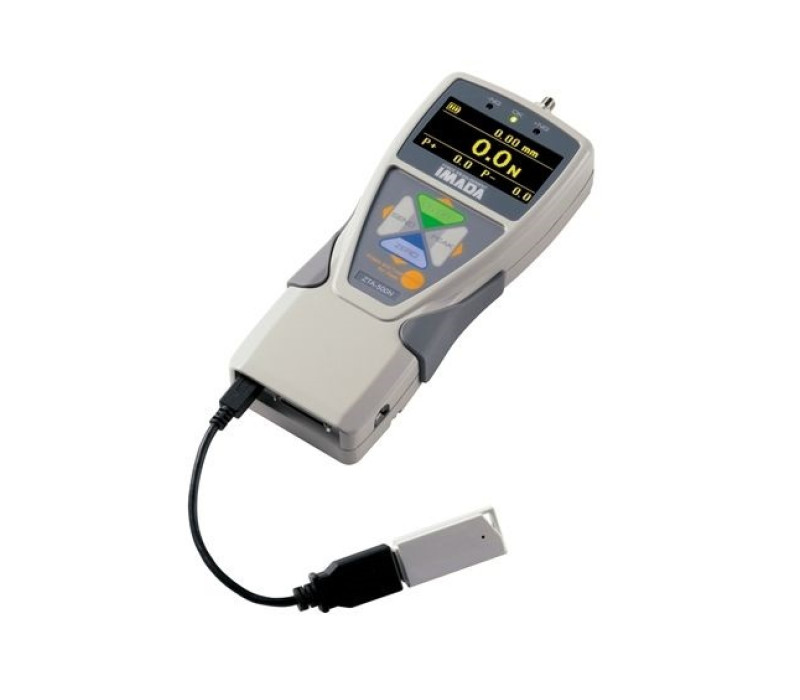

The ZT digital force gauge is delivered in a complete set with a lot of accessoires.

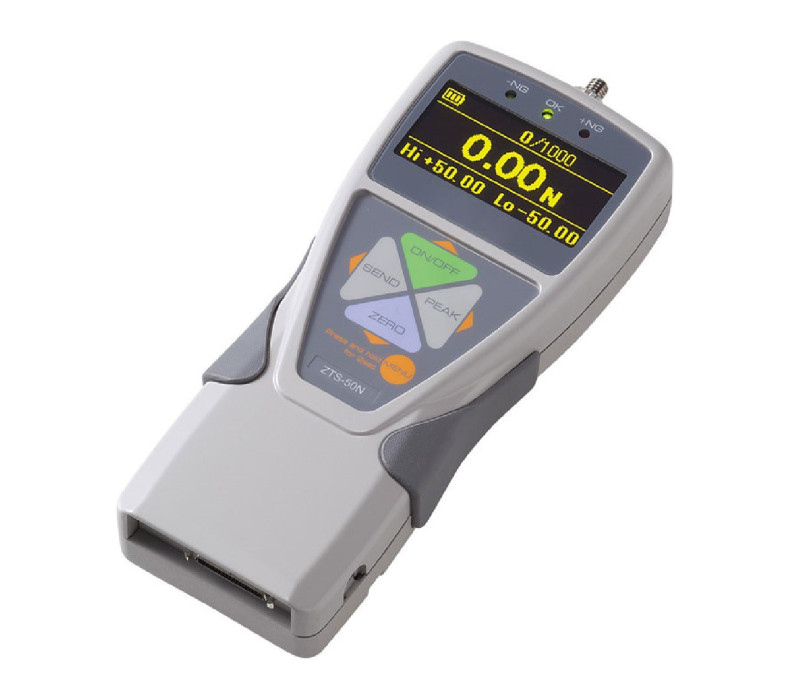

ZT Digital Force Gauge with Luminescent EL Display

The ZT-Series Force Gauge is equipped with an electro luminescent display, which is highly visible in dark locations. It is a very user friendly meter with his easy-to-use menus. It has multi-language program menus: English, Spanish, French, Chinese, German, Italian, Korean and Japanese.

The ZT digital force gauge can be used for the following applications:

90 degree peel test
Film sticking test
Crimp test
Bending test

The included data logger software ZT-Logger can transfer data to PC by one click. It includes

Displayed value at when you press SEND button
Continuous data (10 data / sec). (You can make a graph with Excel later)
Data saved in internal memory

The ZT-Series Force Gauge is available in 2 versions:
Series ZTS (Standard) & Series ZTA (Advanced)

The ZTA (advanced) has more useful functions:

Feature 1: Displacement I/O becomes possible, this means that you can input/output displacement as well as force when you combine with a test stand having a linear scale by a dedicated cable or DMK scale.
Feature 2: Continuous data (100data / sec) can be saved in USB flash drive, this means that You can save 100 data / sec at real time in USB flash drive in CSV format. You can also transfer internal memory data to USB flash drive.
Even in the case when you cannot connect PC during measurement, you can save data in USB flash drive, and later transfer data to PC via the USB drive. On PC you can draws the data into a graph with Excel.
Feature 3: Maximum/minimum value among internal memory data can be indicated.
- Average value among internal memory data can be indicated.
- You can set a certain load value (A), and it can capture 2 peak values right before the certain load value dropped.

You can use it by hand-held for basic compression/tension tests, but we recommend that you combine the force gauge with a test stand.

Price from € 942,00

Shop now

Luminescent display is highly visible in dark locations
Ergonomic design with non-slip grips, heavy duty metal construction
Multi-langauge program menus: English, Spanish, French, Chinese, German, Italian, Korean, Japanese
Color-coded LED indicators (green, orange, red) and output signal for Go/No Go testing
Capacity up to 5000 N/Kg (push/pull)
Overload capacity 200% F.S.
1,000 data memory for recall or download
External switch display hold and clear
Internal Ni-MH batteries or AC adapter
Real time and peak mode (selectable)
kgf, lbf, and N units are selectable
Overload alarm and output signal
Easy-to-use menus: make programming simple in eight languages. Select units, reverse display, set high/low setpoints, and all other functions in plain language.
Processes and transmits 2,000 data per second

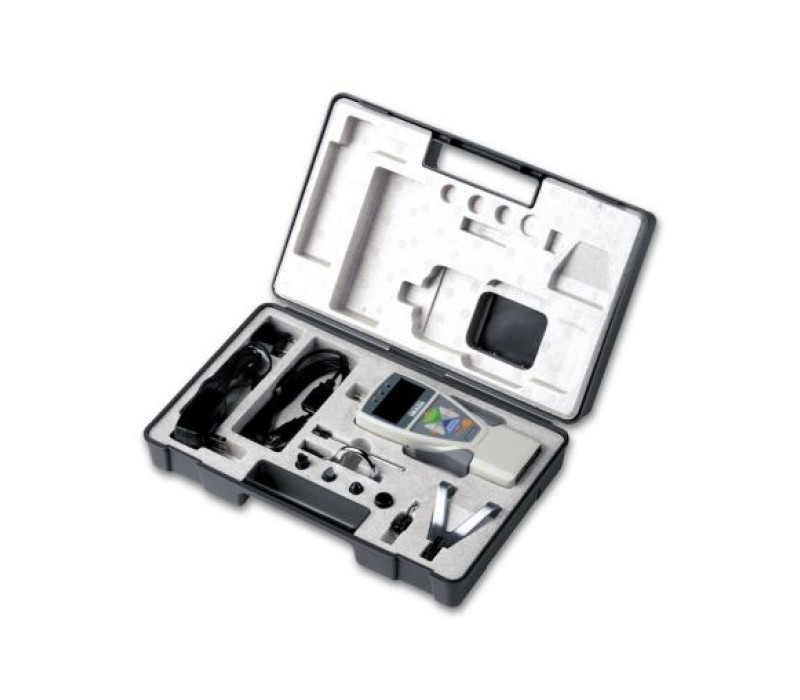

The ZT digital force gauge is delivered in a complete set, including

Full set of attachments
ZT Logger data acquisition software
USB cable
AC adapter/charger
Calibration certificate traceable to NIST
Carrying case

The OH-1 handle is included with the ZTS/ZTA 550 & 1100 models.

ZT-Series Feature Comparison Chart

Electroluminescent display (ELD)
Functions	ZTS	ZTA
Peak hold
OK/NG judgment
Reverse display
Sensitivity	4 steps	4 steps
Multi display
Internal memory	1000 data	1000 data
+/- Force
Auto zero timer
+NG alarm
Auto shut off
Calendar
1st/2nd peak drop	-
Displacement detection at force peak	-
Displacement Reset	-
Output	ZTS	ZTA
Serial (RS232C)
Mitutoyo digimatic [*4]
Analog	+/- 2V F.S. approx.	+/- 2V F.S. approx.
USB
High/low set points
Overload warning
High/low output	-
Memory in USB flash drive [USB flash drive is not included]	-
Displacement	-

Tension Ranges

Model	Ranges	Display	Resolution	Thread	Included attachment
ZTS/ZTA-2	2 N 200 gf 7 ozf	2.000 N 200.0 gf 7.00 ozf	0.001 N 0.1 gf 0.01 ozf	M6	A1 to A8
ZTS/ZTA-5	5 N 500 gf 18 ozf	5.000 N 500.0 gf 18.00 ozf	0.001 N 0.1 gf 0.01 ozf	M6	A1 to A8
ZTS/ZTA-20	20 N 2 kgf 4.4 lbf	20.00 N 2.000 kgf 4.400 lbf	0.01 N 0.001 kgf 0.001 lbf	M6	A1 to A8
ZTS/ZTA-50	50 N 5 kgf 11 lbf	50.00 N 5.000 kgf 11.00 lbf	0.01 N 0.001 kgf 0.01 lbf	M6	A1 to A8
ZTS/ZTA-100	100 N 10 kgf 22 lbf	100.0 N 10.00 kgf 22.00 lbf	0.01 N 0.01 kgf 0.01 lbf	M6	A1 to A8
ZTS/ZTA-200	200 N 20 kgf 44 lbf	200.0 N 20.00 kgf 44.00 lbf	0.01 N 0.01 kgf 0.01 lbf	M6	S1 to S8
ZTS/ZTA-500	500 N 50 kgf 110 lbf	500.0 N 50.00 kgf 110.0 lbf	0.1 N 0.01 kgf 0.01 lbf	M6	S1 to S8
ZTS/ZTA-1000	1000 N 100 kgf 220 lbf	1000 N 100.0 kgf 220.0 lbf	1 N 0.1 kgf 0.1 lbf	M6	RS1, S2 to S8
ZTS/ZTA-2500	2500 N 250 kgf 550 lbf	2500 N 250.0 kgf 550.0 lbf	1 N 0.1 kgf 0.1 lbf	M10	B1 to B8
ZTS/ZTA-5000	5000 N 500 kgf 1100 lbf	5000 N 500.0 kgf 1100 lbf	1 N 0.1 kgf 1 lbf	M10	B1 to B8

Video

▶

Datasheet Attachments

Datasheet ZTA

Datasheet ZTS

Accuracy	± 0.2% F.S., ± 1 LSD
Selectable Units	Newtons, kgf (gf) or lbf (ozf)
Overload Capacity	200% of F.S. (Overload indicator flashes beyond 110% of F.S.)
Power	Rechargeable Ni-MH battery pack or AC adapter
Battery Indicator	Indicates three charge states high, med and low
Memory	Non-volative, recall up to 1,000 data
Setpoints	Programmable high/low values, white LEDs / color coding and output signal
Outputs	Outputs USB (virtual COM port), RS-232C, Digimatic and ± 2 VDC analog output
Operating Temperature	0 to 40 °C (32 to 100 °F)
Display	4-digit Organic EL
Display update	10 / sec
Sampling rate	2000 data / sec at maximum
Weight	From 2N to 1000N model: Approx.490g 2500N, 5000N: Approx.1100g
Warranty	1 year

Products

Item	Product	Price
134189	ZTS-500N Digital Force Gauge with USB output	€ 942,00
134190	ZTS-1000N Digital Force Gauge with USB output	€ 1.043,00
134376	ZTS-2500N Digital Force Gauge with USB output	€ 1.414,00
134377	ZTS-5000N Digital Force Gauge with USB output	€ 1.414,00
134378	ZTA-2N Advanced Digital Force Gauge with USB output	€ 1.048,00
134379	ZTA-5N Advanced Digital Force Gauge with USB output	€ 1.048,00
134380	ZTA-20N Advanced Digital Force Gauge with USB output	€ 1.048,00
134381	ZTA-50N Advanced Digital Force Gauge with USB output	€ 1.048,00
134395	ZTA-100N Advanced Digital Force Gauge with USB output	€ 1.048,00
134382	ZTA-200N Advanced Digital Force Gauge with USB output	€ 1.048,00
134383	ZTA-500N Advanced Digital Force Gauge with USB output	€ 1.048,00
134384	ZTA-1000N Advanced Digital Force Gauge with USB output	€ 1.143,00
134385	ZTA-2500N Advanced Digital Force Gauge with USB output	€ 1.520,00
134386	ZTA-5000N Advanced Digital Force Gauge with USB output (Included with OH-1 Handle)	€ 1.520,00

Accessories

Item	Product	Price
131527	ISO-17025 ISO/IEC 17025 Long-form Certificate & Test Data
131526	FOH-1 Handle for Mechanical Force Gauges FB, PS, DPS, DS2, DST, DSV, Z2, ZP, ZTS and ZTA	€ 112,00
134287	S100-600 Industrial Scales (300 kg x 0.05 kg)	€ 295,00
134388	CB-208 RS232 Serial Output Cable with Sub D 9 plug	€ 87,00
134389	CB-308 Digimatic SPC Cable for ZTS & ZTA	€ 87,00
134390	ZT-RL Software Force Recorder Software for ZTS & ZTA - Light Edition
134391	ZT-RS Software Force Recorder Software for ZTS & ZTA - Standard Edition
134392	Software „Force Recorder Professional” for models ZTS, ZTA, ZTS-DPU, ZTA-DPU, HTGS, HTGA, DTXS and DTXA	€ 682,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

ZT Digital Force Gauge with Luminescent EL Display

Features

Dimensions

Specifications

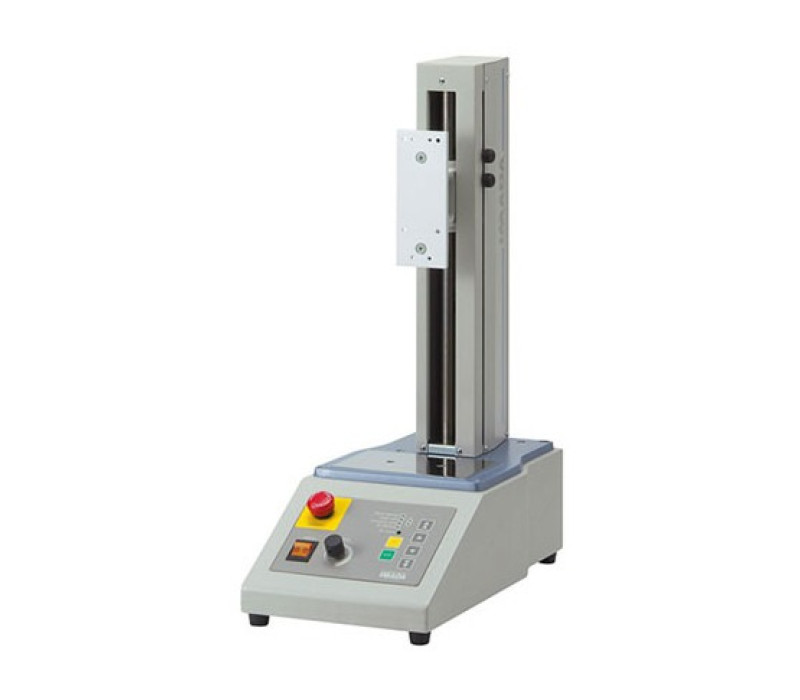

MX-110 Motorized Vertical Test Stand

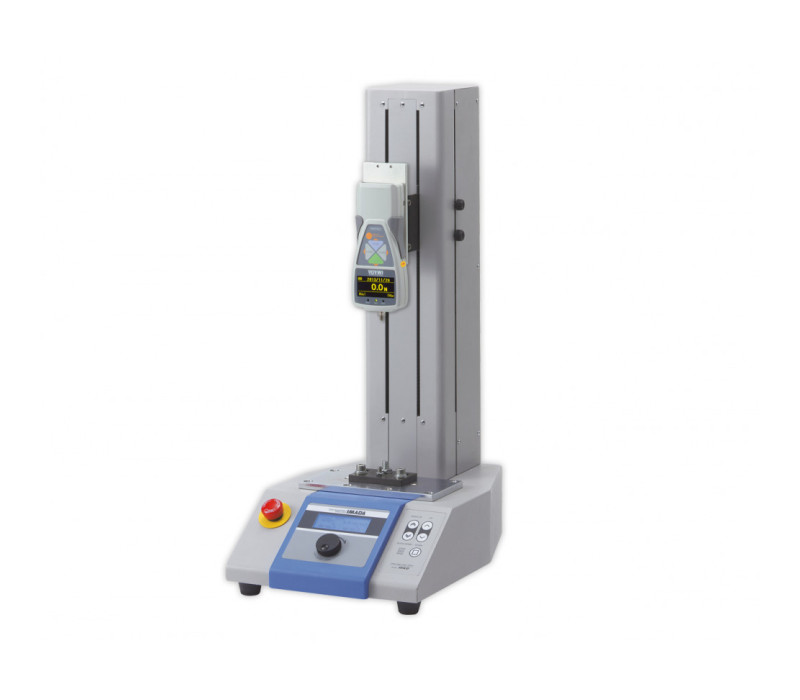

MX2 Motorized Test Stand

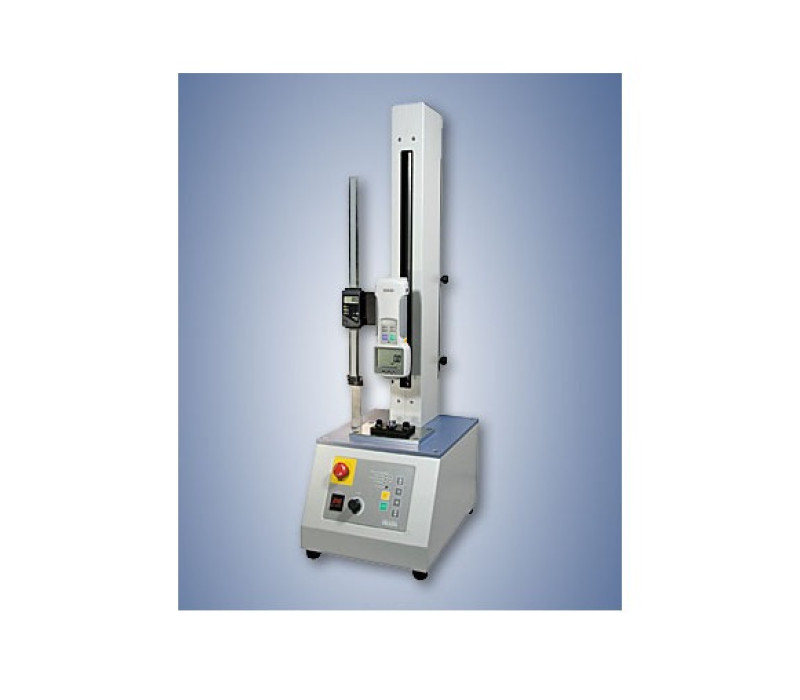

MX-275 Motorized Vertical Test Stand
