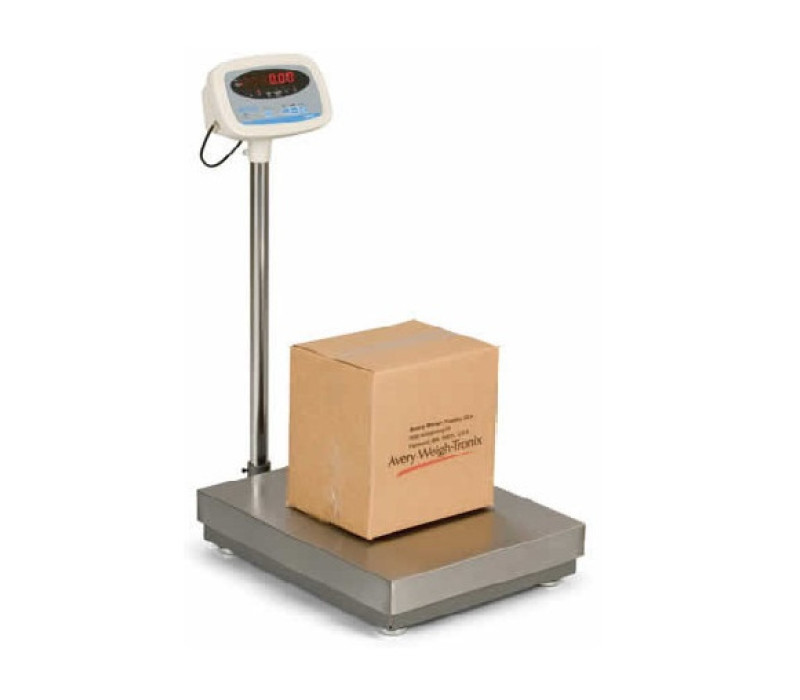

S100 Industrial Scales

S100 Industrial Scales

Name: S100 Industrial Scales
SKU: 127116
Price: 295.00 EUR
Availability: InStock

The S100 is a low cost general purpose, self-contained industrial scale with RS-232 interface for simple non-trade weighing applications.

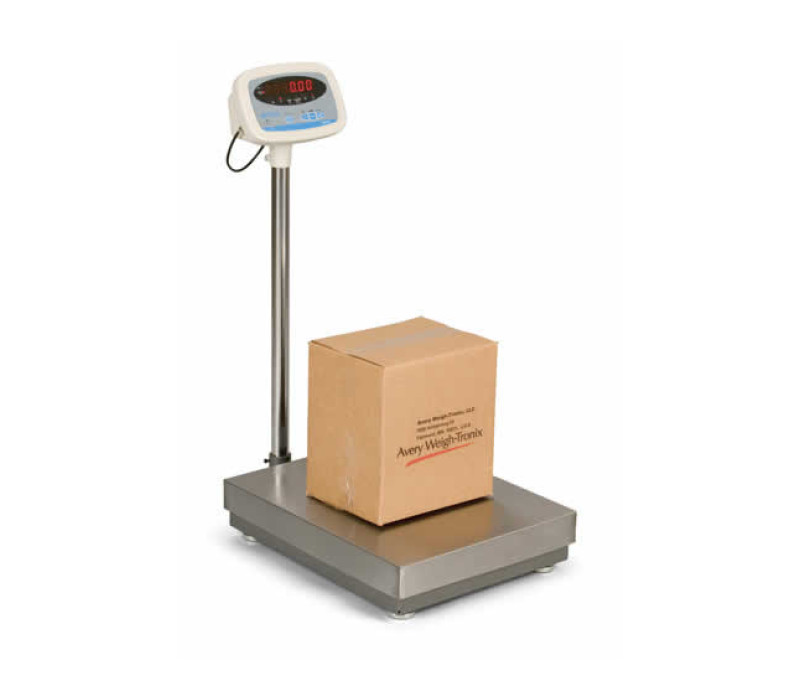

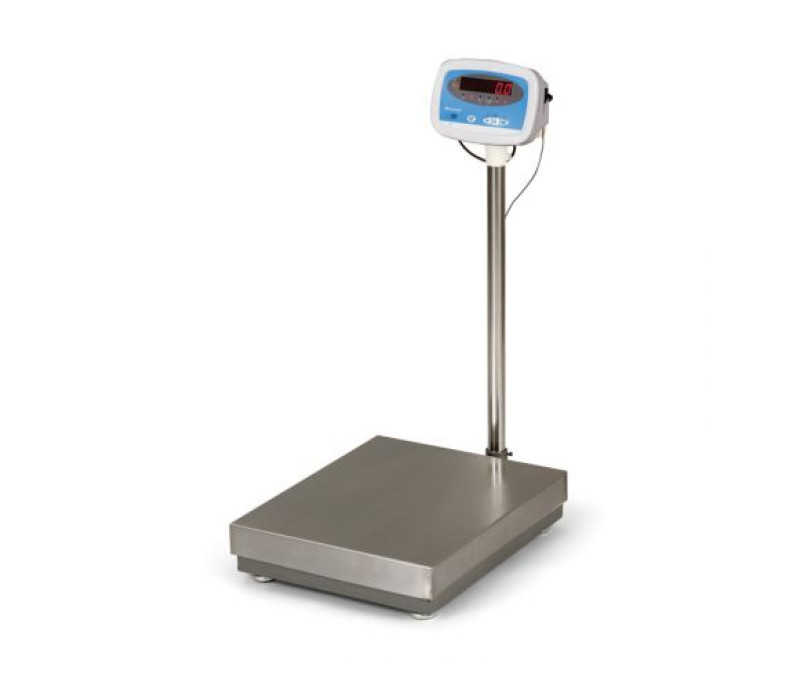

The S100 has a robust-design with re-enforced painted mild steel base, stainless steel weight platter and pole, robust ABS plastic indicator with strain relief connections, and heavy duty adjustable foot assemblies.

€ 295,00

Order now

Column or Desk Mount Indicator– Attach the indicator to the stainless steel column to provide a total height of 927 mm or remote the indicator up to 1220 mm without the use of column.
ON/OFF Switch– Remove power from indicator to increase battery performance and life of product
Weight Hold Functions– Can be configurable for manual button release, automatic release on change in weight, or within +/- 3-50 scale divisions
RS-232 Interface– SBI 100 indicator can be configured for weight only or GTN via continuous output, print key, or stable weight. Choose bi-directional interface for communication to a PC
Auto Shut-off Timer– Adjustable from 1-15 minutes or Off
Internal Rechargeable Battery– Low battery and battery charging annunciators indicate status of lead-acid battery. Battery is charged while AC power is active
Units Switching– Can be configured for LB/KG switching, LB only, or KG only
Adjustable Resolution Setting– Factory default setting of 6,000 or 7,500 divisions can be modified to increase performance within certain applications
Adjustable Scale Setting– Power on zero, AZT, 4 filter settings, weight stability, overload, baud rate and status bits
Robust Design– Re-enforced painted mild steel base, stainless steel weight platter and pole, robust ABS plastic indicator with strain relief connections, and heavy duty adjustable foot assemblies

Tension Ranges

Model	Capacity x Resultion	Pan Size
S100-150	75 kg x 0.01 kg 150 lb x 0.02 lb	457 mm x 559 mm 18" X 22"
S100-300	150 kg x 0.02 kg 300 lb x 0.05 lb	457 mm x 559 mm 18" X 22"
S100-600	300 kg x 0.05 kg 600 lb x 0.1 lb	457 mm x 559 mm 18" X 22"

Pan Size	457 mm x 559 mm (18" X 22")
Accuracy	0.01% of full scale
Construction	Mild steel base, stainless steel top cover and display pole, ABS plastic indicator

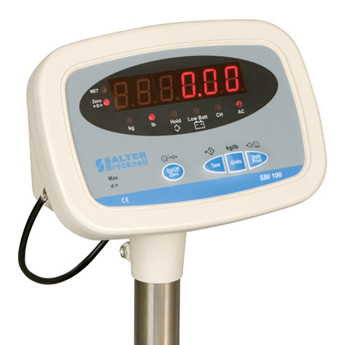

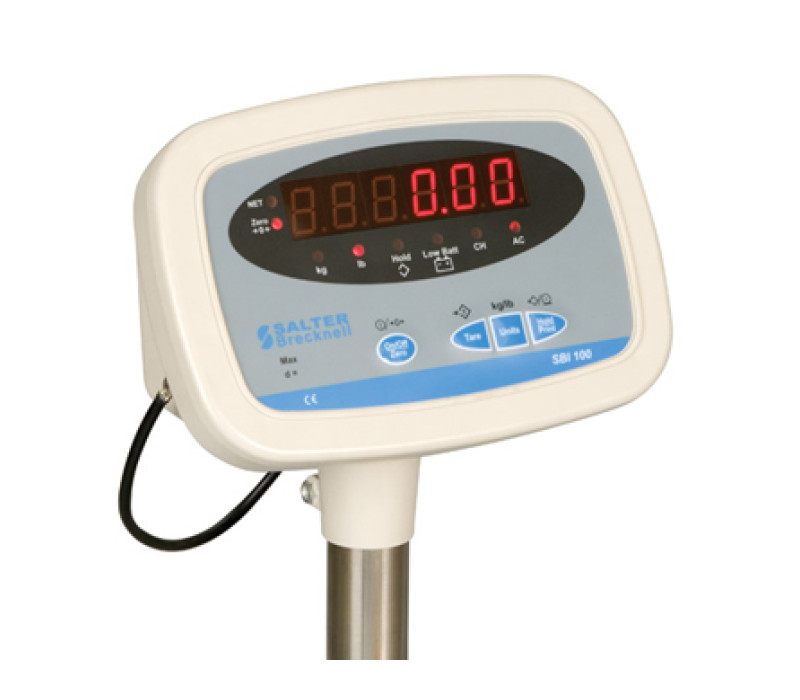

Display	Six digit 20 mm / 0.8" high red LED display with 8 separate LED annunciators
Annunciators	Net, zero, kg, lb, hold, low battery, battery charging, mains connected
RS-232 Interface:	SBI 100 indicator can be configured for weight only or GTN via continuous output, print key, or stable weight. Choose bi-directional interface for communication to a PC
ON/OFF Switch	Remove power from indicator to increase battery performance and life of product
Auto Shut-off Timer	Adjustable from 1-15 minutes or Off
Weight Hold Functions	Can be configurable for manual button release, automatic release on change in weight, or within +/- 3-50 scale divisions
Internal Rechargeable Battery	Low battery and battery charging annunciators indicate status of lead-acid battery. Battery is charged while AC power is active.
Units Switching	Can be configured for LB/KG switching, LB only, or KG only
Adjustable Resolution Setting	Factory default setting
Adjustable Scale Setting	Power on zero, AZT, 4 filter of 6,000 or 7,500 divisions can be modified to increase performance within certain applications
Tare	100% subtractive
RS-232	Standard 9 pin straight pass through interface connector, interface cable not included
Function Keys	Power Switch, On/Off/Zero, Tare, Units, Hold/Print
Power	Version Power Supply 230V @ 50 Hz 12 VDC, 500mA, CE approved 3 pin UK and 2 pin EU 230V wall mount power adapters
Battery Life	Up-to 35 hours of continuous use
Operating Temperature	5° C to 35° C / 41° F to 95° F
Weight	20 kg / 44 lb
Shipping Weight	24 kg / 53 lb
Packaging Dimension	965 mm (L) x 610 mm (W) x 203 mm (H) 35" L x 24" W x 8" H
Certification	Full FCC compliance, UL/CUL power adapter,

Datasheet S100

Products

Item	Product	Price	Quantity	Action
134287	S100-600 Industrial Scales (300 kg x 0.05 kg)	€ 295,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out
