    Torque Wrench Loader

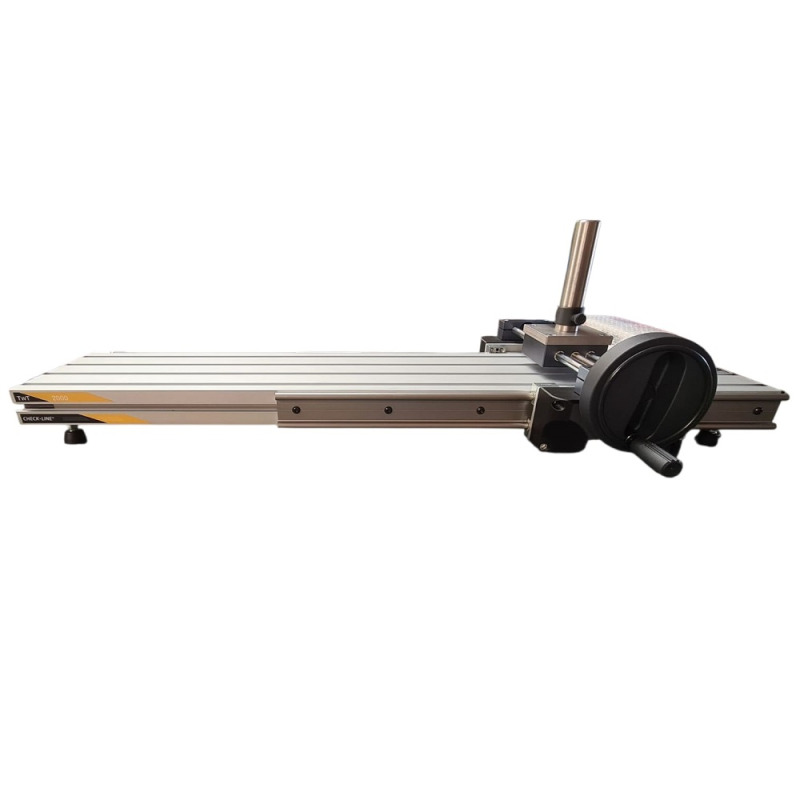

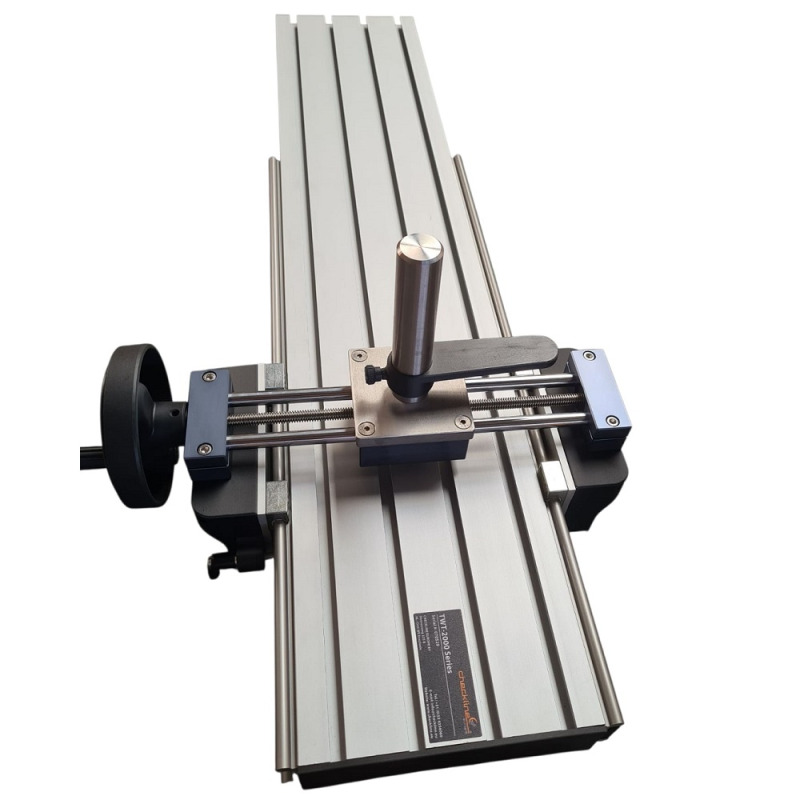

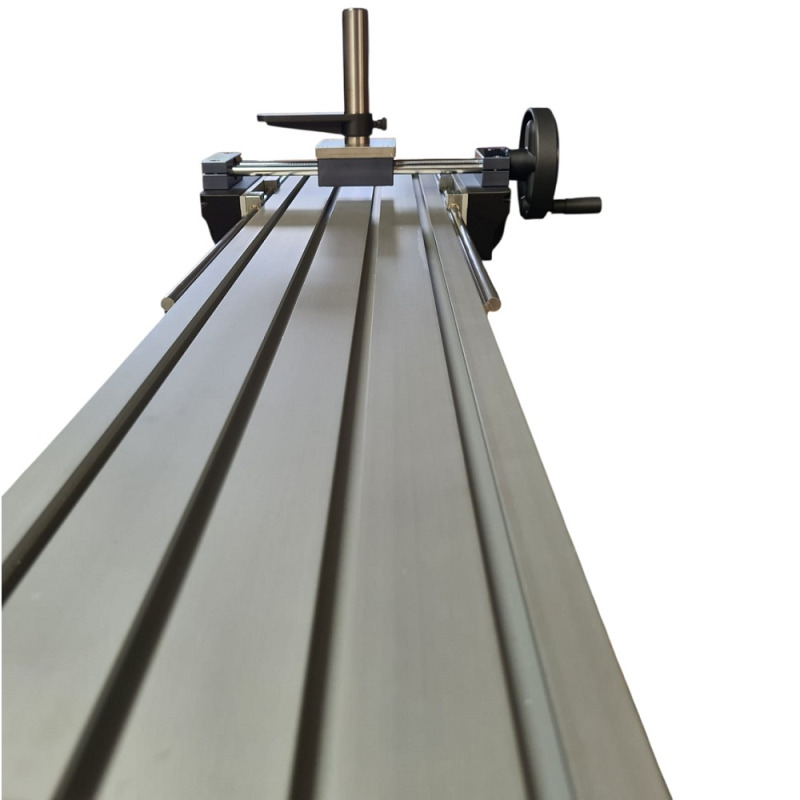

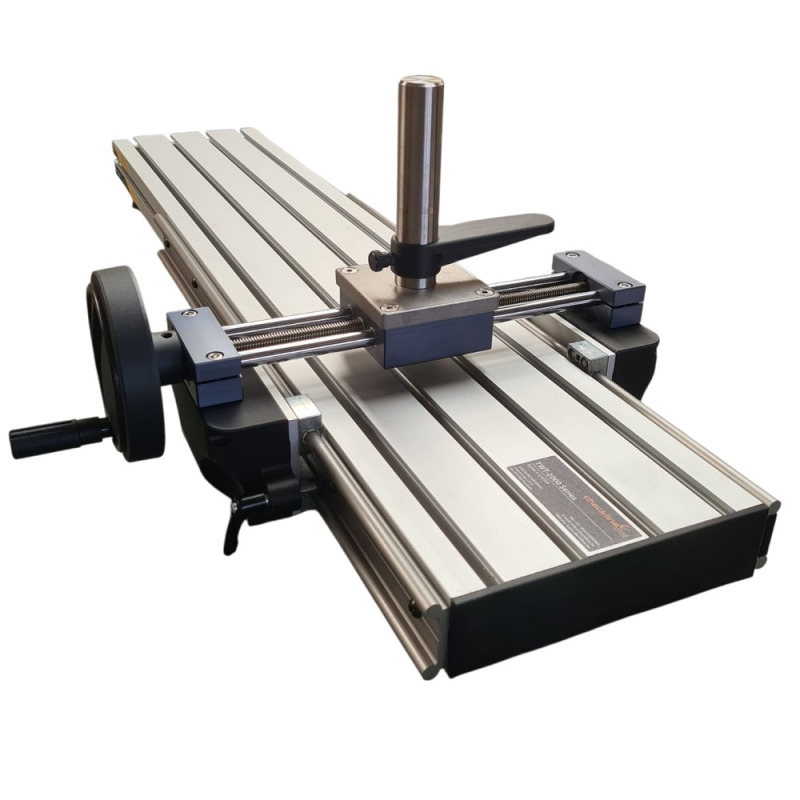

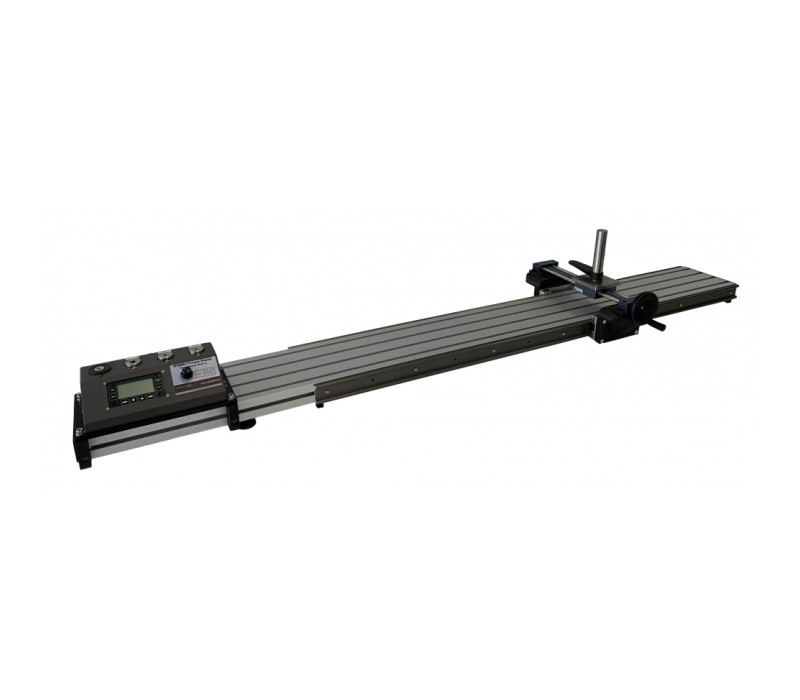

    TWT-2000-Series Torque Wrench Loader

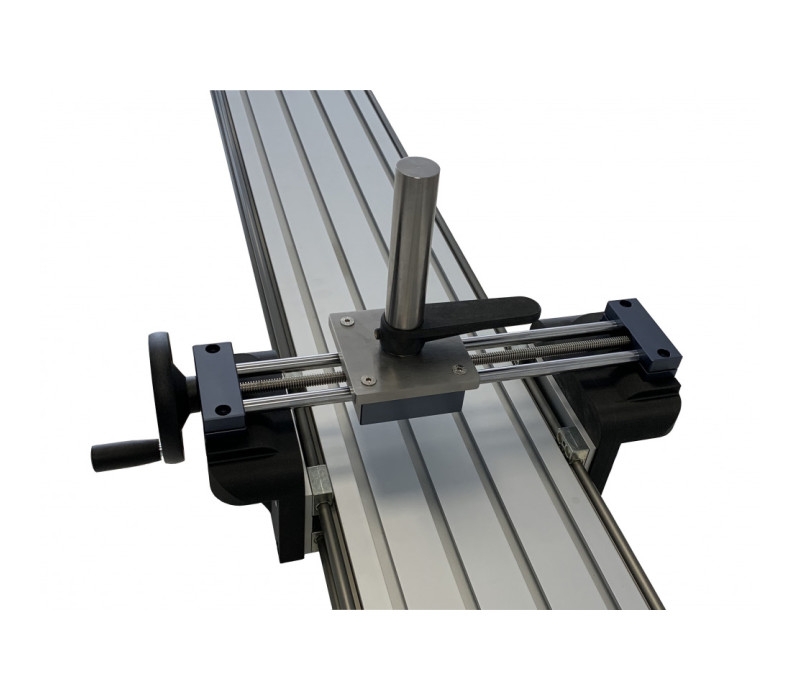

    Checkline’s TWT-2000-Series Torque Wrench Loader is developed as an aid for the calibration and/or verification of digital as well as mechanical torque wrenches. The attachment for the torque wrench is adjustable in height and length, for precise alignment with different torque wrenches. The torque wrench loader is suitable for the calibration and testing of torque wrenches with a range up to 1500 Nm.

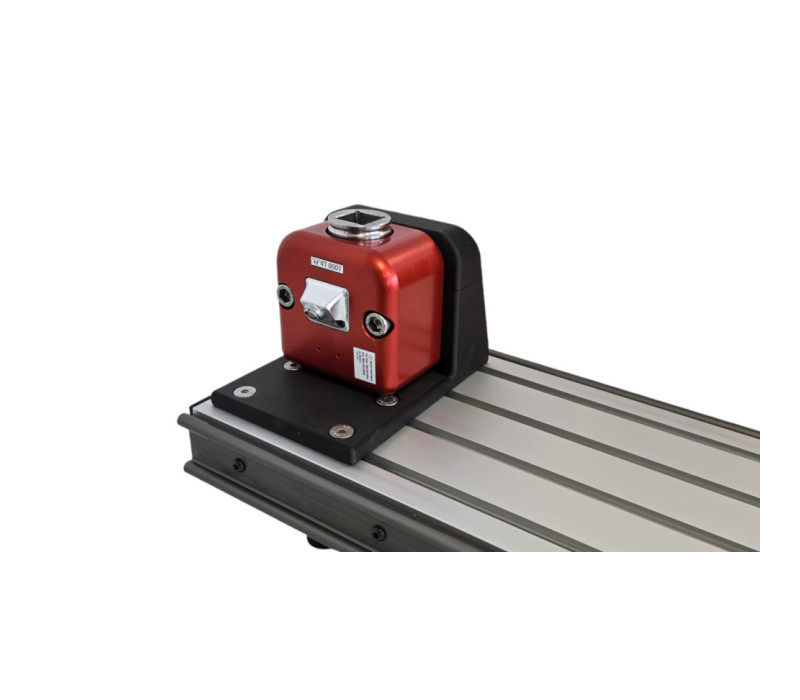

    The TWT-2000-Series does not operate as a stand-alone calibration device and must be used in combination with one of our torque tool testers, e.g. the TT-QC Torque Tool Tester, the TT-QCM Torque Tool Tester, the MTM Multi-Range Torque Tester or IT Bench Mounted Torque Sensor. For each type of torque tool tester an adapter or mounting plate is available which can be attached onto the frame of the TWT-2000. The torque tool tester is not included.

    The Torque Wrench Loader is manually operated by the use of a hand wheel.

    The TWT-2000-Series torque wrench test stand will is available in three different models, corresponding with different torque capacities.

    The TWT-2000-Series torque wrench loader is developed by Checkline Europe B.V., and allows customized models to be supplied. For more information and inquiries, please contact us.
    Price from € 2.395,00
    Order now
    • Tool for torque wrench calibration/verification
    • Compatible with many torque tool testers and wrenches
    • Manually operated by hand wheel
    • Torque tool tester not included
    • Adjustable in height and length
    • Capacity up to 1500 Nm
    • Developed by Checkline Europe
    CapacityUp to 1500 Nm
    LengthAvailable in 1000mm, 1300mm and 1800mm
    OperationManual

    Related Products

    Browse Related Products

    MTM Multi-Range Torque Tester

    MTM Multi-Range Torque Tester

    Torque Tool Tester for quick tool inspection

    Torque Tool Tester for quick tool inspection

    Torque Tool Tester for torque tool calibration

    Torque Tool Tester for torque tool calibration

    Series IT Bench Mounted Torque Sensor

    Series IT Bench Mounted Torque Sensor

    Order Now

    Products
    Item Product Price  Quantity Action

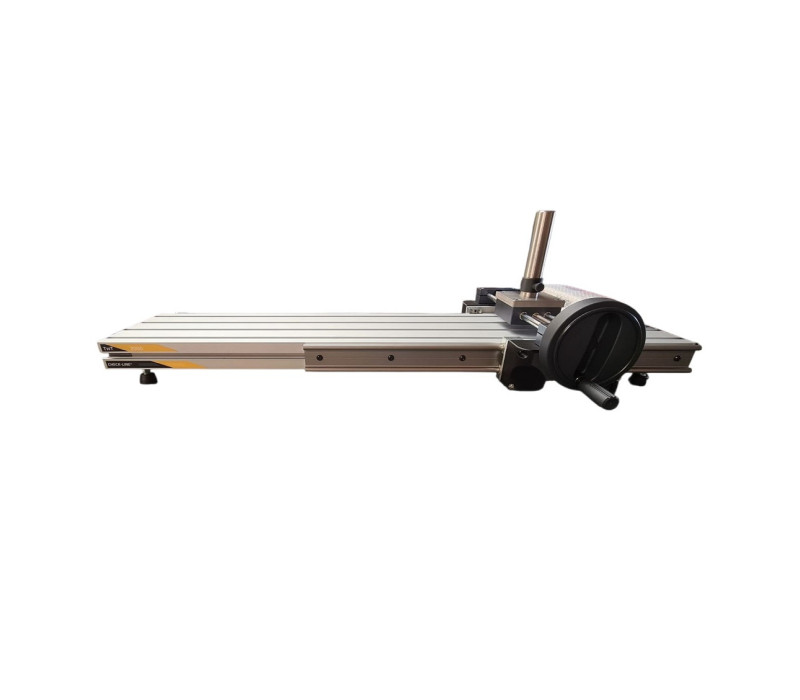

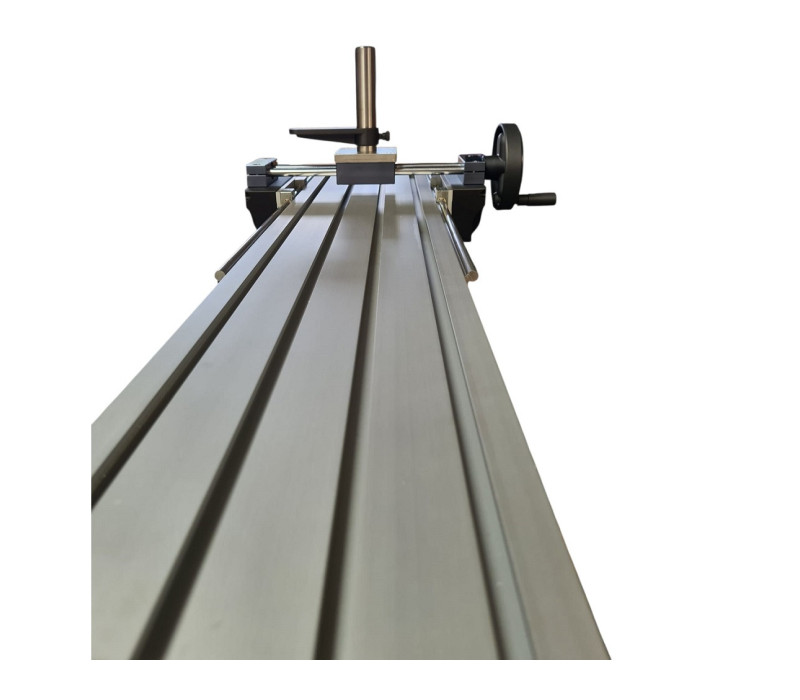

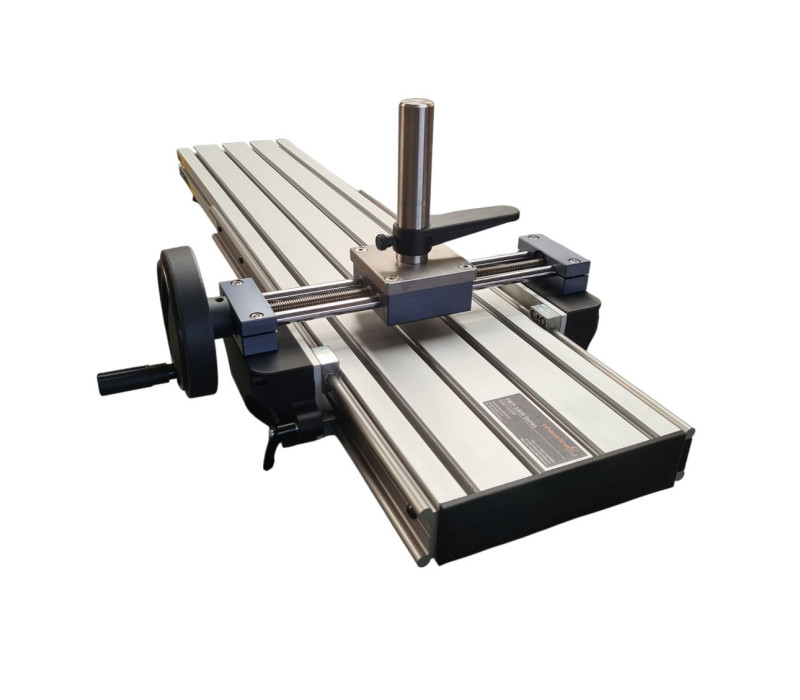

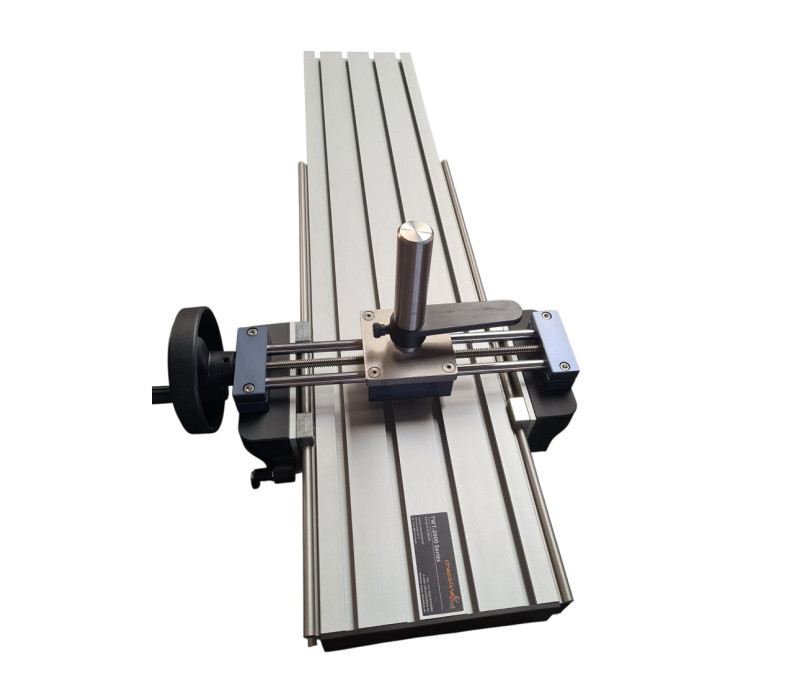

    137796TWT-2000-1000 Torque Wrench loader - 1000mm € 2.395,00
    138070TWT-2000-1300 Torque Wrench loader - 1300mm € 2.495,00
    137786TWT-2000-1800 Torque Wrench loader - 1800mm € 2.995,00
    Accessories
    Item Product Price  Quantity Action
    139909TWT-2000-MTM-Mount kit € 95,00
    139903TWT-2000-ITF-1000 Adapter plate for models ITF-1000 or larger € 295,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
