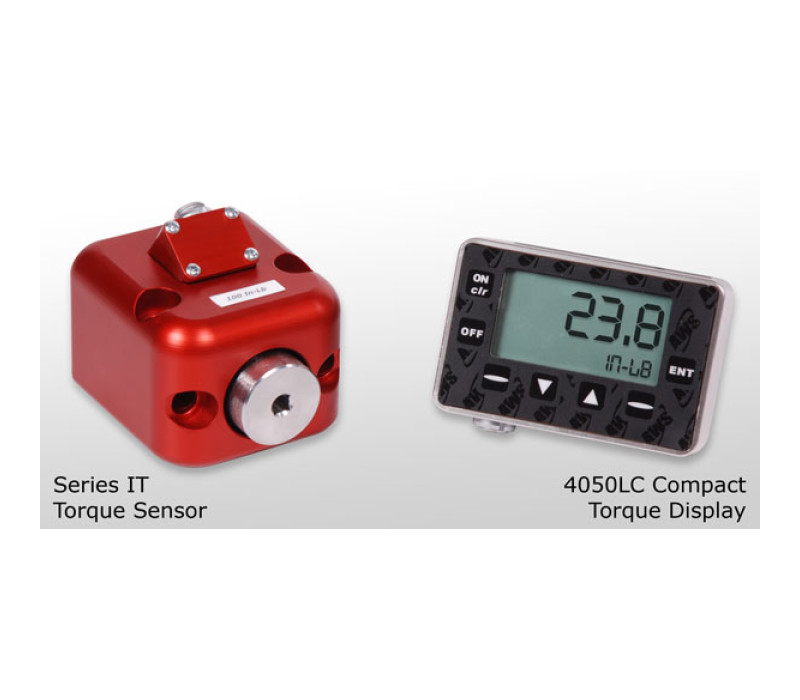

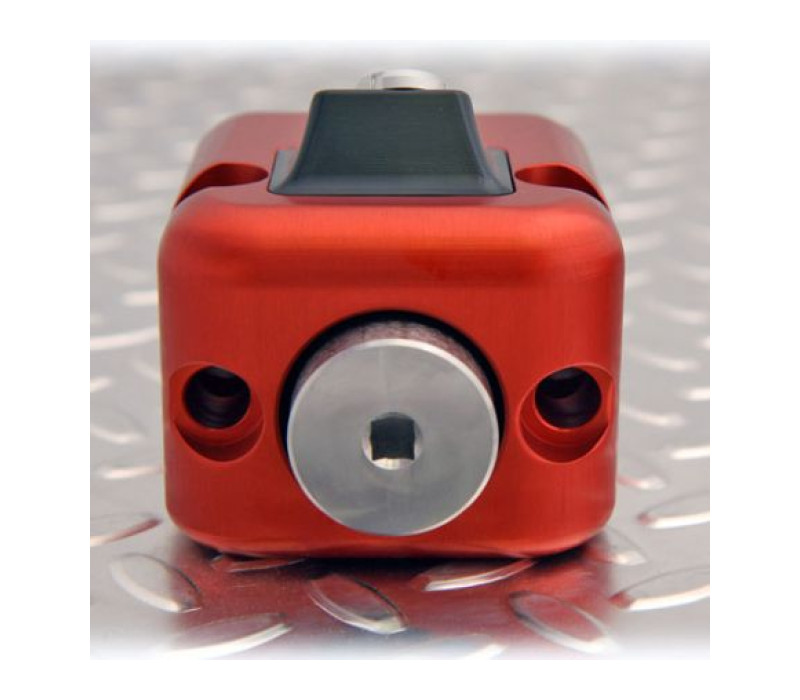

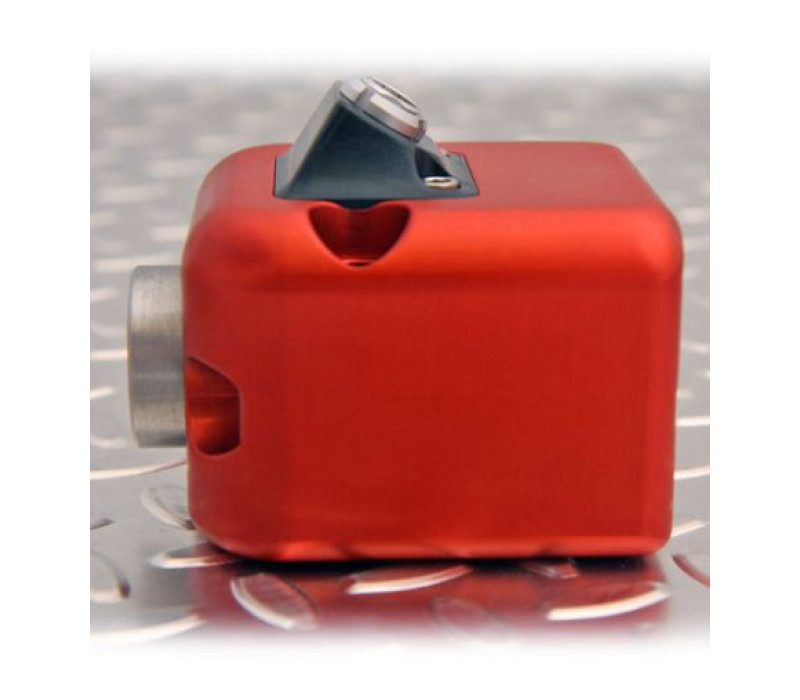

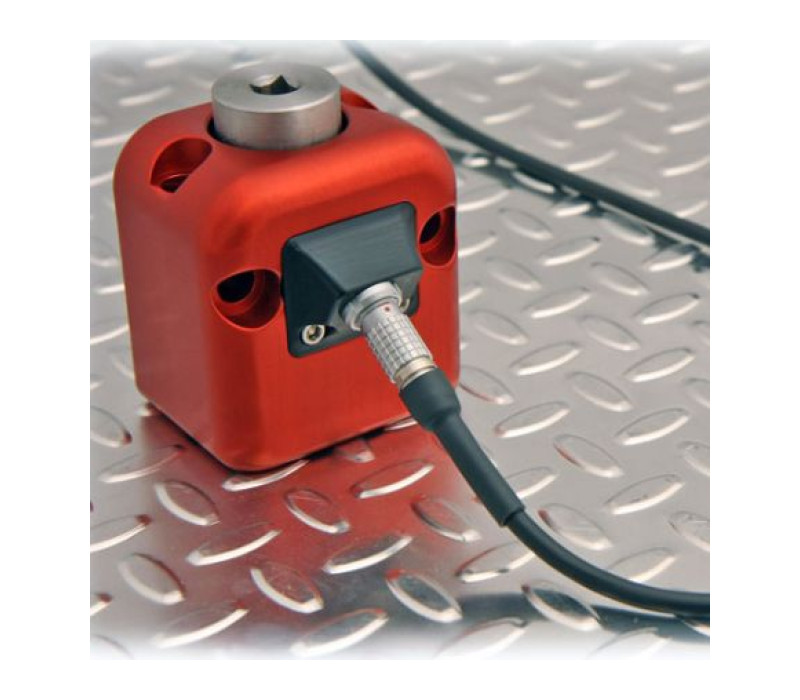

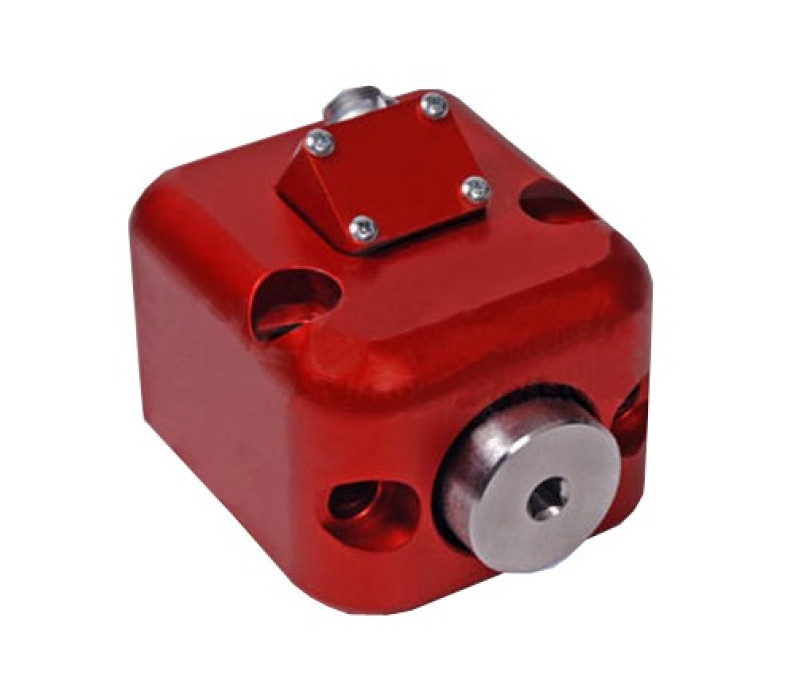

SERIES IT Bench Mounted Torque Sensor
The Series IT static torque transducers is especially designed for use with torque analyzers and data loggers. Thanks to the integrated, heavy-duty aluminum tripod, the Series IT can be mounted directly on the work surface. Optional anti-torque protection rings prevent overloading on smaller transducers and all transducers can be calibrated bidirectionally.
Important to note:
Models ITF-3000 & ITF-5000 are supplied without bench stands (mounting brackets). Please contact us to discuss your application. We are happy to advise you on the planning of a suitable system. Customized measuring ranges are available on request.
Please also note that a screw simulator is required for the use of electrical, hydraulic and pneumatic tools. This device is not suitable for inspection of impact wrenches or for use with force multipliers.
Torque ranges
| Model | Range | Drive Size | |||
| ITIO-10 | 0.007 - 0.070 N-m | 1/4" | |||
| ITIO-50 | 0.033 - 0.33 N-m | 1/4" | |||
| ITIO-100 | 0.066 - 0.66 N-m | 1/4" | |||
| ITI-10 | 0.11 - 1,1 N-m | 1/4" | |||
| ITI-25 | 0.27 - 2.7 N-m | 1/4" | |||
| ITI-50 | 0.54 - 5.4 N-m | 1/4" | |||
| ITI-100 | 1.1 - 11 N-m | 1/4" | |||
| ITI-250 | 2,7 - 27 N-m | 3/8" | |||
| ITI-500 | 5.4 - 54 N-m | 3/8" | |||
| ITI-1000 | 11.29 - 112.9 N-m | 3/8" | |||
| ITF-100 | 13 - 135 N-m | 1/2" | |||
| ITF-150 | 20 - 200 N-m | 1/2" | |||
| ITF-250 | 33 - 330 N-m | 1/2" | |||
| ITF-600 | 81 - 810 N-m | 3/4" | |||
| ITF-1000 | 135 - 1350 N-m | 1" | |||
| ITF-2000 | 270 - 2700 N-m | 1 1/2" | |||
| ITF-3000 | 400 - 4000 N-m | 1 1/2" | |||
| ITF-5000 | 677 - 6770 N-m | 1 1/2" | |||
Dimensions

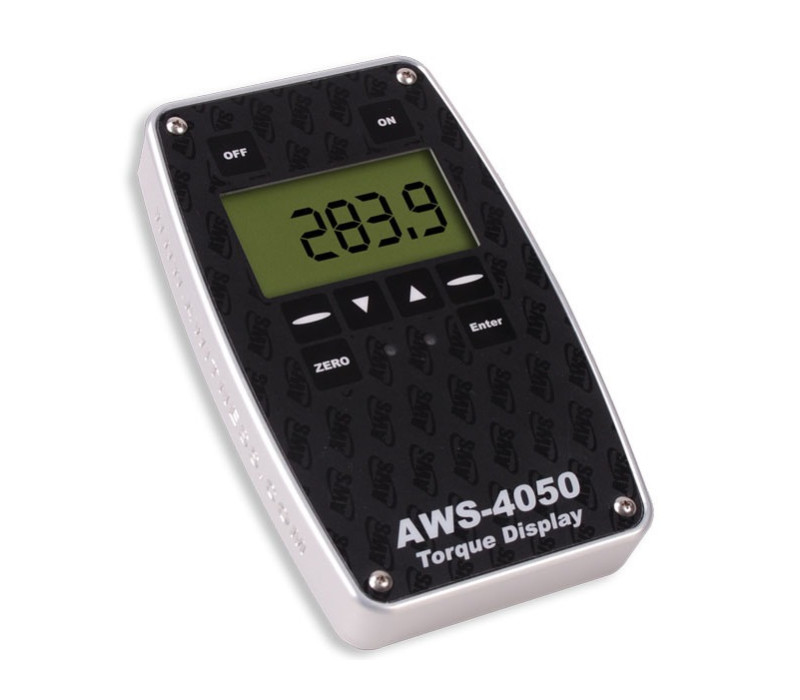

AWS-4050 Portable Digital Torque Display
- Eight (8) available engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm.
- Can be calibrated to virtually any manufacturer’s strain gauge transducers.
- Bidirectional accuracy of ±0.5% of indicated reading with AWS transducers, ±1% of indicated reading with rotary transducers.
- 3 modes of operation: Track, Peak and 1st Peak.
- Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz.
More details

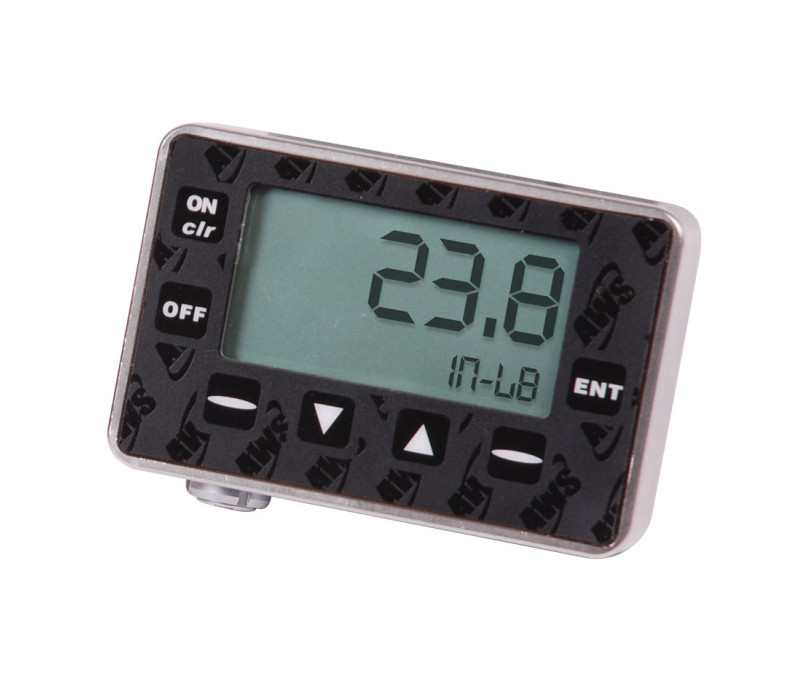

AWS-4050LC small portable torque display
- Bidirectional accuracy of ±0.5% of indicated reading with AWS transducers, ±1% of indicated reading with rotary transducers.
- Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz.
- Can be calibrated to virtually any manufacturer’s strain gauge transducers.
More details

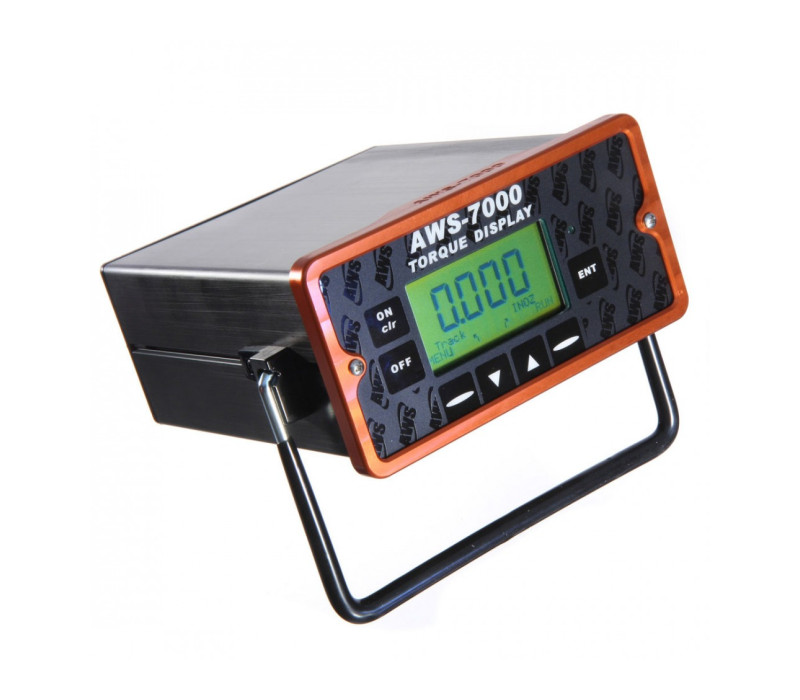

AWS-7000 Torque Display
- A 24-bit AD converter with no analog circuitry to drift.
- All filter settings rated to Nyquist frequency. This all be eliminates roll-off error.
More details

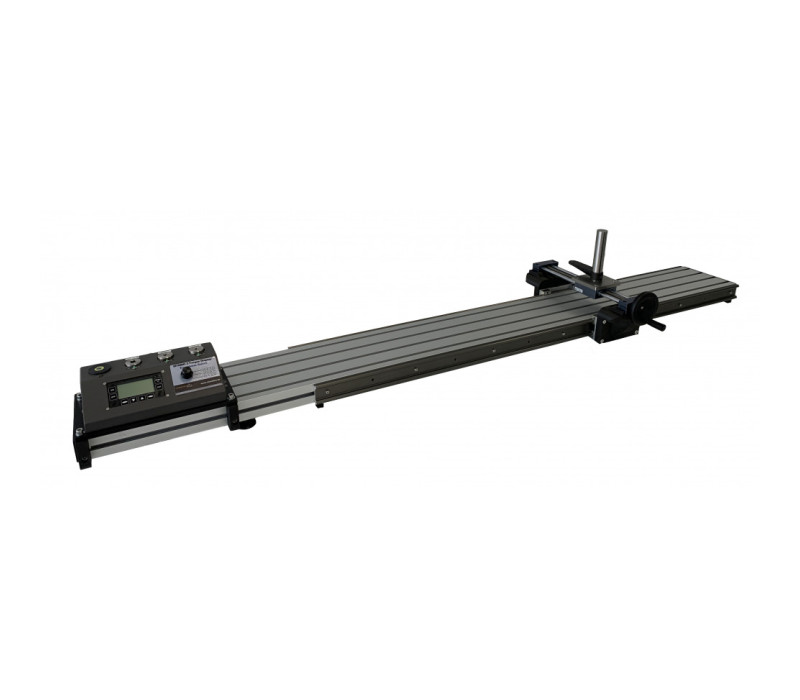

TWT-2000-Series Torque Wrench Loader
- Tool for torque wrench calibration/verification
- Compatible with many torque tool testers and wrenches
- Manually operated by hand wheel
More details
