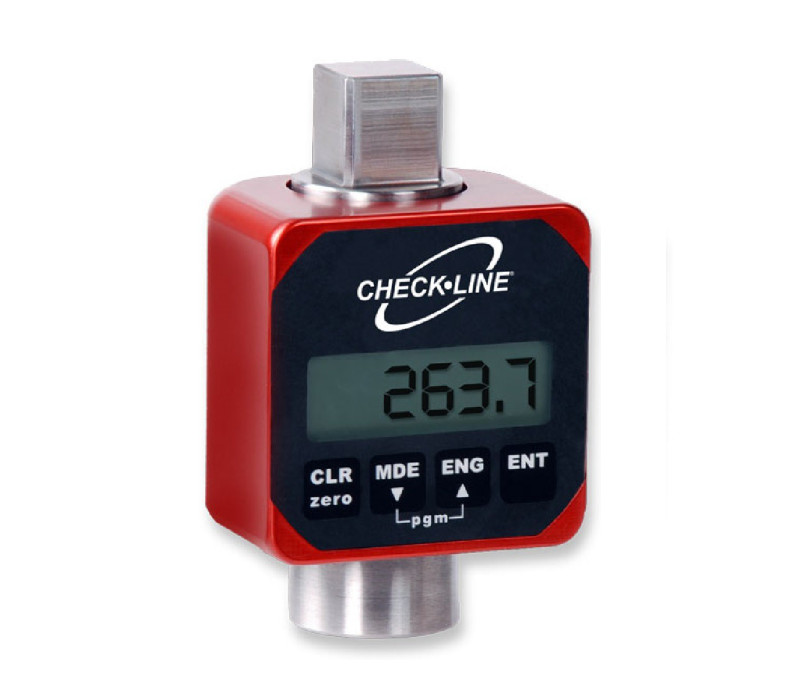

ILTT Inline Torque Tester

Inline Torque Tester

Name: Inline Torque Tester
SKU: 126542

12 areas up to 5000 lb-ft available

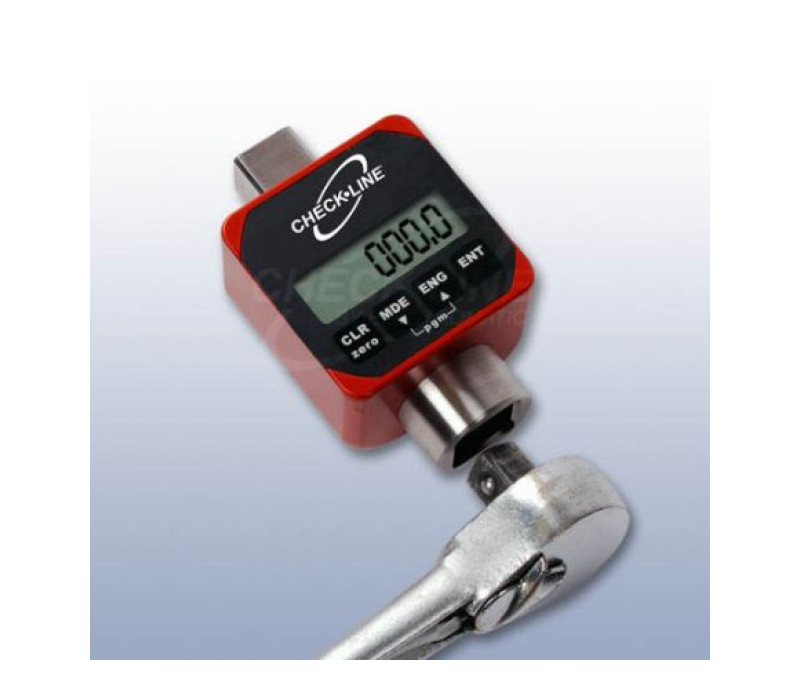

The versatile ILTT Inline torque tester transforms any non-impact torque tester into a complete torque measurement and analysis system. It connects the meter to the square drive, a socket can be inserted and then torque can be measured counterclockwise or clockwise.

Suitable for use with any manual tool, including torque wrenches, tie rods and more. The internal, rechargeable NiMH batteries guarantee 8-10 hours of continuous use.

The ILTT allows to change the test parameters within a few seconds and works in either one-button or in the automatic mode. Its outstanding reliability and ease of use are complemented with features such as character lock, peak suppression and Auto Clear.

N.B.: Not suitable for use with impact tools.

Price from € 1.728,00

Order now

Bidirectional accuracy of ±1% of indicated reading
Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
3 modes of operation: Track, Peak and 1st Peak
Rugged Aluminum Housing
NiMH rechargeable batteries provide 8-10 hours continuous use
Includes NIST-Traceable Calibration Certificate
Adjustable "auto-clear" for hands-free operation.
RS-232 Serial Output included for downloading data to PC's

Datasheet- model 50i - 500f

Datasheet- model 5000f

Datasheet- model 750f

Calibrated Range	10-100% Full Scale, bi-directional
Accuracy	±1% of indicated (within calibrated range)
Resolution	4 Active Digits
Overload Protection	200% Full Scale bi-directional
Operating Modes	Track, Peak, 1st Peak
Filtering	Selectable: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Data Output	RS-232
Power	Internal NiMH battery, 9V Charger (included)
Weight	Approximately 3lbs depending on transducer
Alarm Limits	Panel Mounted LED for Visual Alarm Limits
Operating Temperature	32 - 120°F (0 - 50°C)
Warranty	1 Year
Calibration Certificate	Includes NIST Traceable calibration certificate with data

Products

Item	Product	Price
132389	ILTT-100i-1/4 Inline Torque Tester 1- 11 Nm	€ 1.728,00
132390	ILTT-250i Inline Torque Tester 3/8" 2.8 - 28 N-m	€ 1.728,00
132391	ILTT-500i Inline Torque Tester 3/8" 5.6 - 56 N-m	€ 1.728,00
132392	ILTT-100F Inline Torque Tester 1/2" 13.5 - 135 N-m	€ 1.951,00
132393	ILTT-150F Inline Torque Tester 1/2" 20 - 203 N-m	€ 1.951,00
132394	ILTT-250F Inline Torque Tester 1/2" 33 - 338 N-m	€ 1.951,00
132395	ILTT-600F Inline Torque Tester 3/4" 83 - 813 N-m	€ 2.112,00
132396	ILTT-750F Inline Torque Tester 3/4" 101.0 - 1016 N-m	€ 2.112,00
132397	ILTT-1000F Inline Torque Tester 1" 135 - 1350 N-m	€ 3.421,00
132398	ILTT-2000F Inline Torque Tester (1½") 271- 2710 N-m	€ 2.669,00
132399	ILTT-3000F Inline Torque Tester 1 1/2" 406 - 4060 N-m	€ 2.619,00
132400	ILTT-5000F Inline Torque Tester 1 1/2" 677- 6770 N-m	€ 2.619,00
135414	ILTT-6000F Inline Torque Tester 1 1/2" 814-8135 N-m	€ 2.731,00
135415	ILTT-10000F Inline Torque Tester 2 1/2" 1356-13558 N-m	€ 3.338,00

Accessories

Item	Product	Price	Quantity	Action
136686	TTS-SC Software for TT, MTM- series with cable	€ 302,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
