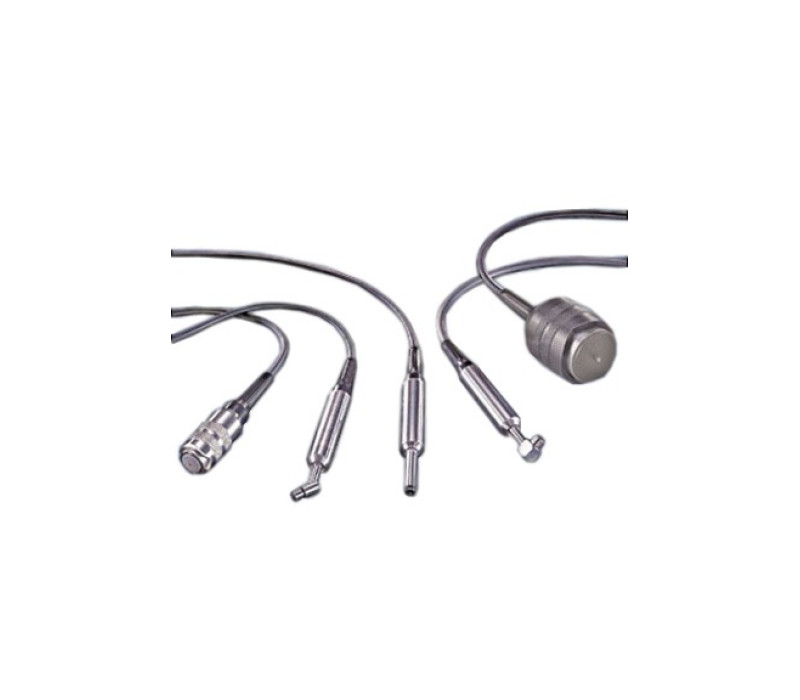

    6000-PROBES Probes For Use With 6000 Series

    PosiTector bodies are compatible with all PosiTector probes, allowing quick and easy conversion from a coating thickness gauge to a surface profile gauge, dew point meter, soluble salt tester, hardness tester, or ultrasonic thickness gauge.

    When it comes to the 6000 Series, the rugged PosiTector 6000 Paint Thickness Gage stands out for its use of magnetic and eddy current principles to accurately and quickly measure paint thickness on both ferrous and non-ferrous metals.

    Below, you will find a selection of compatible probes designed specifically for this purpose.
    Price from € 385,00
    Order now
    • All probes are supplied with a NIST Traceable calibration certificate
    • Compatibility of Positector Bodies with all PosiTector probes
    • Simple and efficient conversion between measurement methods and substrates through interchangeable probes

    Series 6000 Probe Details Chart

    Probe Model                   Substrates       Probe Style      Measuring Range
    PosiTector 6000 IP-F Ferrous Integral 0 - 60 mils (0 - 1500 μm)
    PosiTector 6000 GP FS Ferrous Regular Cabled 0 - 60 mils (0 - 1500 μm)
    PosiTector 6000 FXS Ferrous Regular Cabled 0 - 80 mils (0 - 2000 μm)
    PosiTector 6000 FRS Ferrous 90° Regular Cabled 0 - 60 mils (0 - 1500 μm)
    PosiTector 6000 MP-F0S Ferrous 0° Microprobe 0 - 45 mils (0 - 1150 μm)
    PosiTector 6000 MP-F45S Ferrous 45° Microprobe 0 - 45 mils (0 - 1150 μm)
    PosiTector 6000 MP-F90S Ferrous 90° Microprobe 0 - 45 mils (0 - 1150 μm)
    PosiTector 6000 FT Ferrous Integral 0 - 250 mils (0 - 6 mm)
    PosiTector 6000 FTS Ferrous High-range Cabled 0 - 250 mils (0 - 6 mm)
    PosiTector 6000 FTRS Ferrous 90° High-range Cabled  0 - 250 mils (0 - 6 mm)
    PosiTector 6000 FHXS Ferrous High-range Cabled (hot and rough surfaces) 0 - 400 mils (0 - 10000 μm)
    PosiTector 6000 FKS Ferrous High-range Cabled 0 - 500 mils (0 - 13 mm)
    PosiTector 6000 FJS Ferrous High-range Cabled 0 - 400 mils (0 - 10000 μm)
    PosiTector 6000 FLS Ferrous High-range Cabled 0 - 1.5 inches (0 - 38 mm)
    PosiTector 6000 IP-N Non-ferrous Integral 0 - 60 mils (0 - 1500 μm)
    PosiTector 6000 GP-NS Non-ferrous Regular Cabled 0 - 60 mils (0 - 1500 μm)
    PosiTector 6000 GP-NRS Non-ferrous 90° Regular Cabled 0 - 60 mils (0 - 1500 μm)
    PosiTector 6000 AN-NAS Non-ferrous Regular Cabled (Waterproof anodizing) 0 - 25 mils (0 - 625 μm)
    PosiTector 6000 MP-N0S Non-ferrous 0° Microprobe 0 - 25 mils (0 - 625 μm)
    PosiTector 6000 MP-N45S Non-ferrous 45° Microprobe 0 - 25 mils (0 - 625 μm)
    PosiTector 6000 MP-N90S Non-ferrous 90° Microprobe 0 - 25 mils (0 - 625 μm)
    PosiTector 6000 NKS Non-ferrous High-range Cabled 0 - 500 mils (0 - 13 mm)
    PosiTector 6000 FN Ferrous / Non-Ferrous Integral 0 - 60 mils (0 - 1500 μm)
    PosiTector 6000 GP-FNS Ferrous / Non-Ferrous Regular Cabled 0 - 60 mils (0 - 1500 μm)
    PosiTector 6000 GP-FNRS Ferrous / Non-Ferrous 90° Regular Cabled 0 - 60 mils (0 - 1500 μm)
    PosiTector 6000 GP-FNDS Ferrous / Non-Ferrous Regular Cabled (Duplex) 0 - 60 mils (0 - 1500 μm)
    PosiTector 6000 FNTS Ferrous / Non-Ferrous High-range Cabled 0 - 250 mils (0 - 6 mm)
    PosiTector 6000 FNGS Ferrous / Non-Ferrous High-range Cabled 0 - 2.5 inches (0 - 63.5 mm)
    Probe dimensional drawing
    FS, NS, FNS FRS, NRS, FNRS F45S, N45S AN
    regular probe

    F, N, FN, FT F0S N0S FHXS

    F90S, N90S FNTS FTS FKS, NKS
    microprobe
    High-range regular probe High range




    GS FNDS
    FXS Xtreme-sonde

    Positector Body-Probe Compatibility Chart

    Order Now

    Products
    Item Product Price  Quantity Action
    130771PosiTector 6000GP-FS-Probe, Cabled Ferrous Probe for PosiTector € 499,00
    130772PosiTector 6000GP-NS-Probe, Cabled Non Ferrous Probe for PosiTector € 571,00
    130773PosiTector 6000GP-FNS-Probe Cabled Ferrous/Non Ferrous Probe for PosiTector € 894,00
    130774PosiTector 6000GP-NRS-Probe Cabled 90 deg. Non Ferrous Probe for PosiTector € 637,00
    130775PosiTector 6000-FRS-Probe Cabled 90degr. Ferrous Probe for PosiTector € 552,00
    130776PosiTector 6000GP-FNRS-Probe Cabled 90 deg. Ferrous/Non Ferrous Probe for PosiTector € 947,00
    130777PosiTector 6000MP-F0S-Probe Cabled Ferrous Micro Probe for PosiTector € 775,00
    130778PosiTector 6000MP-F45S-Probe Cabled 45 deg. Ferrous Micro Probe for PosiTector € 775,00
    130779PosiTector 6000MP-F90S-Probe Cabled 90 deg. Ferrous Micro Probe for PosiTector € 775,00
    130780PosiTector 6000MP-N0S-Probe Cabled Non Ferrous Micro Probe for PosiTector € 775,00
    130781PosiTector 6000MP-N45S-Probe Cabled 45 deg. Non Ferrous Micro Probe for PosiTector € 775,00
    130782PosiTector 6000MP-N90S-Probe Cabled 90 deg. Non Ferrous Micro Probe for PosiTector € 775,00
    130783PosiTector 6000-FTS-Probe Cabled Ferrous High Range Probe for PosiTector € 604,00
    130784PosiTector 6000-FNTS-Probe Cabled Ferrous/Non Ferrous High range Probe for PosiTector € 999,00
    130785PosiTector 6000-FKS-Probe Cabled Ferrous Thick protective Coatings Probe for PosiTector € 666,00
    130786PosiTector 6000-NKS-Probe Cabled Non Ferrous High Range Probe for PosiTector € 690,00
    131643PosiTector 6000AN-NAS-Probe, Cabled waterproof Anodizing Thickness Probe for PosiTector € 775,00
    132529PosiTector 6000IP-F-Probe, Integral Ferrous Probe for PosiTector € 385,00
    132530PosiTector 6000IP-N-Probe, Integral Non Ferro Probe for PosiTector € 461,00
    132531PosiTector 6000-FT-Probe, Integral, Ferrous, High Range protective coating, Probe for PosiTector € 524,00
    133072PosiTector 6000-FN-Probe, Integral Ferro/Non Ferro Probe for PosiTector € 775,00
    133763PosiTector 6000-FHXS-Probe, Cabled Ferrous, hot and rough surfaces Probe for PosiTector € 1.108,00
    134063PosiTector 6000-FNGS-Probe, Cabled Ferrous/Non Ferrous Very Thick Coating Probe for PosiTector € 1.503,00
    135476PosiTector 6000-FLS-Probe, Cabled Heavy Duty Ferrous Probe for PosiTector € 1.227,00
    135638PosiTector 6000GP-FNDS-Probe, Cabled Duplex Coating Probe for PosiTector € 1.023,00
    137409PosiTector 6000-FXS-Probe, Cabled Ferrous, rough conditions Probe for PosiTector € 775,00
    137521PosiTector 6000-FTRS-Probe, Cabled, Ferrous Protective Coating Probe for PosiTector € 666,00
    Accessories
    Item Product Price  Quantity Action
    1372956000-Probe-EXT - Probe Cable Extension up to 7.6 Meter € 288,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
