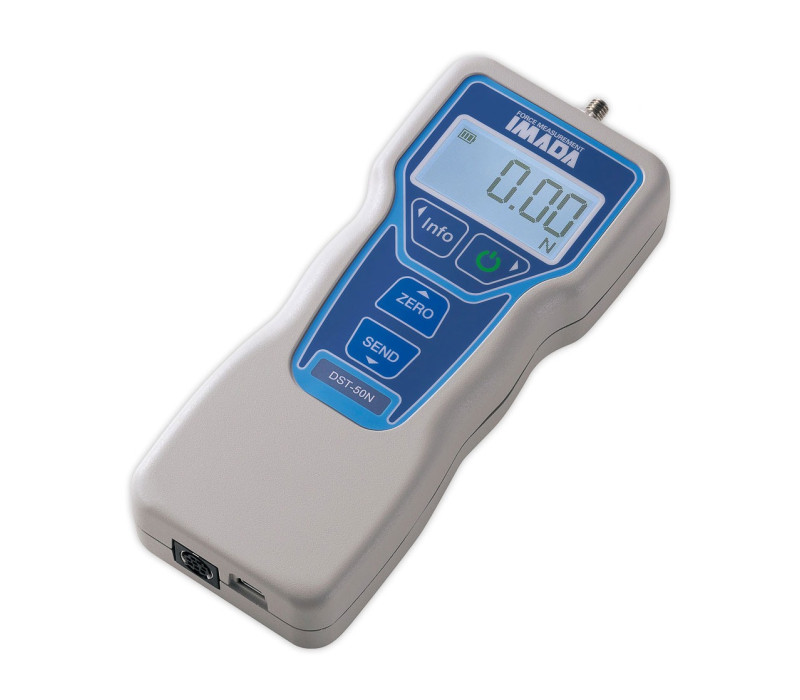

    DST DST Digital Force Gauge with 30,000 / sec sampling rate

    The Digital DST force gauges are easy-to-use base units for compressive force and traction measurements with user-friendly menu navigation. The DST also comes with the possibility to lock the measurement units mode as well as the measurement selection mode to prevent accidental changes.

    The large backlit LCD display can be configured in basic format to display the measured value, measuring unit and measuring mode, or in multi-line format to simultaneously display peak and real-time values. The DST Digital DST force gauge also includes additional features such as a rotating display and maximum and minimum settings with an "OK" on the display for Go / No Go tests.

    The DST force gauges have an ultra-fast sampling rate of 30,000 / sec. Data is collected via USB or RS-232 data output using Force Logger or SW1X software (both optional).

    DST force gauges are powered by a rechargeable Ni-MH battery or AC adapter.
    € 618,00
    Shop now
    • Ergonomic, durable, heavy-duty metal construction
    • 30,000/sec sampling rate

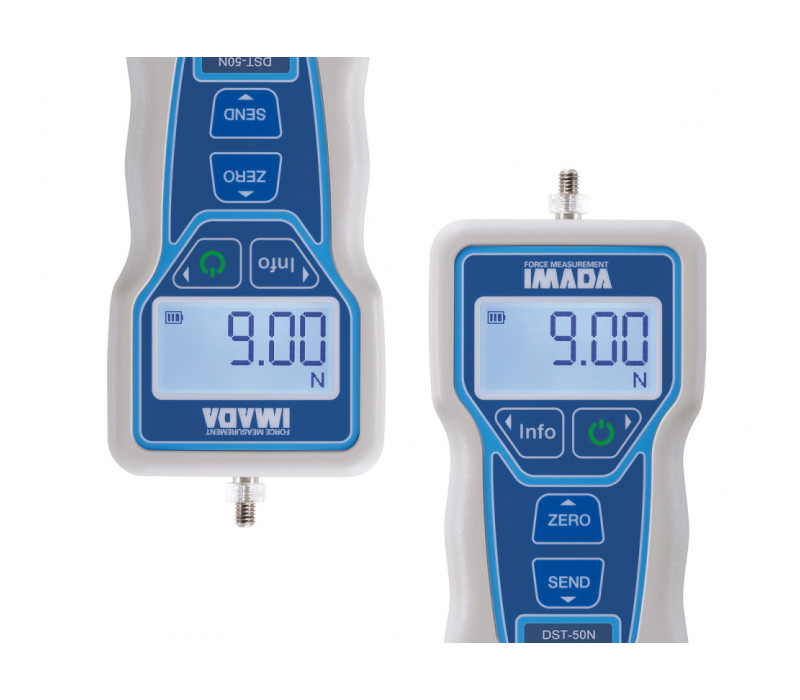

    • Backlit LCD reversible display with user-friendly menus
    • Overload capacity 200% F.S.; display flashes at overload limit
    • Push-button tare function
    • Setting security lock prevents accidental changes
    • Selectable real time or peak mode operation
    • Programmable High/Low setpoints with OK indicator
    • USB and RS-232C output
    • The DST kit includes set of six attachments, AC charger/adapter, calibration cert traceable to NIST and carrying case
    • Ni-MH batteries (user replaceable) or AC adapter; charge with USB port or portable charger

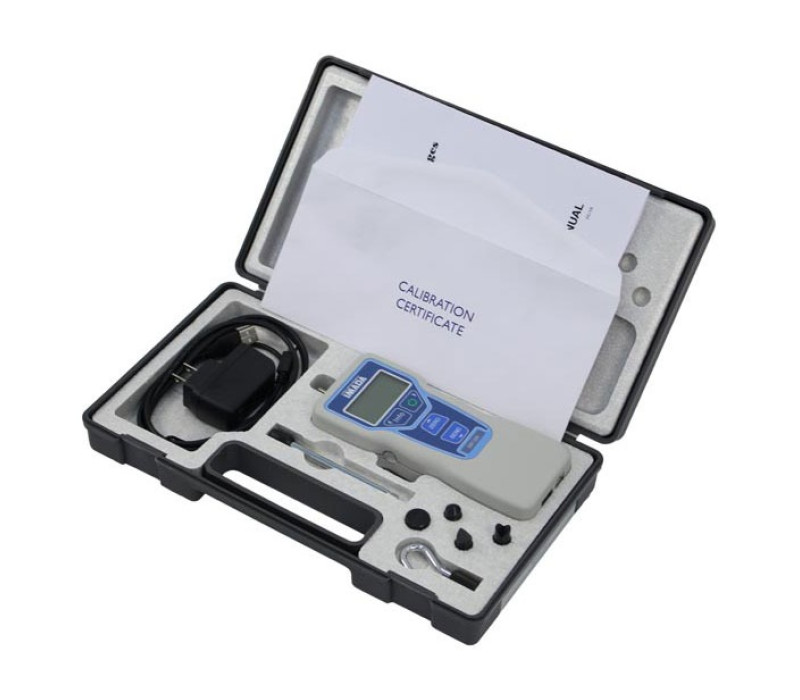

    Complete Kit

    The DST force gauge is delivered as a complete kit including:

    • Gauge
    • Six Standard Attachments
    • Calibration Certificate Traceable to NIST
    • Hard Plastic Carrying Case
    • User Manual & AC Adapter / Charger (USA)

    Tension Ranges

    Model Ranges Resolution
    DST-2N 7.00 oz
    200 g
    2.000 N    		 0.01 oz
    0.1 g
    0.001 N
    DST-5N 18.00 oz
    500 g
    5.000 N    		 0.01 oz
    0.1 g
    0.001 N
    DST-20N 4.400 lb
    2.000 KG
    20.00 N    		 0.001 lb
    0.001 Kg
    0.01 N
    DST-50N 11.00 lb
    5.000 Kg
    50.00 N    		 0.01 lb
    0.001 kg
    0.01 N
    DST-200N 44.00 lb
    20.00 Kg
    200.0 N    		 0.01 lb
    0.01 kg
    0.1 N
    DST-500N 110.0 lb
    50.00 Kg
    500.0 N    		 0.1 lb
    0.01 kg
    0.1 N
    DST-1000N 220.0 lb
    100.0 Kg
    1000 N    		 220.0 lb
    100.0 Kg
    1000 N
    Dimensions-DST
    Standard accessories:

    Kraftmessgerät DST Standardzubehör

    Measuring Principle:Bidirectional force sensor with strain gauge
    Accuracy:± 0.2% F.S., ± 1 LSD
    Update Rate:30,000 Hz
    A/D Converter16 bit
    Set point: Programmable maximum / minimum setpoint with 'OK' display
    Display4 Digit LCD Display
    Display update rate:8 times / sec
    Selectable Measuring Units:lbf(ozf), kgf(gf) or Newtons
    Battery Life: Approx. 30 hours without backlight
    Approx. 14 hours with backlight
    Full charge requires 4.5 hours
    Battery Indicator:Battery icon indicates 3 levels of charge
    Overload protection:200% of full scale
    alarm signal beeps at 90%
    alarm signal sounds are triggered and display flashes at 110%
    Data Output: USB, RS-232C
    Power supply: Rechargeable NiMH batteries. Charging via AC adapter or via USB cable via a computer or power bank.
    Housing: Die-cast aluminum
    Mounting holes: 4 x M4, depth 8 mm
    Thread gauge:M6 exterior
    Operating temperature:0° - 40°C
    Dimension:181 x 72 x 32 mm (LxWxH)
    Air humidity:20 - 80% RH
    Weight net (gross):approx. 460g (1300g)
    Guarantee:2 years

    Accessories

    Browse Accessories

    Buy Now

    Products
    Item Product Price  Quantity Action
    136507DST-2N Digital Force Gauge € 618,00
    136508DST-5N Digital Force Gauge € 618,00
    136509DST-20N Digital Force Gauge € 618,00
    136510DST-50N Digital Force Gauge € 618,00
    136511DST-200N Digital Force Gauge
    136512DST-500N Digital Force Gauge € 618,00
    136513DST-1000N Digital Force Gauge

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
