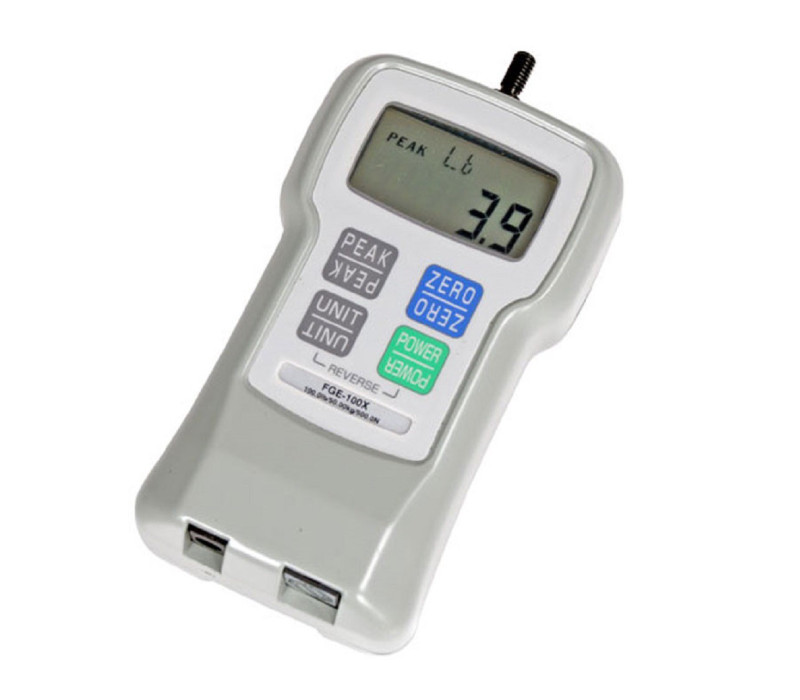

FGE Hand-held Digital Force Gauge

Name: FGE Hand-held Digital Force Gauge
SKU: 126610

8 Ranges up to 100lbs
Measures Push / Pull Force

The microprocessor-controlled, digital FGE Digital Force Gauges precisely measure push/pull forces up to 100 pounds with an accuracy of ± 0.2%.

They are extremely compact for convenient hand-held use and include provisions for mounting on a test stand for bench top use.

Optional Handle for FGE Force Gauge. FG-HANDLE

€ 693,00

Order now

Includes Traceable Calibration Certificate
Accuracy ± 0.2%
Display can be reversed for inverted use
1 Year Warranty
Display "real-time" or "peak" force
200% overload protection
User-selected units of Pounds, Kilograms or Newtons

Includes

Force Gauge,
AC Adapter/Charger,

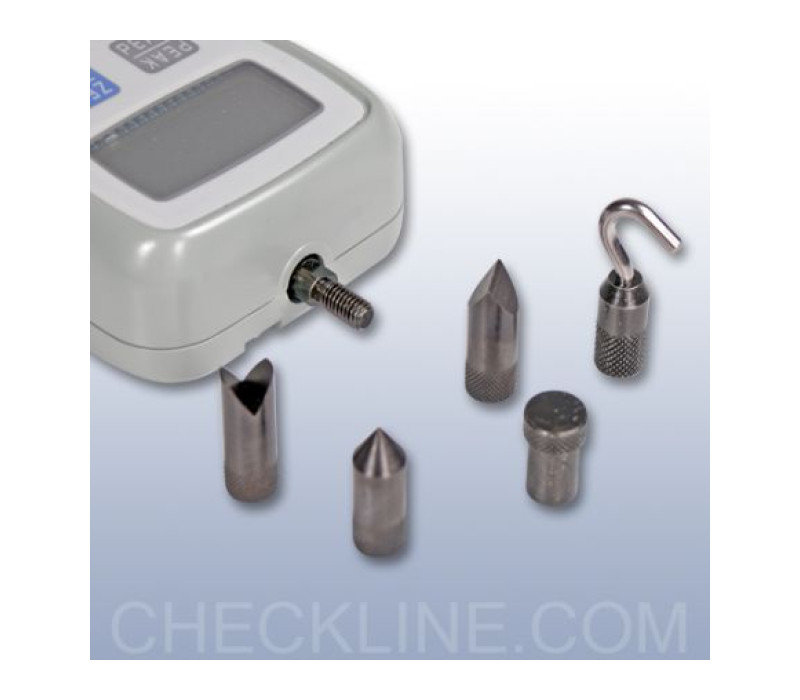

6 Attachments;Hook, Flat Head, Notched Head, Hanger, Cone head & Extension rod

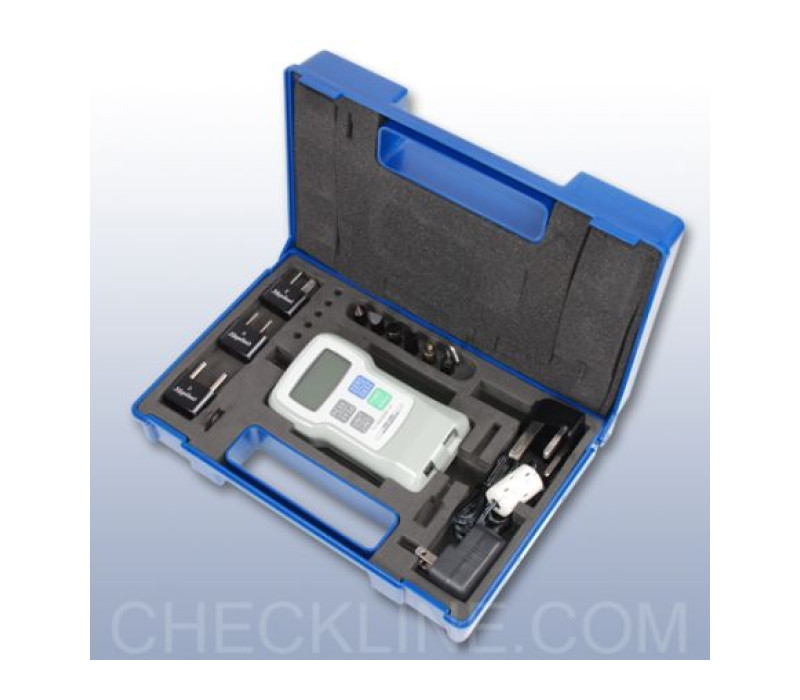

In a foam fitted carrying case

Tension Ranges

Model	Ranges	Resolution
FGE-0.5XY	8.00 oz 200.0 g 2 N	0.01 oz 0.1 g 0.001 N
FGE-1XY	16.00 oz 500.0 g 5 N	0.01 oz 0.1 g 0.001 N
FGE-2XY	2.000 lb 1000 g 10 N	0.001 lb 1 g 0.01 N
FGE-5XY	5.000 lb 2.000 Kg 20 N	0.001 lb 0.001 kg 0.01 N
FGE-10XY	10.00 lb 5.000 Kg 50N	0.01 lb 0.001 kg 0.01 N
FGE-20XY	20.00 lb 10.00 Kg 100 N	0.01 lb 0.01 kg 0.1 N
FGE-50XY	50.00 lb 20.00 Kg 200 N	0.01 lb 0.01 kg 0.1 N
FGE-100XY	100.0 lb 50.00 Kg 500 N	0.1 lb 0.01 kg 0.1 N

Y1 no header

Note:
FGE / FGV-0.5X & FGE / FGV-1X - Shaft thread is M4
FGE / FGV-2X & Over - Shaft thread is M6

Standard Attachments

Accuracy	±0.2% full scale
Display	4-Digit LCD, 12mm high. Reversible by the push of a button. Minus sign for tension
Display Update	0.05, 0.1, 0.2, 0.3, 0.5, 1 sec
Sampling Rate	1000 times per second
Overload Protection	200% of full scale
Power	Rechargeable Ni-Cad battery or AC through adapter/charger
Auto Power Shut-Off	Yes (inactive if adapter/charger is used)
Battery Life	12 hours (when fully charged)
Recharge Time	Approximately 18 hours when fully discharged

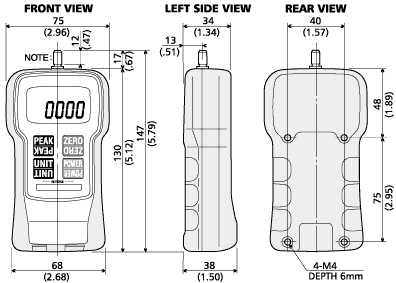

Dimensions	5.1" L x 2.9" W x 1.5" H (130 mm x 75 mm x 38 mm)
Weight	1 lb (450 g)
Approvals	CE approved
Warranty	1 Year

Products

Item	Product	Price
131278	FGE-0.5XY Digital Force Gauge	€ 693,00
131279	FGE-1XY Digital Force Gauge	€ 693,00
131277	FGE-2XY Digital Force Gauge	€ 693,00
131276	FGE-5XY Digital Force Gauge	€ 693,00
131280	FGE-10XY Digital Force Gauge	€ 693,00
131281	FGE-20XY Digital Force Gauge	€ 693,00
131282	FGE-50XY Digital Force Gauge - up to 20 Kg / 200 N	€ 693,00
130407	FGE-100XY Digital Force Gauge	€ 693,00

Accessories

Item	Product	Price
131382	FG-HANDLE (Handle for FGE, FGV, FG-3000, FG-7000 Force Gauges)
132861	FG-09V120UC - Spare / Replacement Power Adapter -US-version	€ 48,00
139989	SHIMPO-EU - Power Adapter	€ 0,00
140016	NIST-FG - NIST Traceable Certificate of Force Calibration to 50 KG	€ 465,00
140018	NIST-FG-HX - NIST Traceable Certificate of Force Calibration from 100 to 500 kg	€ 532,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
