DT-105A - DT-107A Contact Tachometer

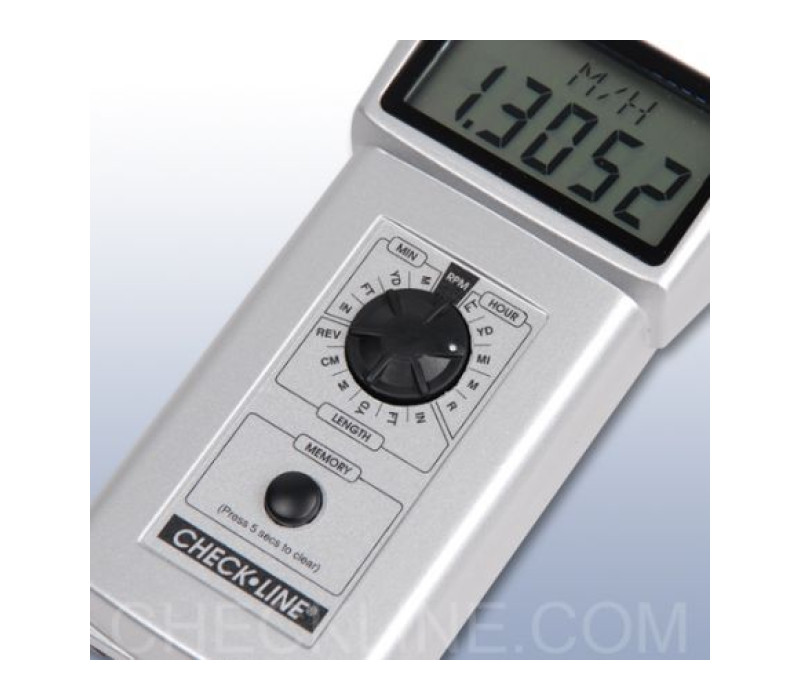

DT-105A Mode Selector Switch

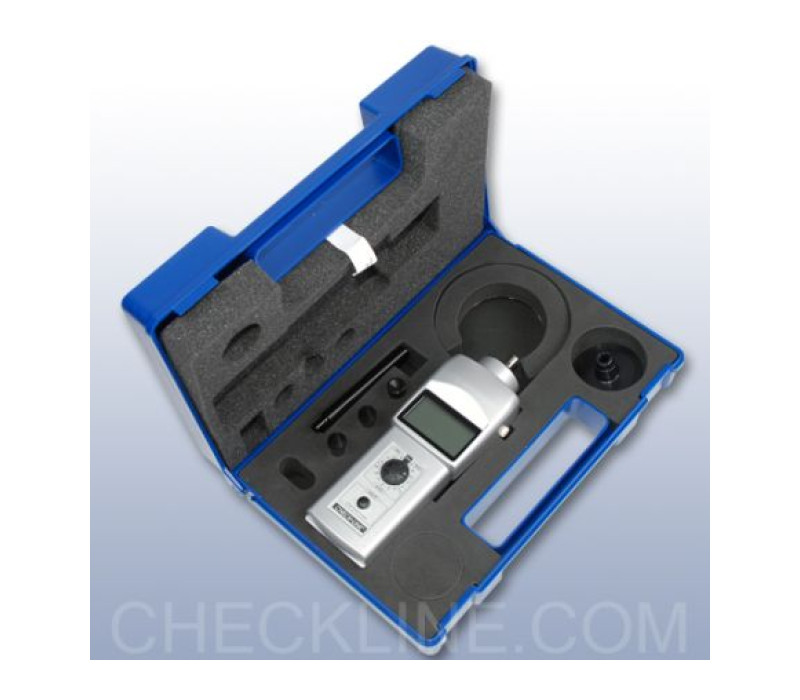

DT-209X Complete Kit

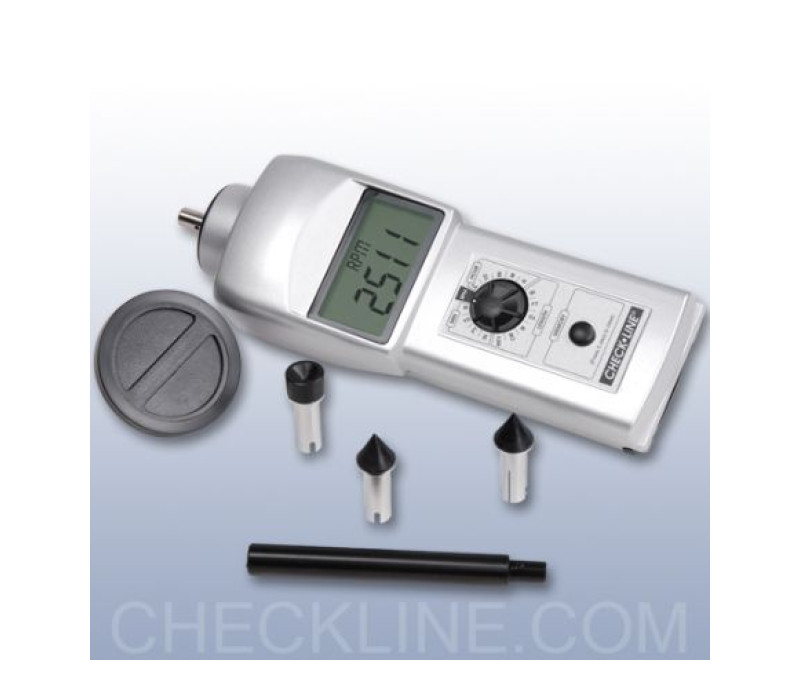

DT-209X with accessories

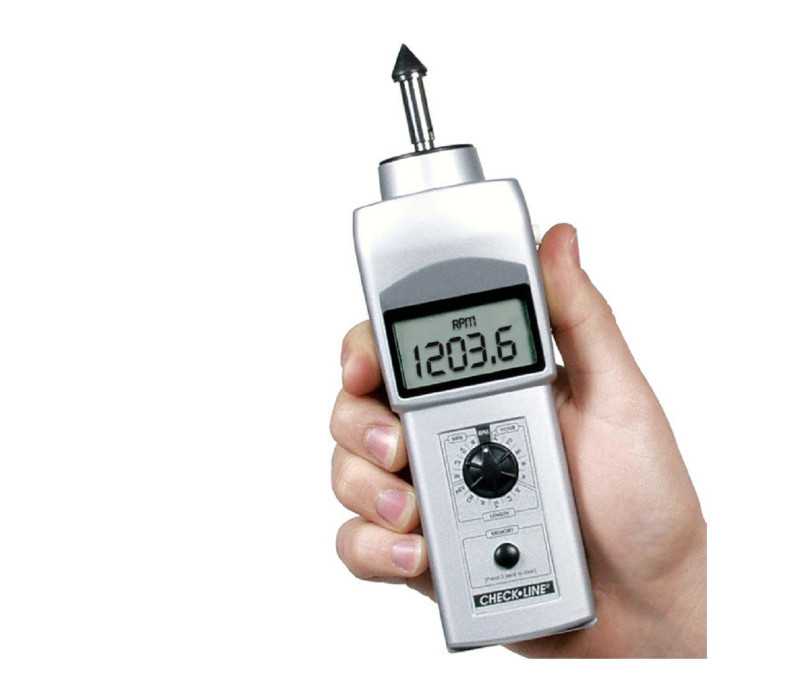

DT-105A - DT-107A Contact Tachometer

Name: DT-105A - DT-107A Contact Tachometer
SKU: 126735

DT-105A (LCD MODEL)
DT-105A-12 (LCD MODEL with 12" Circumf. Wheel)
DT-107A (LED MODEL)
DT-107A-12 (LED MODEL with 12" Circumf. Wheel) 0.10 - 25,000 RPM

The DT-105A & DT107A Contact Tachometers accurately measure rotational and surface speed, as well as length. A built-in selector switch permits the user to display readings in a wide variety of engineering units. The DT-105A-12 and DT-107A-12 include a 12" circumference measuring wheel which is offered for safer and easier surface speed measurement by keeping the users hand farther from the moving surface and slowing down the rotational speed.

Price from € 309,00

Order now

Built-in memory for last, maximum, minimum and 10 separate readings
LED version for use in poorly lit or dark environments
Rugged cast aluminum housing
Includes Traceable calibration Certificate

All models are supplied as a complete kit including:

6" circumference surface speed wheel,
two cone tip adapters,
funnel tip adapter,
shaft extension,
two AA batteries,
an operating instruction manual
all supplied in a foam-fitted carrying case.

LCD Display vs LED Display

Optional 12" Wheel for Large Diameter Cables, Tapes & Bands

Display Range	0.10 to 25,000 rpm with floating decimal
Accuracy	0.10 to 999.99 rpm: ±0.06 rpm 1,000.0 to 9,999.9 rpm: ±0.6 rpm 10,000 to 25,000 rpm: ±0.006% rpm
per Minute	Revolutions, Meters, Yards, Feet, Inches
per Hour	Feet, Yards, Miles, Meters, Revolutions
Total	Revolutions, Centimeters, Meters, Yards, Feet, Inches
per Second	Revolutions, Inches, Feet, Yards, Centimeters (optional, inquire)
Memory System	13 readings are stored in memory and retained for 5 minutes
Over-Range Indicator	Flashing numerals
Detection	Optical coupler, 60 pulses/rev
Update Time	1 second (typical)
Batteries	Size: 2 1.5 V AA Life: Approx. 65 hrs. (DT-105A) Life: Approx. 40 hrs. (DT-107A)
Low Voltage Indicator	Flashing "LO BAT" display (DT-105A) "B" display (DT-107A)
Operating Temp	32° to 113° F (0 to 45° C)
Weight	0.9 pounds (400 grams)
Dimensions	7.3" L x 2.4" W x 1.8" H
Warranty	1 year
Accessories Included	2 cone adapters, 1 funnel adapter, 3-1/2" extension shaft, 1 surface speed wheel (6" circumference), carrying case, operating instructions

Products

Item	Product	Price
131429	DT-105A LCD Tachometer	€ 309,00
130521	DT-107A LED Tachometer	€ 309,00
131430	DT-105A-12 Tachometer LCD with 12" wheel	€ 374,00
126907	DT-107A-12 Tachometer LED with 12" wheel	€ 374,00
131431	DT-105A-12CBL Tachometer with 12" grooved cable wheel	€ 588,00
131432	DT-107A-12CBL Tachometer with 12" grooved cable wheel	€ 588,00

Accessories

Item	Product	Price
131288	DT-TRI-HD Mini Tripod
130043	DTCA Cone Tip for Hand-held tachometers	€ 12,00
130044	DTFA Funnel Adapter - Funnel Tip for Hand-held tachometers	€ 15,00
126862	DTSX -Shaft Extension	€ 14,00
139547	Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable)	€ 25,00
139617	DT-107-EXT-HANDLE-50"	€ 299,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

DT-105A - DT-107A Contact Tachometer

Features

Dimensions

Specifications

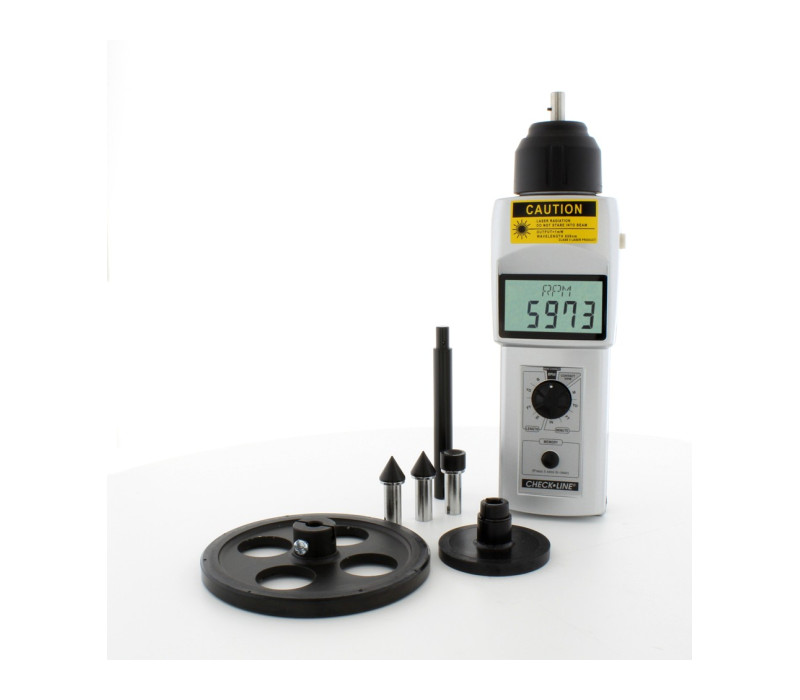

DT-205LR - DT-207LR Contact & Non-Contact Tachometer

DT-TRI-HD Tripod for Tachometers and Stroboscopes

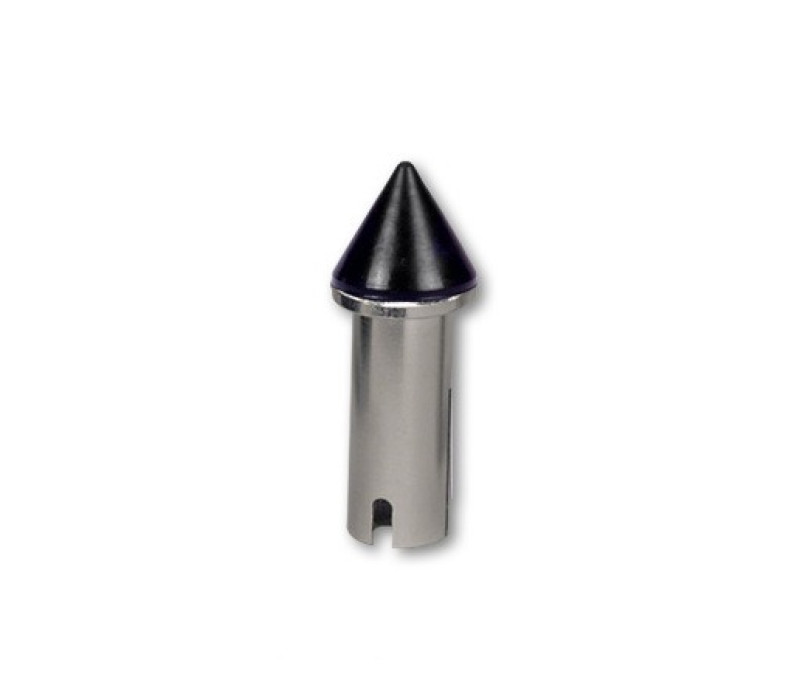

DTCA Tachometer Cone Tip

DTFA Tachometer Funnel Tip

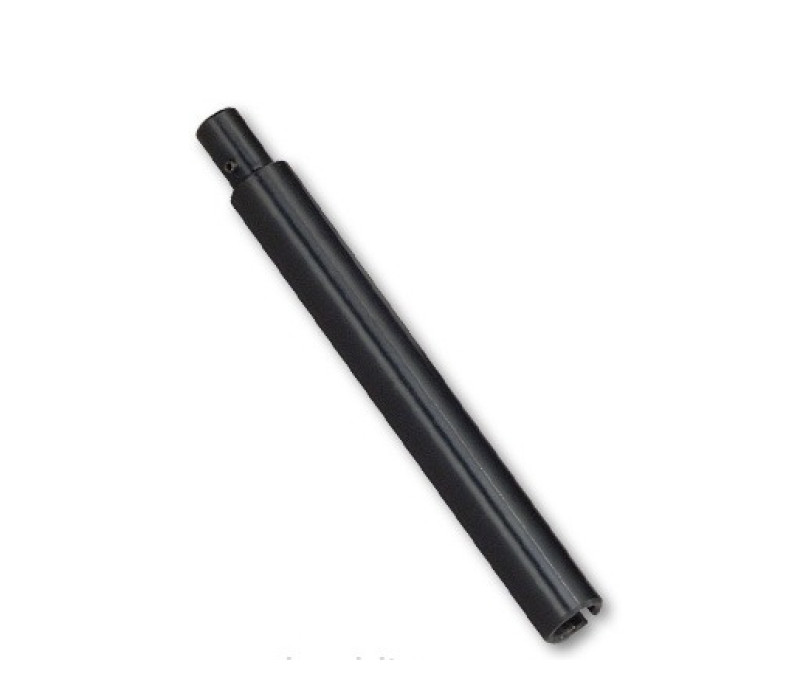

DTSX 3-inch Shaft Extension

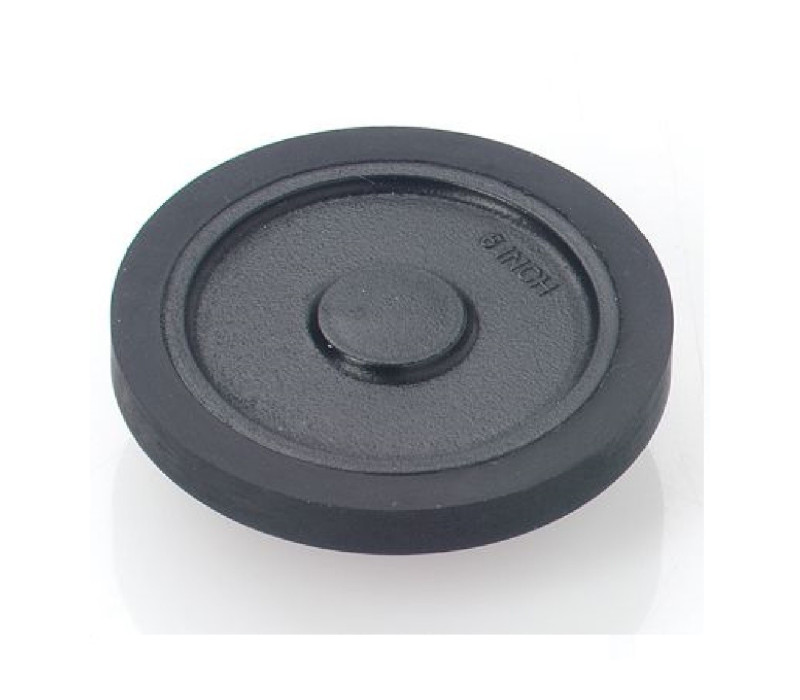

DT6 Rubber Measuring Wheel for Tachometers

DT12 12 inch Circumference Wheel

LMA-3 12 in Circumference Knurled Aluminum Measuring Wheel

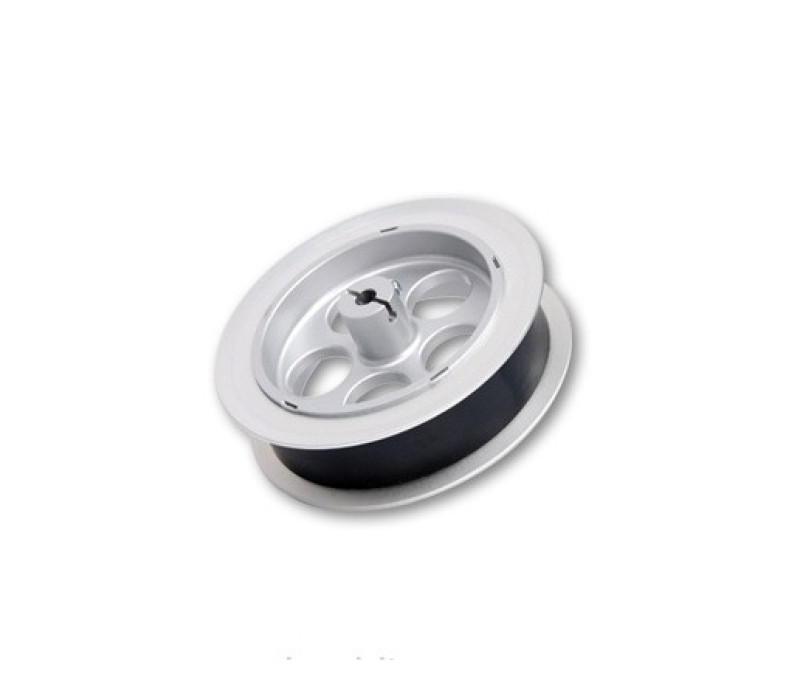

FPM-12-CBL 12 inch Circumference Wheel
