DT-205LR - DT-207LR Contact & Non-Contact Tachometer

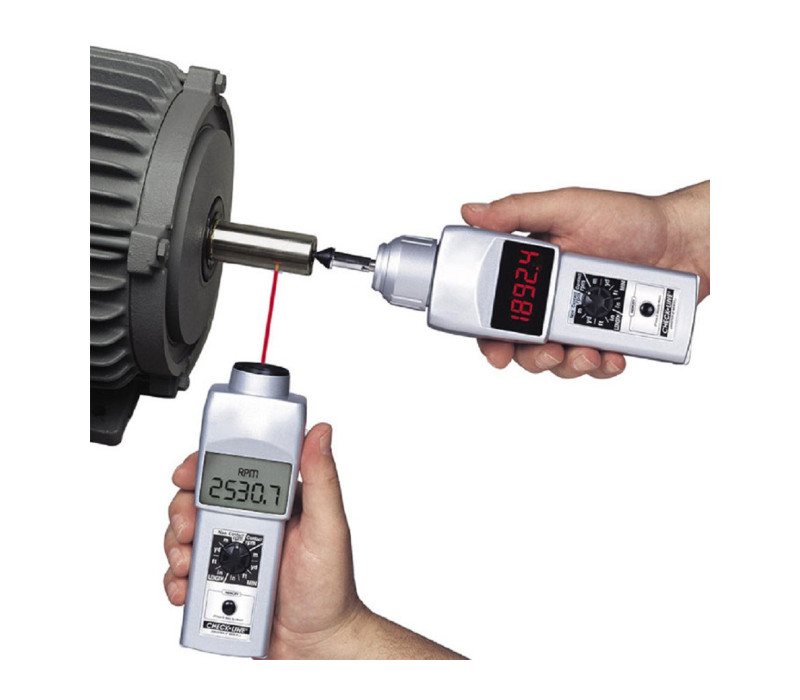

DT-207LR Complete Kit

DT-205LR - DT-207LR Contact & Non-Contact Tachometer

Name: DT-205LR - DT-207LR Contact & Non-Contact Tachometer
SKU: 126734

DT-205LR LCD MODEL with 6" Circum Measuring Wheel
DT-205LR-12 LCD MODEL with 12" Circum Measuring Wheel
DT-207LR LED MODEL with 6" Circum Measuring Wheel
DT-207LR-12 LED MODEL with 12" Circum Measuring Wheel

The Checkline DT-205LR & DT-207LR combine the best features found in both contact and non-contact tachometers for the accurate measurement of rpm, surface speed and length. The screw-in contact adapter makes it quick & easy to convert from non-contact to contact operation.

Price from € 349,00

Order now

High-precision laser measures from distances up to 14 feet
Built-in memory for last, maximum, minimum and 10 separate readings
Includes 6" circumference surface speed wheel
LCD Version for use in sunlight and for longest battery life
LED version for use in poorly lit or dark environments
Includes Traceable calibration Certificate

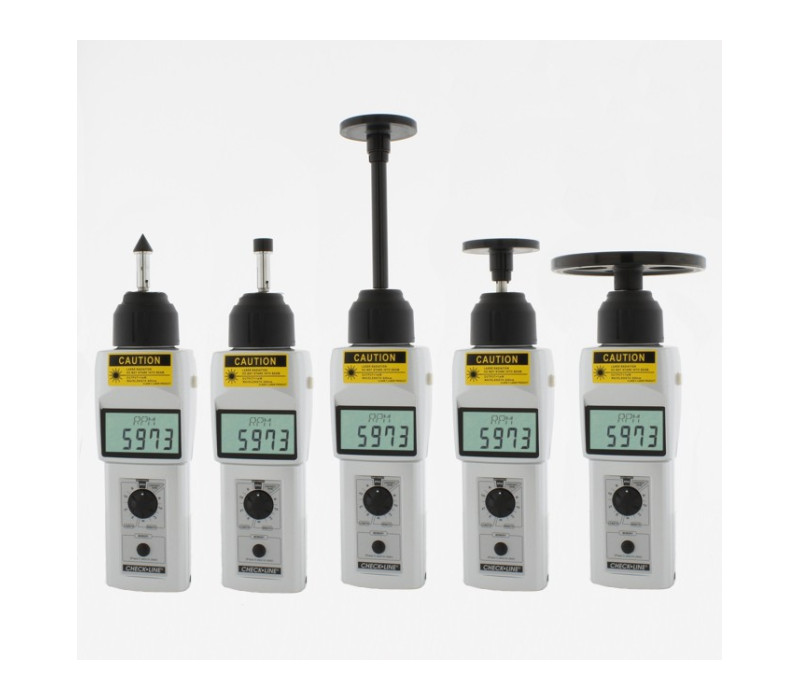

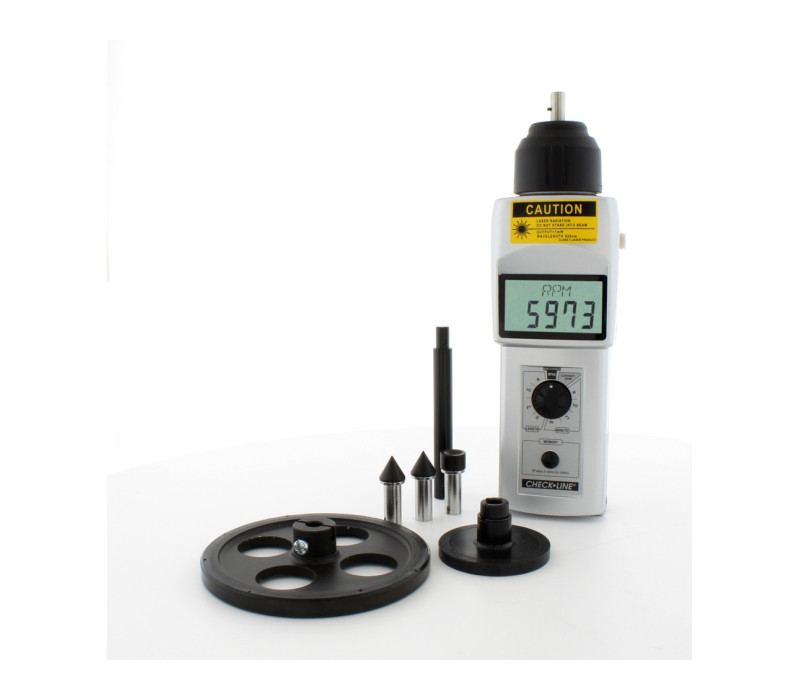

All models are supplied as a complete kit including the tachometer, reflective tape, screw-in contact adapter, 2 cone tips, funnel tip, shaft extension, surface speed wheel, two AA batteries and an operating instruction manual - all supplied in a foam-fitted carrying case.

Note:On DT-205LR-12 and DT-207LR-12 models 12" circumference wheel is supplied instead of 6" version.

LCD Display vs LED Display

Tachometer Accessories

Click here for tachometer accessories

Measuring Range	Non-Contact - 6 to 99,999 rpm Contact - 0.8 to 25,000 rpm
Accuracy	6 to 8,299 rpm: ±1 rpm 8,300 to 24,999 rpm: ±2 rpm 25,000 to 99,999 rpm: ±0.006% rpm
Display	DT-205LR (LCD MODEL) 5 digit 0.47" (12mm) high LCD DT-207LR (LED MODEL) 5 digit 0.4" (10mm) high LED
per Minute	Revolutions, Meters, Yards, Feet, Inches
Total Length	Meters, Yards, Feet, Inches
Measuring Distance Laser	14 feet (5.2 m) maximum
Detection	Laser Diode, Class II
Memory	13 readings are stored in memory and retained for 5 minutes
Over-Range Indicator	Flashing numerals
Update Time	1 second (typical)
Batteries	2 - 1.5 V AA
Battery Life	DT-205LR Approx 40 hrs DT-207LR Approx 25 hrs
Operating Temp	32° to 113° F (0 to 45° C)
Construction	Die-cast aluminum housing
Weight	0.8 pounds (365 grams)
Dimensions	6.6" L x 2.4" W x 1.8" H (167mm x 61mm x 45.7)
Warranty	1 year
Accessories Included	Reflective tape, cone adapter, surface speed wheel (6" cir.), 200L contact adapter and carrying case

Products

Item	Product	Price
130049	DT-205LR Tachometer Contact & Non Contact	€ 349,00
130419	DT-205LR-12 Tachometer Contact & Non Contact with 12" Measuring Wheel	€ 414,00
126889	DT-207LR Tachometer LED Contact & Non-contact	€ 349,00
130116	DT-207LR-12 Tachometer LED Contact & Non-contact With 12" Measuring Wheel	€ 414,00

Accessories

Item	Product	Price	Quantity	Action
126135	10009S - Reflective Tape 4 Sheets 35 1/2	€ 15,00
139547	Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable)	€ 25,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

DT-205LR - DT-207LR Contact & Non-Contact Tachometer

Features

Dimensions

Specifications

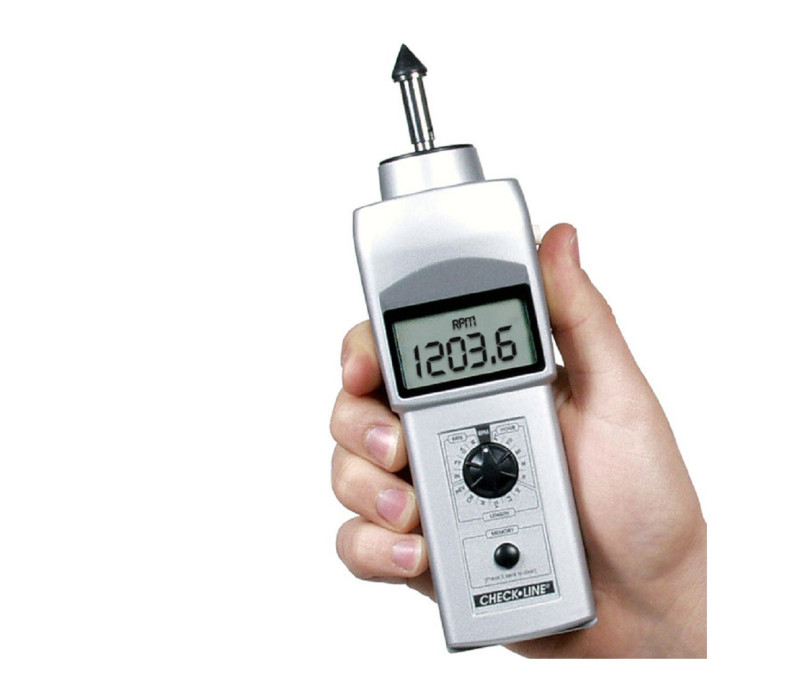

DT-105A - DT-107A Contact Tachometer
