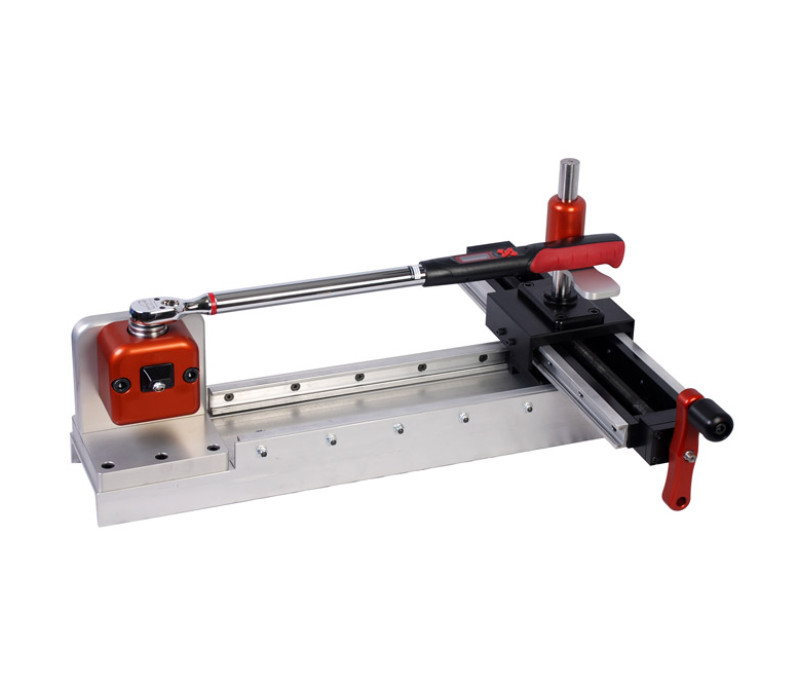

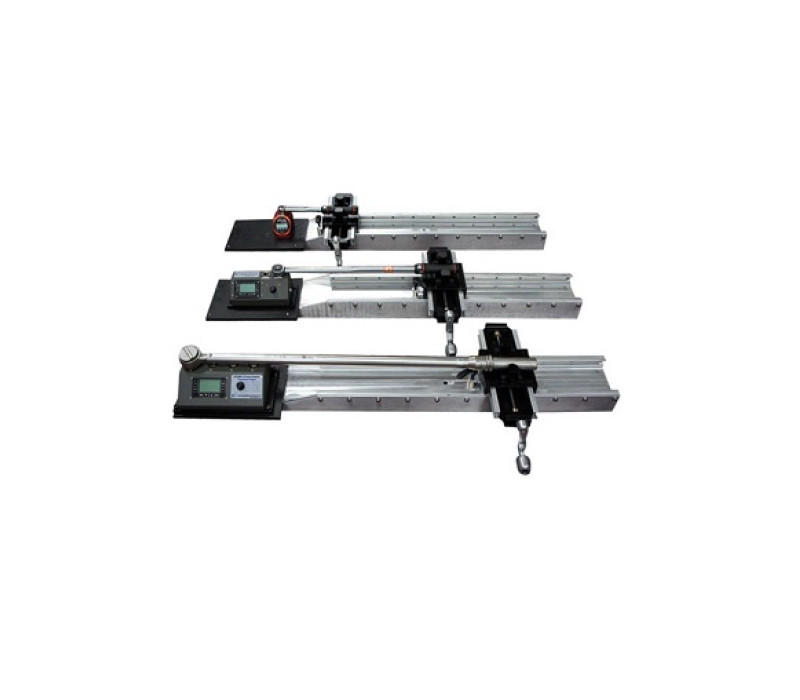

    AWS-1000 Series Torque Wrench Loader

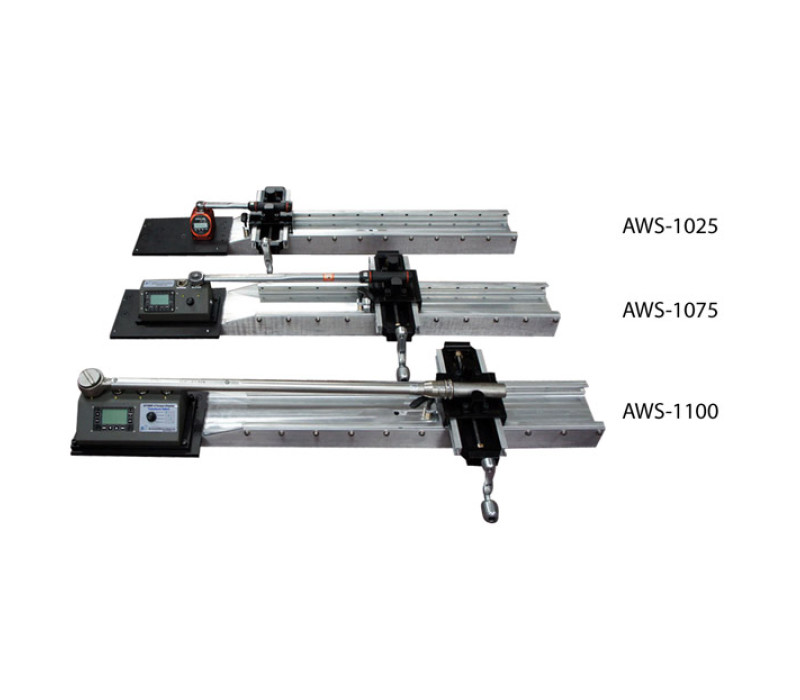

    3 Models Available:

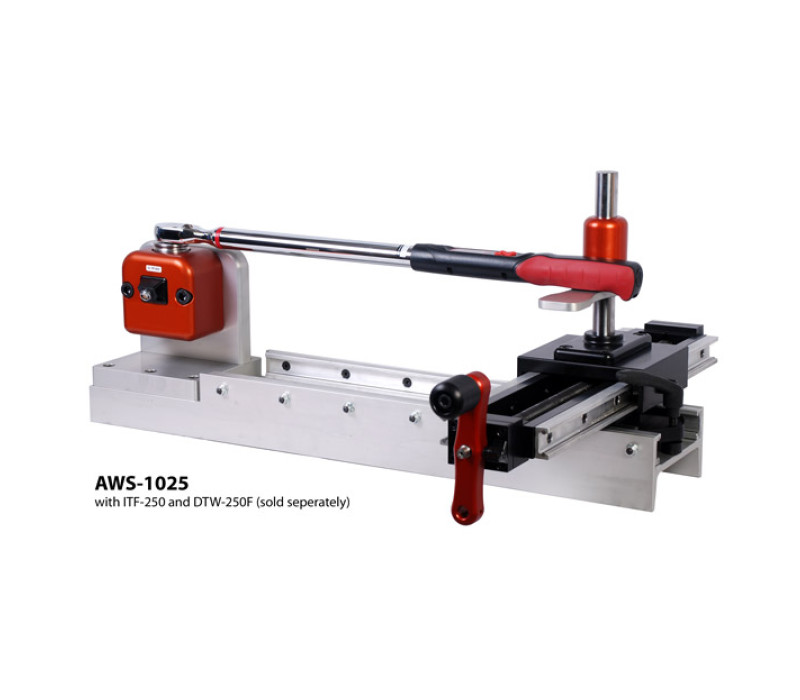

    AWS-1025: 250 lb-ft / 340 Nm Capacity
    AWS-1075: 750 lb-ft / 1000 Nm Capacity

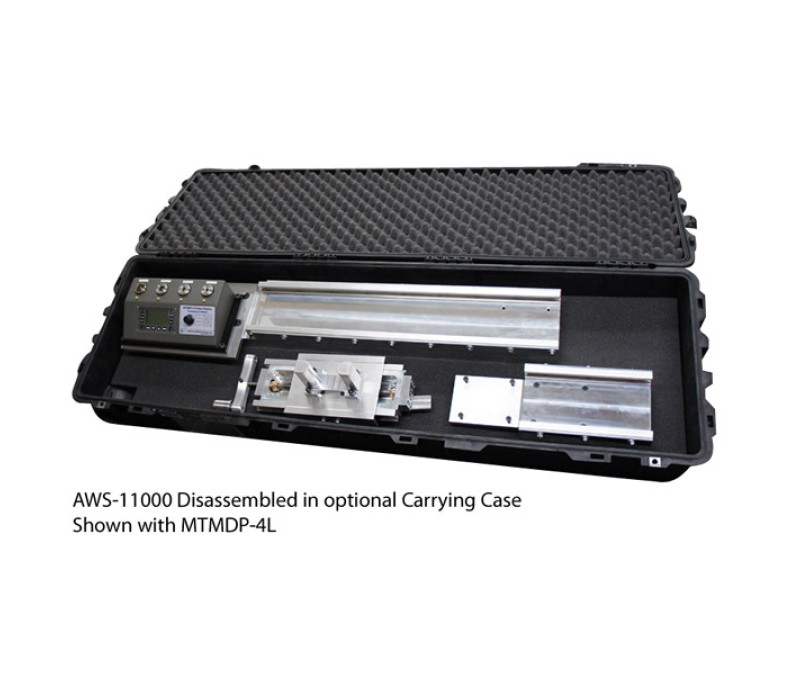

    AWS-11000: 1000 lb-ft / 1350 Nm Capacity

    The sturdy and durable AWS-1000 series mechanical torque wrench loaders have been specifically designed for use with our IT Transducers, MTM and TT-QCM torque testers.

    These highly precise torque loaders are used to precisely test and calibrate torque wrenches up to 1000 lb-ft / 1350 Nm with a measuring accuracy of up to ± 0.25% of indicated readings, in accordance with metrology lab requirements while providing the durability required for production environments at the same time.

    An optional motor kit allows for automated testing, improved speed and repeatability.
    Price from € 3.776,00
    Order now
    • Rugged Machined Aluminum Construction

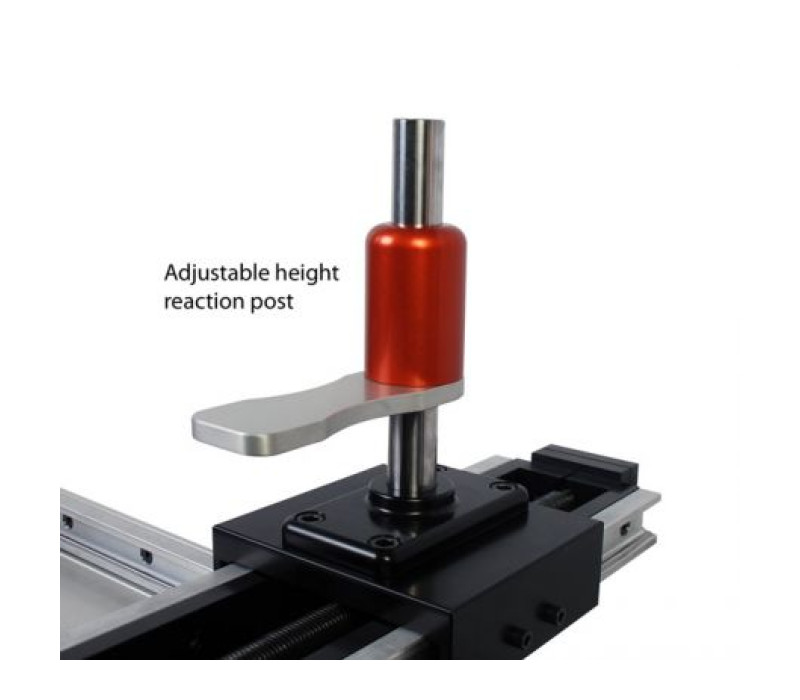

    • Adjustable length and height for precise alignment with calibration mark
    • Heavy-duty precision gear box for easy load application
    • Motor kit available
    AWS-102531 cm x 31 cm x 76 cm (12" x 12" x 30")
    AWS-107531 cm x 41 cm x 127 cm (12" x 16" x 50")
    AWS-1100031 x 61 x 183 cm (12" x 24" x 72")

    Related Products

    Browse Related Products

    Torque Tool Tester for torque tool calibration

    Torque Tool Tester for torque tool calibration

    Series IT Bench Mounted Torque Sensor

    Series IT Bench Mounted Torque Sensor

    MTM Multi-Range Torque Tester

    MTM Multi-Range Torque Tester

    Torque Wrench Loader

    Torque Wrench Loader

    Torque Wrench Test Stand

    Torque Wrench Test Stand

    Order Now

    Products
    Item Product Price  Quantity Action
    133167AWS-1025 -Mechanical Torque Loader 250 lb-ft / 340 Nm Capacity (torque tester sold separately) € 3.776,00
    135410AWS-1075 - Mechanical Torque Loader 750 lb-ft / 1000 Nm Capacity (torque tester sold separately) € 4.389,00
    135411AWS-11000 - Mechanical Torque Loader 1000 lb-ft / 1350 Nm Capacity (torque tester sold separ € 4.783,00
    Accessories
    Item Product Price  Quantity Action
    135412AWS-1000-TS - Tombstone Adapter Plate for TT-QCM
    135413AWS-MTM-PLATE - Adapter Plate, Loader to MTM € 348,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request

    View Cart Check out
