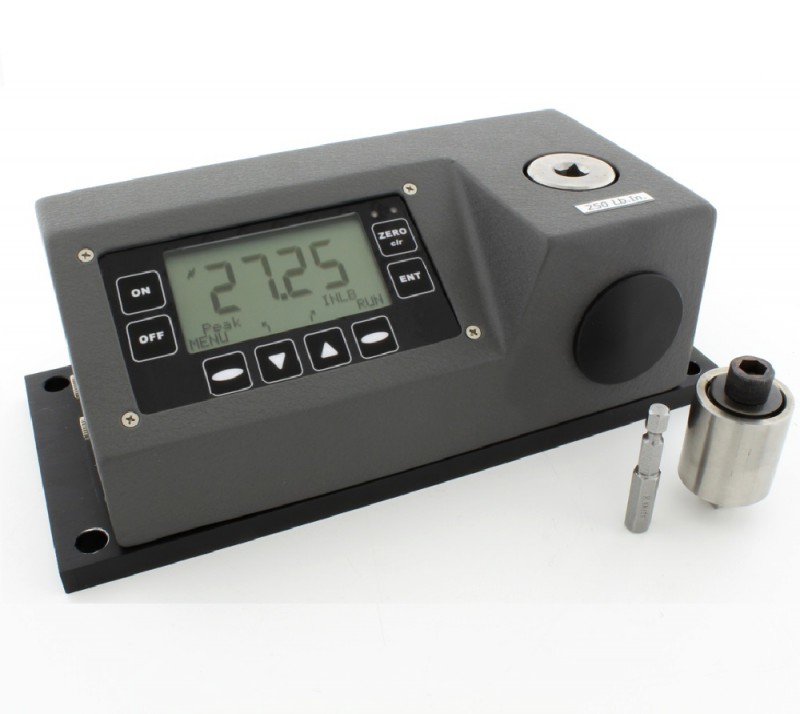

TT-3000 Series Torque Testers with 16 measurement ranges


Made in  USAThe powerful and versatile TT-3000 Series Torque Testers fulfil the demands of modern production facilities at a low cost. These testing systems accommodate many testing requirements and most power tools including pulse and DC electric. Furthermore the TT-3000 Series Torque Testers are perfectly suited for testing click, dial, and digital wrenches.

The data memory allows the storage of 999 data points for later viewing or sending them via the standard RS232 port to a local printer or PC. The unique lock switch facility allows tamper-proof operation. High and low limits are easily set and a panel mounted LED visually notifies the user when the torque reaches these limits. Systems include dedicated internal transducers in vertical or horizontal configurations, and rundown fixtures for power/pulse tool testing.

N.B.: This torque tester is not suitable for testing impact wrenches or for use with force multipliers and a screw simulator is needed for the use of electrical, hydraulic and pneumatic tools.


Features

  • Bidirectional accuracy of ±0.5% of indicated reading
  • Eight selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • 3 modes of operation: Track, Peak, and 1st Peak
  • NiMH rechargeable batteries provide 8-10 hours continuous use
  • Joint Simulator supplied with all 1/4", & 3/8" drives, optionally available on 1/2", 3/4" & 1" drives.
  • RS-232 Output
  • Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
  • For testing click, dial, and digital wrenches, plus most power tools including impulse and DC electric
  • Includes NIST - Traceable Calibration Certificate with Data

Torque ranges

Lb-in Lb-ft N-m N-cm Kgf-m Kgf-cm Gf-cm

Model Range Drive
Size
Run-Down
Fixture
TT-30050 0.03 - 0.35 N-m 1/4" Included
TT-3001 0.07 - 0.7 N-m 1/4" Included
TT-3011 0.1 - 1.2 N-m 1/4" Included
TT-3002 0.14 - 1.4 N-m 1/4" Included
TT-3012 0.3 - 2.8 N-m 1/4" Included
TT-3005 0.5 - 5.6 N-m 1/4" Included
TT-3010 1 - 11 N-m 1/4" Included
TT-3015 1.6 - 16 N-m 1/4" Included
TT-3025 2.8 - 28 N-m 3/8" Included
TT-3050 5.6 - 56 N-m 3/8" Included
TT-3075 8.4 - 84 N-m 3/8" Included
TT-30100 11.2 - 112 N-m 3/8" Included
TT-3100 13.5 - 135 N-m 1/2" Optional
TT-3150 20 - 203 N-m 1/2" Optional
TT-3250 33 - 338 N-m 1/2" Optional
TT-3750 101.0 - 1016 N-m 3/4" Optional

Don't see the range you need? Custom ranges are available, please call us to discuss your application.

ER - Extended Range Option increases certified range to 5-100% (instead of 10-100%)


Related Products

RDF Joint Simulators / Run Down Fixtures


  • Required for accurate torque measurement for power-driven torque controled tools (electric, hydraulic or pneumatic)
  • The RDF series is a one piece rundown for use where both a combination of hand and power tools are used.

More details

TT-QC Torque Tool Tester


  • Bidirectional accuracy of ±1% of indicated reading
  • 3 modes of operation: Track, Peak and 1st Peak
  • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • Rugged Aluminum Housing
  • NiMH rechargeable batteries provide 8-10 hours continuous use
  • CE Certified and NIST Calibration Certificate

More details

MTM Multi-Range Torque Tester


  • Available with 2, 3 or 4 torque transducers
  • Selectable units of: Ft-lb, IN-lb, IN-oz, KGF-m, KGF-cm, GF-cm, CN-m, N-m
  • Small footprint of the MTM allows for a clean, well-organized work space
  • 200% Overload protection
  • LED Indicator Shows Active Transducer
  • External transducers can be connected with cable input
  • Includes NIST Traceable calibration certificate with data for each transducer
  • Replaceable shaft design. If one shaft is damaged, replace that shaft, not the entire unit.
  • Hi-Lo Limits for Go-NoGo testing of tools

More details

Series-TT02 Series-TT02 Torque Tool Tester for (Electric) Screw Drivers


  • First / second peak capture for CW and CCW directions
  • 3/8” square receptacle accommodates common bits and attachments
  • High-speed 7,000 Hz sampling rate accurately captures peak torque values
  • 1,000-point data memory with statistics and outputs
  • USB, RS-232, Mitutoyo, and analog outputs
  • Break detection: automatic output, data storage, and zeroing upon tool click/slip automates testing processes
  • Programmable set point indicators and outputs for pass/ fail determination
  • Password protection prevents unauthorized changes
  • 5 selectable units of measurement
  • Battery or AC operation

More details

Cic-Torque Torque Instrument Calibration


  • Short turnaround
  • Easy planning of calibration

More details


Dimensions

Dimensions Torque Calibration Tools TT-3000


Specifications

Calibrated Range
10-100% Full Scale, bi-directional (Standard)
Extended Range
5-100% Full Scale, bi-directional (ER Option)
Accuracy
±0.5% of indicated (within calibrated range)
Resolution
4 Active Digits
Overload Protection
200% Full Scale bi-directional
Operating Modes
Track, Peak, 1st Peak
Filtering
Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Memory
data storage of up to 999 readings
Data Output
RS-232
Display
62 x 62mm backlit LCD
Alarm Limits
Panel Mounted LED for Visual Alarm Limits
Power
NiMH rechargeable batteries provide 8-10 hours continuous use
Weight
6-9 lbs, depends on number of transducer
Operating Temp
32 - 120 °F (0-50 °C)
Warranty
1 Year
Calibration Certificate
Includes NIST Traceable calibration certificate with data
Standard Accesories
Joint Simulator for 1/4" & 3/8" drives, AC adapter/Charger
Optional Accessories
Joint Simulators for 1/2", 3/4" & 1" Transducers, Extended Ranger "ER" Option

Buy Now

Products


Product name
Price
Quantity
TT-30050E Torque Tester
€ 1.408,00

TT-3001 Torque Tester
€ 1.408,00

TT-3011 Torque Tester
€ 1.408,00

TT-3002 Torque Tester
€ 1.408,00

TT-3012 Torque Tester
€ 1.408,00

TT-3005 Torque Tester
€ 1.408,00

TT-3010 Torque Tester
€ 1.408,00

TT-3015 Torque Tester
€ 1.408,00

TT-3025 Torque Tester
€ 1.408,00

TT-3050 Torque Tester
€ 1.408,00

TT-3075 Torque Tester
€ 1.408,00

TT-30100 Torque Tester
€ 1.502,00

TT-3100 Torque Tester
€ 1.785,00

TT-3150 Torque Tester
€ 1.785,00

TT-3250 Torque Tester
€ 1.785,00

TT-3750 Torque Tester
€ 1.785,00



Accessories


Product name
Price
Quantity
ER - Extended Range option, increases certified range to 5-100% (instead of 10-100%)
€ 105,00

TT-3000-CC - Carrying Case for 3000 Series
€ 37,00

TT-3000-EXT - Input for external transducer
€ 248,00

TT-SOFT - Data Transfer Software for TT Series
€ 115,00

TT-QCM-World - Replacement AC-Adapter/Charger for TT-3300
€ 46,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
