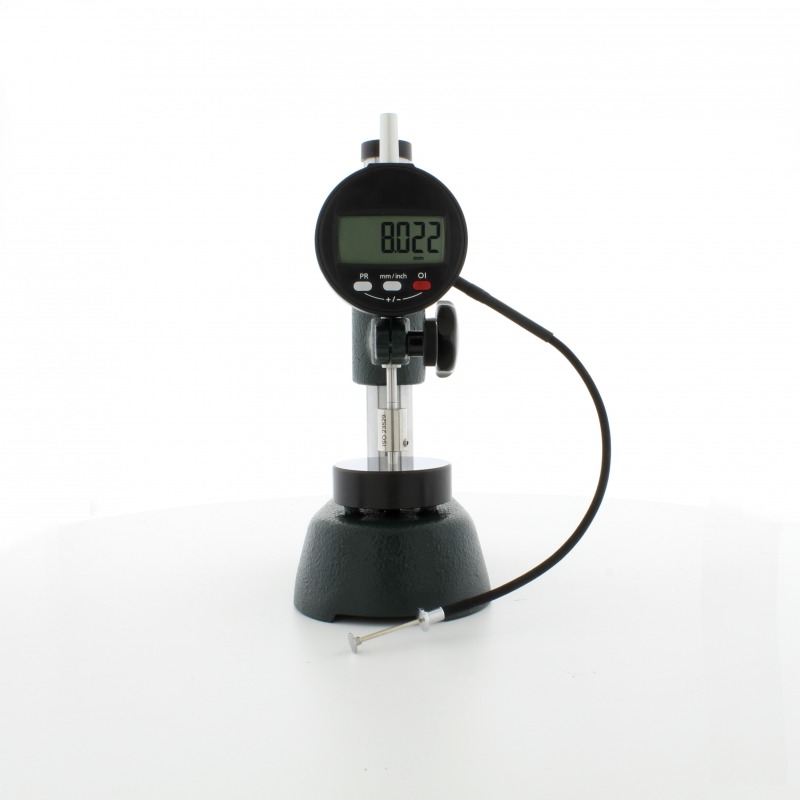

CTG-ASTM D1777-2 Thickness Gauge for coated fabrics - ASTM D1777-2


Made in GermanyThe professional thickness gauge CTG-ASTM D1777-2 is developed for reliable thickness measurements of Coated fabrics, Narrow fabrics, Webbings, Tapes, Ribbons and Braids.
This thickness gauge conducts measurements conforming the ASTM D-1777-2 norm. Reliable measurements are enabled by the use of a constant load force. The lifter and cable release can be operated manually.


Features
  • Thickness measurements conform ASTM D1777-2
  • Manual lifter and cable release
  • Constant force load
  • Resolution: 0,001 mm
  • For measuring Coated fabrics, Narrow fabrics, Webbings,Tapes, Ribbons and Braids.
  • Manufacturer calibration certificate and DAkkS calibration for the dial gauge optional available
  • Economical and easy to use
  • Simple solid design
  • Pressure: 23,4±0,7 kPa
  • Feeler Size: Ø9,5 mm

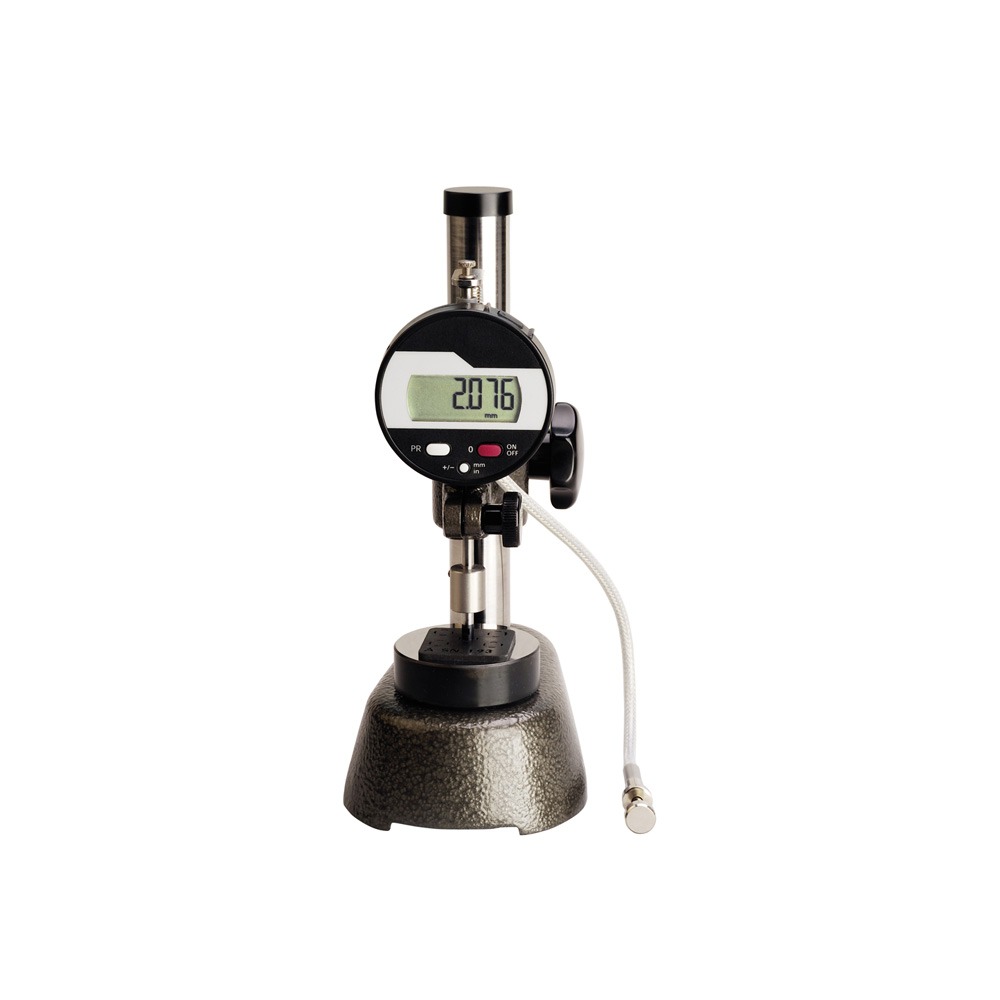

Complete Kit
The CTG Thickness Gauge is supplied as a complete kit with instruction manual and calibration certificate.

Specifications
Standards:ASTM D1777-2
Pressure:23,4±0,7 kPa, (conforms: 169,1 g±5,1 g)
Stroke:12,5 mm
Table diameter:Ø50 mm
Feeler Size:Ø9,5 mm
Resolution:0,001 mm
Power:Button cell CR2032
