TSB100 hand lever operated horizontal force test stand

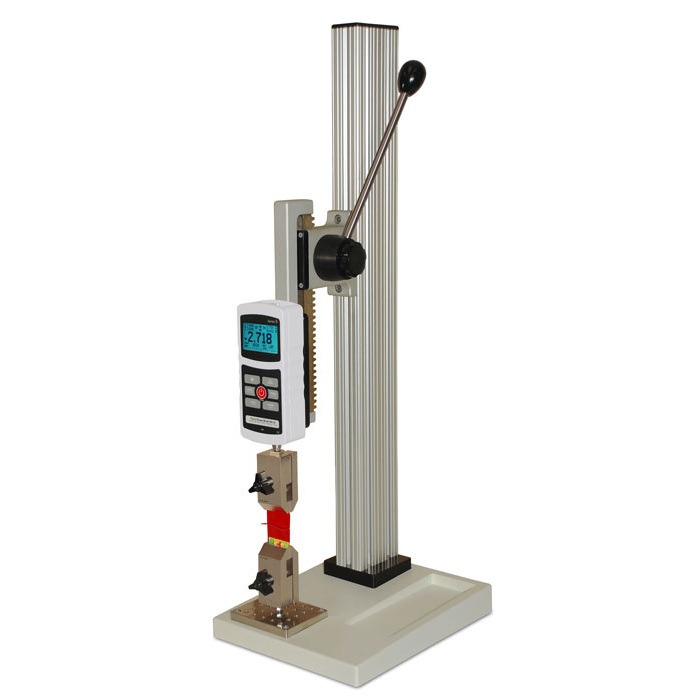

Made in the USAThe economical TSB100 is a vertical manual force test stand with a maximum capacity of 500 N that is designed for tension and compression testing.

The TSB100 like the TSA750 test stand has a loading lever that is mounted away from the column which creates a larger space between column and sample making testing of larger samples possible.
This test stand has the force gauge mounted to the loading lever rack and pinion with the bottom part of the sample connected to the base plate.
The space between the column base and center of the test sample is 121,9mm.

With its rugged aluminum components, precision machined rack and pinion system and mounting plate with threaded holes on the base, this test stand is suited to be used on a factory floor as well as laboratory environments.

With the lever operation ensuring quick action testing accuracy can be increased with the optional, TSA001 150mm digital travel display with, TSB003, travel stops.

Column extensions make it possible to test larger samples. Column extensions just increase the sample clearance they do not change the travel distance.



A complete test setup can be made in combination with the whole range of Mark 10 digital force gauges, attachments and gripping fixtures.


Features
  • Precision ground rack for smooth precision motion
  • Loading lever can be positioned in 30° increments for ease of operation
  • Low force friction brake
  • Mounting holes for bench mounting
  • Removable base plate with 25 #10-32 UNF holes for fixture mounting
  • Optional adjustable travel stops
  • Optional digital travel display

Manual test stand comparison
ModelForce capacityMaximum test travelLoading methodTravel rateMaximum, sample clearance
ES10500N229mmSpring loaded lever26,7mm / lever rev.229mm
ES10500N229mmSpring loaded lever26,7mm / lever rev.229mm
ES20500N229mmTop mounted hand wheel1,5mm / wheel rev.229mm
ES301000N330mmSide mounted hand wheel1,3mm / wheel rev.356mm
TSA750(H)3750N95mm with travel stops
152 without travel stops
Lever with rack & pinion, lever can be positioned in 30° increments76,2mm / lever rev.Vertical 267mm
Horizontal 368mm
TSB100500N95mm with travel stops
152 without travel stops
Lever with rack & pinion, lever can be positioned in 30° increments76,2mm / lever rev.330mm
TSC1000(H)5000N89mmInline hand wheel2,5mm / wheel rev.Vertical 254mm
Horizontal 330mm
TSF(H)5000N102mmSide mounted hand wheel0,34mm / wheel rev.Vertical 356mm
Horizontal 459mm
- Maximum travel and/or clearence depends on the grips or fixtures used during testing. The dimensions indicate distances without the use of grips or fixtures. - Column extensions are available for all test stands except ES05, ES10 and ES20. - Models with (H) are available in vertical and horizontal versions

Complete Kit

The TSB100 test stand comes with the following accessories:

  • G1030 thread adapter, 5/16-18M to #10-32F
  • 4 Thumb screw for force gauge
  • Allen wrench set





Dimensions
Dimensions-TSB100


Size measurements for the TSB100 Manually operated Force Test Stand,

All sizes in inch and (mm)


Accessories

AC1004 Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands


  • Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands

More details

AC1004 Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands 126115

Category Mark-10 Attachments


More details

Category  Mark-10 Attachments 0

Specifications
Capacity500 N (50 kg / 100 lb)
Stroke150 mm without travel stops
95 mm with travel stops
DimensionsRefer to dimensions above
Weight:5.4 kg (12 lb)
Shipping weight11.3 kg (25 lb)
Warranty3 years
