ES10 Manual Test Stand


Made in  USAThe ES10 is a hand-lever operated manual test stand with a maximum capacity of 500 N (50 kg / 100 lb).

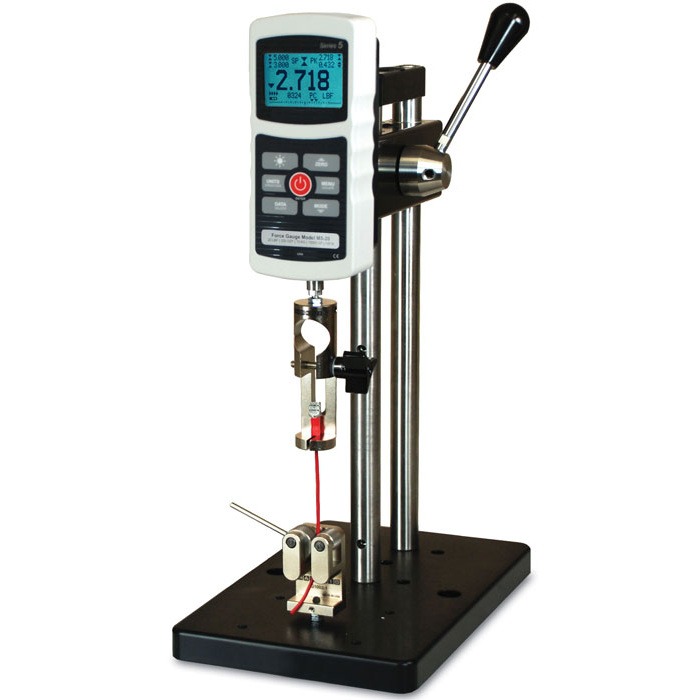

The test stand is shown with the Series-5 digital force gauge. *Force Gauge & Dial Indicator not included

There is a whole range of force gauges and grips & attachments available for this test stand.


Features

  • Optional 1" [25.4mm] dial indicator travel kit
  • Mounting holes for bench mounting
  • Can be used with our HP Series Durometers
  • Loading lever can be placed in 3 positions for ease of operation
  • Large baseplate with 5 #10-32 UNF holes for fixture mounting

Dimensions

Dimensions Mechanical Force Test Stands ES10


Related Products

Series-3 Digital Force Gauge


  • High-speed 2,000 Hz sampling rate
  • Includes NIST Traceable Calibration Certificate
  • 3 Year Warranty
  • Large backlit graphic display
  • USB data output (single data point)
  • Programmable set points with pass/fail indicators
  • Peak readings and set points always displayed
  • 3 selectable units of measurement

More details

Series-4 Digital Force Gauge with Output


  • USB, RS-232, Mitutoyo, and analog outputs
  • 3,000 Hz peak sampling rate
  • Programmable set points, with alarms and outputs
  • Large backlit graphic display
  • 50-point data memory with statistics and outputs
  • Live load bar graph with set point markers
  • Peak readings always displayed
  • Configurable audio alarms and key tones
  • Aluminum construction
  • Includes NIST Traceable Calibration Certificate

More details

Series-5 Advanced Digital Force Gauge


  • High-speed 7,000 Hz peak sampling rate
  • Live load bar graph with set point markers
  • Averaging mode - calculates average readings over time
  • External trigger mode - for switch contact testing or remotely stopping display update
  • Programmable set points, with alarms and outputs
  • USB, RS-232, Mitutoyo, and analog outputs
  • Large backlit graphic display
  • Peak readings always displayed
  • 1,000-point data memory with statistics and outputs
  • Password protection, configurable for individual keys
  • Configurable audio alarms and key tones
  • Aluminum construction
  • Includes NIST Traceable Calibration Certificate

More details


Accessories

ES001


  • Displays up to 1" of displacement
  • Resolution of 0.001"

More details

ES002


  • Displays up to 1" (25.4mm) of displacement
  • Resolution of 0.0005" (0.01 mm)

More details


Special Attachments


Downloads


Specifications

Load capacity:
500 N (50 kg / 100 lb)
Maximum travel:
229 mm (9")
Dimensions:
152 mm x 254 mm x 338 mm (6" x 10" x 13.3") - W x D x H
Loading Method:
Lever (can be placed in 3 positions for easy operation)
Travel Rate:
26.7 mm (1.05") / lever revolution
Weight:
4.5 kg (10 lb)
Warranty:
3 years

Buy Now

Product


Product name
Price
Quantity
ES10 - Mechanical Test Stand
€ 521,00



Accessories


Product name
Price
Quantity
ES001 - Dial indicator kit 1inch travel
€ 133,00

ES002 - Digital indicator kit for ES10/ES20
€ 307,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
