G1089 Syringe Compression Fixture


Made in the USAThe G1089 Syringe Compression Fixture is designed for precise assessment of the compression force applied by a syringe plunger, conforming to ISO 7886-1 and other relevant standards.

It includes four blank stainless steel inserts that can be customized on-site to accommodate syringe barrels of different sizes.

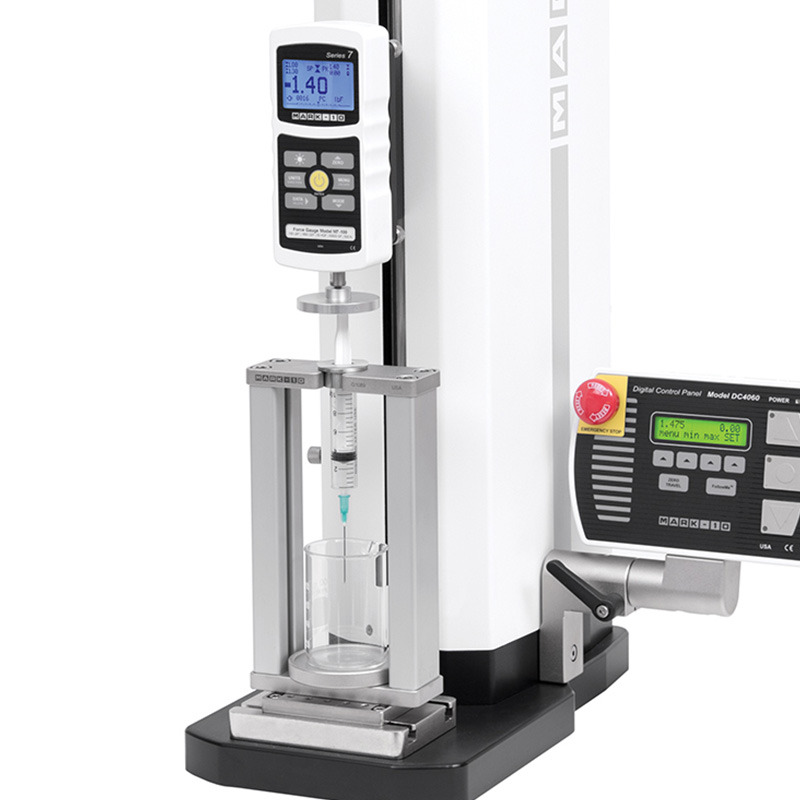

When used with compatible equipment like the F-Series Intellimesur test stand or a ESM303 test stand and Series 7 force gauge, this fixture allows you to capture both initial and secondary force peaks and calculate the average force over a specified period.

Get in touch if you require customized drilled inserts tailored to your specific needs as we can provide bespoke solutions upon request.


Features
  • Secures a syringe assembly for plunger compression force testing
  • Designed to meet the rigorous standards of ISO 7886-1 and other relevant industry benchmarks,
  • Replaceable inserts, may be drilled in the field up to 0.85 in [21.6 mm] dia.
  • Comes with four blank stainless steel inserts, giving you the flexibility to tailor the fixture to accommodate syringe barrels of various diameters
  • Removable cup tray

Dimensions
G1089 Syringe Compr. Fixture
Dimensions-G1089 Syringe Compr. Fixture


All sizes are noted in inch with metric sizes in [mm] behind.


Specifications
Capacity500 N
Material fixture Nickel-plated aluminum upper and lower brackets, anodized aluminum upright supports
Material cup plate Nickel-plated aluminum
Material replaceable inserts Stainless steel
Material compression plate Anodized aluminum
WeightFixture, including cup plate and one insert: 860 g

Compression plate: 40 g
