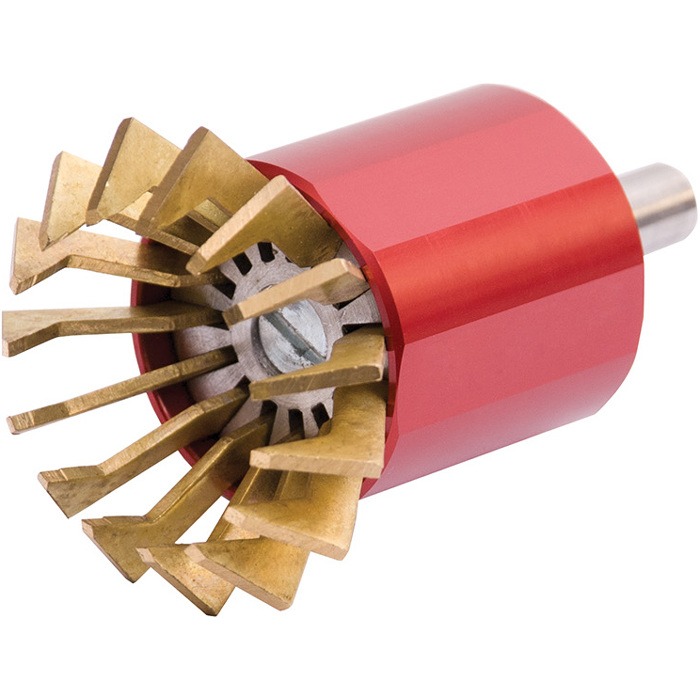

G1056 Multi-jaw Grip


Made in the USAThe G1056 Multi-jaw Grip is developed for multi-use pull applications.
With its 15 jaws this grip is well suited to grip round and irregular shapes.
Typically it is used for pulling,

  • Small components
  • Textiles, clothing or toys
  • Bottles caps


Jaws open and close by rotating the housing, it can support an opening of up to 31,7 mm and has a capacity of 500 N.

The G1056 can be attached directly to a force gauge, load cell or test stand with its #10-32 M/M stud and it can be used in combination with an eye-end- or swivel-adapter.
Thread adapters can provide alternative attachment solutions.

Delivery of this grip Includes a #10-32 M/M stud with jam nuts


Features
  • Multi-jaw Grip for pull testing
  • 15 adjustable jaws jaws accommodate a range of sample shapes and sizes
  • Opens and closes by rotating the housing
  • Includes a #10-32 M/M stud with jam nuts

Dimensions
G1056 Multi-jaw Grip
Dimensions-G1056 Multi-jaw Grip


IN [MM]



A B C ØD E ØF
3.50
[88.9]
2.30
[58.4] MAX
1.63
[41.4]
1.55
[39.4]

0.075
[1.91]

0.40 - 1.25
[10.2- 31.7]

Specifications
Capacity500 N [100 lbF]
Max. sample diameter:58.4 mm [2.30 in]
Thread10-32 UNF
Weight0.14 kg [0.30 lb ]
Shipping weight0,5 kg [1 lb]

Related Products

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands



More details

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

G Series Thread Adapters & Couplings



More details

G Series Thread Adapters & Couplings

G1018 Swivel Adapters


  • Swiveling adapter, for use between certain grips and force gauges.
  • Capacity G1018-1: 1000 N
    Capacity G1018-2: 2500 N
  • Designed for tensile (pull) testing applications only.

More details

G1018 Swivel Adapters

Downloads

Buy Now
Product

Product
Price
Quantity
131928
G1056 Multi-jaw grip, #10-32F
€ 348,00

Accessories

Product
Price
Quantity
130807
G1018-1 Swivel adapter, #10-32M to #10-32F
€ 70,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
