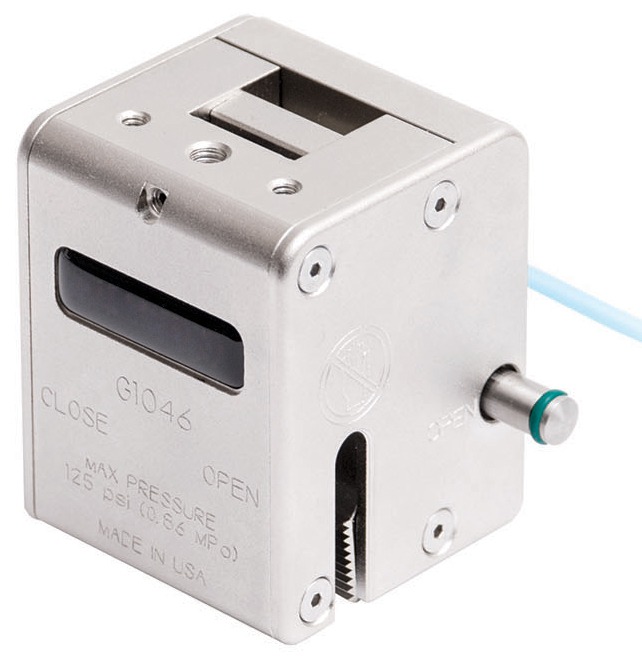

G1046 Pneumatic Film & Paper Grip


Made in the USAThe G1046 Pneumatic film and paper grip is designed as a safe and efficient grip for thin materials.
Serrated interlocking jaws create a firm grip on test samples and with a capacity of 500 N (at 6,9 bar air pressure) this grip will suit most thin sample materials.

It is designed for strength testing the seal of packaging, elongation testing of various materials and other thin material tensile testing applications.

The G1046 is fully enclosed and features a unique integrated open/close valve for quick sample engagement and disengagement.
An optional air connection kit (AC1019) is available with all materials required to connect 2 G1046 grips to work simultaneously.

The flexible internal membrane actuating the movable jaw has a variable life expectancy dependent upon the maximum air pressure used and the quality of the compressed air.
Compressed air should be free from impurities, solvents and oils. Since field conditions are outside of the manufacturers control, the standard 3-year warranty does not apply to the flexible membrane.

A  maintenance kit for G1046 (AC1044), including a membrane repair kit, may be purchased from Checkline.EU.

The G1046 Pneumatic film and paper grip comes with a #10-32 M/M stud with jam nuts, one spare rubber membrane, one alcohol wipe, and two cotton swabs.


Features
  • Integrated open/close valve
  • Fully enclosed design for safety
  • Air operated interlocking jaws
  • Can be paired with second pneumatic grip for simultanious operation using an air connection kit AC1019
  • Ideal for high volume testing

Dimensions
G1046
Dimensions-G1046


A: 0 - 3.3 mm (0 - 0.13 inch)


Specifications
Capacity:500 N @ 0.86 MPa (100 lbF @ 100 PSI)
Weight:0.3 kg (0.6 lb)
Max. Pressure:0.86 MPa (125 PSI)
Air input thread:#10-32 UNF

Optional air connection kit

Pneumatic Film & Paper Grip

Set containingDescriptionQuantity
A.Coiled tubing
Outer diameter: 1/8 inch
Inner diameter: 1/16 inch
Retracted length: 8 inch
2
B. Straight tubing
Outer diameter: 1/8 inch
Inner diameter: 1/16 inch
Length: 5 inch
1
C.Y-splitter1
D.Elbow fitting, tubing termination1
E.Straight fitting
tubing to #10-32M
1
F.Thread adapter
#10-32F to 1/4 inch NPT M
1
G.Adhesive-backed guide4

Optional Maintenance kit*

Set containingDescriptionQuantity
A.Rubber membrane5
B.Cotton swab12
C.Alcohol wipe5
D.Allen key set1

Related Products

G1015 -G1008 ASTM F88 / D1876 Film and Paper Grips



More details

G1015 -G1008 ASTM F88 / D1876 Film and Paper Grips

G1018 Swivel Adapters


  • Swiveling adapter, for use between certain grips and force gauges.
  • Capacity G1018-1: 1000 N
    Capacity G1018-2: 2500 N
  • Designed for tensile (pull) testing applications only.

More details

G1018 Swivel Adapters

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands



More details

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

G Series Thread Adapters & Couplings



More details

G Series Thread Adapters & Couplings

Downloads

Buy Now
Product

Product
Price
Quantity
G1046 Pneumatic grip, #10-32F
€ 671,00

Accessories

Product
Price
Quantity
AC1019 Air connection kit for G1046
€ 246,00
AC1044 Maintenance kit for G1046
€ 101,00
G1018-1 Swivel adapter, #10-32M to #10-32F
€ 68,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1-3 days , Delivery time: 1-3 weeks , special order, request
