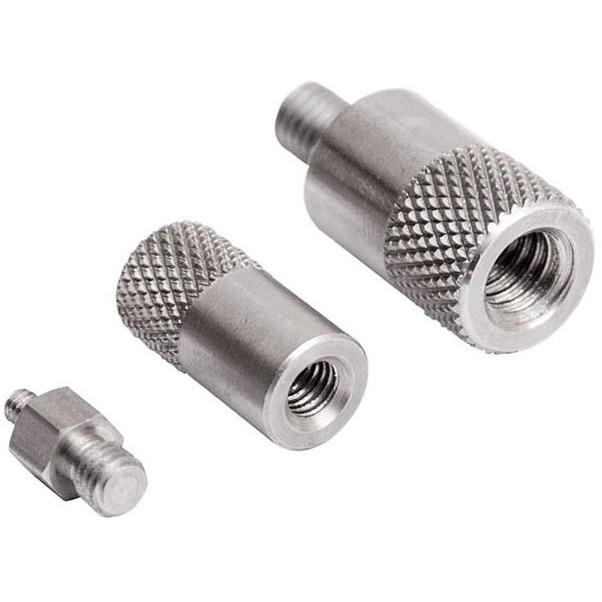

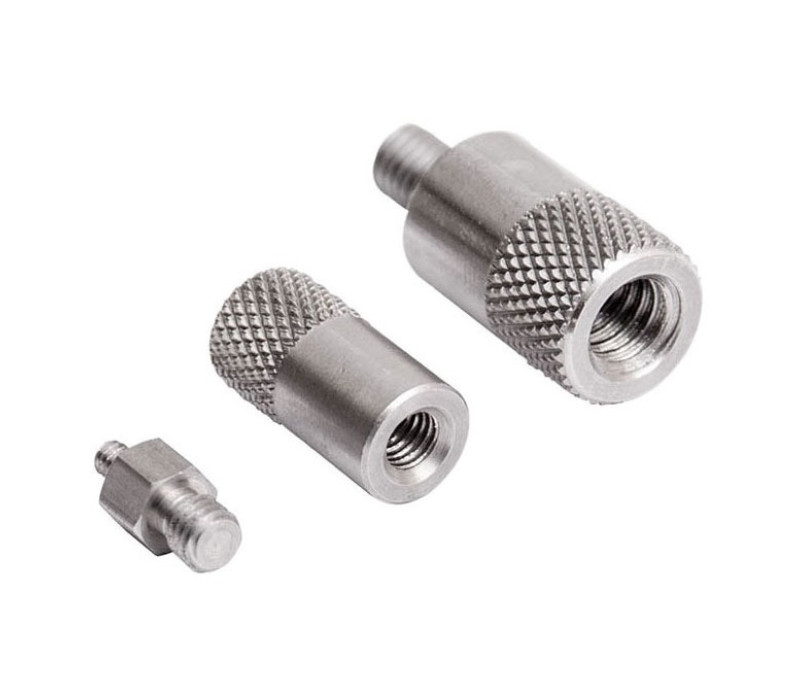

G Series Thread Adapters & Couplings


Made in the USAFor use between a force gauge and another attachment or grip. Use them with a force gauge and a test stand to create a complete testing system.
Model
Capacity
(N)
B
(mm)
C
(mm)
D
(mm)

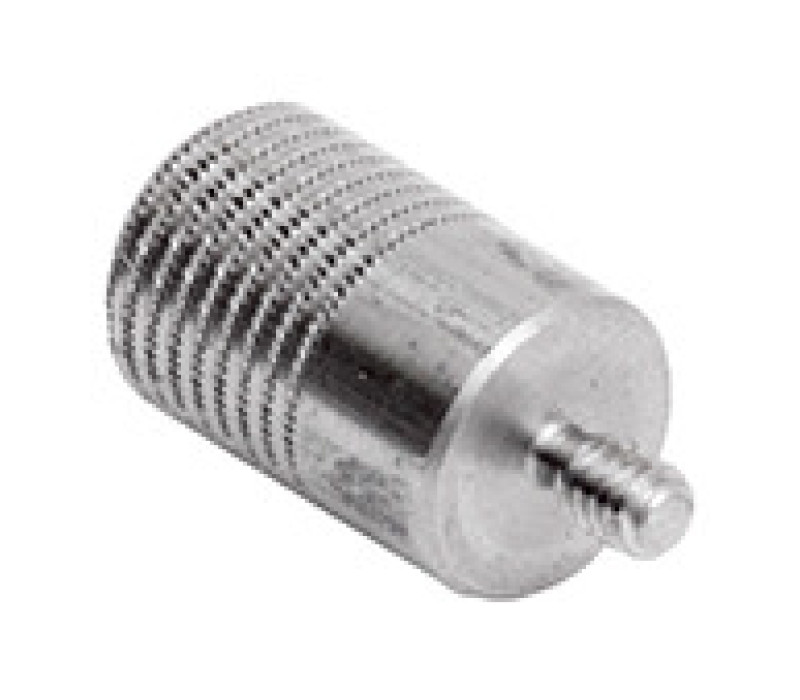

G1050 500 19.1 #4-40M #10-32F

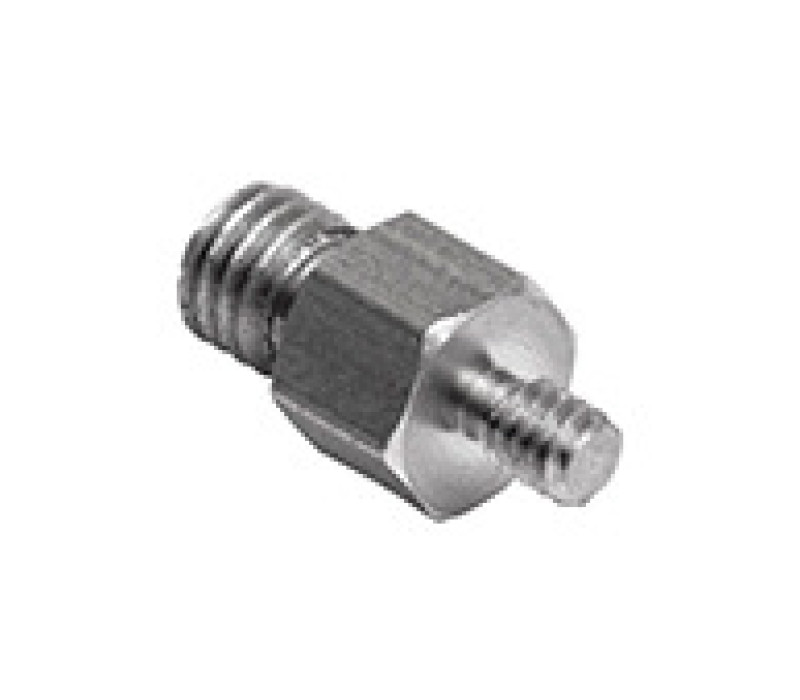

G1051 15.2 #4-40M #10-32M

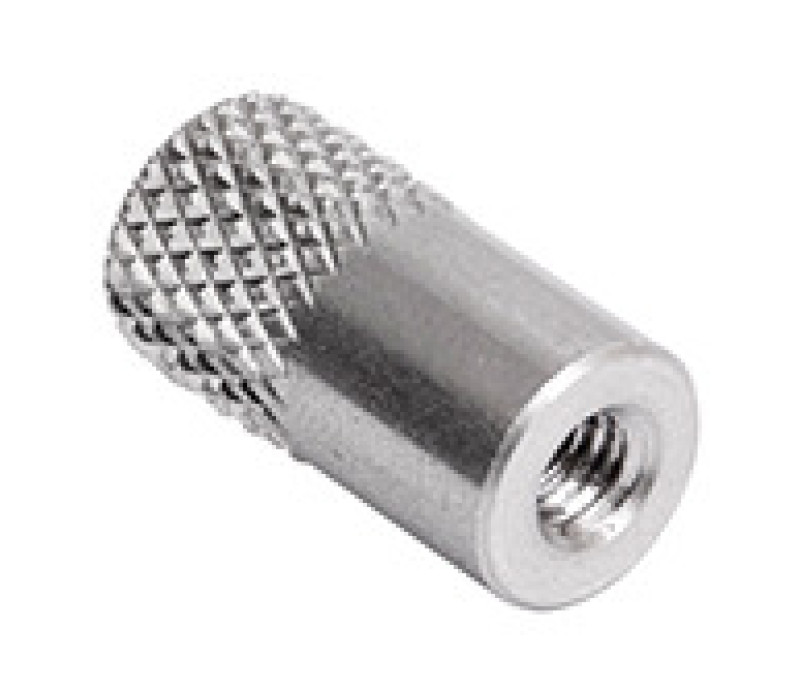

G1039 1000 19.1 #10-32F #10-32F

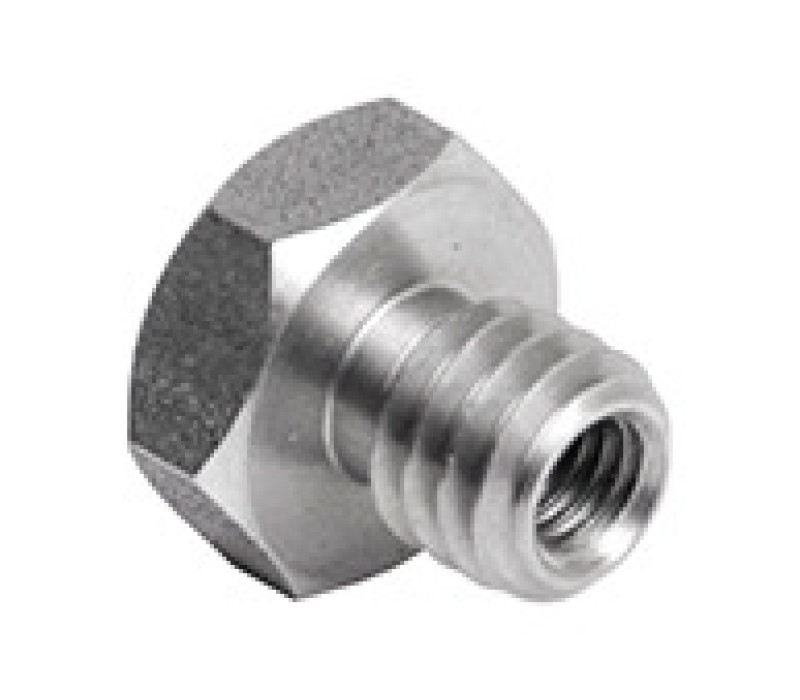

G1030 12.7 #10-32F 5/16-18M

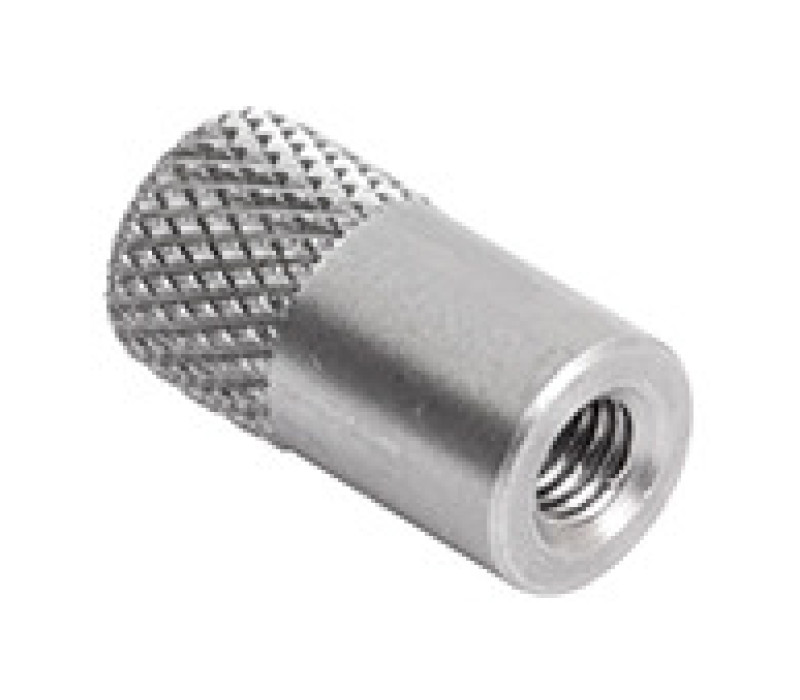

G1057 19.1 #10-32F M6F

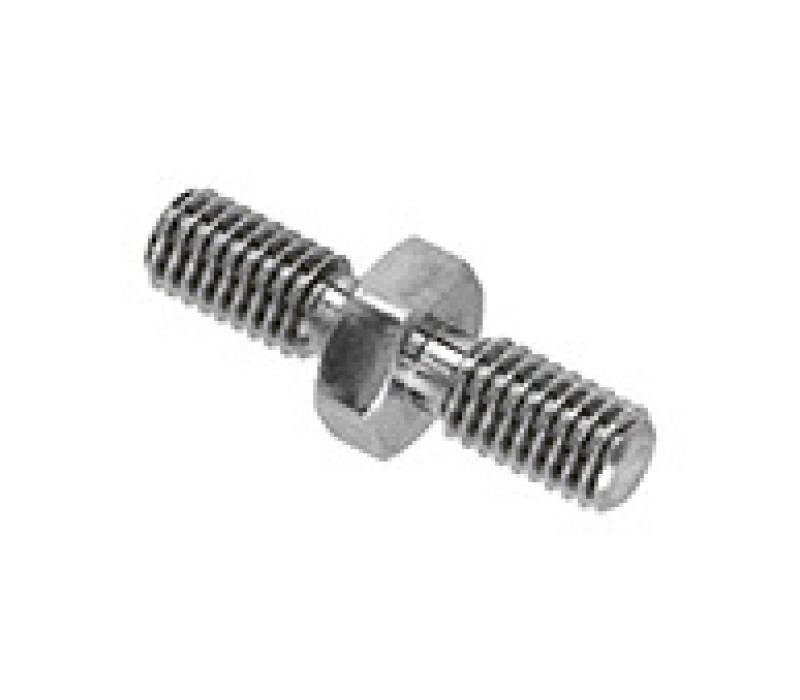

G1060 19.1 #10-32M #10-32M

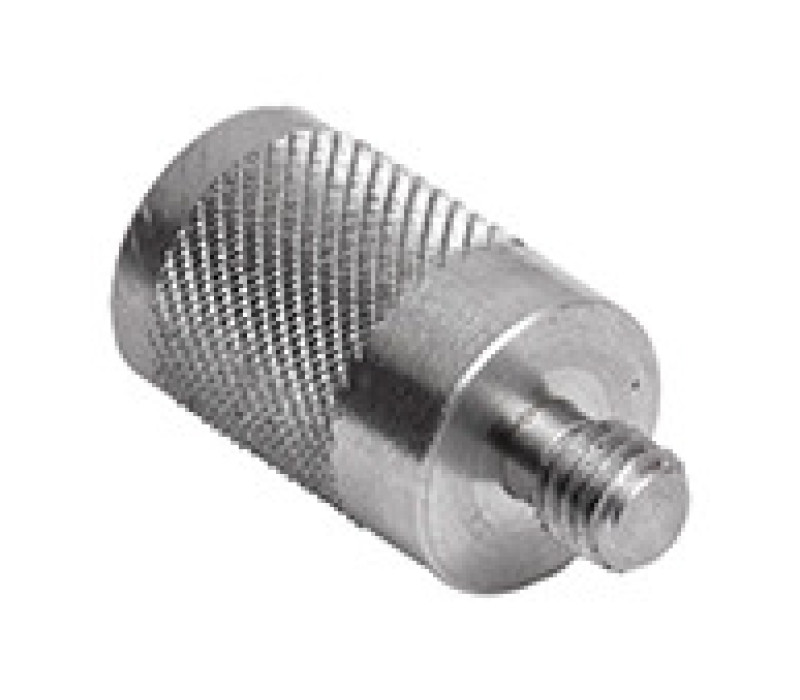

G1047 19.1 #10-32M M4F

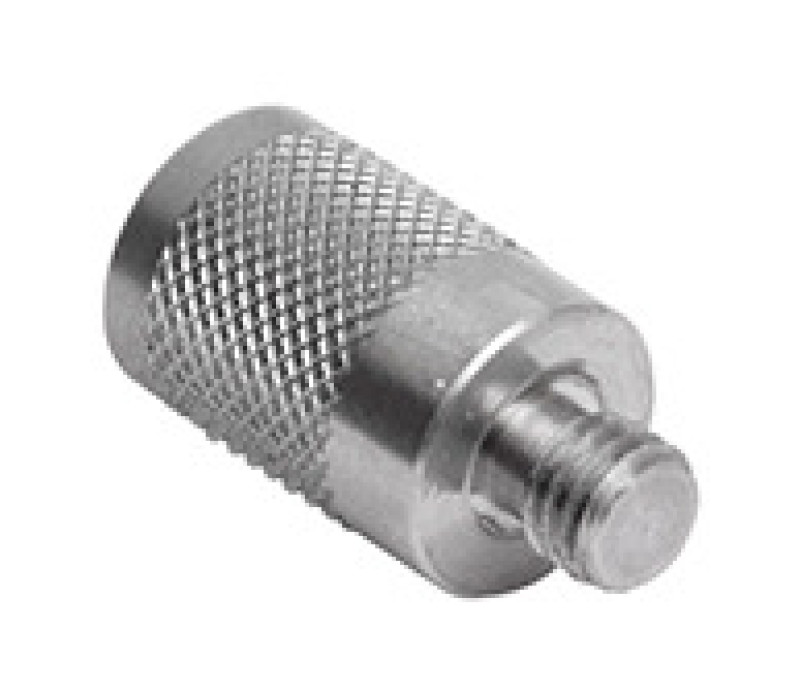

G1048 19.1 M4M #10-32F

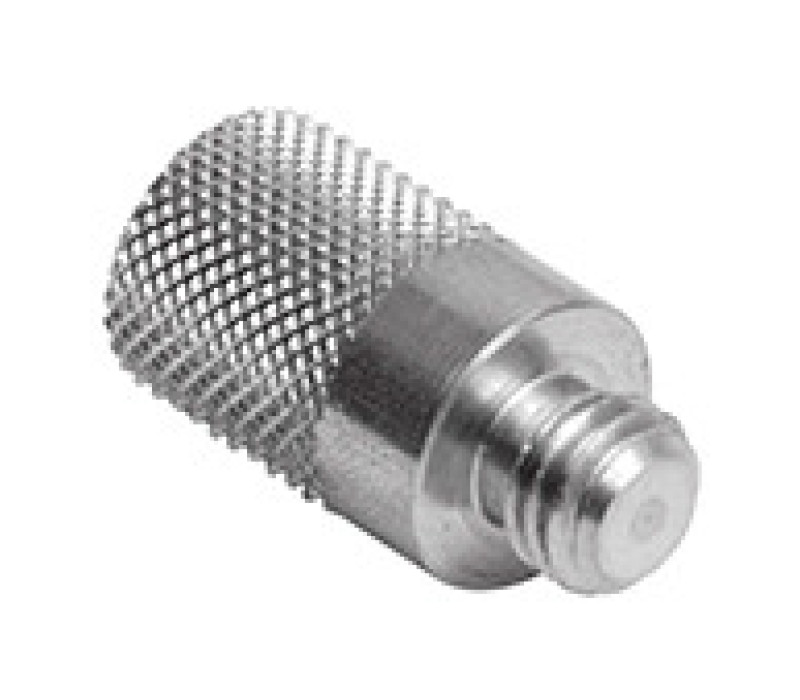

G1054 19.1 M6M #10-32F

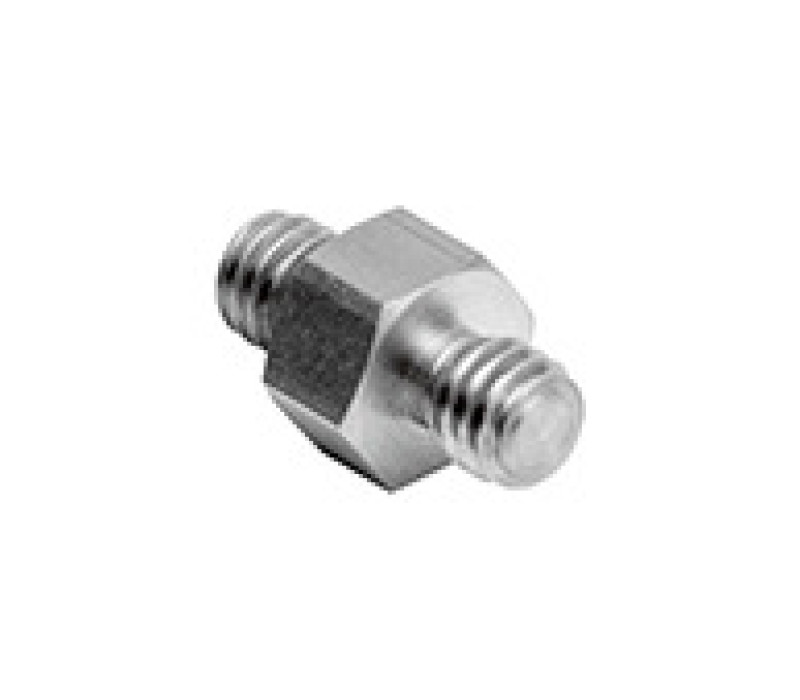

G1040 2500 25.4 5/16-18M 5/16-18M

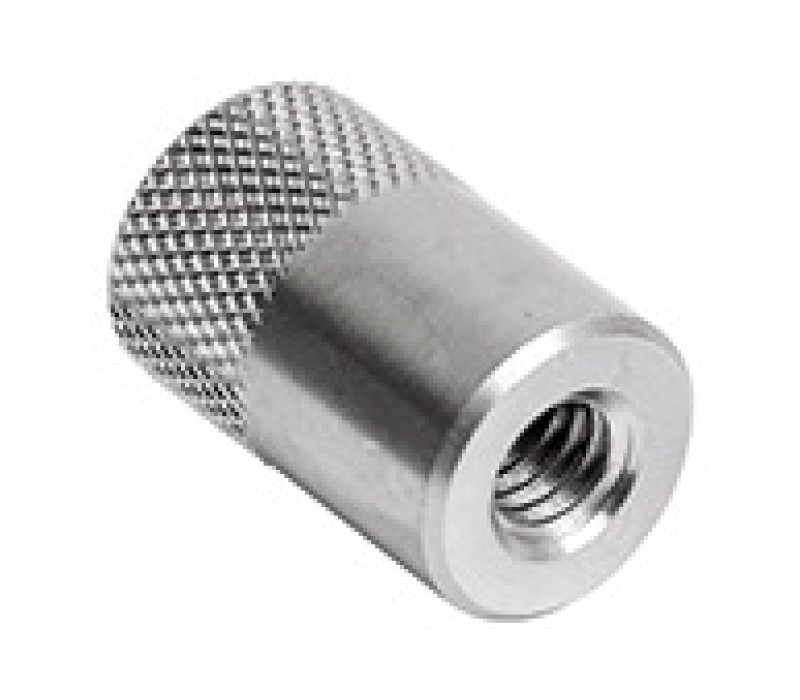

G1037 25.4 5/16-18F 5/16-18F

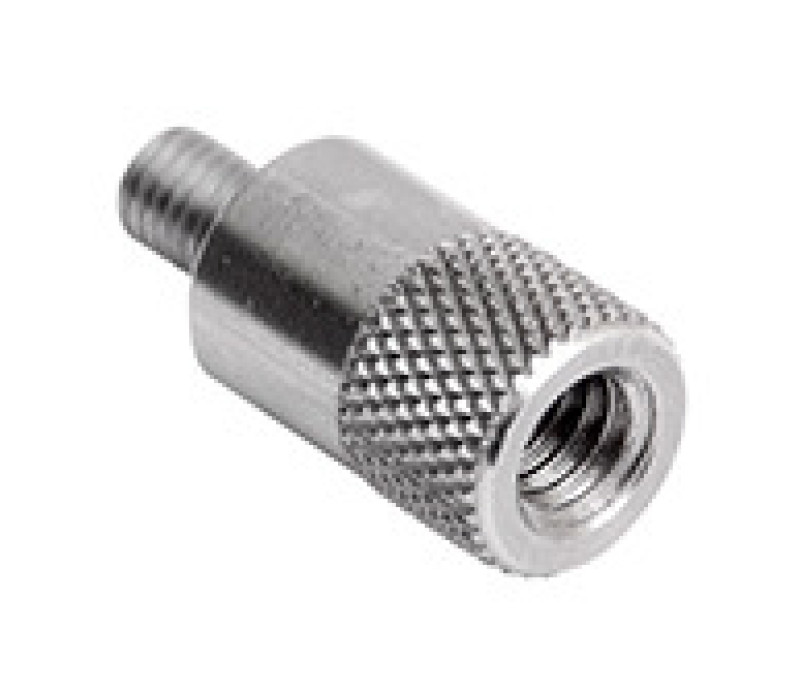

G1049 31.8 5/16-18F M6M

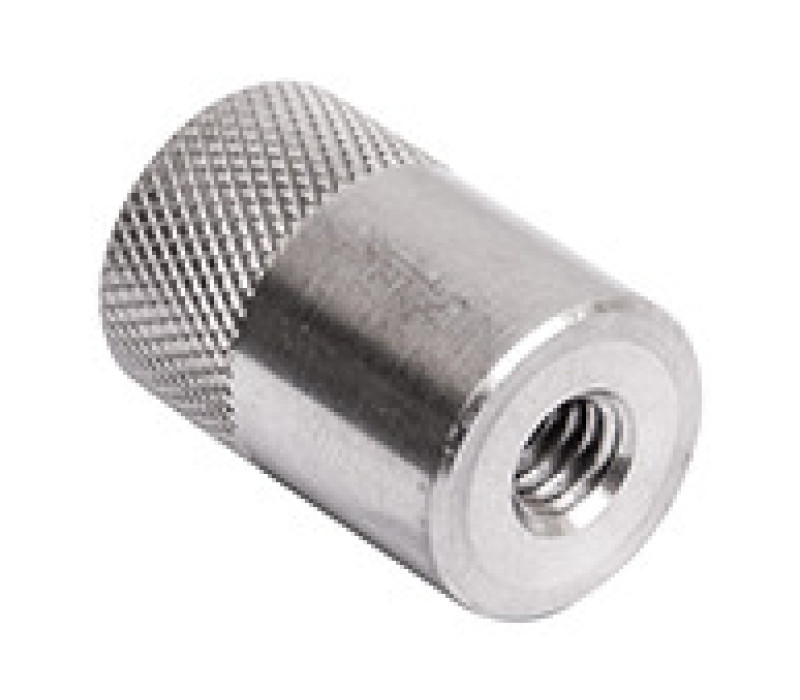

G1059 25.4 5/16-18F 1/2-20F

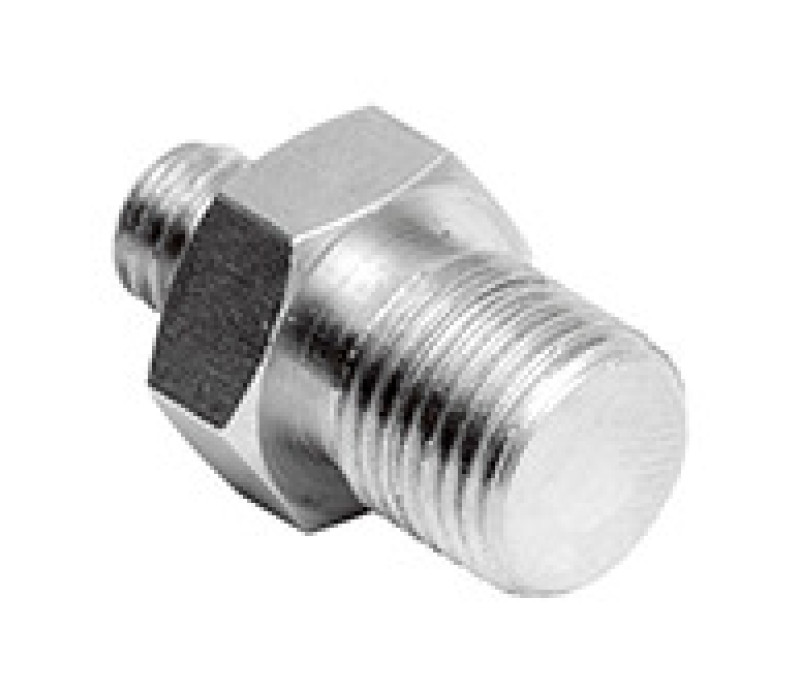

G1041 5000 25.4 1/2-20M 5/16-18M

Dimensions
Dimensions-G Series


Buy Now
Products

Product
Price
Quantity
G1050 Adapter, #4-40M to #10-32F
€ 24,00
G1051 Adapter, #4-40M to #10-32M
€ 24,00
G1039 Coupling, #10-32F/F
€ 18,00
G1030 Adapter, 5/16-18M to #10-32F
€ 24,00
G1057 Adapter, M6F to #10-32F
€ 24,00
G1060 Adapter, #10-32M to #10-32M
€ 24,00
G1047 Adapter, #10-32M to M4F
€ 24,00
G1048 Adapter, M4M to #10-32F
€ 24,00
G1054 Adapter, #10-32F to M6M
€ 24,00
G1040 Adapter, 5/16-18M to 5/16-18M
€ 24,00
G1037 Coupling, 5/16-18F/F
€ 24,00
G1049 Adapter, M6M to 5/16-18F
€ 24,00
G1059 Adapter, 5/16-18F to 1/2-20F
€ 24,00
G1041 Adapter, 5/16-18M to 1/2-20M
€ 24,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1-3 days , Delivery time: 1-3 weeks , special order, request
