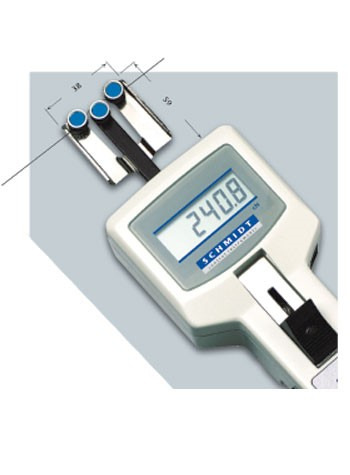

DTEB - DTEX Tension meter with small measuring head


Made in GermanyTension meter with small measuring head, where access space is limited or where filaments run close together

The tension meter has a turned-up finger edges for easy thread.

Note: The design is otherwise according to model DTMB respectively model DTMX, but no material thickness compensator.

Features
  • Turned-up outer finger edges guide the running filament into the roller grooves
  • Length of measuring head approx. 59 mm
  • Small, ball-bearing mounted, V-grooved guide rollers
  • Everything in operator's view:
    • the guide rollers
    • the measured material
    • the readings
  • Filament guide and roller shifting mechanism ensure easy acquisition of the running material
  • Ball-bearing mounted, V-grooved guide rollers
  • Rugged aluminium housing
  • Battery operated (AC adapter for continuous operation available)
  • Specific Test Report with calibration report optionally available

Tension Ranges
ModelRanges SCHMIDT Calibration Material** Resolution Measuring Head Width* mm
DTEB-200 2.0-200.0 PA: 0.12 mm Ø0,1 cN38
DTEB-500 5.0-500.0 PA: 0.20 mm Ø0,1 cN38
DTEB-1000 50-1000 PA: 0.30 mm Ø1 cN38
DTEB-2000 200-2000 PA: 0.50 mm Ø1 cN38
DTEX-200 2.0-200.0 PA: 0.12 mm Ø0,1 cN38
DTEX-500 5.0-500.0 PA: 0.20 mm Ø0,1 cN38
DTEX-1000 50-1000 PA: 0.30 mm Ø1 cN38
DTEX-2000 200-2000 PA: 0.50 mm Ø1 cN38
Other units of measure available, such as g.
* Suitable for 95% of applications - PA = Polyamide Monofilament

Measuring Head Width 38 mm (Width of bracket assembly)
Measuring Head Length 59 mm

Special calibration using customer supplied samples is recommended, if process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape. For this purpose a material sample of about 5 m should be supplied.

Complete Kit
Delivery includes:
Tension meter with carrying case and batteries, operating instructions in English or German as requested

Specifications
Model DTEB:
Calibration:According to SCHMIDT factory procedure
Measuring Head width:38 mm
Measuring Head Length:59 mm
Accuracy:for 10% to 90% of range:
± 0.5% full scale and ± 1 digit
remaining range and other calibration material:
± 3% full scale and ± 1 digit
Overrange:Approx. 15% full scale, without accuracy guarantee
Overload protection:100% of tension range
Measuring principle:Strain gauge bridge
Measuring roller deflection:0.2 mm max.
Signal processing:Digital
Measuring frequency:62 measurements/sec
Converter:12 bit A/D
Temperature coefficient:Gain: less than ± 0.01% full scale/°C
Zero point: less than ± 0.3% full scale/°C
Display:4-digit LCD, 12 mm high
Display update rate:0.5,1,2 or 4 seconds selectable
Memory:Last, MIN, MAX, PEAK values
Temperature range:10 - 45ºC
Air humidity:85% RH, max.
Power supply:4 size AA batteries 1.5 V
(about 20 hours of continuous use)
Auto power off:After 2 minutes of non-use
Housing material:Die-cast aluminium
Housing dimensions:235 x 76 x 45 mm (L x W x H)
Weight, net (gross):approx. 680 g (1500 g)
Specifications for Model DTEX, same as Model DTEB plus:
Extended memory:up to 100 tension values, average, standard deviation
Digital output:RS232C (4800, 8, N, 2)
Analog output0-1 V DC (conversion rate 16 ms)
Digimatic:Mitutoyo
