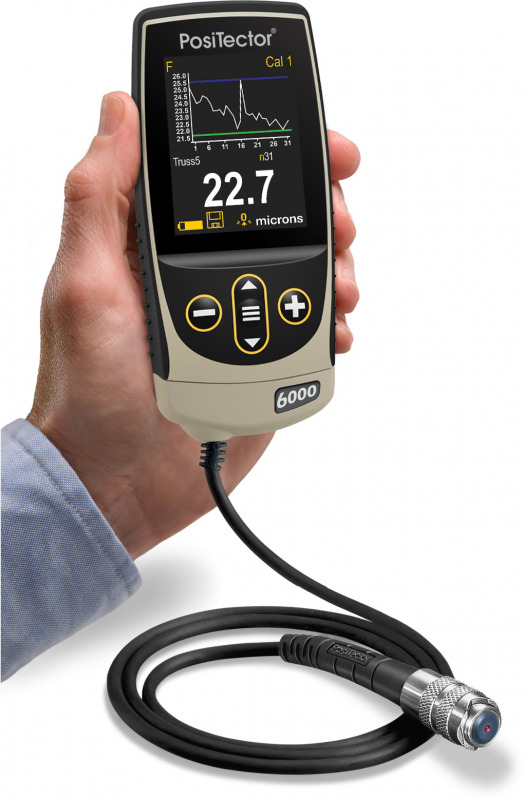

PosiTector 6000TCX Extra Thick Coating Models


Made in the USARange: 0 - 13 mm
Resolution: 0.02 mm
Substrates: F or N



The 6000TCX Series Extra Thick Coating Thickness Gauge is a versatile, rugged tester using magnetic and eddy current principles to measure coating thickness on ferrous or non-ferrous metals, accurately and quickly. If measurement on both Fe and NFe is required a second optional probe can be ordered separately and swapped when needed.

For typical paint and coating applications for a thickness range of 0-500 mils (0-13 mm) applied to Ferrous substrates models include 6000-FKS1, 6000-FKS2 and 6000-FKS3. Models for use on Non-Ferrous substrates include 6000-NKS1, 6000-NKS2 and 6000-NKS3.

All models are offered in three possible configurations; BASIC (1), STANDARD (2) and MEMORY (3) permitting users to select the feature set most suitable for their application. Refer to table below summarizing the different features included with each type "1", "2" or "3".


Probe - Feature Comparison Chart
Feature Comparison Chart Standard
(1)
Advanced
(3)
Hi Contrast LCD Display Color screen
Color
color screen
Color
General Features Standard
(1)
Advanced
(3)
FAST mode - faster measurement speed for quick inspection
SCAN Mode - take continuous readings without lifting the probe -

Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits

Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring

Onscreen help, real time graphing, picture prompting and batch notes -
Memory Features & Capacity Standard
(1)
Advanced
(3)
Reading Storage Capacity 1000 in one group 250,000 in up to 1000 groups
Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard. -
SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels -
PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings -
Multiple stored calibration adjustments for measuring on a variety of substrate conditions -
Connection Options Standard
(1)
Advanced
(3)
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality -
Bluetooth Wireless Technology for data transfer to a PC or optional portable printer -
PosiSoft Solutions Standard
(1)
Advanced
(3)
PosiSoft Desktop Software Desktop software for PC or Mac computer
PosiSoft USB Drive Access your PosiTector as a flash drive. View and print readings and graphs using universal PC/Mac web browsers or file explorers
PosiSoft.net (formerly PosiTector.net) Cloud-based application offering centralized management of PosiTector readings
PosiSoft Mobile Gage-based software application featured in all PosiTector Advanced instruments -

Probe Specifications
High-Range
High range
Probe Models:
FKS NKS
Range:
0 - 500 mils
0 - 13 mm
Accuracy*:
+ (1 mils + 3%) 0 - 500 mils
+ (0.02 mm + 3%) 0 - 13 mm
*Accuracies are stated as a fixed value plus a percentage of the gauge's actual reading.

Features

Easy-To-Use

  • Ready to measure—no calibration adjustment required for most applications
  • Enhanced one-handed menu navigation
  • Flashing display—ideal in a noisy environment
  • RESET feature instantly restores factory settings

Durable

  • Solvent, acid, oil, water and dust resistant - weatherproof
  • Wear-resistant probe tip
  • Shock-absorbing, protective rubber holster with belt clip
  • Two year warranty on gage body AND probe

Accurate

  • Certificate of Calibration showing traceability to NIST included (Long Form)
  • Built-in temperature compensation ensures measurement accuracy
  • Hi-RES mode increases displayed resolution for use on applications that require greater precision
  • Conforms to national and international standards including ISO and ASTM

Versatile

  • Fully interchangeable probes are compatible with ALL gage bodies
  • Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero
  • Selectable display languages
  • Hi Contrast backlit display for bright or dark environments
  • Flip display enables right-side-up viewing
  • Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
  • Uses alkaline or rechargeable batteries (built-in charger)

Powerful

  • Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • FAST mode - faster measurement speed for quick inspection
  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
  • USB mass storage - stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
  • Every stored measurement is date and time stamped
  • Software updates via web keep your gage current
  • Connects to PosiTector.net

Specifications
Measuring principle:Magnetic induction principle (Ferrous)
eddy-current principle (Non-Ferrous)
DisplayBacklit & Reversible LCD
Data OutputIR & USB - "2" & "3" Models
Bluetooth - "3" Models
Surface Temp.Maximum 120 °F / 49 °C
Power3 AAA batteries, Included
Dimensions5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight5.8 oz. (165 g) without batteries
Protection ClassMeets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty2 Years
Calibration CertificateCertificate of Calibration showing traceability to NIST included

Related Products

PosiTector 6000GP Coating Thickness Gauge


  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • Reversible Display enables right side up viewing whether the gage is in your hand or on a work table
  • Thick impact resistant Lexan® display is backlit for easy viewing in dim or dark environments

More details

PosiTector 6000GP Coating Thickness Gauge

PosiTector 6000IP Intergral Probe Models


  • Integral probe for one hand use on paint and coating applications in the range of 0-60 mils (0-1500 microns)

More details

PosiTector 6000IP Intergral Probe Models

PosiTector 6000MP Micro Probe Models


  • High Resolution mode increases the displayed resolution for use on applications that require greater precision

More details

PosiTector 6000MP Micro Probe Models

PosiTector 6000TC Thick Coating Model


  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • Reversible Display enables right side up viewing whether the gage is in your hand or on a work table
  • Thick impact resistant Lexan® display is backlit for easy viewing in dim or dark environments

More details

PosiTector 6000TC Thick Coating Model

Cic-Coating Calibration Coating Thickness Gauge


  • Easy planning of calibration
  • Short turnaround
  • Possibility to adjust and repair
  • In accordance with DIN EN ISO 2178, 2360, 2808 and meets or exceeds the indicated accuracy.

More details

Cic-Coating Calibration Coating Thickness Gauge

Accessories

Cps Certified Shim Set


  • Calibration Foils for Coating Thickness Gauges

More details

Cps Certified Shim Set 126033

Complete Kit
ALL Gauges are supplied as a complete kit including precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two (2) year warranty.

Buy Now
Products

Product
Price
Quantity
132526
BDYSTD PosiTector-1 Body Only Standard
€ 342,00
132528
BDYADV PosiTector-3 Body Only Advanced
€ 832,00

Accessories

Product
Price
Quantity
130785
PRBFKS 6000 FKS Cabled Probe for PosiTector
€ 720,00
130786
PRBNKS 6000 NKS Cabled Probe for PosiTector
€ 741,00
130761
PosiSoft - Analysis Software for Windows- free download

133045
PRINTERBT Bluetooth Printer for PosiTector Advanced
€ 408,00
131193
PAPERBT Printer Paper - 10 Rolls for the Bluetooth Printer
€ 24,00
137143
USBAC USB/AC Adapter Power Kit for PosiTector
€ 55,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
