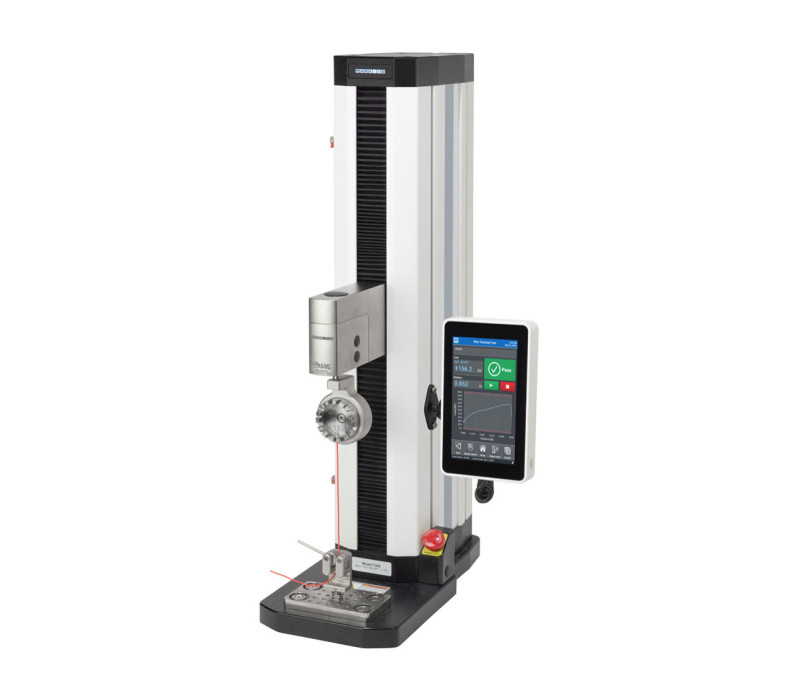

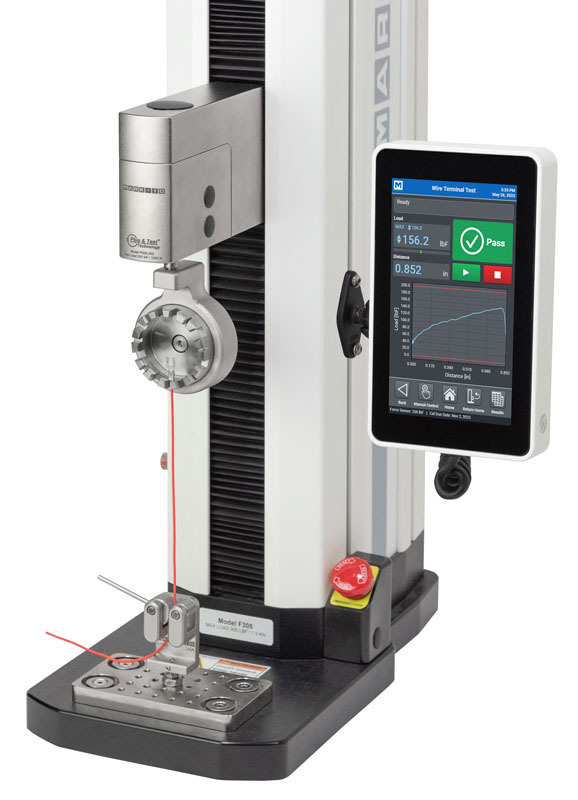

WTT-EM Motorised Wire Terminal Tester


The WTT-EM is a motorised test system for wire terminals, specifically designed to accurately evaluate crimp pull strength in compliance with standards such as UL486A and SAE/USCAR-21. With a capacity of up to 1,000 N, this system offers modular configuration and two available variants to suit different testing needs:

  • WTT-EM-STD: Basic system for destructive testing.
  • WTT-EM-ADV: Advanced system with load-holding function for non-destructive tests.



Highlighted Features:

  • Precise pull testing: For crimped terminals, with a capacity of up to 1,000 N.
  • Modular system: Based on the F-305-EM test stand, upgradable to 1,500 N with optional accessories.
  • Constant load control (ADV version): Maintains load for a pre-set interval according to standards.
  • Data output: Standard USB connection for result transfer to PC or data collection systems.
  • CE certified: Complies with European safety and quality directives.
  • Includes calibration certificate: Certificate traceable to NIST standards.

Key Benefits:

  • Flexible usage: Suitable for both destructive tests and load-holding procedures.
  • Full modularity: Easily configurable to meet evolving test requirements or new standards.
  • Certified reliability: 3-year warranty and traceable calibration ensure precision and compliance.



Need more information or a configuration tailored to your testing requirements? Contact us.


Features

  • Available configurations: STD (basic) and ADV (advanced with load control).
  • Minimal adjustments required: Ideal for quality labs, R&D, or production environments.

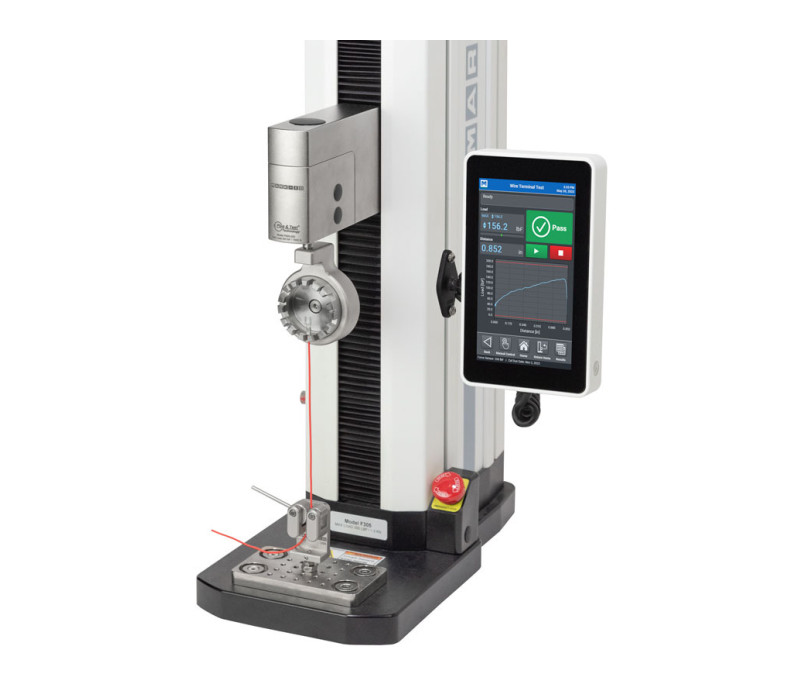

Complete Kit

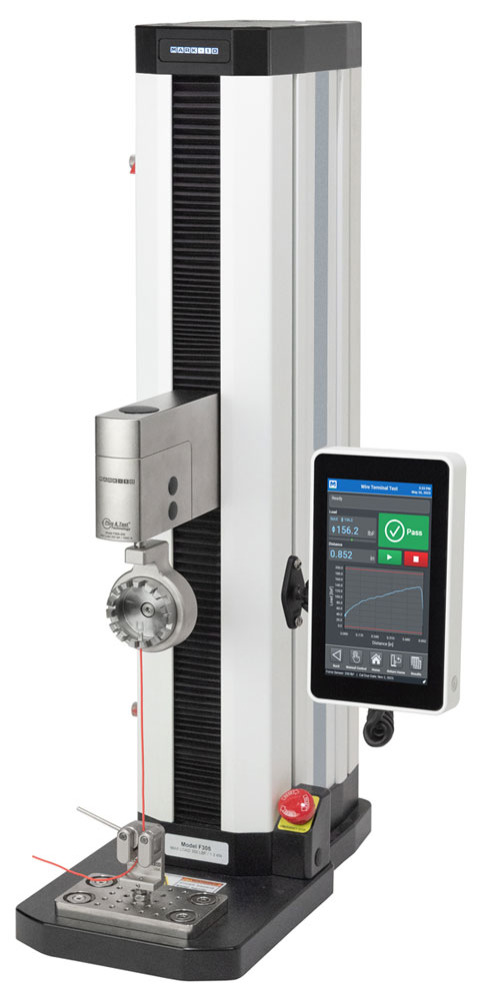

​The WTT-EM systems consist of:

  • F305-EM - Programmable Motorized Test Stand
  • FS05-200 - Digital Force Gauge
  • G1002 - Wire Cam Grip
  • G1076 - Wire Terminal Grip



The WTT-EM-ADV also Includes:

  • EMF006-1 - Cycling Option for EasyMESUR Test Frame
  • EMF008-1 - Load Holding Option for EasyMESUR Test Frame


Related Products

WT-205 Manual Crimp Pull Tester


  • Sampling rate: 7,000 Hz for accurate peak force capture.
  • Password protection: Prevents unauthorised changes to test parameters.
  • Mounting holes: Integrated for secure benchtop mounting.

More details

WT-205 Manual Crimp Pull Tester

WT-205M Motorised Crimp Pull Tester


  • Test profile compatibility: Stores up to 500 test setups for various applications (optional feature).
  • Visual and audible indicators: Green/red LED lights and configurable alarms for tests with programmed limits.

More details

WT-205M Motorised Crimp Pull Tester

WTT-HD Horizontal Wire Terminal Tester


  • For checking the pull-off force values of electrical leads, crimped terminals, connectors, and all other pull tests
  • Measuring Range: 0-100 Kg / 0-1000N / 0-220 lbs

More details

WTT-HD  Horizontal Wire Terminal Tester

WTT Wire pull tester for cable lugs


  • Measurement of the pull-out force optionally up to 50 kg or 100 kg
  • Programmable highs and lows allow visual and audible alarms when limits are exceeded
  • Up to 500 measurements can be measured in the data memory

More details

WTT  Wire pull tester for cable lugs

Test Stand with EasyMESUR® F105 / F305 / F505 / F505H


  • Integrated Force Sensor: Seamless interface for the FS05 force sensor without cables.
  • Integrated Touchscreen Control Panel: For setting up, running, and analysing data via the Easy MESUR® software.
  • Test Creation Wizards: Guides that assist the user throughout the configuration process.

More details

Test Stand with EasyMESUR® F105 / F305 / F505 / F505H

Test stand with IntelliMESUR® F105 / F305 / F505 / F505H


  • Integrated Force Sensor: Provides a cable-free interface for the FS05 force sensor.
  • Integrated Touchscreen Control Panel: For setting up, running, and analysing data via the IntelliMESUR® control panel.
  • Integrated Motion Control and Data Collection: The Plug & Test® system allows seamless use of third-party load cells via the PTAF adapter.

More details

Test stand with IntelliMESUR® F105 / F305 / F505 / F505H

Accessories

Series FS05 Series FS05 Force Sensors


  • Mount directly to crosshead of models F105, F305, F505, and F505H without any connection cables
  • Member of the Plug & Test® family of interchangeable sensors and indicators (adapter required)
  • Measure tension and compression force

More details

Series FS05 Series FS05 Force Sensors 127403

Category Mark-10 Attachments


More details

Category  Mark-10 Attachments 0

Specifications

Force Capacity1,000 N / 100 kg / 200 lbf
Speed Range (Standard)13 – 330 mm/min (approx. 0.6 – 13 in/min)
Maximum Travel Distance292 mm (11.5 inches)
Speed AccuracyWithin ±0.2% of the set value
Speed Stability Under Load±0% (maintained by stepper motor)
Limit Switch AccuracyRepeatability of 0.03 mm (0.001 in)
Power SupplyUniversal input: 80–240 V AC, 50/60 Hz
Shipping Weight 45 kg approximately

Buy Now
