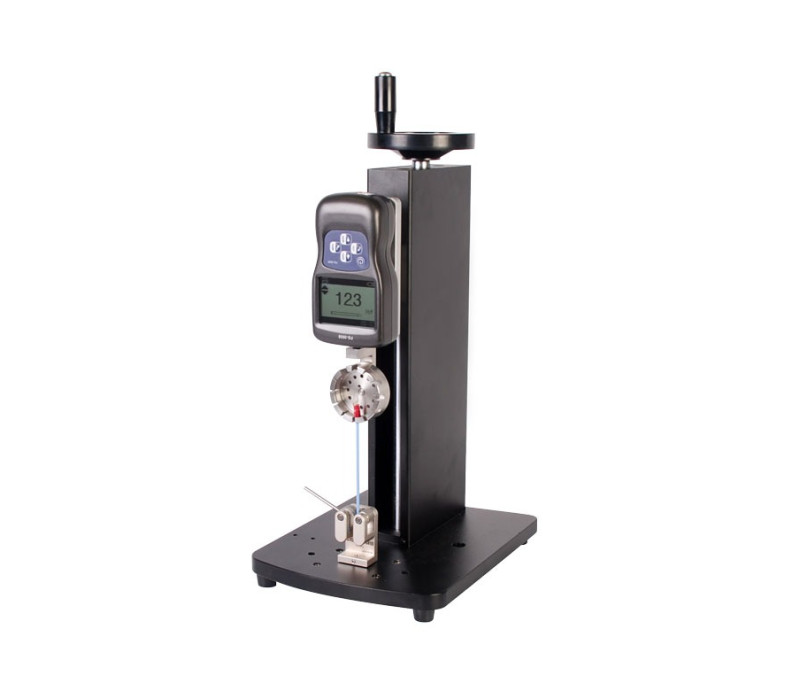

WTT Wire pull tester for cable lugs

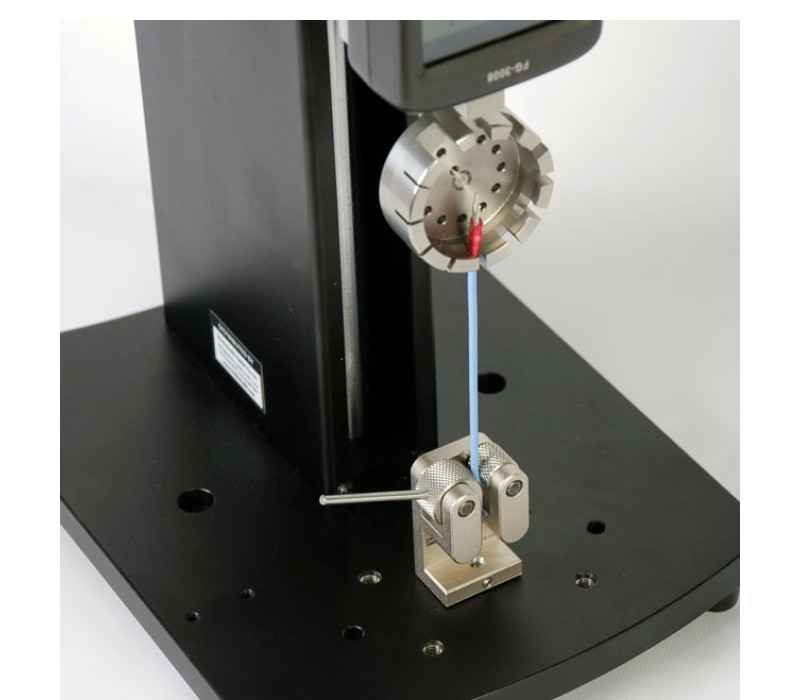

The WTT pull-out force gauge accurately measures the force (up to 100kg) needed to loosen lugs. The system consists of a manual dynamometer, a digital force gauge and special cable brackets suitable for cable diameters up to 6 mm (0.24 ").

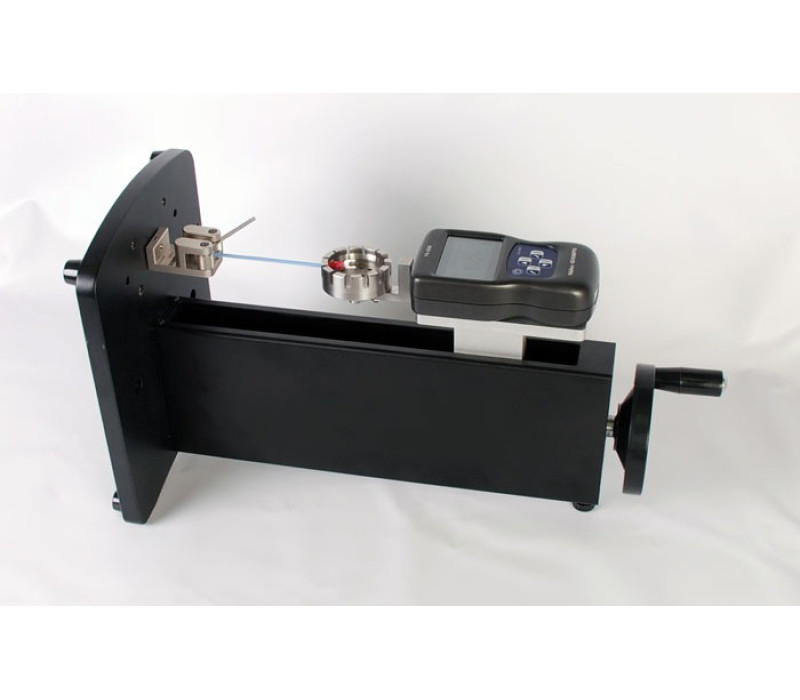

The wheel is attached to the top of the test bench so that the the test bench can be controlled with the highest level of precision, thus enabling very exact force measurements of up to 100 kg or 1000 N.

The digital force measuring device used in this system collects the measured data and displays it clearly on an LCD display. In addition, it has the option of setting maximum and minimum values for a series of measurements in "Preset mode" and of being alerted by audible and visual signals if these values are exceeded. Data output ports USB and RS-232 enable together with the included data software that the data can be directly transferred to a computer.

Request price >>

Measurement of the pull-out force optionally up to 50 kg or 100 kg
Programmable highs and lows allow visual and audible alarms when limits are exceeded
Up to 500 measurements can be measured in the data memory
RS-232 and USB interface
Including data processing software
Selectable units (Kg / N / lbs)
Supplied with a factory certificate, NIST traceable calibration certificate is available as an option

The WTT pull-out force gauge is delivered in a kit consisting of:

FG-3000 digital force gauge
FGS-250W manual test bench
G1002 two-roller handle

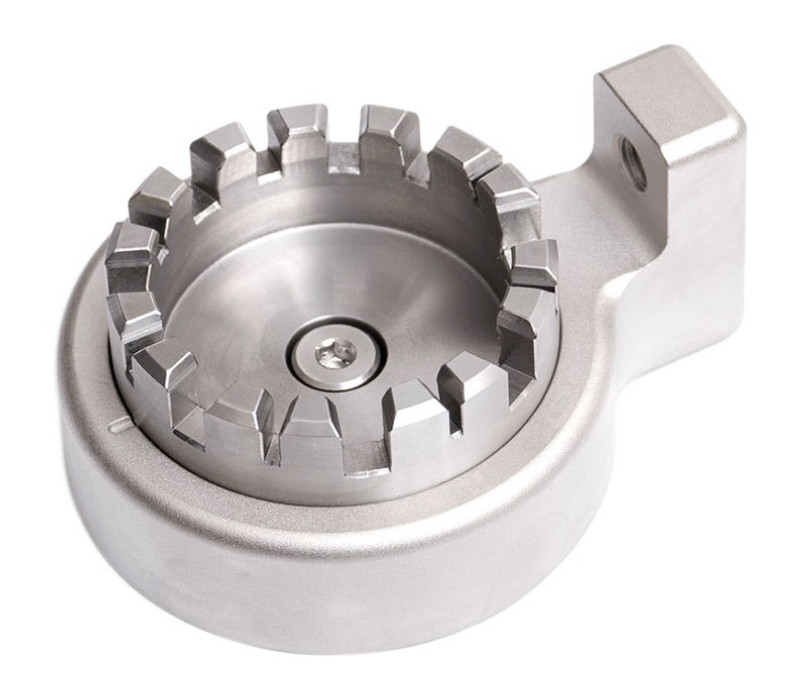

G1076 Pull-out handle adapter
USB data cable
Factory certificate

Video

▶

Capacity:	WTT-100: 50 kg / 500 N / 110 Lb WTT-200: 100 kg / 1000 N / 220 Lb
Resolution:	WTT-100: 0.01 kg / 0.01 N / 0.1 Lb WTT-200: 0.1 kg / 0.1 N / 0.1 Lb
Precision:	± 0.3% of the full scale
Hub:	230mm without attachments
Overload capacity:	150% of the final scale value (LCD display flashes from a load of 110% of the maximum value)
Refresh rate display:	10 times/second
Data memory:	500 measurement values
Power supply:	Rechargeable Ni-MH battery, universal charger optional
Battery life:	Approximately 16 hours continuous use at full charge
Data output:	USB, RS-232
Operating temperature:	-10° - 40°C
Dimensions:	250 x 196 x 445 mm
Weight:	8,6 kg
Warranty:	1 year

Products

Item	Product
136102	WTT-100 Manual Wire Terminal Pull Tester, 50 Kg / 500 N Capacity
136032	WTT-200 Manual Wire Terminal Pull Tester, 100 Kg / 1000 N Capacity

Accessories

Item	Product
140016	NIST-FG - NIST Traceable Certificate of Force Calibration to 50 KG
140018	NIST-FG-HX - NIST Traceable Certificate of Force Calibration from 100 to 500 kg

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
