MF100 USB Sensor Interface

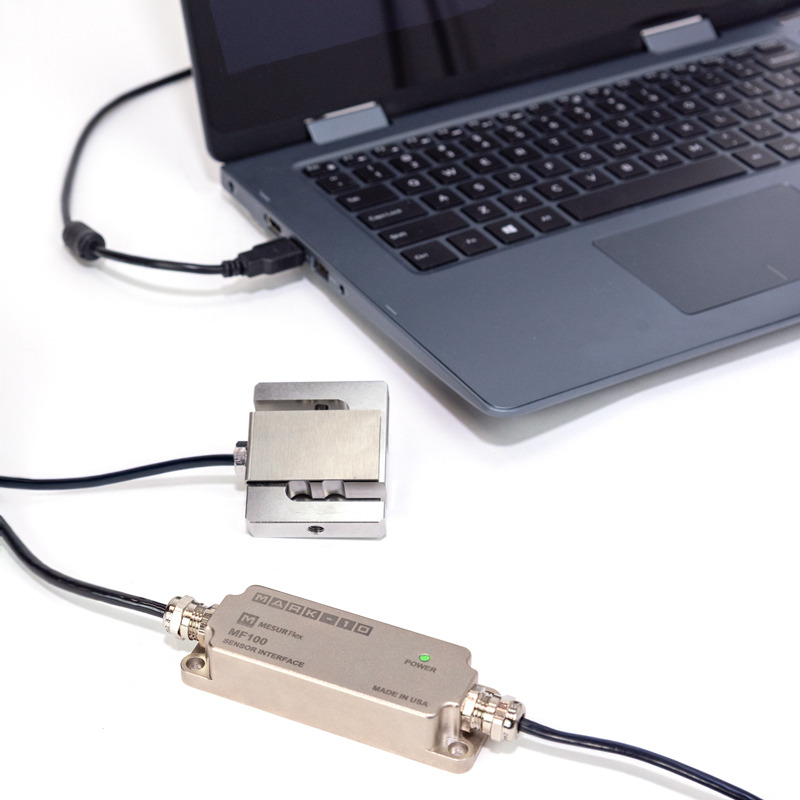

The MF100 USB Sensor Interface is a compact, high-accuracy module designed to connect third party strain-gauge load cells, force sensors, and torque sensors directly to a PC via USB. It converts the sensor’s analogue signal into a stable digital output, making it ideal for laboratories, quality control teams, production lines, and R&D environments that require repeatable and traceable measurements.
The MF100 supports a wide range of force and torque sensor capacities, from low-load measurements to high-capacity industrial applications. A built-in screw terminal block enables quick, solder-free wiring of compatible strain-gauge sensors, simplifying integration into new or existing test setups.

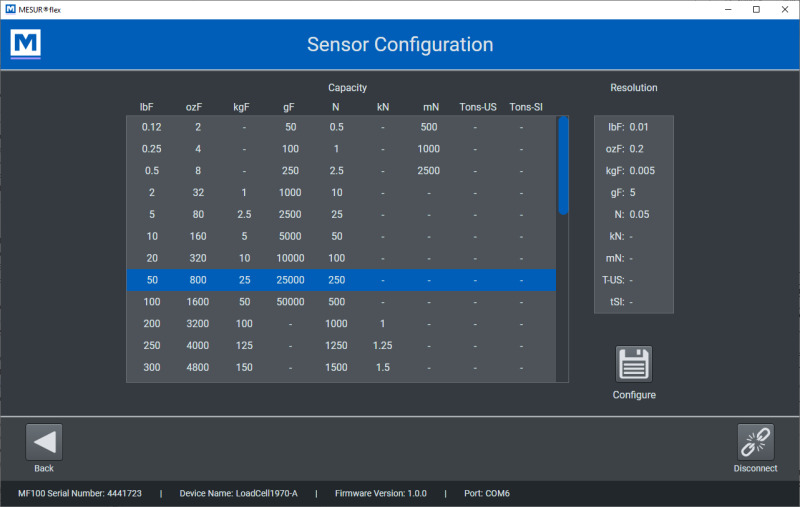

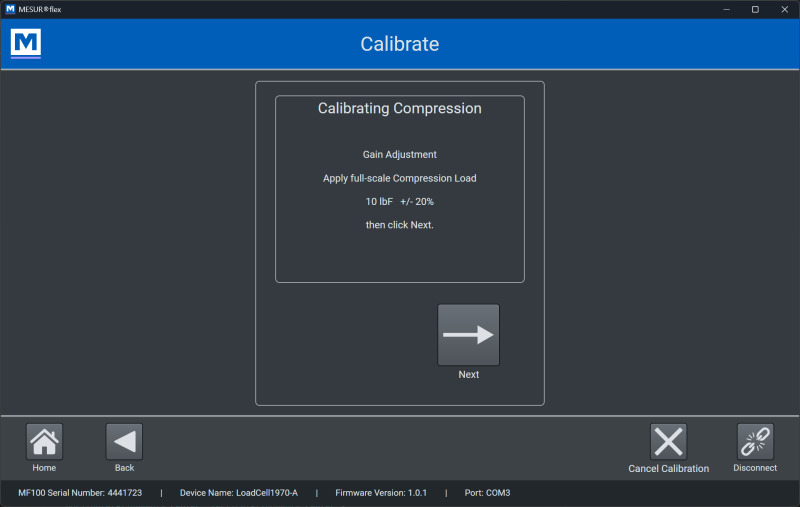

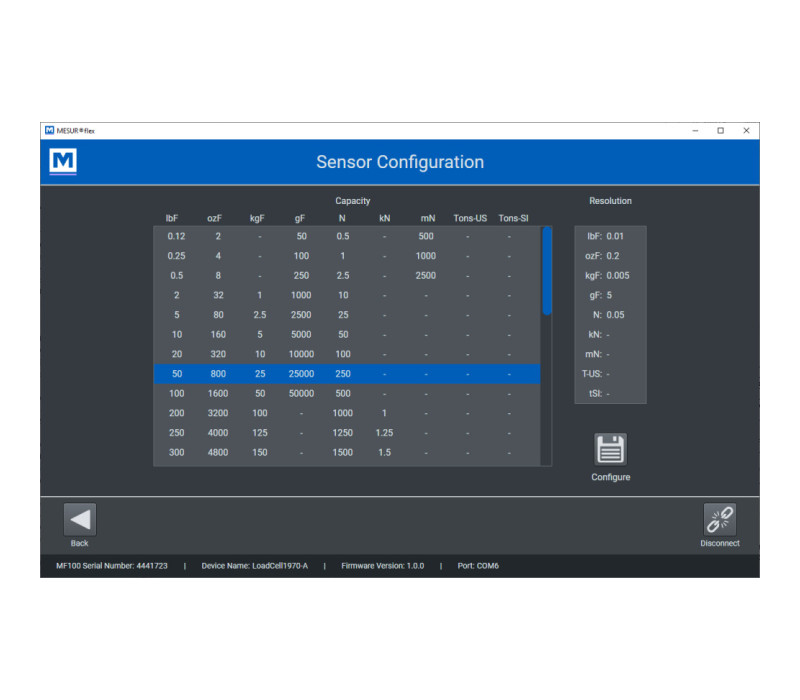

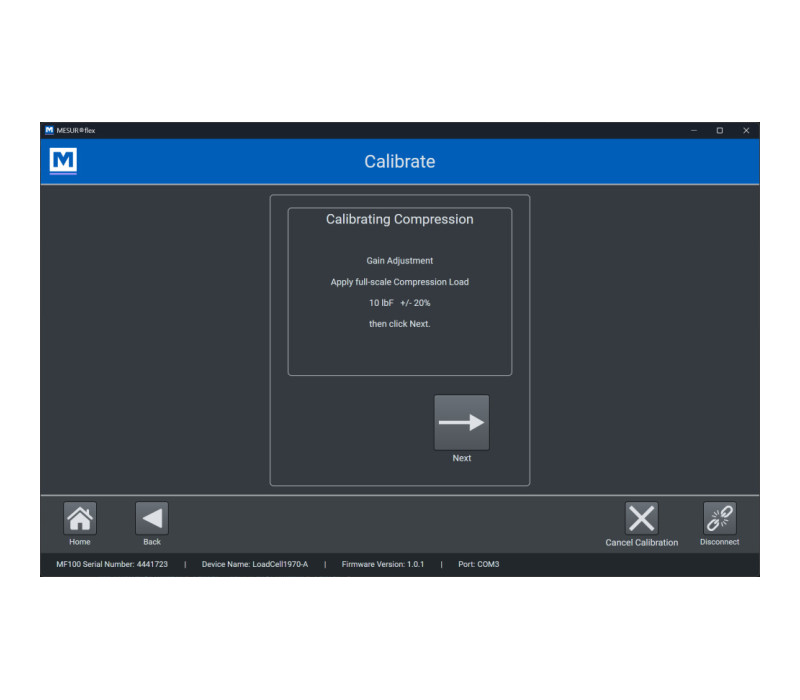

Unlike basic USB adaptors, the MF100 offers precision signal conditioning, digital filtering and real-time acquisition, ensuring consistent results even during demanding test sequences. When paired with MESUR®Flex software, users can configure sensor capacity and resolution, run a guided multi-step calibration, log data, generate reports, monitor trends, and export results instantly for further analysis.
Key Features

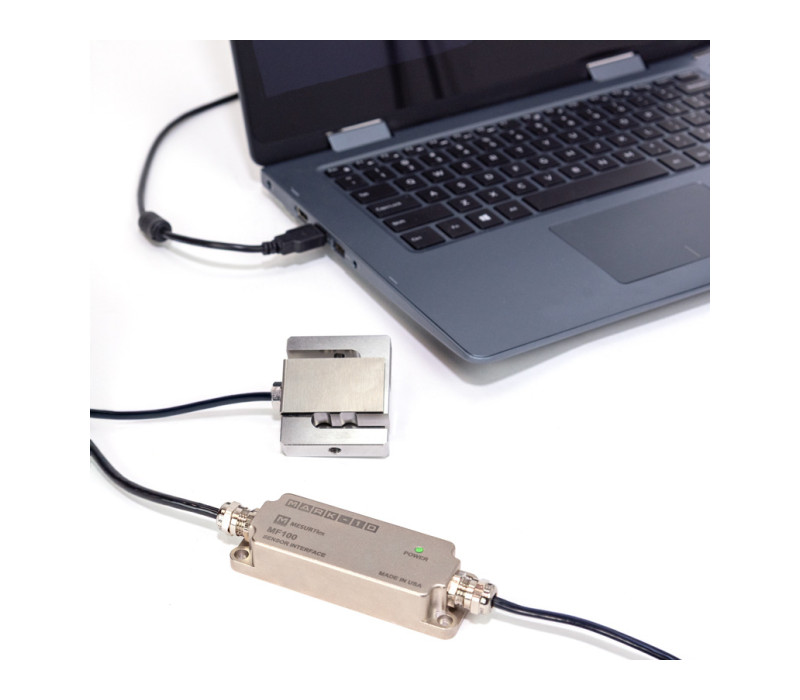

- Direct USB connectivity: Simple plug-and-play interface for transferring force, torque, or strain-gauge signals to a PC.

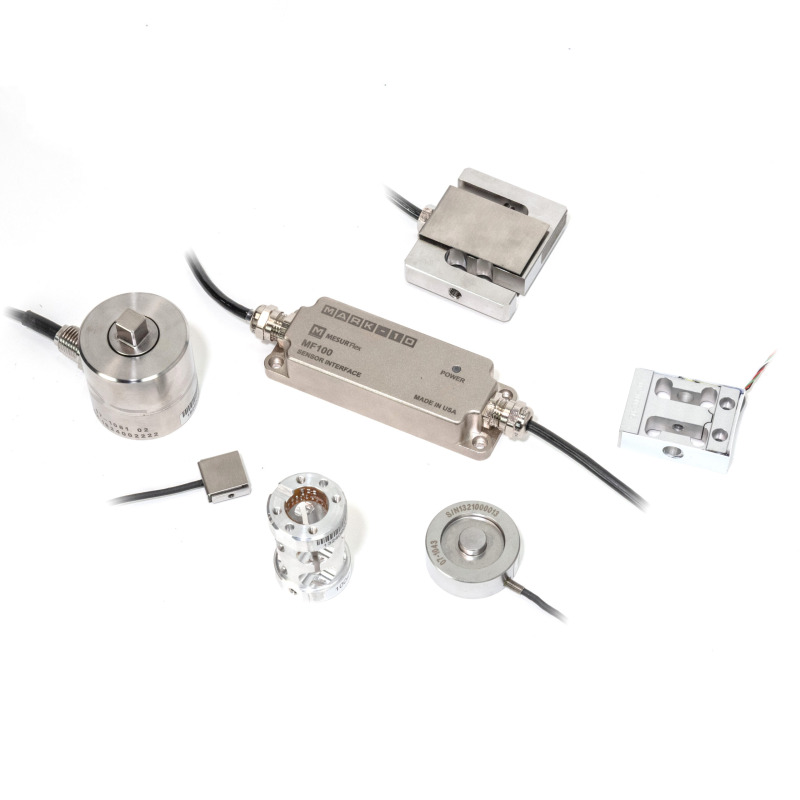

- Wide compatibility: Supports force and torque sensors, as well as external full-bridge, 4-wire strain-gauge sensors.

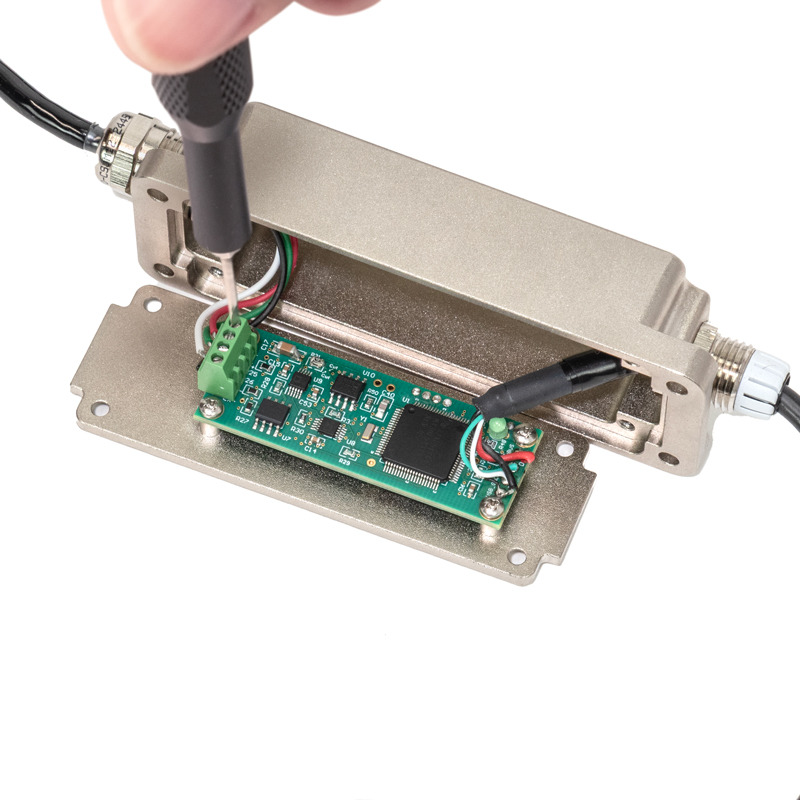

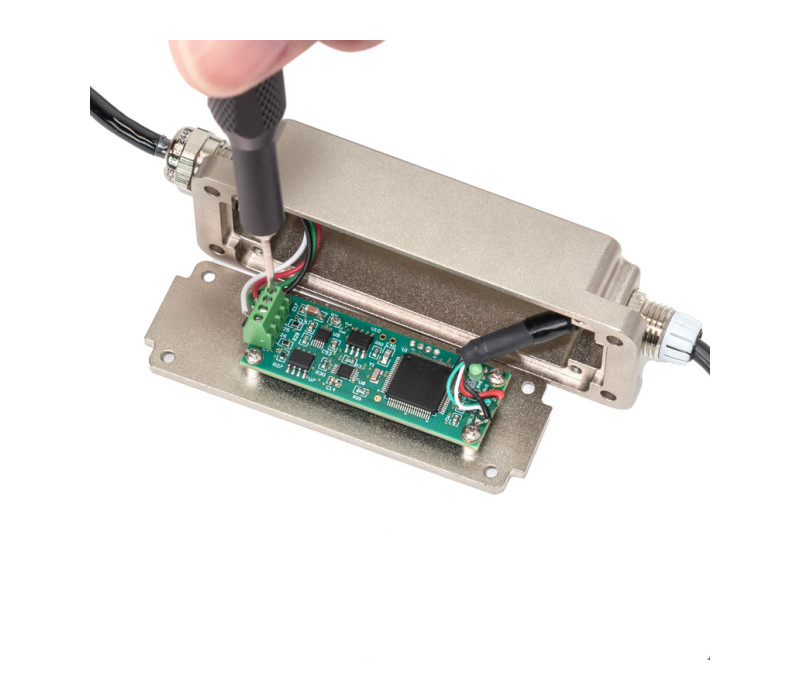

- Screw terminal block: Quick, solder-free connection of sensor wires for flexible system configuration.
- High-stability signal processing: Precision amplification and digital filtering ensure accuracy during dynamic or fluctuating loads.
- Robust & compact design: Suitable for fixed workstations or portable field use.
Key Benefits
- Real-time data acquisition: Immediate visualisation, logging and export using MESUR®Flex PC software.
- Easy system integration: Extensive serial command set for automation, custom rigs, and OEM applications.
- Improved workflow efficiency: Streamlined reporting, traceability and documentation.
- Reliable performance: Stable, repeatable readings for high-precision measurement tasks.
Contact us to configure the MF100 with the most suitable sensor, cables, and accessories for your force, torque, or strain-gauge measurement setup.
Features
- Interface type: USB 2.0
- Force capacity: Wide range of low to high-capacity sensors
- Torque capacity: Suitable for low, medium and high-capacity torque sensors
- Compatible sensors: Force sensors, torque sensors, and external 4-wire strain-gauge sensors
- Supported units: lbF, N, kN, ozFin, lbFft, Ncm, Nm
- Terminal block: Built-in screw terminal block for direct sensor wiring
- Software: MESUR®Flex (real-time display, configuration, calibration, logging, reporting)
- Applications: Laboratory testing, quality control, production monitoring, R&D
Included with the MF100:

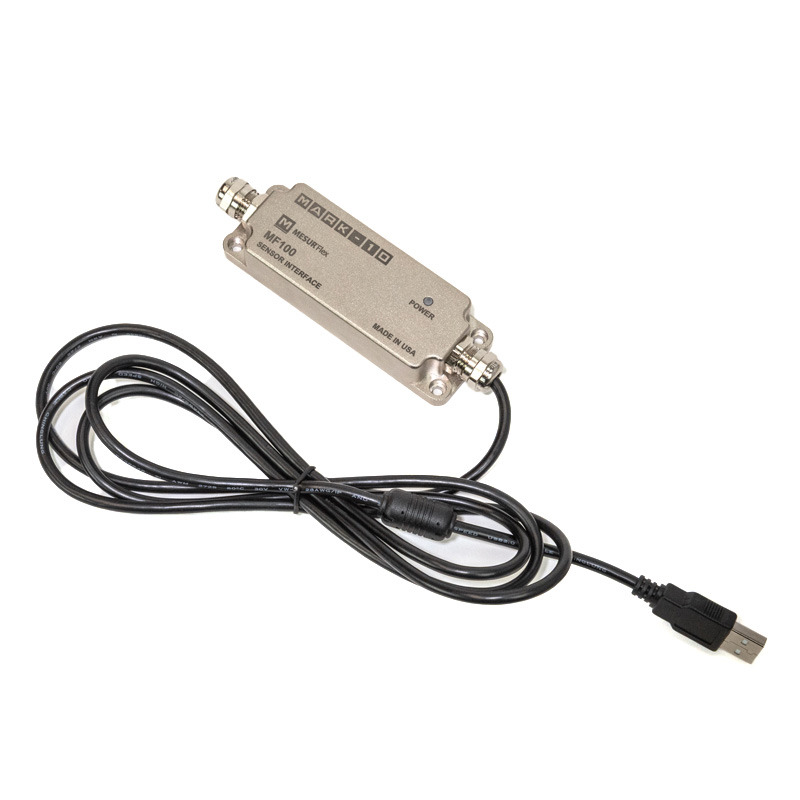

- 5 ft (1.5 m) tethered USB cable
- Strain relief for sensor cable
- MESUR®Flex software
- Certificate of calibration

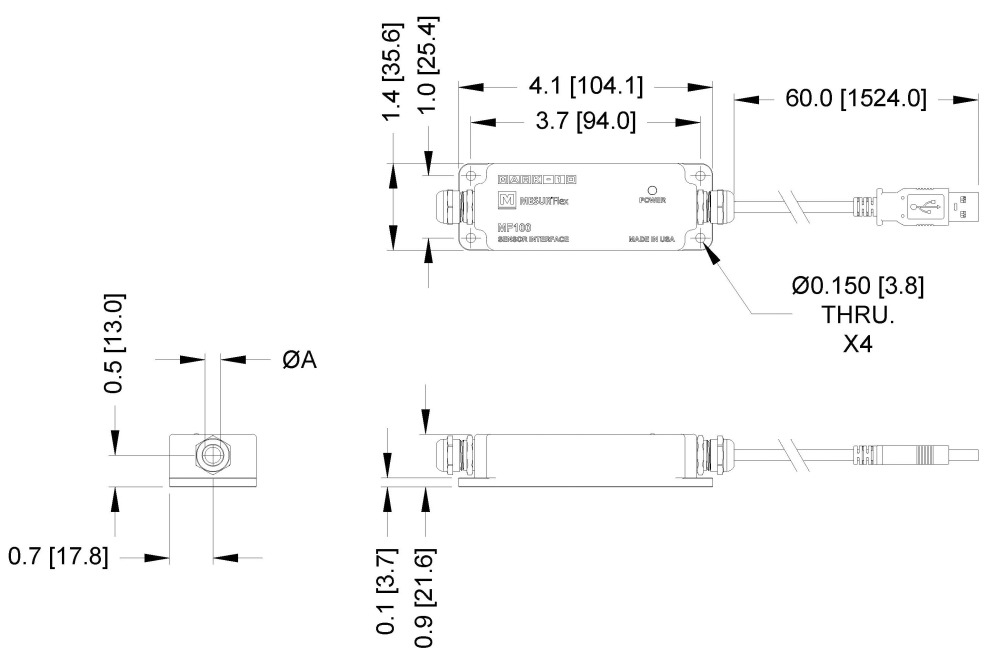

Dimensions
| Part | Dimension |
|---|---|
| Housing length | 4.1 in (104.1 mm) |
| Mounting width (between hole centres) | 3.7 in (94.0 mm) |
| Housing width | 1.4 in (35.6 mm) |
| Housing height | 1.0 in (25.4 mm) |
| Total height (including mounting plate) | 0.9 in (21.6 mm) |
| Base plate thickness | 0.1 in (3.7 mm) |
| Side profile height (connector side) | 0.7 in (17.8 mm) |
| Top profile height (body only) | 0.5 in (13.0 mm) |
| Mounting holes | Ø 0.150 in (3.8 mm), 4× thru |
| USB cable length | 60.0 in (1524 mm) |

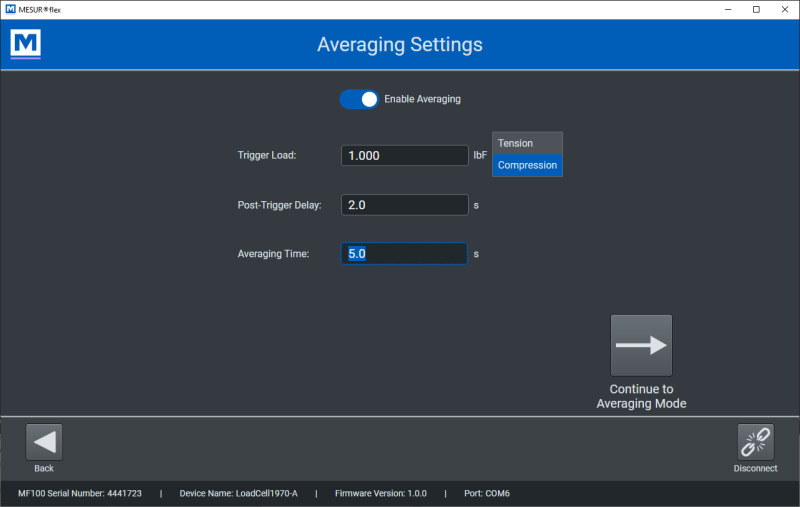

The MF100 works seamlessly with MESUR®Flex,
MESUR®Flex is an intuitive software designed to enhance force, torque, and tension testing workflows. Seamlessly integrating with Mark-10’s digital force gauges, torque testers, and motorized test stands, it simplifies data acquisition, analysis, and reporting.
Key Features:

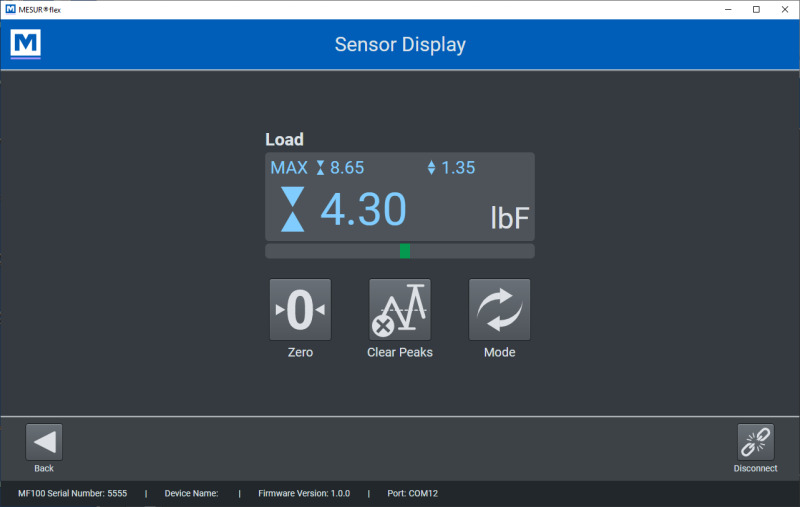

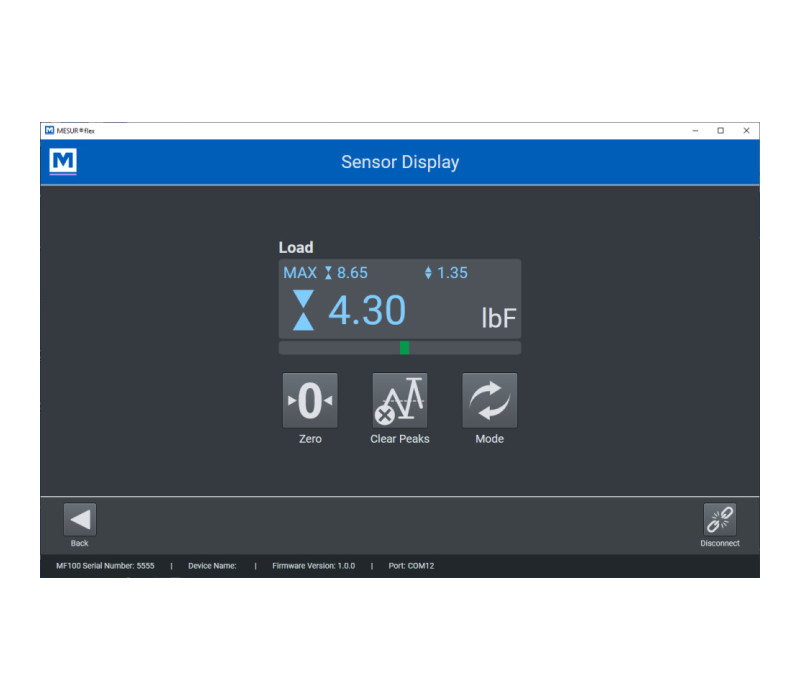

• Real-Time Data Visualization: Live graphs and digital displays for instant monitoring of force/torque curves, peak values, and test results.

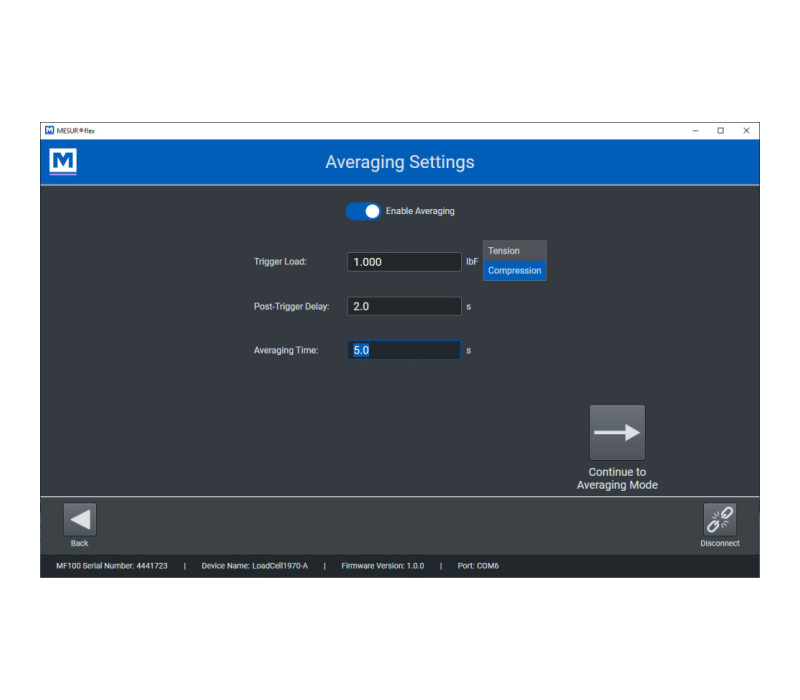

• Customizable Test Configurations: Define test parameters (e.g., speed, direction, set points) to automate repeatable testing procedures.
• Data Export & Reporting: Generate detailed reports in CSV, Excel, or PDF formats for compliance, quality control, or R&D documentation.
• Statistical Analysis: Calculate averages, standard deviations, min/max values, and pass/fail criteria to evaluate product performance.
• Multi-Channel Support: Connect multiple instruments simultaneously for comprehensive testing on complex assemblies.
Ideal For:
Quality assurance labs, manufacturing, R&D, and education. MesurFlex reduces manual errors, saves time, and ensures consistent, traceable results.
PTA/PTAF Plug & Test Load Cell Adapter
- Compatible with strain gage-based load cells, force sensors, and torque sensors
- Program the adapter via USB or RS-232 through the indicator
More details
R01 Series S-Beam Force Sensor
- Unique Plug & Test connector holds all calibration and configuration data
- Measures tensile and compressive forces
- NIST-traceable certificate of calibration included
More details
R02 Series Sensor for Compression Force
- Button sensor with stainless steel construction
- For compressive loads of up to 50 kN
- Unique Plug & TestTM connector holds all calibration and configuration data
More details
R03 Series Smart sensor for tension and compression force
- Compatible with the Series 7i, 5i and 3i digital indicators
- Unique Plug & TestTM connector holds all calibration and configuration data
- Smart sensor with rugged aluminum housing
More details

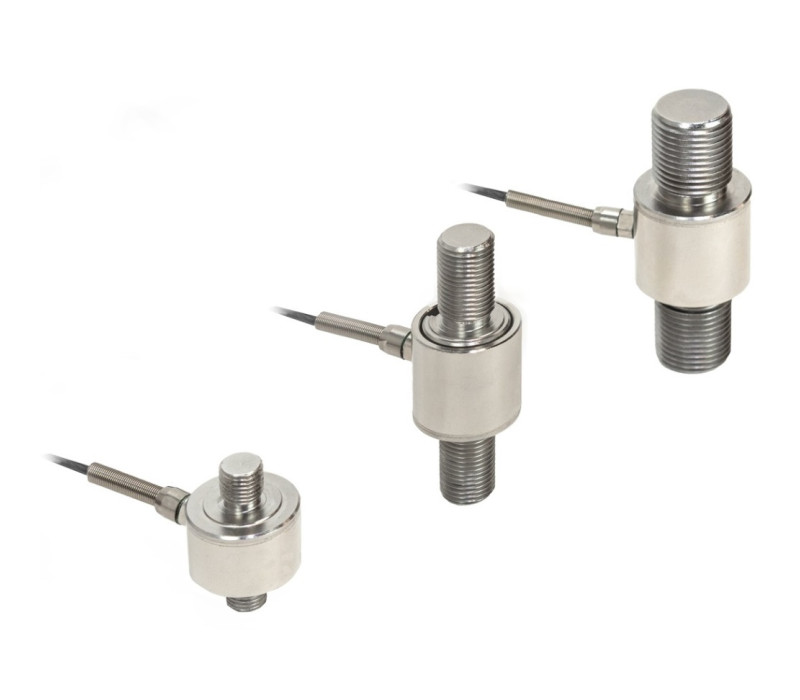

R08 Series Tension and Compression Force Sensors
- Compatible with the Series 7i, 5i and 3i digital indicators
- Unique Plug & TestTM connector holds all calibration and configuration data
- Threaded rods on both ends
More details
Specifications
| Sensor type: | Works with Full-bridge strain-gauge Sensors (not included) |
| Sensor resistance: | 300–1000 Ω |
| Sensitivity: | 1–3 mV/V (full scale) |
| Force measurement range: | 0.5 N to 5,000 kN (0.12 lbF to 500 T) |
| Torque measurement range: | 7 Ncm to 57,000 Nm (10 ozFin to 40,000 lbFft) |
| Load accuracy: | ±0.1% of full scale + sensor |
| Sampling rate: | 7,000 Hz |
| Data output rate: | Up to 500 Hz (user-configurable) |
| Interface type: | USB 2.0 |
| Weight: | 0.2 kg (0.4 lb) |
| Shipping weight: | 0.9 kg (2.0 lb) |
| Environmental conditions: | 4–38°C (40–100°F), max. 96% humidity (non-condensing) |
| Conformance: | CE, UKCA |
| Warranty: | 3 years |
