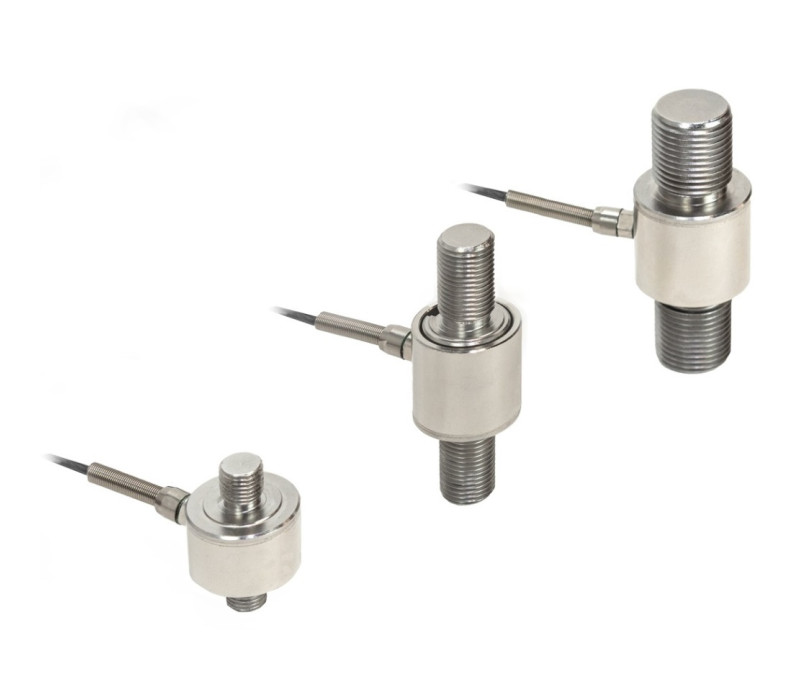

R08 Tension and Compression Force Sensors

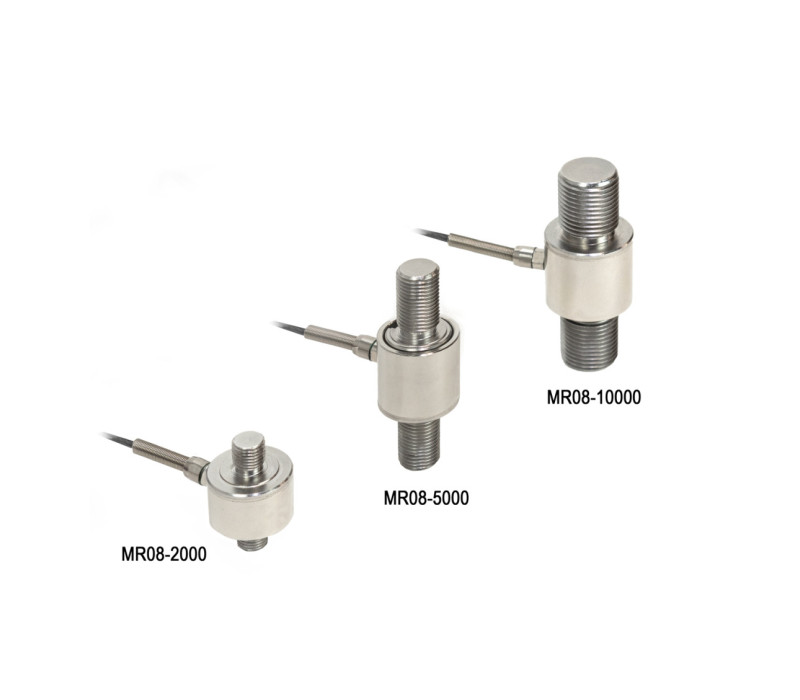

Select from three capacities, 10 to 50 kN

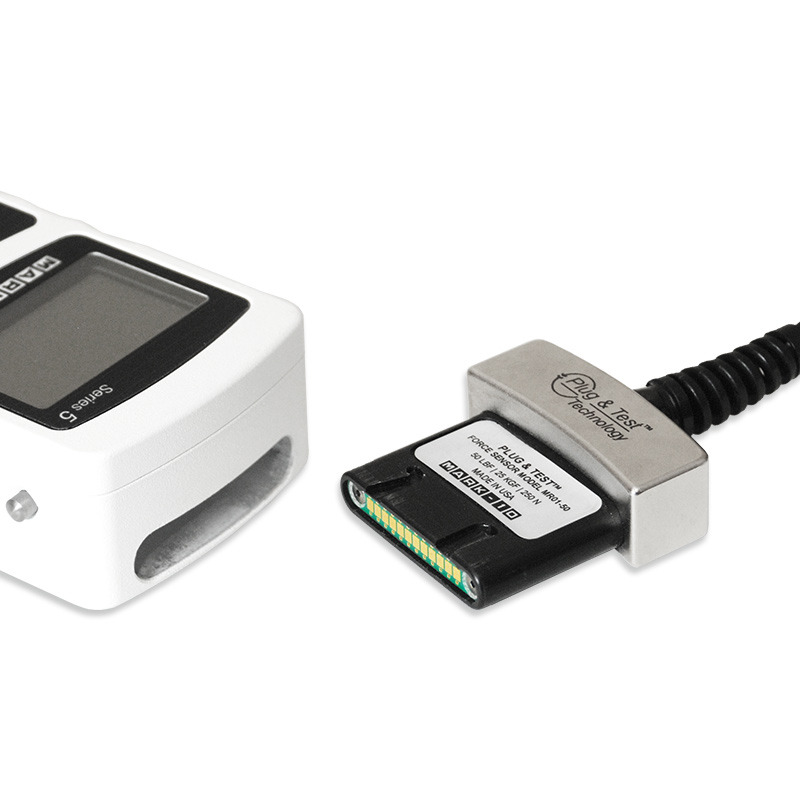

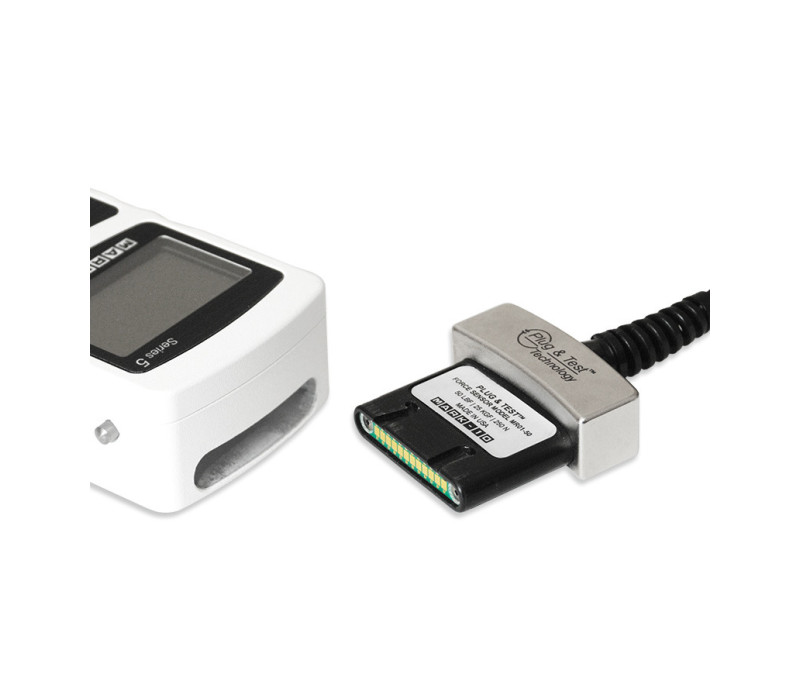

Unique Plug & Test® technology allows for interchangeable sensors to be used with a Mark-10 indicator. All calibration and configuration data is saved in the smart connector.

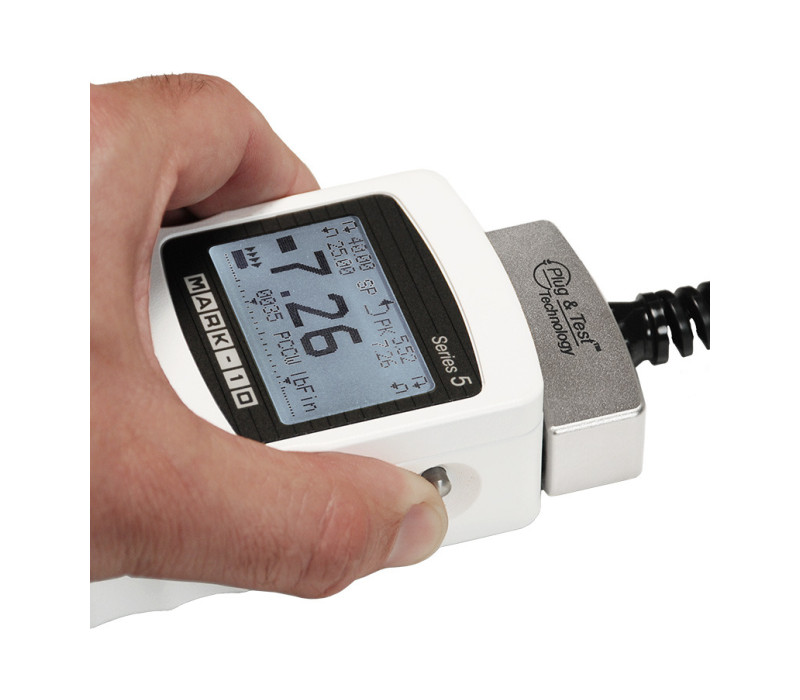

The Plug & Test® connector locks into the receptacle in the indicator when fully inserted. Dual buttons on the indicator housing release the connector for easy removal. Gold plated spring contacts ensure long lasting and reliable connection.

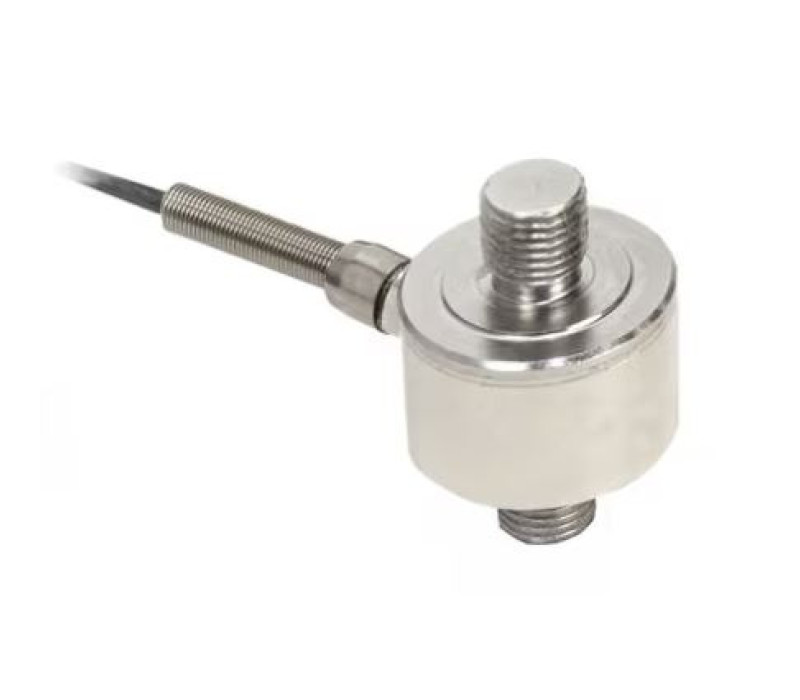

MR08-2000 - thread 3/8-24 UNF

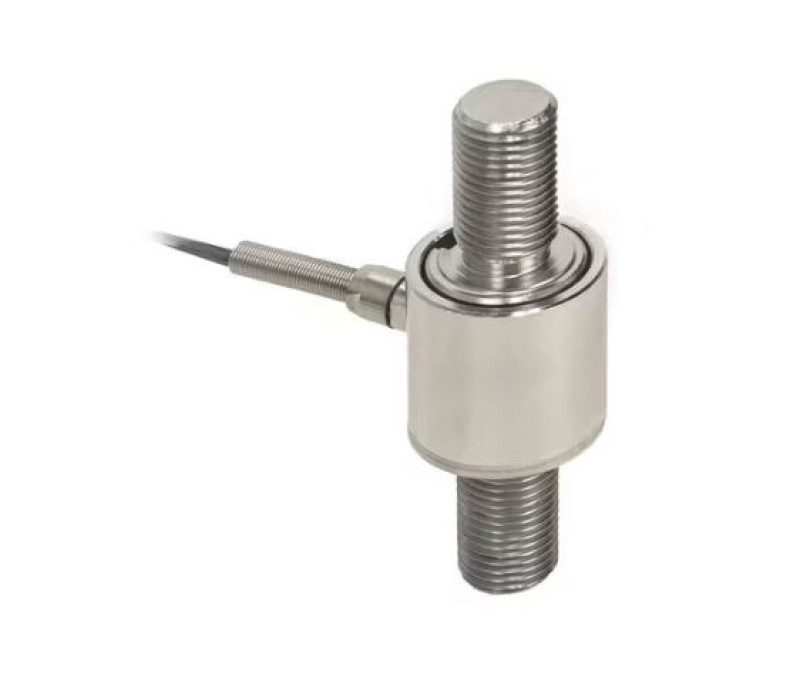

MR08-5000 - thread 1/2-20 UNF

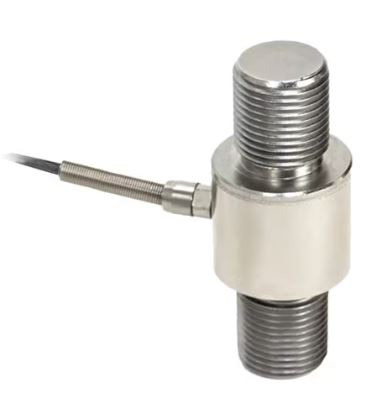

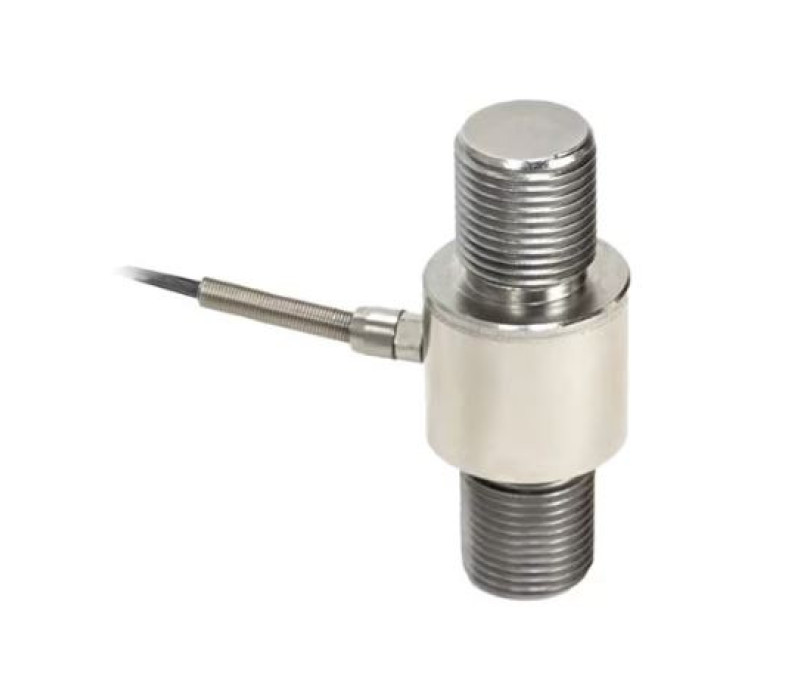

MR08-10000 - thread 3/4-16 UNF

R08 Series Tension and Compression Force Sensors

Name: R08 Series Tension and Compression Force Sensors
SKU: 127558

Threaded sensors designed for measuring both tensile and compressive forces for applications with a capacity of up to 50 kN.

3 versions are available
MR08-2000 - Force sensor, 2000 lbF / 32000 ozF / 1000 kgF / 10000 N / 10 kN
MR08-5000 - Force sensor, 5000 lbF / 2500 kgF / 25000 N / 25 kN
MR08-10000 - Force sensor, 10000 lbF / 5000 kgF / 50000 N / 50 kN

Each end of the sensor features a threaded rod, this offers versatile mounting options.
This R08 Series sensors are made of17-4PH stainless steel / IP64 design withstands harsh environments
These sensors are compatible with Mark-10 indicators (sold separately) through the unique Plug & Test® technology.

NIST-traceable certificate of calibration with data is included
An optional combined certification for both the sensor and indicator can be ordered using part no. 139895 - CERT-SI.

€ 735,00

Order now

Compatible with the Series 7i, 5i and 3i digital indicators
Unique Plug & TestTM connector holds all calibration and configuration data
Threaded rods on both ends
17-4PH stainless steel / IP64 design withstands harsh environments
NIST-traceable certificate of calibration with data is included

Accuracy:	±0.5% of full scale + indicator
Weight:	MR08-2000 & MR08-5000 = 0.1 kg / MR08-10000 =0.2 kg
Material:	17-4PH stainless steel / IP64 design withstands harsh environments
Cable length:	3 meters
Thread:	MR08-2000 - 3/8-24 UNF MR08-5000 - 1/2-20 UNF MR08-10000 - 3/4-16 UNF
Warranty:	3 years

Capacity x Resolution - with Models M7I & M5I Indicators

Model	lbF	ozF	kgF	N	kN
MR08- 2000	2000 x 1	32000 x 20	1000 x 0.5	10000 x 5	10 x 0.005
MR08- 5000	5000 x 2	-	2500 x 1	25000 x 10	25 x 0.01
MR08-10000	10000 x 5	-	5000 x 2	50000 x 25	50 x 0.02

Capacity x Resolution - with Model M3IIndicator

Model	lbF	kgF	N	kN
MR08- 2000	2000 x 2	1000 x 1	10000 x 10	-
MR08- 5000	5000 x 5	2500 x 2	-	25 x 0.02
MR08-10000	10000 x 10	5000 x 5	-	50 x 0.05
Capacity: This value represents the maximum measurable load. All available capacities are listed for each available unit of measurement. All instruments measure from 0 to the indicated capacity. Resolution: This value represents the smallest measurable increment. For Plug & Test® sensors, the resolution depends on which indicator is used. Refer to the Capacity x Resolution tables on the particular sensor’s webpage or data sheet. Example - M5-50 Force Gauge: Pound-force Capacity x Resolution for the M5-50 force gauge is 50 x 0.01 lbF. This means that the gauge measures from 0 to 50 lbF, with increment size of 0.01 lbF, i.e., 0, 0.01, 0.02, 0.03…50.00

Products

Item	Product	Price
139892	MR08-2000 - Force sensor - 2000 lbF / 32000 ozF / 1000 kgF / 10000 N / 10 kN	€ 735,00
139893	MR08-5000 - Force sensor, 5000 lbF / 2500 kgF / 25000 N / 25 kN	€ 735,00
139894	MR08-10000 - Force sensor, 10000 lbF / 5000 kgF / 50000 N / 50 kN	€ 735,00

Accessories

Item	Product	Price	Quantity	Action
139895	CERT-SI - Combined certificate of calibration with data, indicator + sensor, calibrated as a set (new gauge)	€ 78,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
