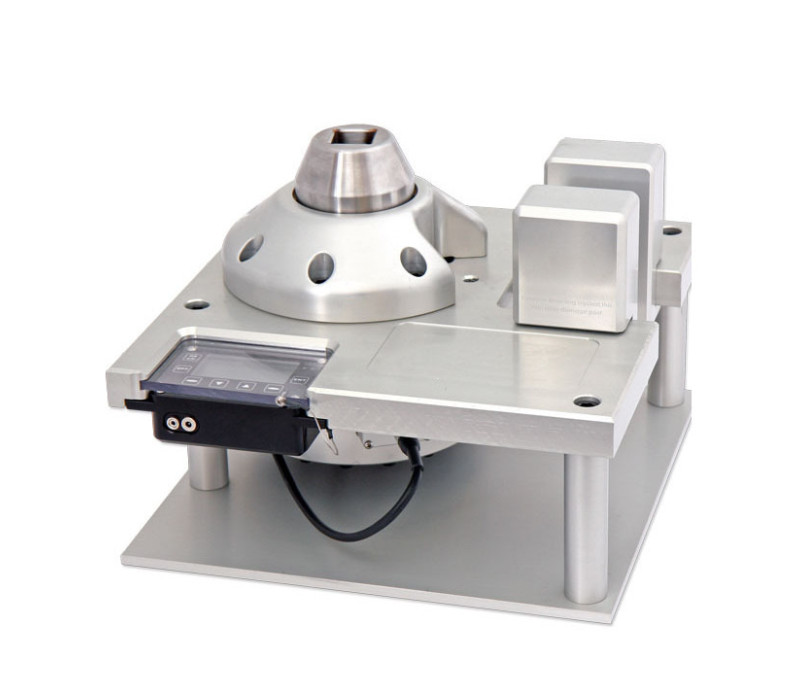

    HYRD Torque Tester for multipliers, rotating and geared torque wrenches

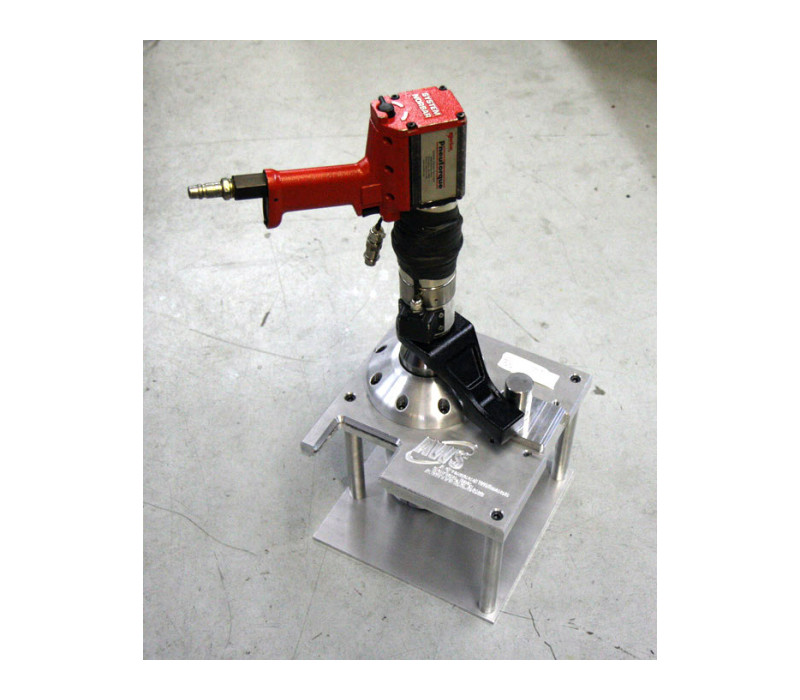

    The torque testers of the HYRD series were specially developed for the precise testing of rotating torque tools such as driven torque multipliers, pneumatic, electric torque wrenches and power wrenches.

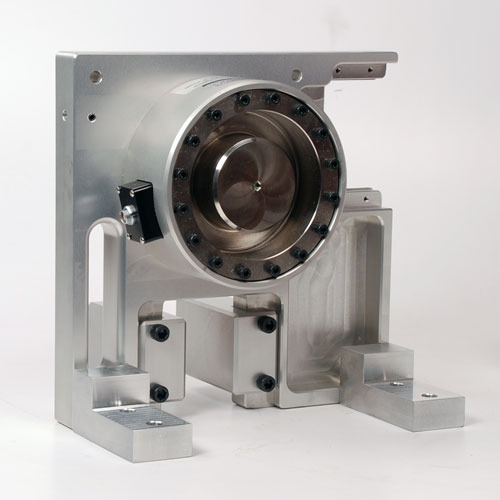

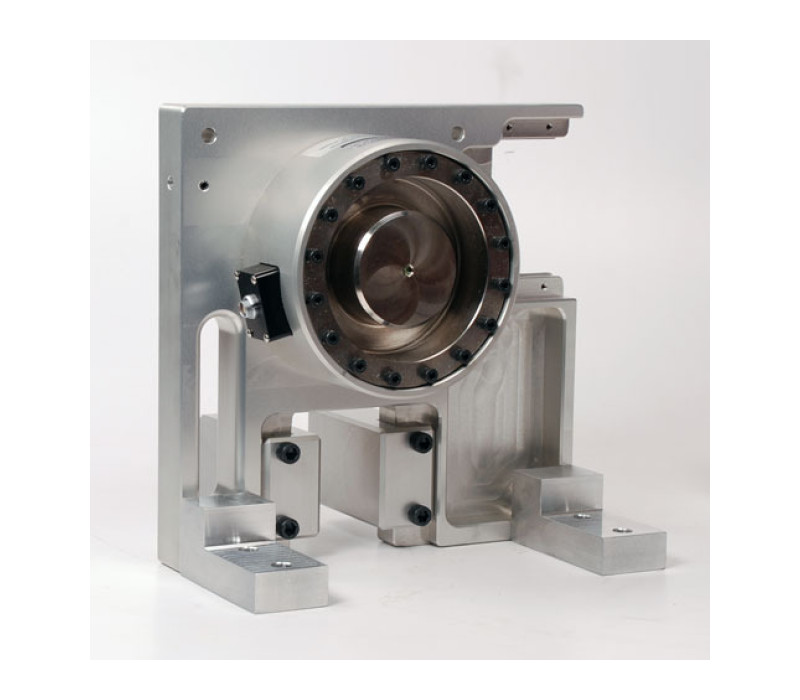

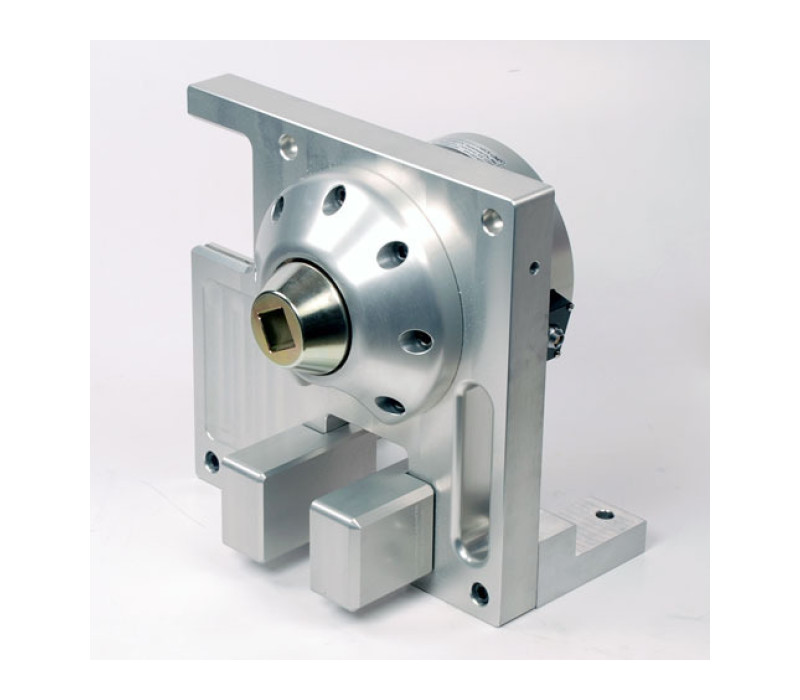

    The stable aluminum frame is light and robust at the same time, so that no additional screwing of the test device is required. The ball-bearing joint simulator enables dynamic torque build-up under real conditions and protects the measuring cell from lateral forces. It also comes with a recess in the aluminum frame for the power screwdriver's support arm to enable safe testing at any time.

    The accuracy is ± 0.5% of the displayed measured value, within the calibrated 5 - 100% of the capacitance measuring range.

    The TT-HYRD torque tester can be ordered either with an integrated display unit or without a display. The version without display is more convenient for customers who prefer an external display or for those who use one display unit for several test devices.

    Not eligible for use with impact tools
    Price from € 4.505,00
    Order now
    • Including NIST traceable calibration certificate
    • Ball-bearing screw joint simulator
    • Robust design
    • Double support points for support arms of power screwdrivers
    • No screw connection of the test device necessary
    • Production on customer order, individual adjustments possible
    Torque ranges

    Torque ranges

    ModelCalibrated measuring rangeDimensionsWeightDrive
    41011-HYRD67.75 - 1355 Nm / 50 - 1000 lb-ft20,32 x 20,32 cm9,10 kg1.5" Square innen
    41012-HYRD170 - 3400 Nm / 125 - 2500 lb-ft30,48 x 30,48 cm11,34 kg1.5" Square innen
    41013-HYRD340 - 6800 Nm / 250 - 5000 lb-ft30,48 x 30,48 cm13,61 kg1.5" Square innen
    41014-HYRD505 - 10100 Nm / 375 - 7500 lb-ft30,48 x 30,48 cm15,88 kg1.5" Square innen
    Calibrated measuring range5-100% of the capacity, in both directions
    Accuracy± 0.5% of the displayed measured value (within the calibrated range)
    Overload protection200% of the capacity, in both directions
    Warranty1 year
    Operating temperature0 - 50°C
    Operating modesTrack (real time), Peak (peak value) and 1st Peak (first peak value)
    Resolution4 active positions
    FilterSelectable: 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 1500Hz and 2000Hz
    Data memoryFor up to 999 measurements
    Data ouputRS-232
    Display62x62 mm backlit LCD
    Alarm limitsLEDs for visual alarm limits
    Power supplyRechargeable NiMH batteries for 10-12 hours of continuous use

    Related Products

    Browse Related Products

    TT-IMP Impact Wrench Torque Tester

    TT-IMP Impact Wrench Torque Tester

    Portable Digital Torque Display

    Portable Digital Torque Display

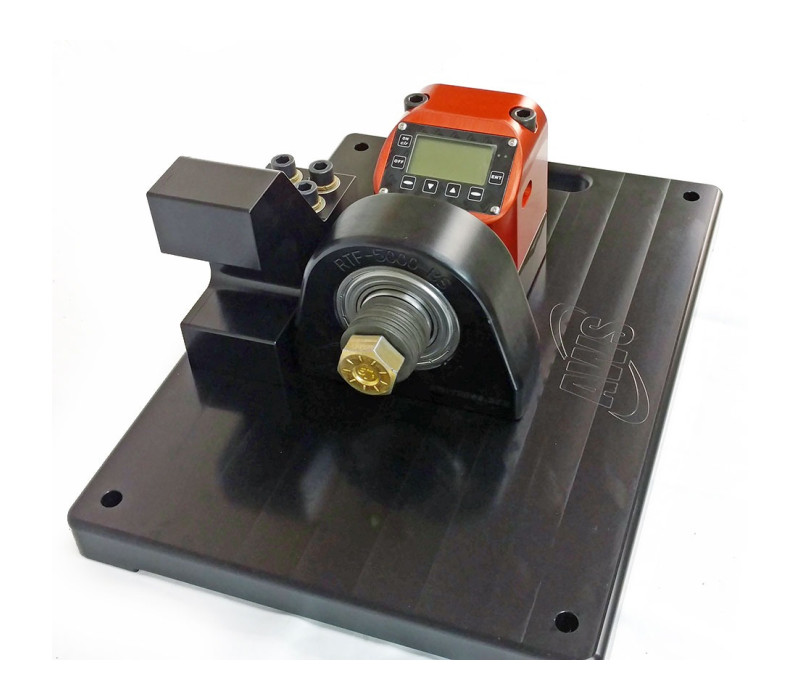

    Torque Tester for Nutrunners

    Torque Tester for Nutrunners

    HYDP Hydraulic Torque Wrench Tester System

    HYDP Hydraulic Torque Wrench Tester System

    Order Now

    Products
    Item Product Price  Quantity Action
    133965TT-HYRD-41011 Muliplier, Rotating & Geared Wrench Tester (1335 N-m) WITHOUT display € 4.505,00
    133964TT-HYRD-41012 Muliplier, Rotating & Geared Wrench Tester (3400 N-m) WITHOUT display € 4.710,00
    133963TT-HYRD-41013 Muliplier, Rotating & Geared Wrench Tester (6800 N-m) WITHOUT display € 4.895,00
    134436TT-HYRD-41014 Multiplier, Rotating & Geared Wrench Tester (10100 N-m) WITHOUT display € 4.895,00
    137556TT-HYDP-RD-41011 Muliplier, Rotating & Geared Wrench Tester (1335 N-m) WITH display € 6.075,00
    137557TT-HYDP-RD-41012 Muliplier, Rotating & Geared Wrench Tester (3400 N-m) WITH display € 6.075,00
    137558TT-HYDP-RD-41013 Muliplier, Rotating & Geared Wrench Tester (6800 N-m) WITH display € 6.255,00
    137559TT-HYDP-RD-41014 Multiplier, Rotating & Geared Wrench Tester (10100 N-m) WITH display € 6.710,00
    Accessories
    Item Product Price  Quantity Action
    132491AWS-4050 - Portable Torque Display with Memory € 1.667,00
    132492ICBL-5000-L Lemo -> Lemo Cable 2.5 m € 288,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
