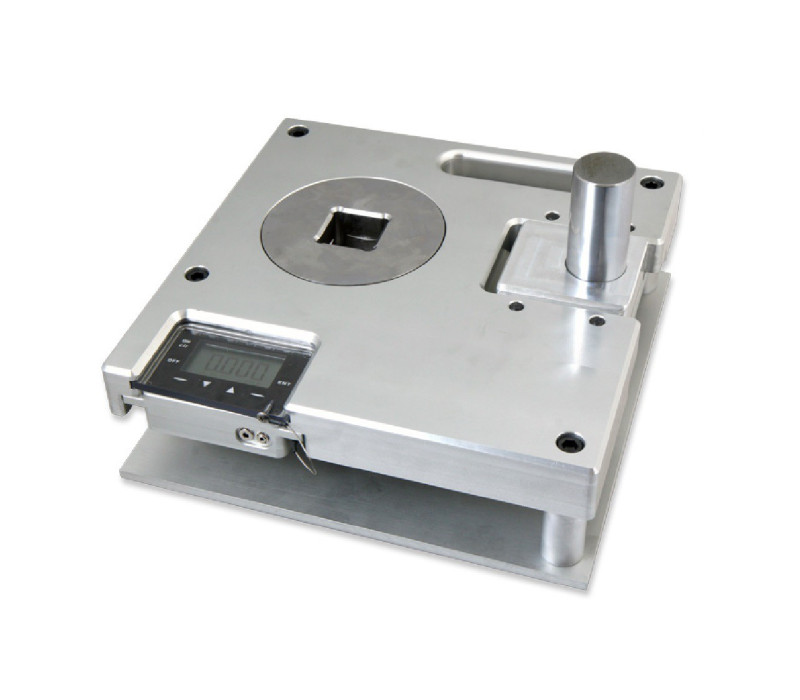

Name: HYDP Hydraulic Torque Wrench Tester System
SKU: 126807

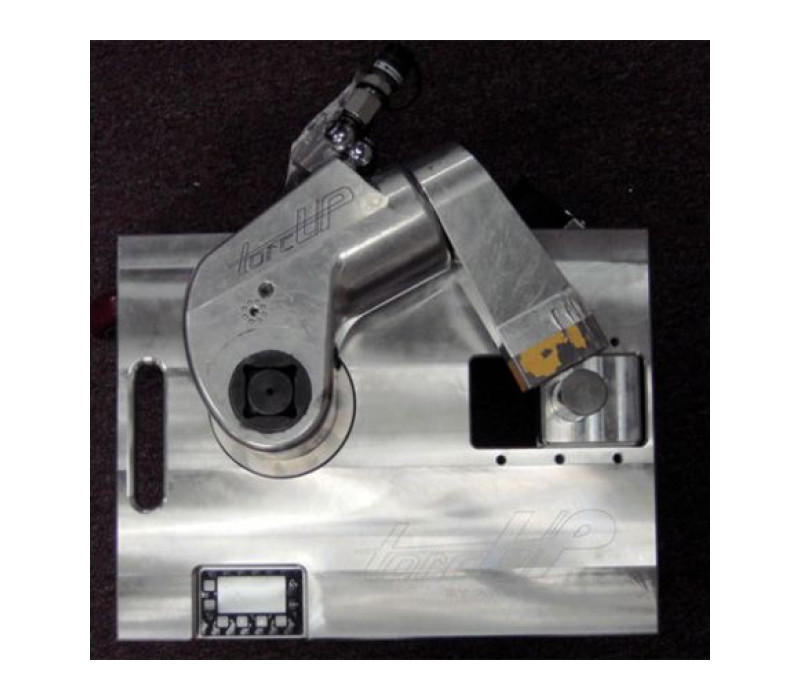

The HYDP Torque Wrench system is designed for precision testing of high range hydraulic, pneumatic and electric torque drivers up to 25,000 Lb-ft/ 33.895 N-m. Commonly used for testing Rad, Hytorc, Cleco, TorcUP and many other torque tool brands.

HY - series are without display
HYDP- series are with display

Price from € 3.535,00

Order now

Heavy Duty Construction
Integrated reaction arm posts or slot as required
4 Digit LCD Display
RS-232 Data Output

Torque Ranges

Model	Measuring Range	Dimensions	Weight
41011-HY	67.5 - 1355 Nm	30 x 30 x 35 cm	6,8 kg
41012-HY	170 - 3400 Nm	30 x 30 x 35 cm	9 kg
41013-HY	340 - 6800 Nm	30 x 30 x 35 cm	9 kg
41014-HY	505 - 10100 Nm	30 x 30 x 35 cm	11 kg
41011	67.5 - 1355 Nm	35 x 48 x 35 cm	22,7 kg
41012	170 - 3400 Nm	35 x 48 x 35 cm	22,7 kg
41013	340 - 6800 Nm	35 x 48 x 35 cm	22,7 kg
41014	505 - 10100 Nm	35 x 48 x 35 cm	22,7 kg
41015	675 - 13550 Nm	45 x 60 x 35 cm	29,5 kg
41025	1700 - 34000 Nm	45 x 60 x 35 cm	29,5 kg
41016	3400 - 68000 Nm	45 x 60 x 35 cm	34 kg

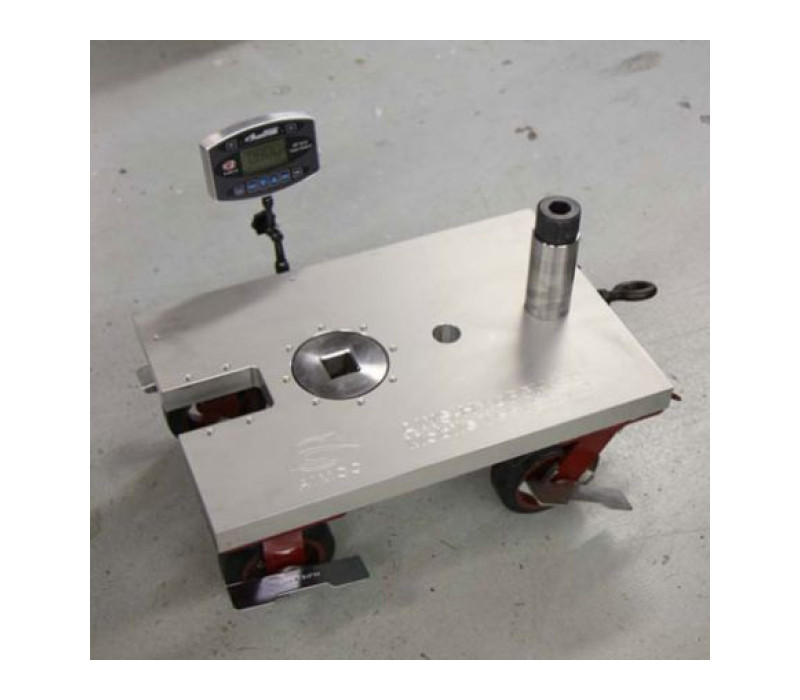

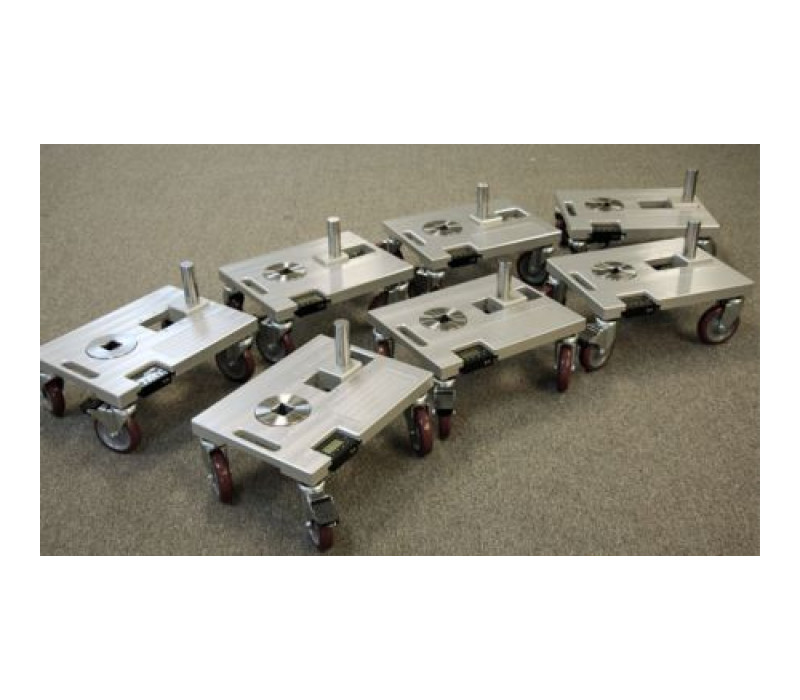

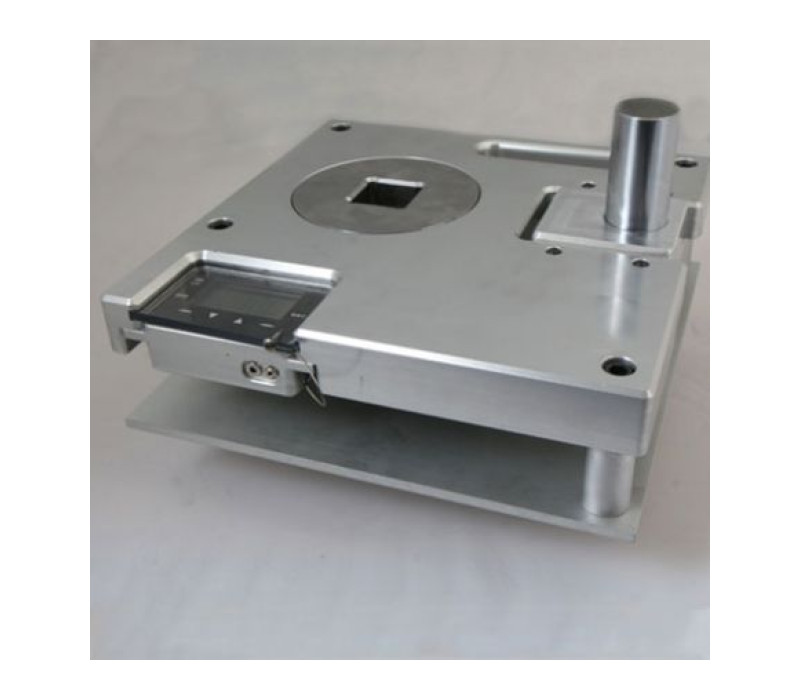

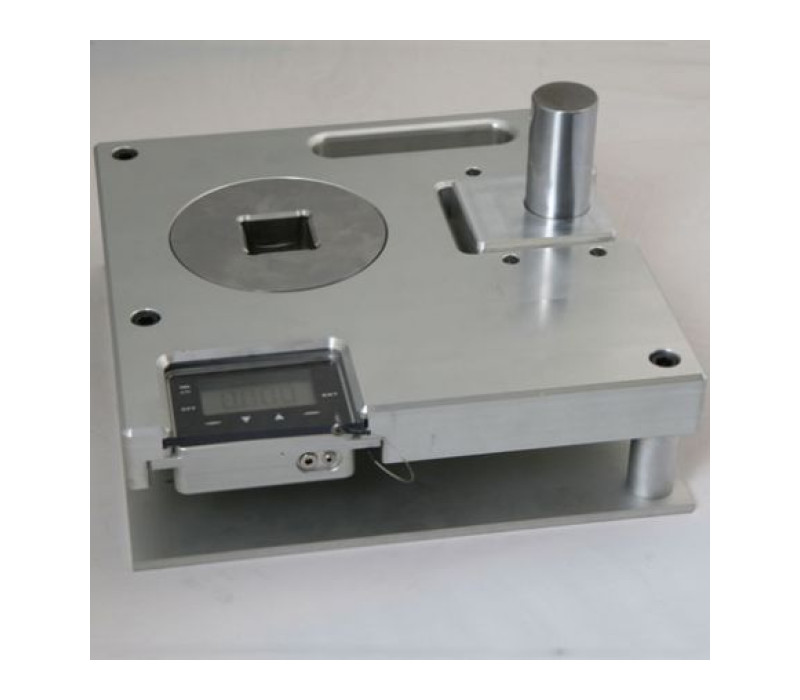

-HY models are table stand models, all other models come on a heavy-duty rolling cart.

Calibrated Range	10-100% Full Scale, bi-directional
Accuracy	±0.5% of indicated (within calibrated range)
Resolution	4 Active Digits
Overload Protection	200% Full Scale bi-directional
Operating Modes	Track, Peak, 1st Peak
Filtering	Selectable; 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 1500 Hz and 2000 Hz
Memory	Data storage of up to 999 readings
Data Output	RS-232
Display	62 x 62 mm backlit LCD
Alarm Limits	Panel Mounted LED for Visual Alarm Limits
Operating Temperature	0 - 50°C (32 - 120°F)
Calibration Certificate	Includes NIST Traceable calibration certificate with data
Warranty	1 Year

Products

Item	Product	Price
134043	HY-41011 ,1000 Lb-Ft Test Stand, 1.5" F Dr, WITHOUT Display	€ 3.535,00
134047	HY-41012 ,2500 Lb-Ft Test Stand, 1.5" F Dr, WITHOUT Display	€ 3.535,00
134045	HY-41013 ,5000 Lb-Ft Test Stand, 1.5" F Dr, WITHOUT Display	€ 3.765,00
134051	HY-41014 ,10000 N-m Test Stand, 1.5" F Dr, WITHOUT Display	€ 3.860,00
134048	HYDP-41011 ,1000 Lb-Ft Test Stand, 1" F Dr, WITH Display	€ 4.975,00
134049	HYDP-41012 ,2500 Lb-Ft Test Stand, 1.5" F Dr, WITH Display	€ 4.975,00
134050	HYDP-41013 ,5000 Lb-Ft Test Stand, 1.5" F Dr, WITH Display	€ 5.165,00
134046	HYDP-41014, 7500 Lb-Ft Test Stand, 1.5" F Dr, WITH Display	€ 5.165,00
134971	41013 Test Stand 680-6800 N-m, 1.5" F Dr, With AWS-4050 Display	€ 6.270,00
134369	41014 ,10000 N-m Test Stand, 1.5" F Dr, With AWS-4050 Display	€ 6.465,00
134438	41015 ,13500 N-m Test Stand, 1.5" F Dr, With AWS-4050 Display	€ 6.465,00
134439	41025 ,34000 N-m Test Stand, 2.5" F Dr, With AWS-4050 Display	€ 9.837,00
134440	41016 ,68000 N-m Test Stand, 2.5" F Dr, With AWS-4050 Display	€ 14.705,00

Accessories

Item	Product	Price
132491	AWS-4050 - Portable Torque Display with Memory	€ 1.767,00
132492	ICBL-5000-L Lemo -> Lemo Cable 2.5 m	€ 305,00
134220	AWS-4050-ARM - Portable Torque Display with Memory and articulating arm
134218	41000-RD-2.5-xx Run Down Kit for 41013, 41014, 41015 Series	€ 2.225,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
