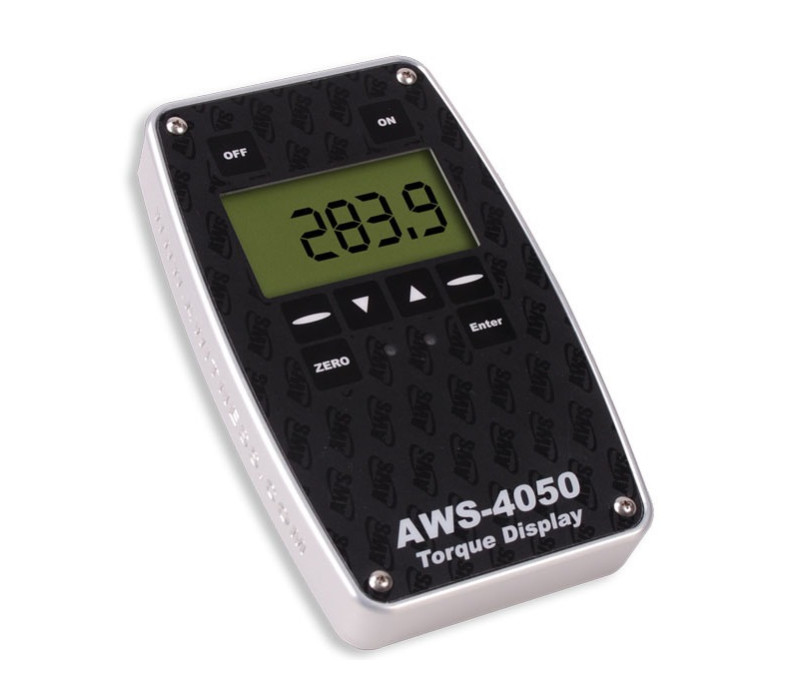

    Portable Digital Torque Display

    Combining accuracy with durability through repeatable performance, this torque display stands out with its superior quality.

    Test parameters can be changed in only a few seconds and it works in either one button or automatic mode of operation.

    This convenient Digital Torque Display allows any compatible transducer to be connected with proper calibration, but without the need of any further input from the operator, making this portable AWS-4050 a very versatile and easy to use digital torque display.

    Torque sensor is not included.
    € 1.913,00
    Shop now
    • Single-step access to all functions.
    • Eight (8) available engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm.
    • RS-232 output.
    • NiMH rechargeable batteries provide at least 8-10 hours continuous use.
    • Can be calibrated to virtually any manufacturer’s strain gauge transducers.
    • Bidirectional accuracy of ±0.5% of indicated reading with AWS transducers, ±1% of indicated reading with rotary transducers.
    • 3 modes of operation: Track, Peak and 1st Peak.
    • Visual limit alarms.
    • Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz.
    • For testing click, dial, and digital wrenches, plus most power tools including impulse and DC electric.
    Battery TypeNiMH
    Line Input Power12 VDC (mains adapter provided)
    Operating Temp0 - 50°C
    Dimensions (LxWxH)6.5" x 3" x 2.75"
    Weight1.8 Lbs

    Related Products

    Browse Related Products

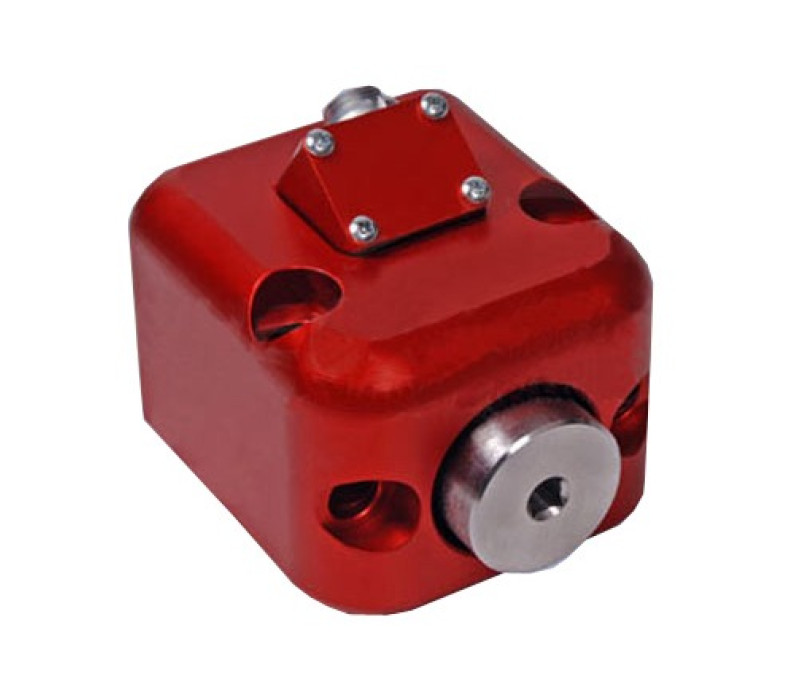

    Series IT Bench Mounted Torque Sensor

    Series IT Bench Mounted Torque Sensor

    Buy Now

    Products
    Item Product Price  Quantity Action
    132491AWS-4050 - Portable Torque Display with Memory € 1.913,00
    Accessories
    Item Product Price  Quantity Action
    134854AWS-4050-BATT - Replacement Battery 4050 Display € 115,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
