E1002 Padded attachment, square

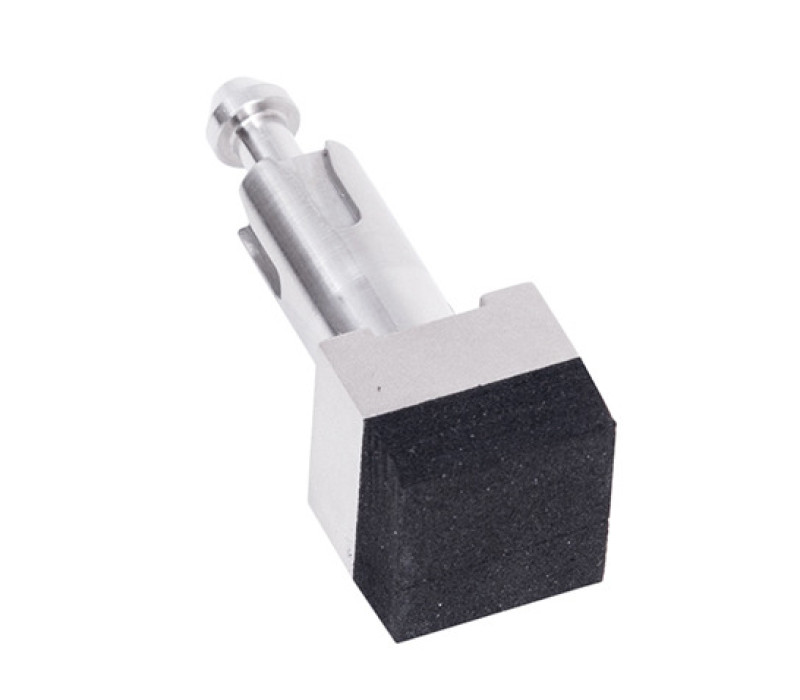

Square Pad E1002

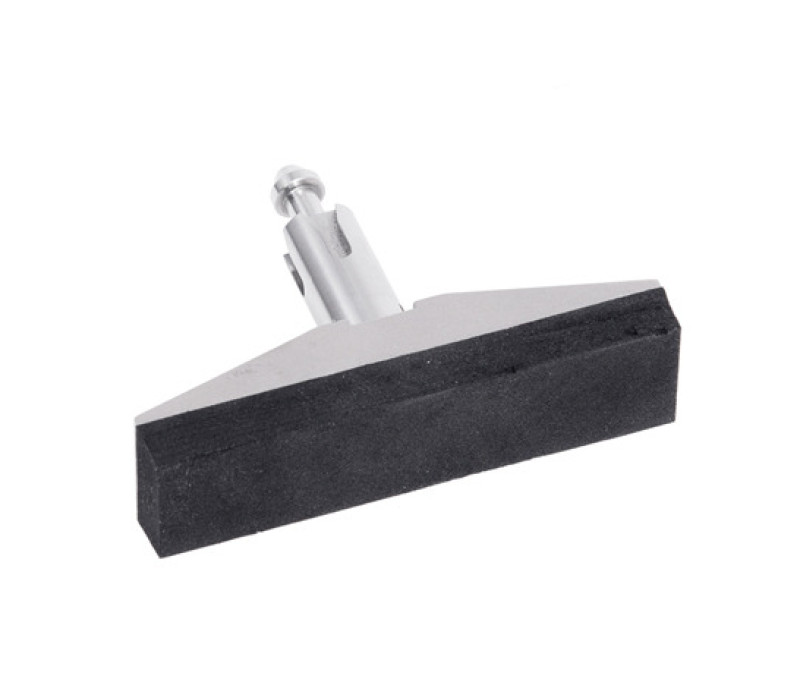

Rectangular Pad E1003

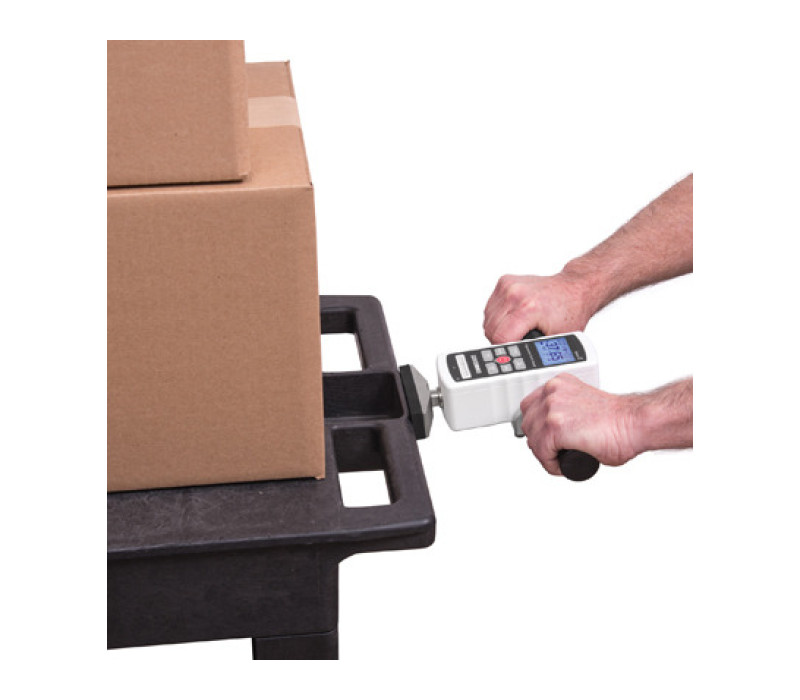

E1003 used in a typical push testing application in combination with the E1009 double handle grip.

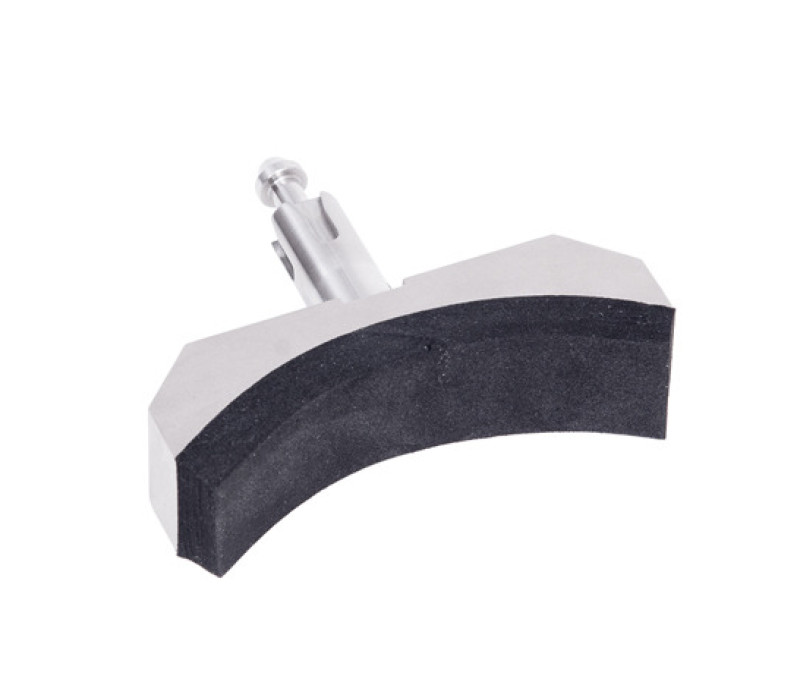

Curved Pad E1004

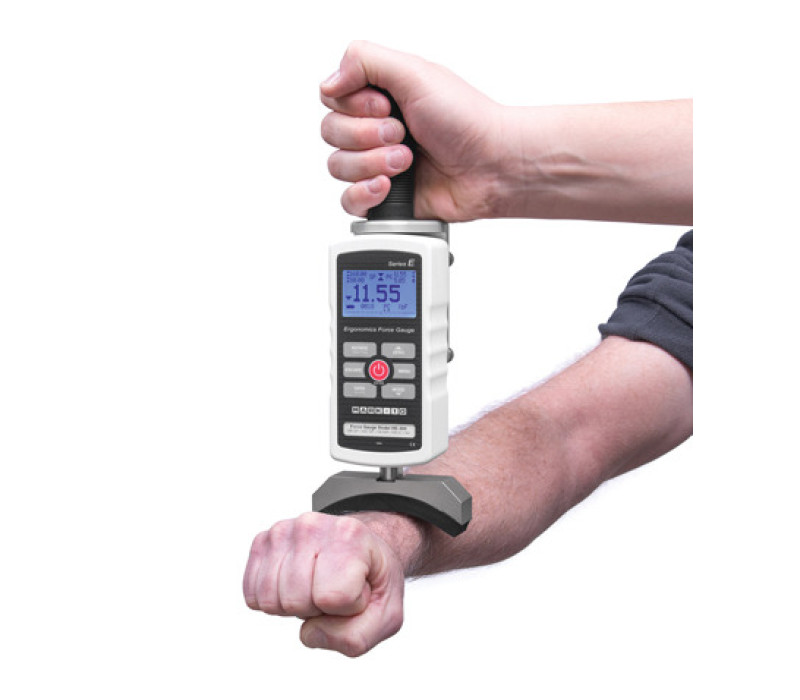

E1004 used in a clinical testing application in combination with the E1008 single handle grip.

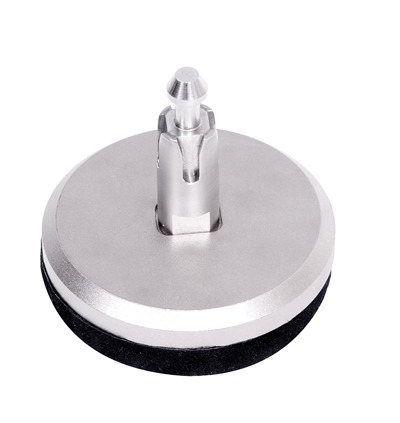

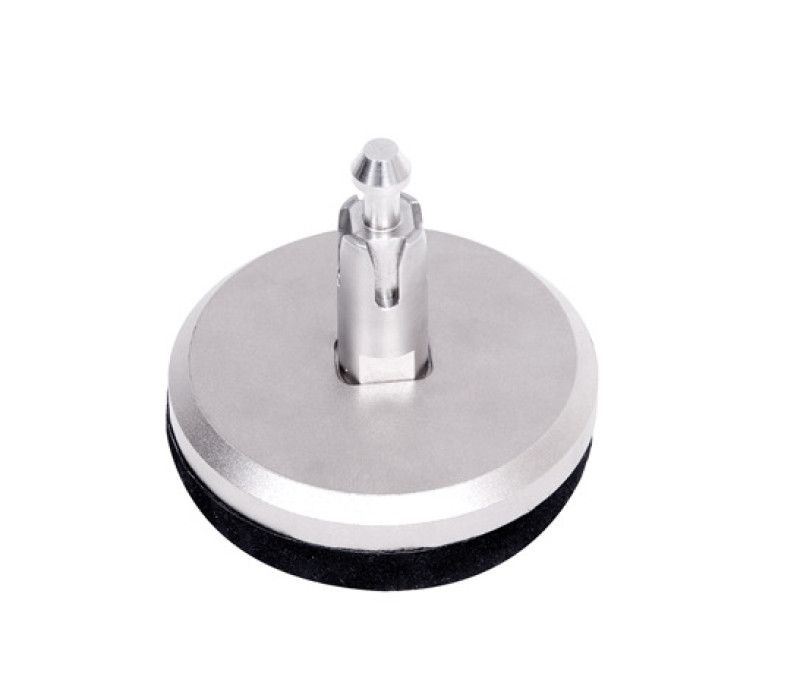

Circular Pad E1005

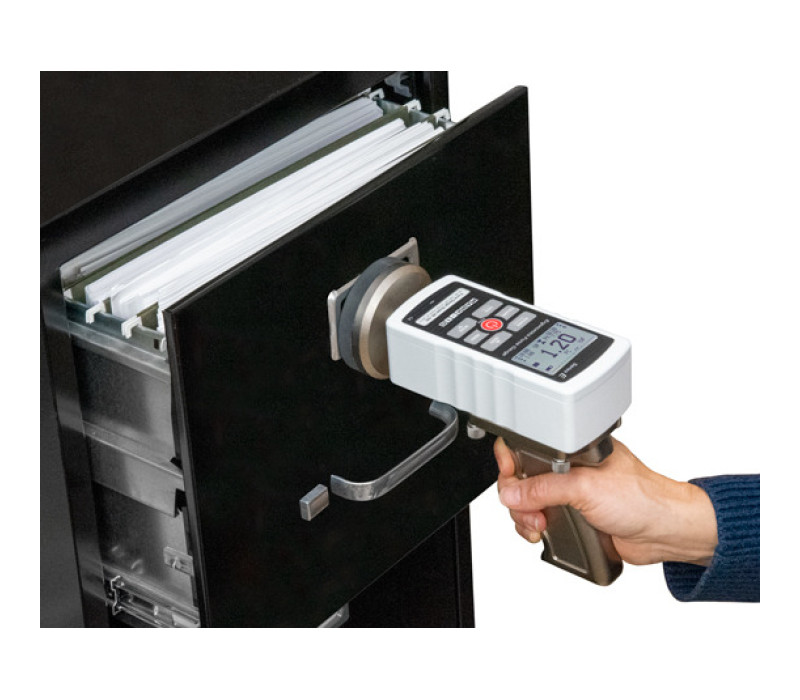

E1005 used in a drawer push assessment in combination with the E1010 pistol grip

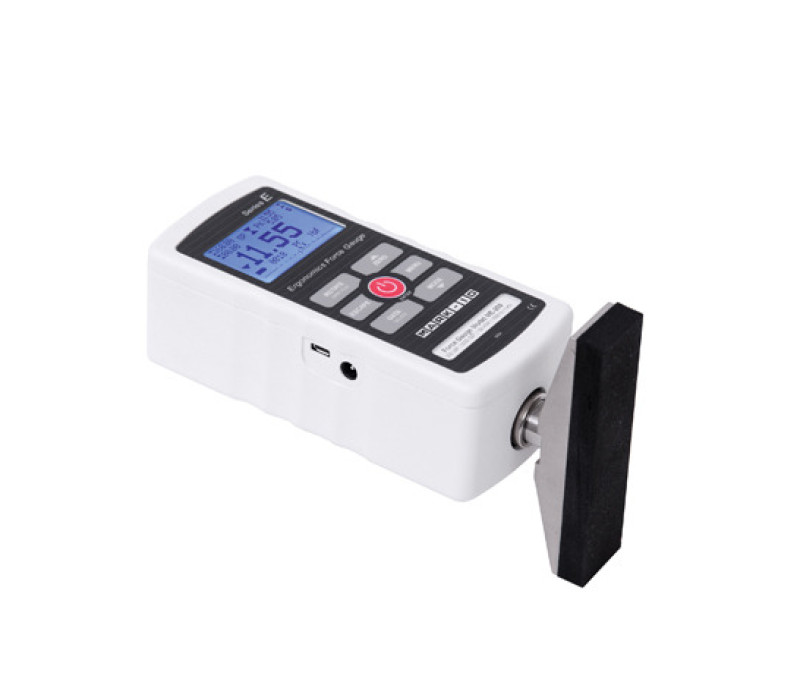

E1003 positioned in a 90 degree orientation.

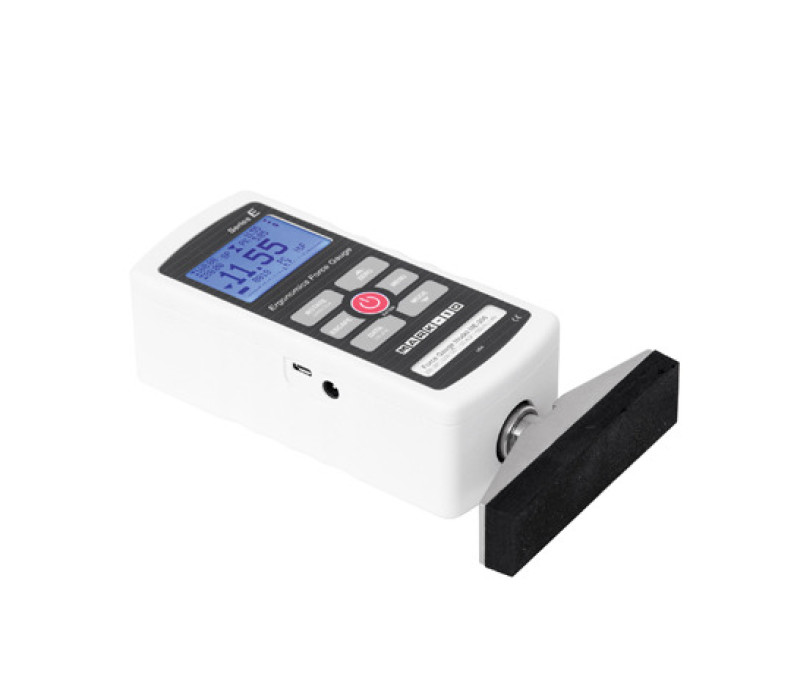

E1003 positioned in a 180 degree orientation.

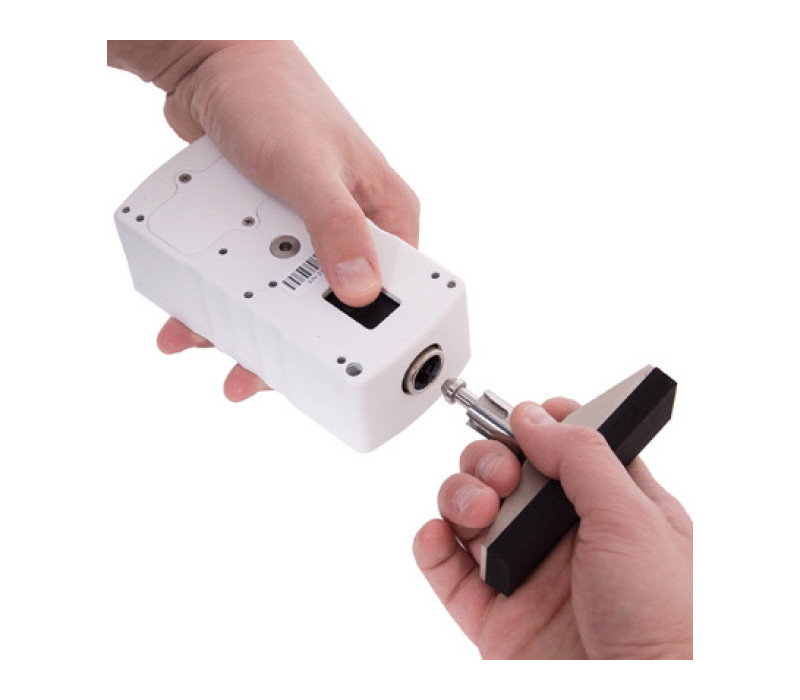

Unique Click-Lock® Technology ensures accessory alignment and protects the instrument against damage during accessory installation. Simply pull back the lever to release the attachment.

Padded Attachments for Ergometer E1002/E1003/E1004/E1005

Padded attachments designed for use with the Series E Ergometers.
The padded attachments are used for various tests like measuring muscle strength, force required to close a drawer, push force needed to open a fire escape door etc.

These attachments feature the innovative Click-Lock® technology system which makes it easy to change attachments, as no fastening is required, this reduces the risk of damaging the instrument.
Accessories can be attached and removed, adjusted and locked in 90 ° or 180 ° orientation.
These attachments can only be used on a device that supports Click-Lock® technology.

The padded attachments can be bought in a kit with the Series-E gauge or as a separate item.

Click-Lock® accessory mounting technology
Quick attachment at 90 or 180 degree position
Used for push applications

Padded attachment sizes

Model No.	Description	Size
E1002	Padded attachment, square	25 x 25 mm
E1003	Padded attachment, rectangular	102 x 25 mm
E1004	Padded attachment, curved	25 mm deep x 81 mm radius
E1005	Padded attachment, circular	76 mm dia.,
All padding has a thickness of 13 mm

Padded attachments in advanced and professional kits

Model No.	Description	EM-#00E Gauge only	EKE-#00-1E Advanced kit	EKE-#00-2E Professional kit
E1002	Padded attachment, square	O	O	S
E1003	Padded attachment, rectangular	O	S	S
E1004	Padded attachment, curved	O	S	S
E1005	Padded attachment, circular	O	O	S
S = standard O = option

Video

Products

Item	Product	Price	Quantity	Action
137148	E1002 - Padded attachment, square, Series E
137149	E1003 - Padded attachment, rectangular, Series E
137150	E1004 - Padded attachment, curved, Series E
137151	E1005 - Padded attachment, circular, Series E

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
