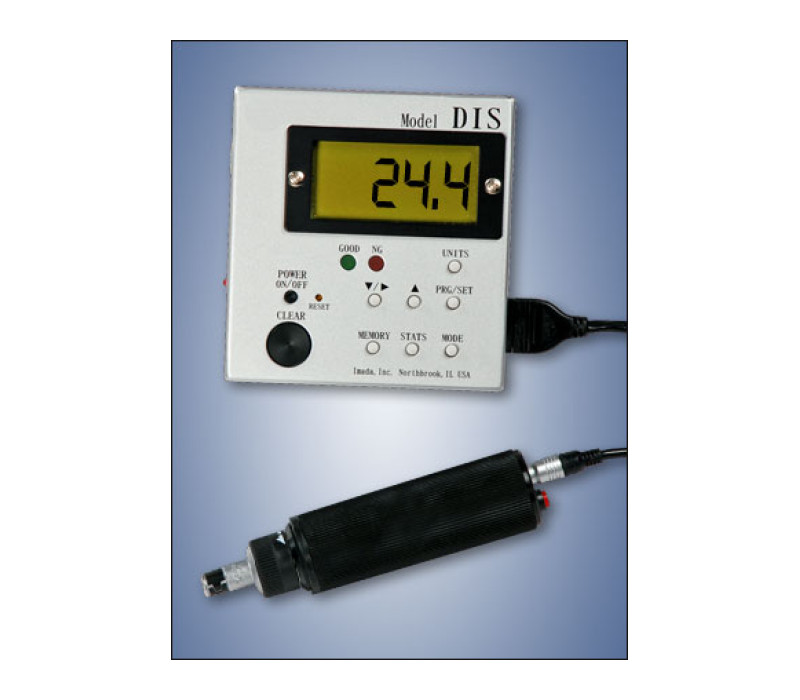

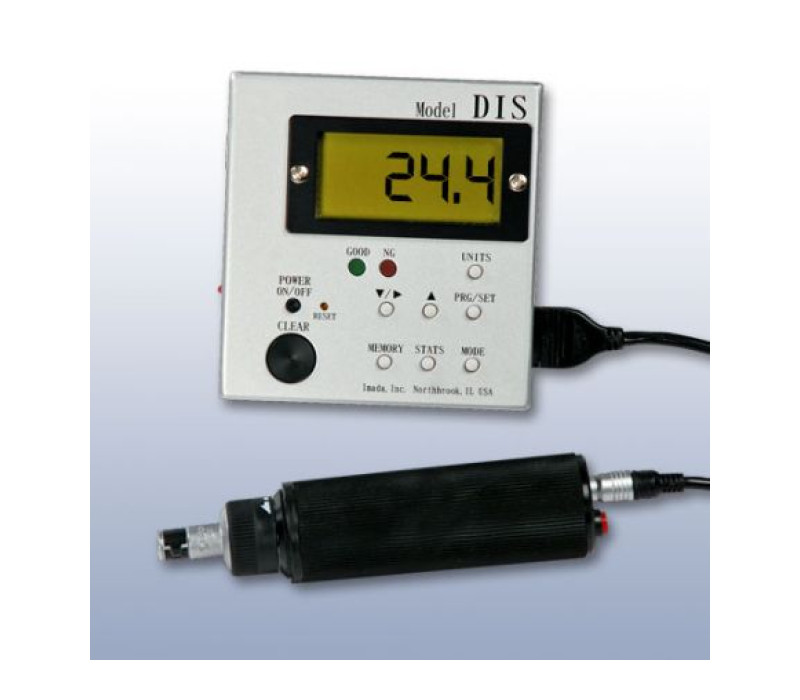

DIS-RL Digital Torque Screw Driver

The DIS-RL Digital Torque Tester / Screwdriver is an ergonomically designed easy-to-use inspection device or production tool. It measures application or removal torque up to 90 lb-in. Torque controlled screwdrivers can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed.

This tester has an accuracy of ±0.5%, ± 1 LSD. It offers a programmable setpoint for uniform tightening or Go/No-Go testing and also provides peak and continuous data for SPC (statistical process control) via the USB port.

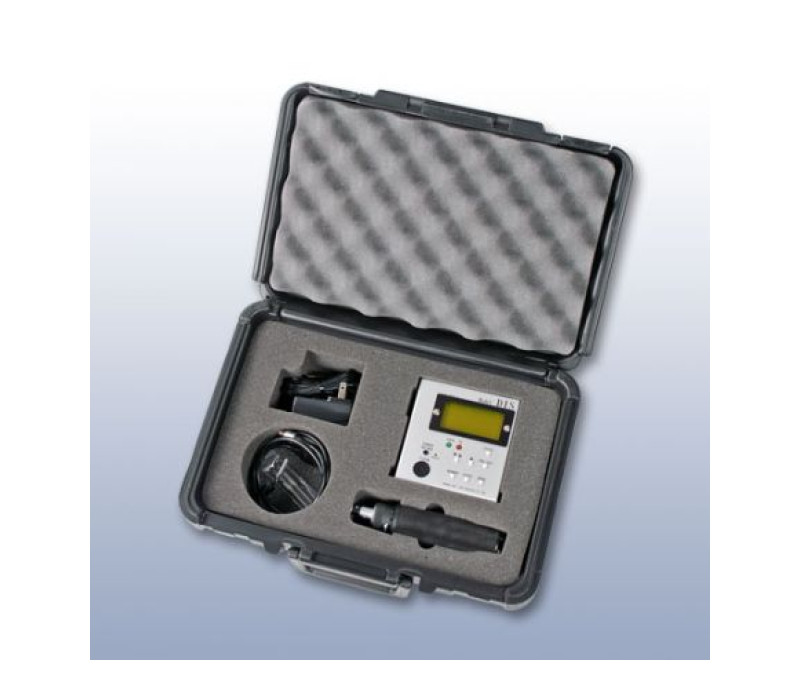

DIS-RL substantially reduces scrap and rework costs by eliminating over and under-tightening. It is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies. Sold in kit form including display unit, screwdriver with cable, AC adapter/charger and carrying case.

Ergonomic, light weight, rugged metal construction
lbf-in, Kgf-cm and N-cm (selectable)
Peak, Real Time and Peak Down measuring mode (selectable)
Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)
800 peak data memory for recall or for SPC download
Programmable High and Low setpoints with audible beep for uniform torque tightening or GO/NO GO testing
Zero reset button on the driver for easy operation
Both clockwise and counterclockwise operation

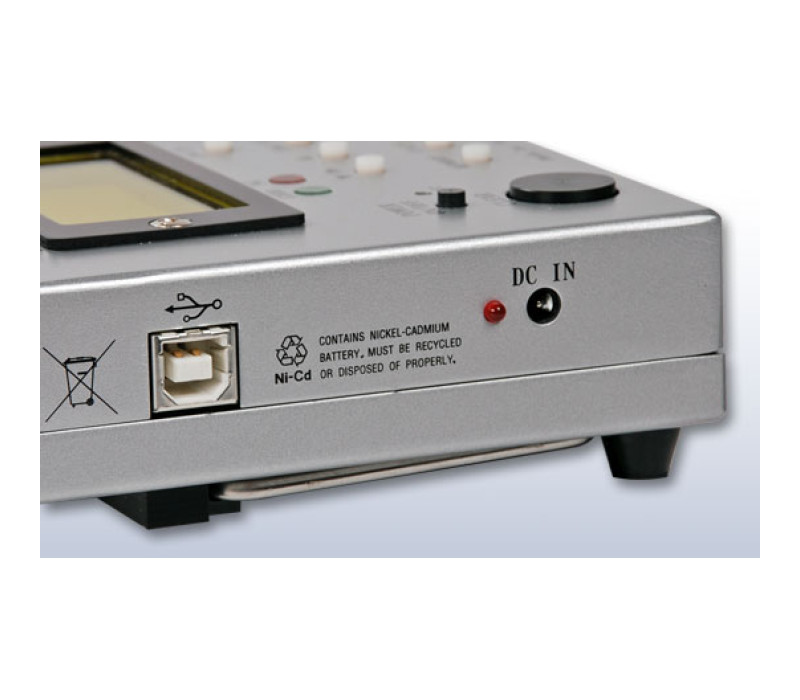

USB output for SPC capability
Runs on internal NiCad batteries (8 hour use)
Includes NIST Calibration Certificate
ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
2 Year Warranty
Statistics: number of data, Max, Min, Avg
CW, CCW ratchet and fixed operation

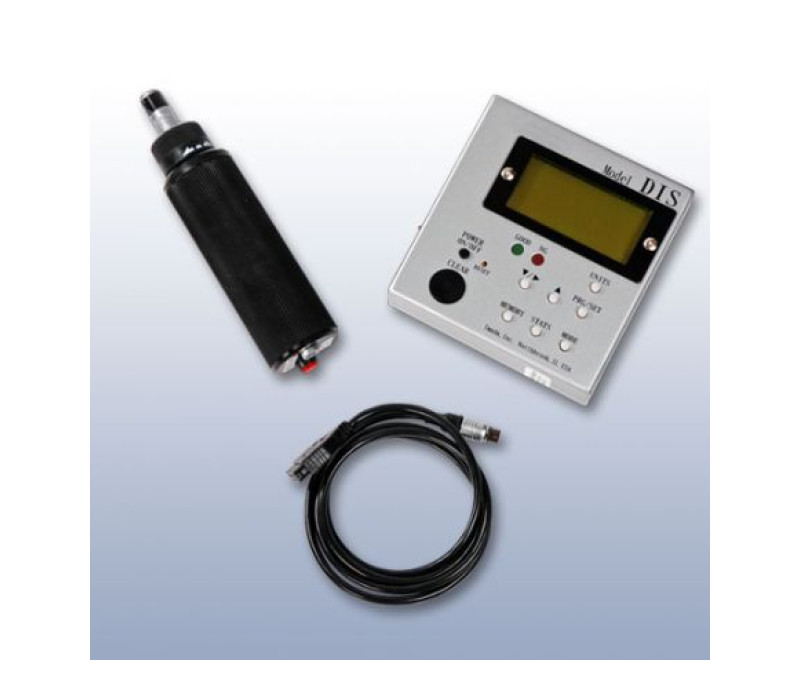

Torque Screwdriver sold as kits including:

Display
Screwdriver with cable
Philips tips
AC adapter
Carrying case

Tension range

Model	Range	Capacity kg-cm	Capacity N-cm
DIS-RL2	0.10- 18.00 lbf-in	0.10 - 20.00 kg-cm	1.0 - 200.0 N-cm
DIS-RL10	0.10- 18.00 lbf-in	0.10 - 20.00 kg-cm	1.0 - 200.0 N-cm
Accuracy: ±0.5% F.S. ±1 LSD (0°C - 37,8° C/ 32°F - 100°F)

Products

Item	Product	Price	Quantity	Action
130556	DIS-RL2 Digital Torque Screwdriver	€ 1.417,85
130557	DIS-RL10 Digital Torque Screwdriver	€ 1.417,85

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

DIS-RL Digital Torque Screw Driver

Features

Tension range

SW-1 Data Acquisition Software for Force Gauges & Torque Gauges

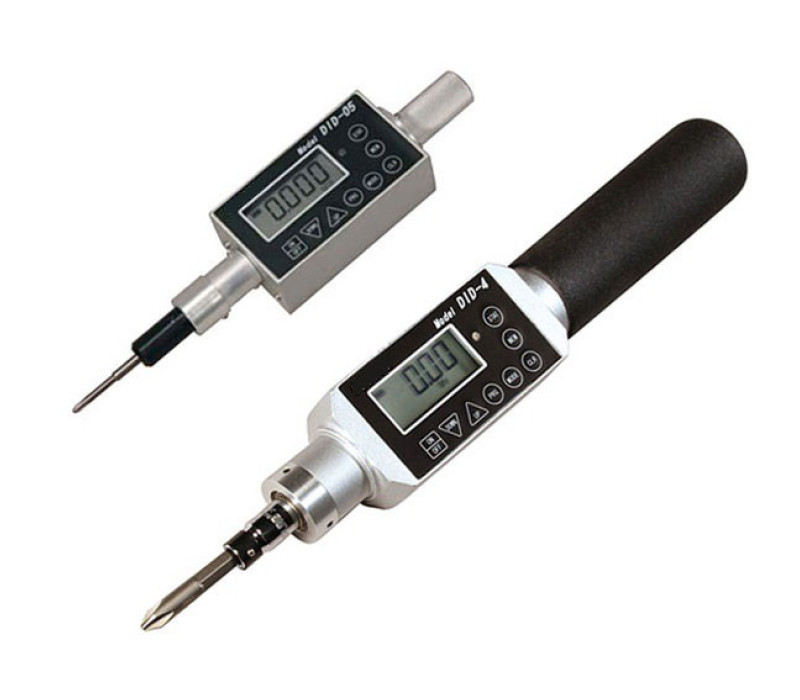

DID-4 Digital Torque Screwdriver
