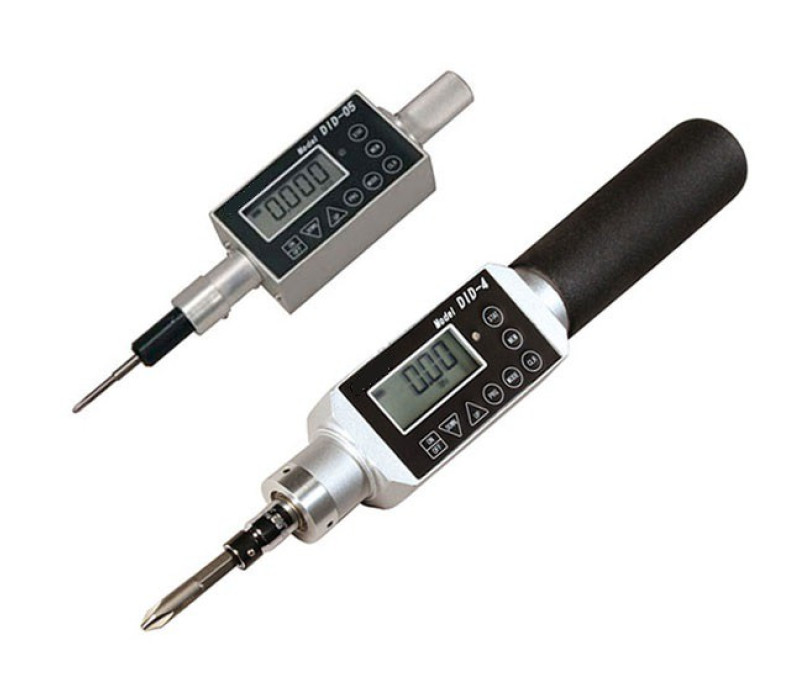

DID-4 Digital Torque Screwdriver

DID-Series Digital Torque Screwdriver / Torque Tester

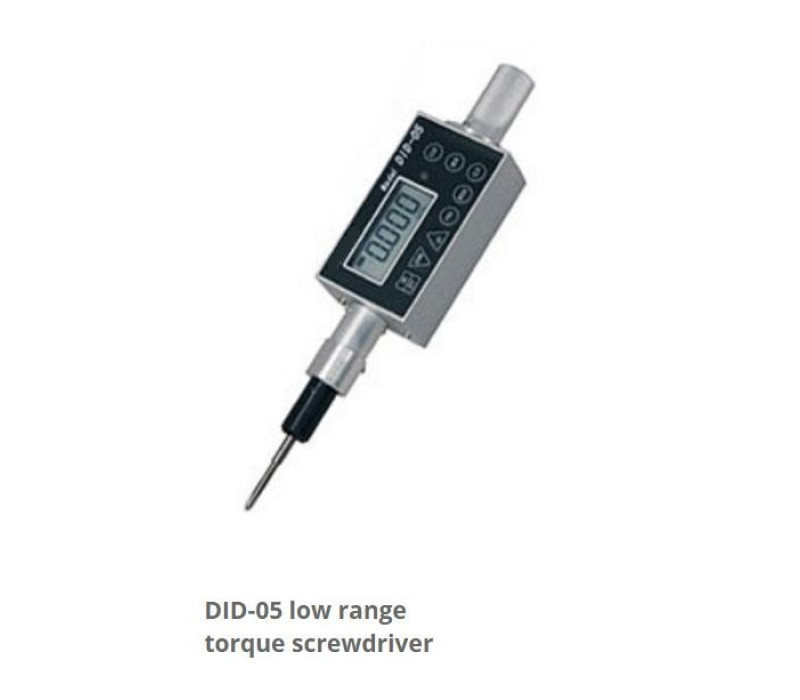

Model – DID-05 Digital Torque Screwdriver: 0.20~50.00 N-cm
Model – DID-4A Digital Torque Screwdriver: 2.0~400.0 N-cm

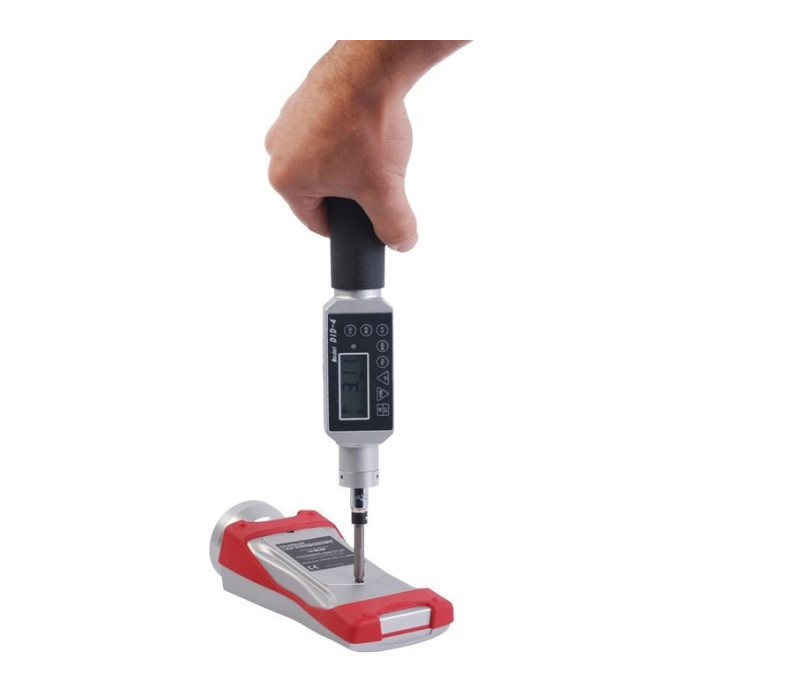

The DID-Series torque screwdriver features an integral/adjustable LCD display for convenient torque readings. The unit is designed for screw tightening torque verification and measures in Peak, Real Time, and Peak Down measuring modes (selectable).

This torque screwdriver has an accuracy of ± 0.5% F.S., ±1 LSD and has programmable setpoints that provide both an audible beep and green/red LED indicator for uniform tightening or GO/NO GO testing. In addition, it features a programmable counter that minimizes assembly errors by identifying mis-tightening and/or defective screws. Use the 800 internal memory for peak data recall or USB download for SPC.

The DID-Series torque screwdriver substantially reduces scrap and rework costs by eliminating over and under-tightening and is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies.

Price from € 987,00

Shop now

Ergonomic and lightweight, yet ruggedly constructed
Peak, Real Time and Peak Down measuring mode (selectable)
Programmable High and Low setpoints with both audible beep and Green/Red LED indicator for uniform torque tightening or GO/NO GO testing
Programmable screw tightening counter
Both CW and CCW ratchet and fixed operation
Statistics: number of data, Max, Min, Avg
Selectable units ozf-in, lbf-in, kgf-cm, N-cm and N-m
800 data memory for recall or for SPC download
Programmable Auto Zero function resets unit to zero for easy operation
Runs on internal NiCad batteries (for 8 hours) Auto shut-off after 10 min. of non-use
USB data output for SPC capability
1/4" Phillips tips, AC charger and carrying case included
2-Year Warranty

The DID-05 comes with:

4mm stepless CW one-way clutch
1x 4mm locking half round Phillips tip
1x full round Phillips tip
AC charger
Manual
Calibration Certificate

The DID-4A comes with:

1/4″ female hex adapter
2x 1/4″ Phillips tips ( DID-4A accepts any standard 1/4″ hex bits)
AC charger
Carrying case
Manual
Calibration Certificate

Capacity	DID-0.5 Digital Torque Screwdriver: 0.20~50.00 N-cm DID-4A Digital Torque Screwdriver: 2.0~400.0 N-cm
Accuracy	+/- 0.5% F.S., +/- 1 LSD

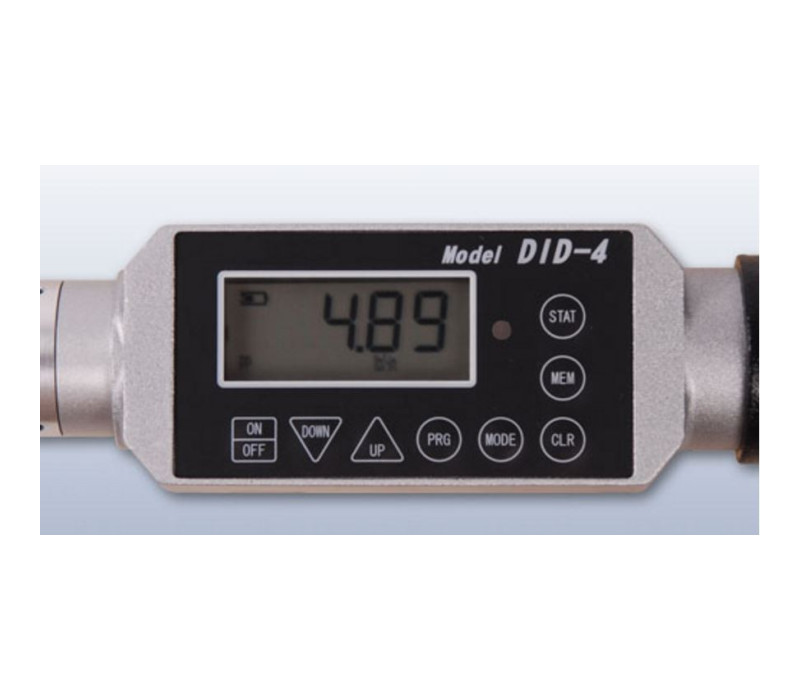

Display	4 digit LCD
Operation	CW, CCW and fixed position
PP	Peak Mode displays PEAK torque value that will not change until a higher value is measured
PD	Peak Down Mode Captures first peak down value above the PDLO
Real Time	Displays transient torque values
C	Real-time Output 180 data per second
GO/NO GO testing	Programmable High and Low setpoints with both audible beep and Green/Red LED indicator
Statistics	Number of data, maximum, minimum and average
Data Transfer	ASCII, 19200 bps, USB miniB cable
Data Memory	800 data
Batch Counter	1-99 (CW only)
Power Supply	Ni-Cad rechargeable batteries 1.2V×4cells 600mAh
Auto Power Save	Automatic switch off after 10 minutes of non-use
Charging Time	From empty - less than 5hours
Working Time	12 hours continuous use
Bit Size	6.35 mm
Weight	430g

Products

Item	Product	Price	Quantity	Action
133148	DID-05-E Digital Torque Screwdriver	€ 1.627,50
135603	DID-4A-E Digital Torque Screwdriver, 35 lb-in / 4Nm Capacity	€ 987,00

Accessories

Item	Product	Price
140456	DID-Case Foam filled case for DID Torque Screwdriver	€ 70,00
132562	SW-1SV-USB Data Acquisition Software for Torque Gauges	€ 310,16
131527	ISO-17025 ISO/IEC 17025 Long-form Certificate & Test Data	€ 297,86
132132	CB-209 USB Data Output Cable (for DID, DIW)	€ 24,00

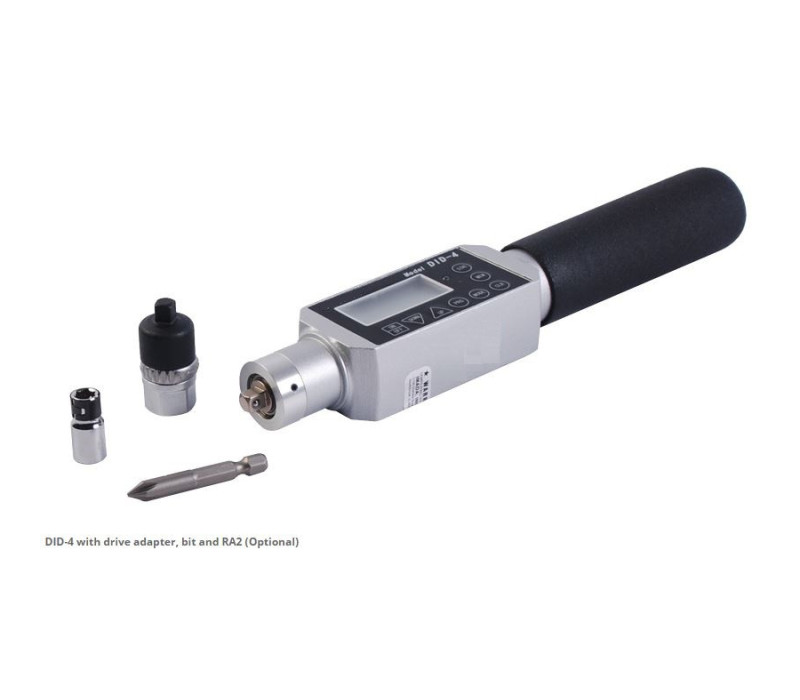

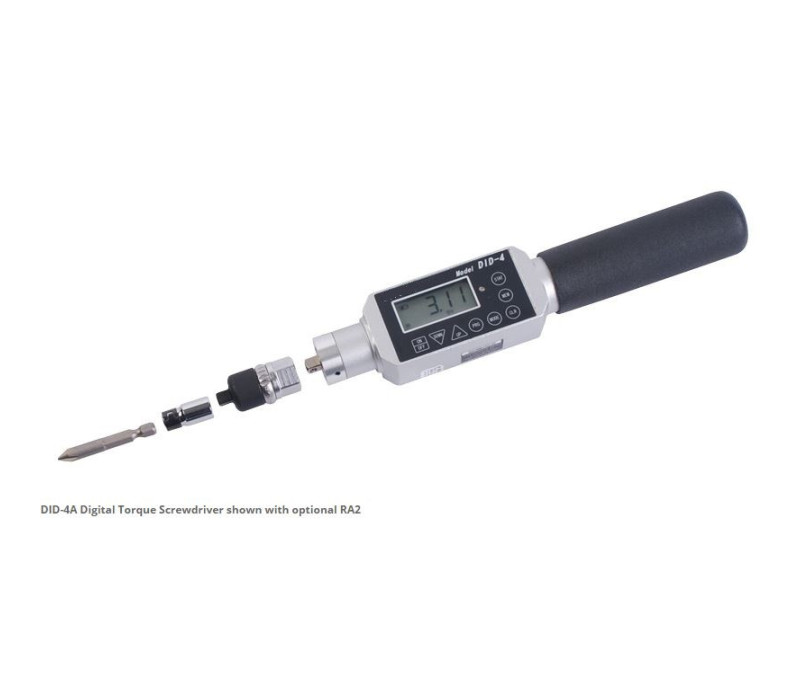

135623	RA2-Ratchet Clutch for use with DID / GLK Torque Screwdriver	€ 75,00
134180	DID-4-BATT Replacement Battery for DID-4(A) Screwdriver	€ 108,00
135798	DID/DIW-PSU - Power supply for DID/DIW	€ 72,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

DID-4 Digital Torque Screwdriver

Features

Dimensions

Specifications

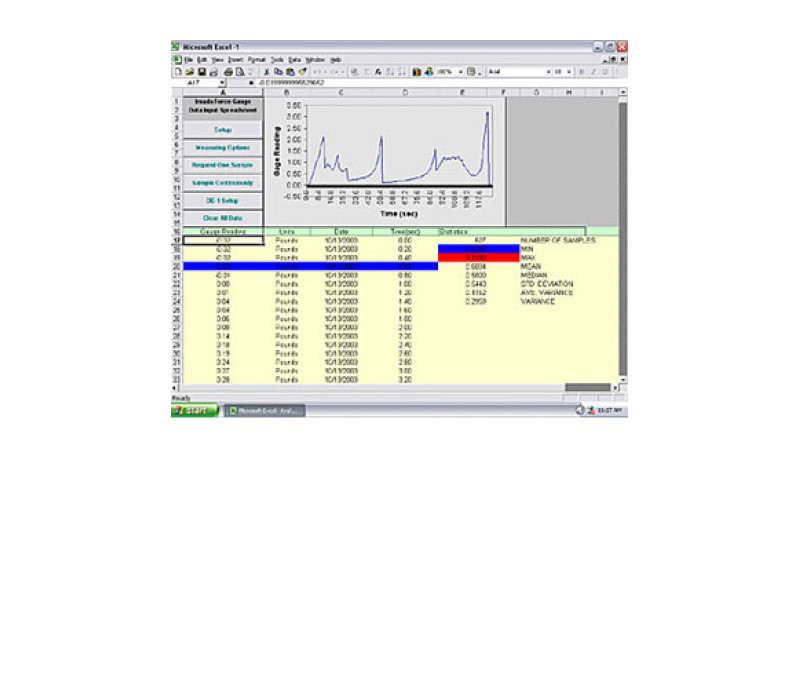

SW-1 Data Acquisition Software for Force Gauges & Torque Gauges

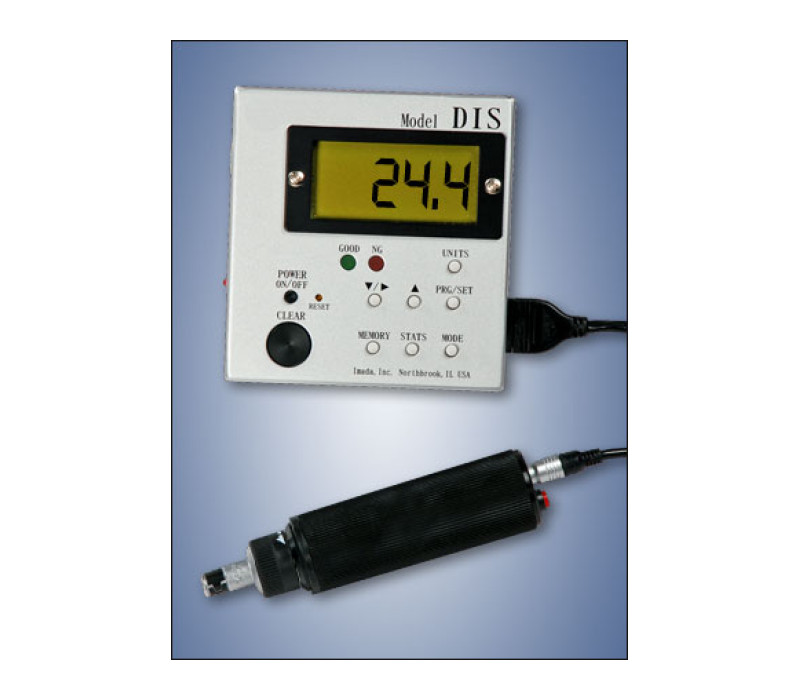

DIS-RL Digital Torque Screw Driver
