DI-1M Digital Torque Tester for Air Tools & Impact Wrenches

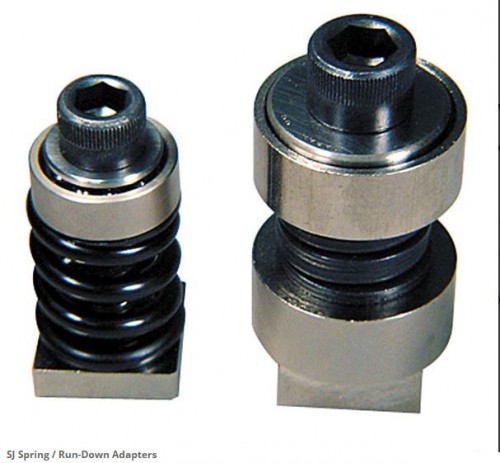

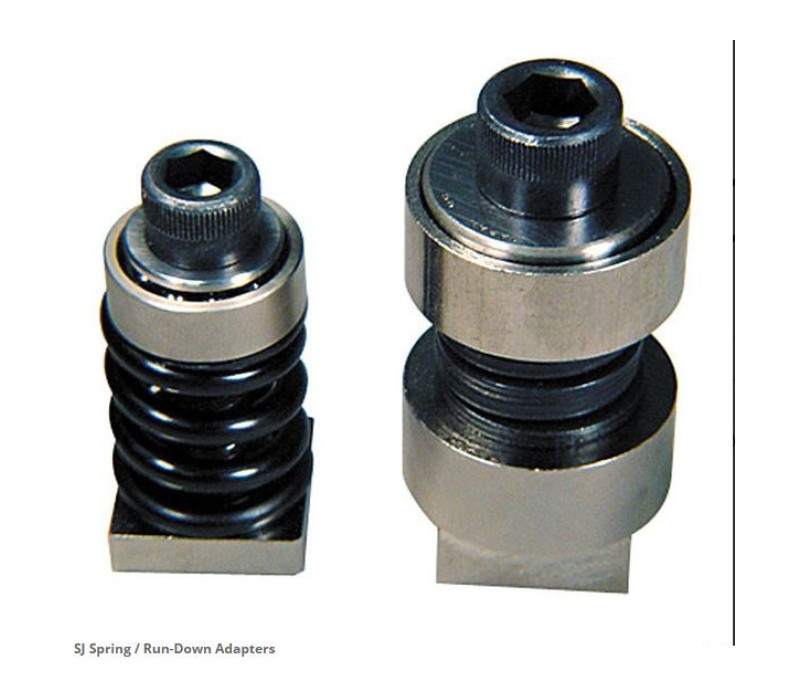

SJ-Spring - Run-Down adpaters

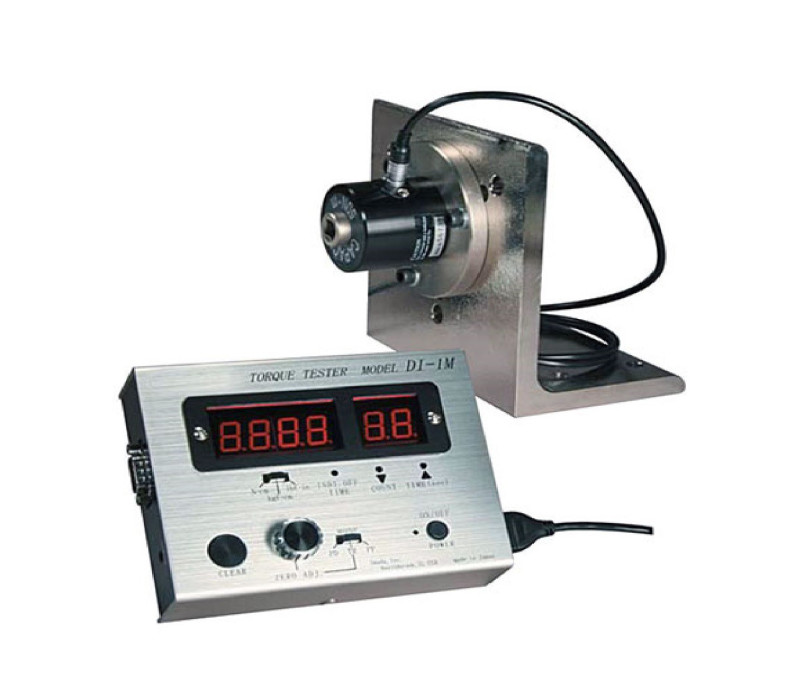

DI-1M Digital Torque Tester for Air Tools & Impact Wrenches
DI-1M torque testers are a perfect tool for on-the-spot calibration of impact drivers and air tools. It will calibrate any type of power driver. The fast response units give a digital readout of peak value in either clockwise or counterclockwise direction and also indicate the number of blows for a selected time period from 0.1 to 9.9 seconds. These instruments have an accuracy of ±0.5%, ±1 LSD and lbf-in/lbf-ft, kgf-cm/kgf-m, or N-cm/N-m units are selectable. USB output, auto zero reset, auto shutoff and low battery indicator complete the set of features. It runs on an internal NiCd battery or the included AC adapter.Selectable modes: Peak, Real Time and Peak Down.
Peak mode captures the peak torque achieved during a test. PEAK reading will not change until a higher value is measured.
Real Time mode displays the real time transient torque value.
Peak down captures the critical first peak value and will not change even if a higher value is subsequently measured.
The DI-1M also provides peak data for SPC (statistical process control) via the USB port. Click on the link below for torque tester data acquisition software.

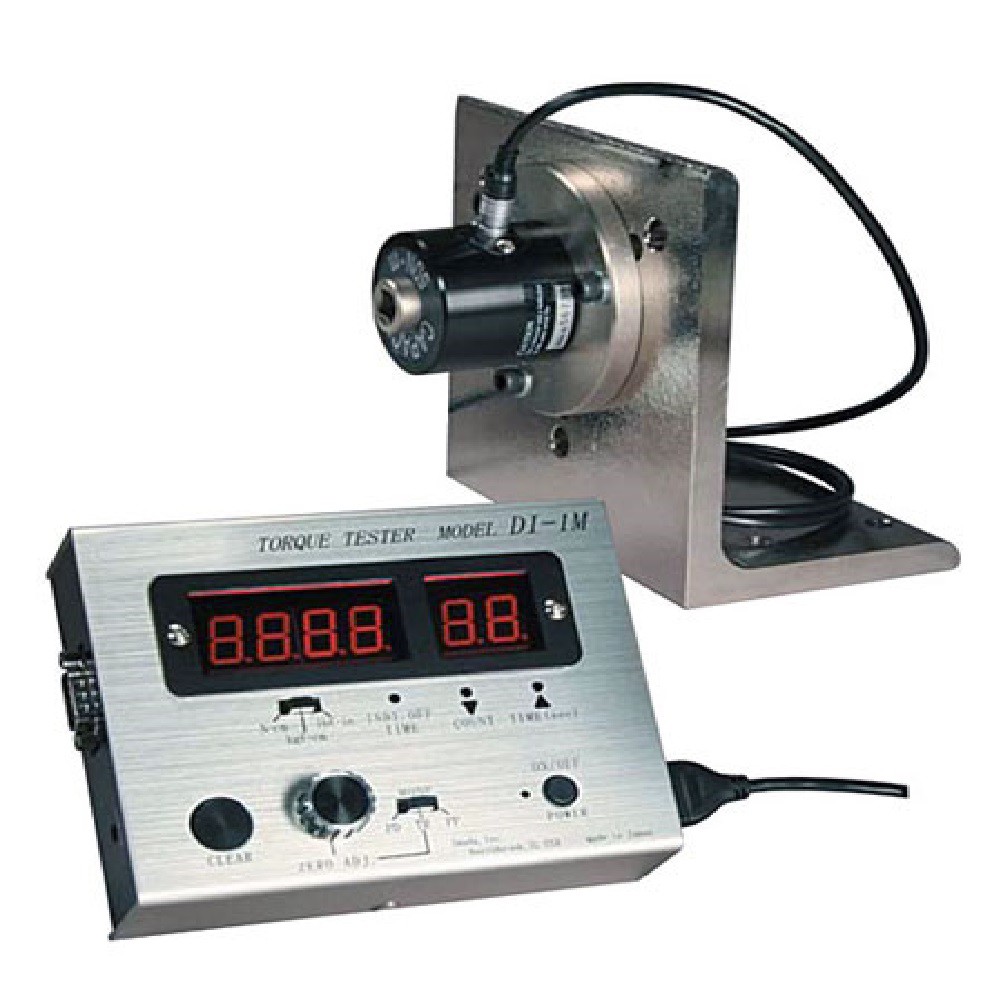

The DI-1M is supplied with the remote sensor, display unit, cable and AC adapter/charger.
Calibrate your own air tools and impact wrenches and save down time.
L-bracket sold separately.
NOTE: The DI-1M Torque Tester is not CE certified
Comes with:
- Torque Tester Display Unit
- Torque Sensor
- Cable
- AC adapter/charger
- Units designator
