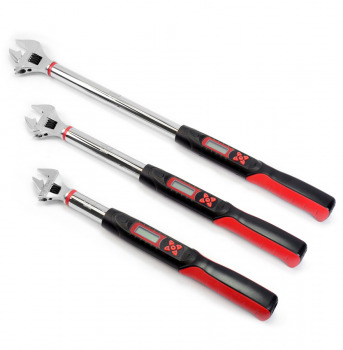

The DAW series of adjustable open-end torque wrench has been designed for simple and precise measurements in the automotive, space travel and other industries. The DAW torque wrenches measures real-time or peak / maximum values in the units Nm, kg-cm, ft-lb and in-lb , which are displayed on a large LCD display.
The digital DAW torque wrenches have robust, adjustable steel clamping jaws and the possibility to program 9 torque setpoints. 12 bright LEDs and an audible alarm alert the user when the setpoint is being approached and reached.
There are 3 different models according to the measurement range:
| Model | Measurement range/resolution | Drive: | Length: |
|---|---|---|---|
| DAW-60N | 12 - 60 Nm / 0.01 Nm | 5-27 mm | 428 mm |
| DAW-135N | 27 - 135 Nm / 0.1 Nm | 5-27 mm | 428 mm |
| DAW-340N | 68 - 340 Nm / 0.1 Nm | 10-41 mm | 650 mm |
| Precision: | CW (clockwise) 3% of the displayed measured value within 20 - 100% of the capacity |
| Data memory: | 50 measured values for internal call, no data output and 9 programmable presets |
| Measurement units: | Nm, kg-cm, ft-lb and in-lb |
| Batteries: | 2x AA |
| Battery duration: | 110 hours of continuous use 1 year standby |
| Operating temperature: | -10°C - 60°C |
| Storage temperature: | -20°C - 70°C |
| Air humidity: | Up to 90% non-condensing |
| Guarantee: | 1 year |
The digital DAW torque wrench is supplied as a complete set, consisting of:
