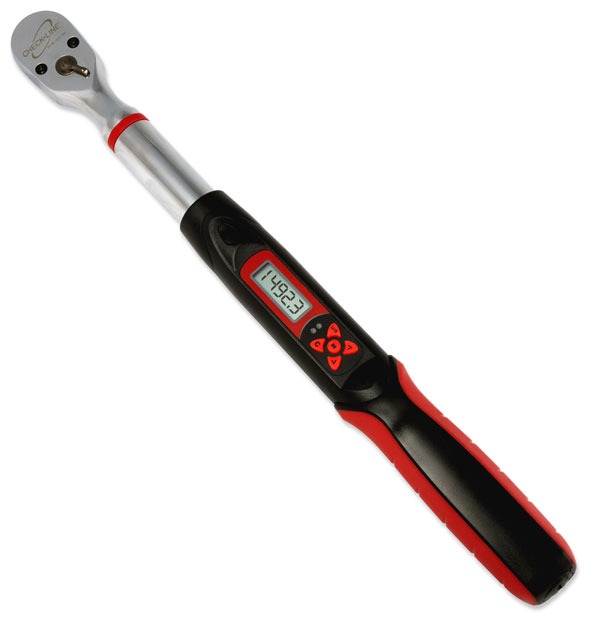

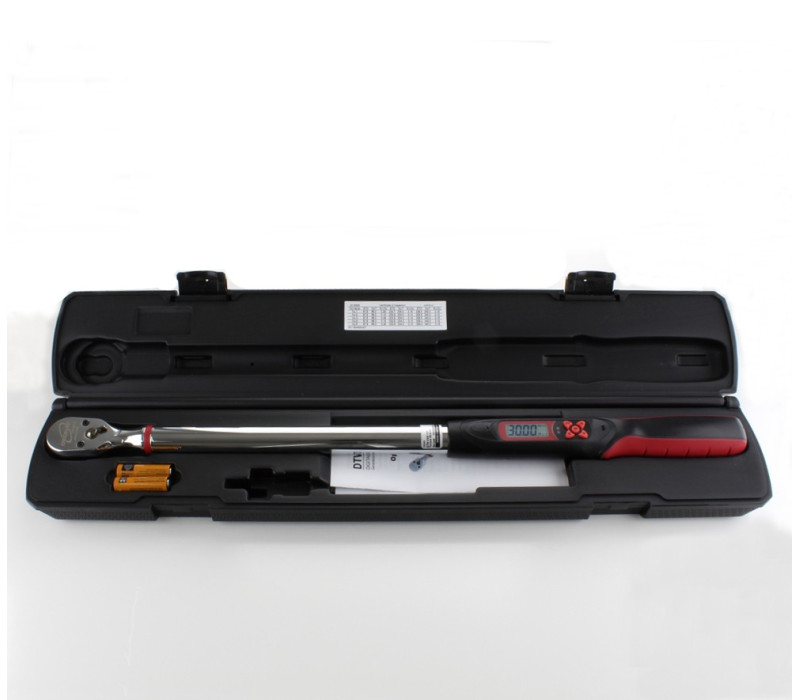

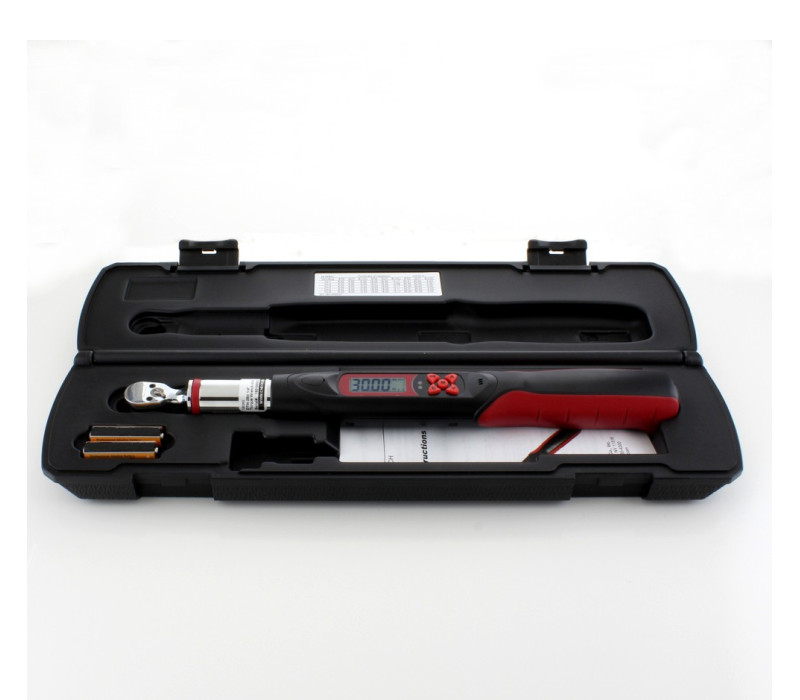

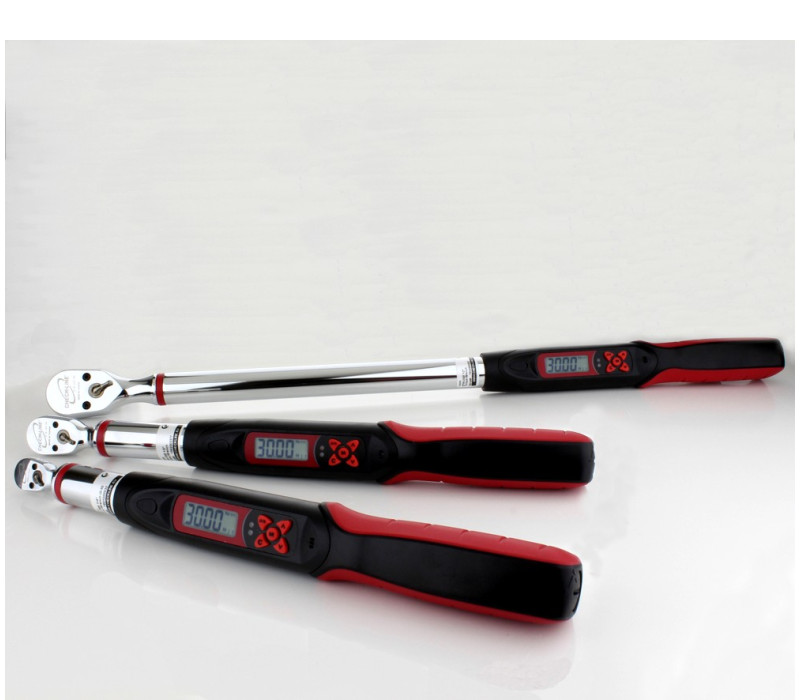

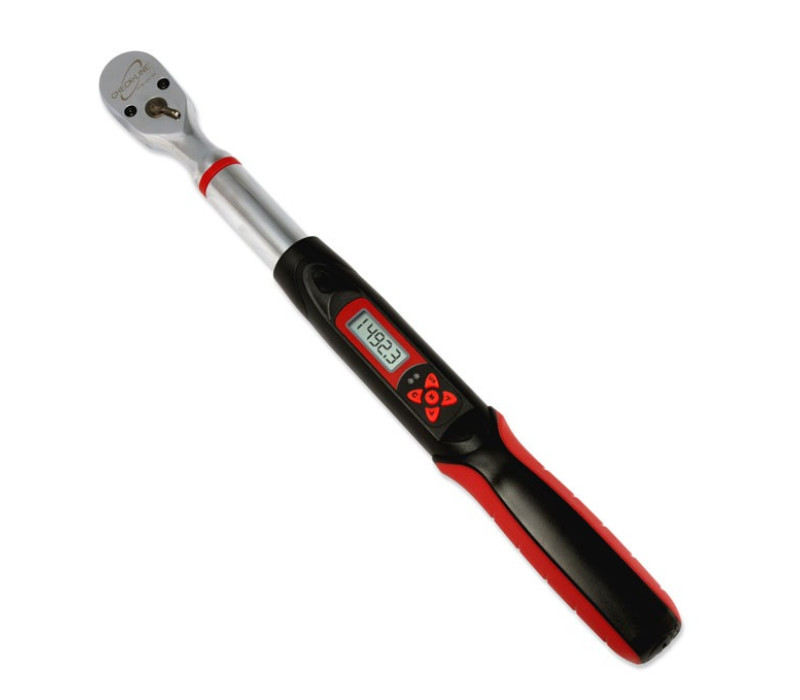

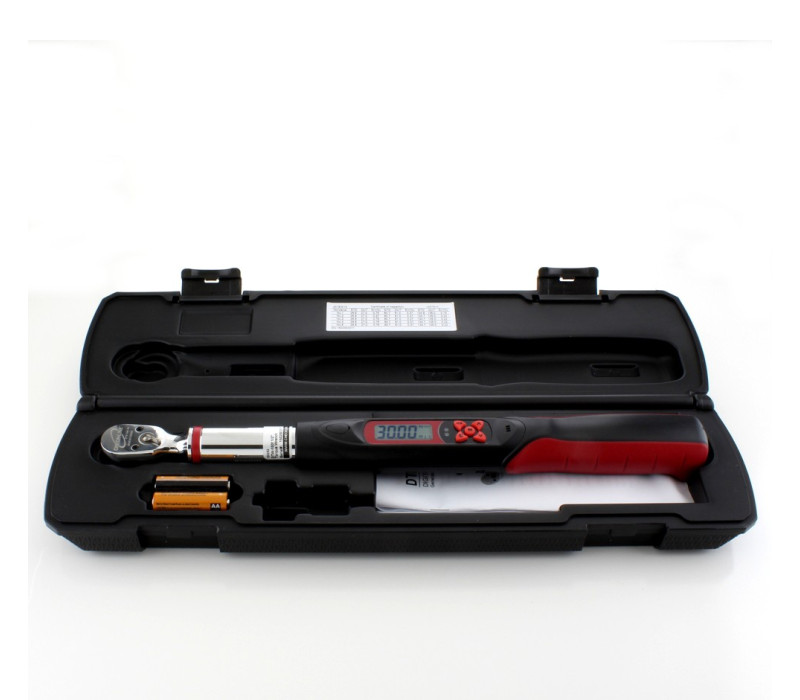

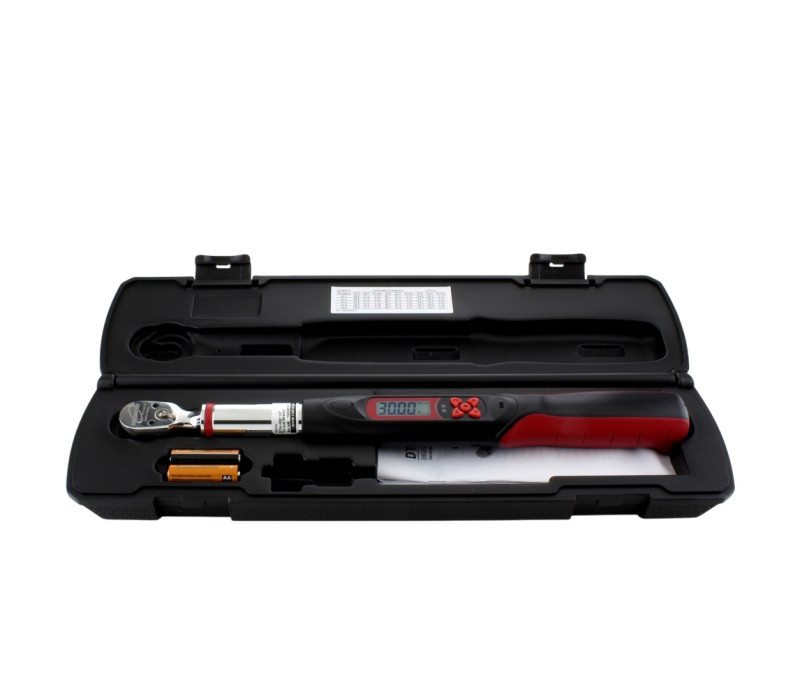

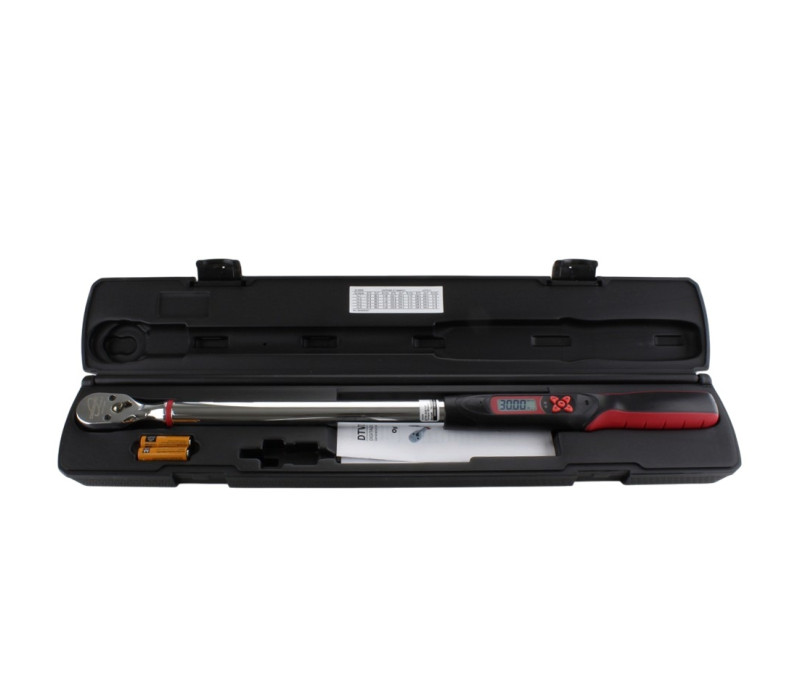

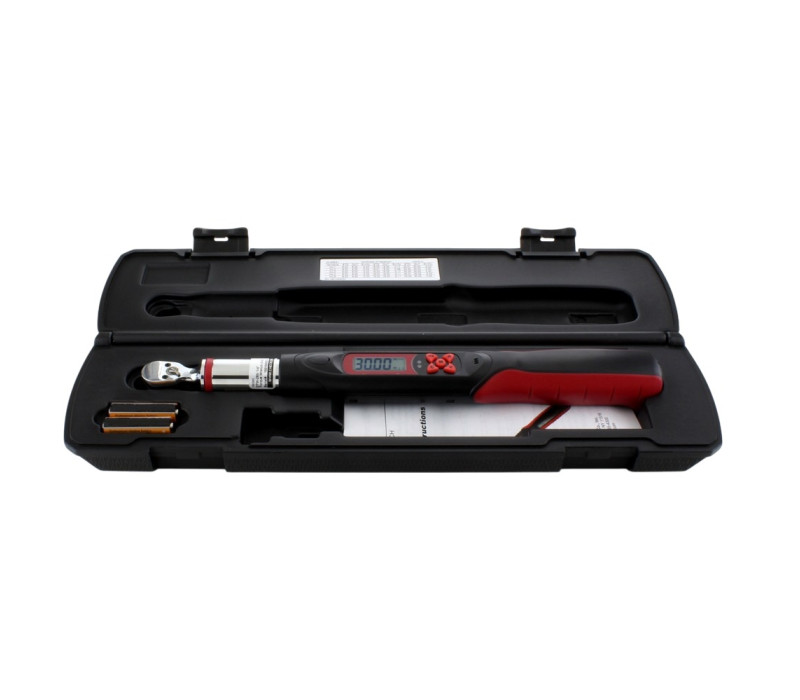

    DTW Electronic Torque Wrench

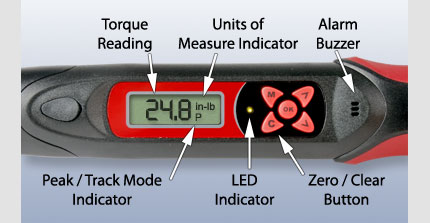

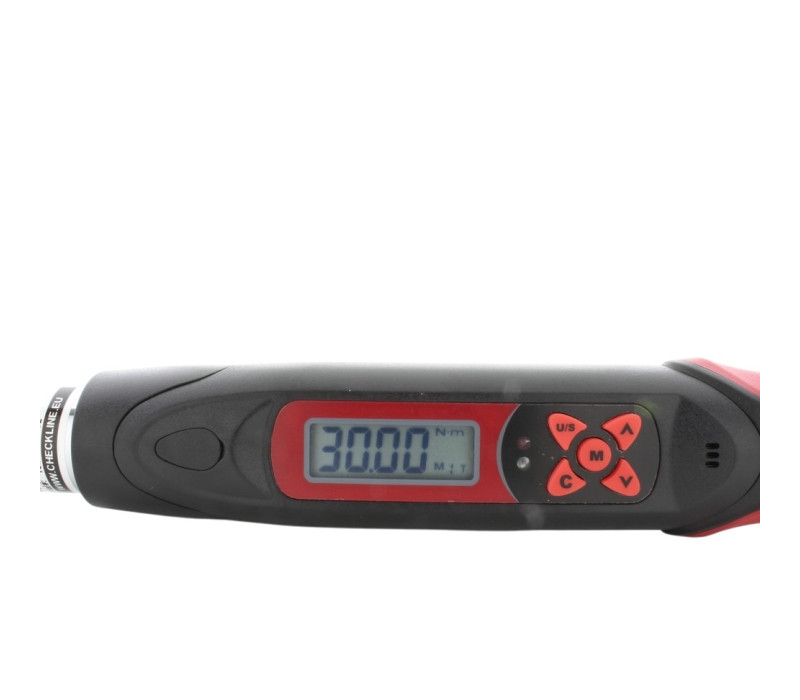

    The Check-Line DTW Electronic Torque Wrenches are designed for simple and precise measurement of industrial, automotive, aerospace and many other applications. The DTW displays Real-Time and Peak torque on a large LCD display in ft-lb, in-lb or N-m, user selectable.

    The DTW features High-Lo set points that indicate a desired torque value with a bright LED and audible beep.

    Torque Wrench
    Price from € 217,00
    Order now
    • Displays in-lbs, ft-lbs & N-m (User selectable)
    • CW and CCW operation
    • Peak or Real-Time (track) mode (User Selectable)
    • Buzzer and LED indicator for the pre-settable target torque
    • 50 data point memory
    • Auto shutdown after 5 minutes of non use
    • Includes Calibration Certificate
    • CE Certified
    Y no header

    Calibrated range is 20 - 100% of capacity

    Sample Calibration Certificate
    AccuracyCW - ±2.5%
    CCW - ±3.5% from 20 - 100% of capacity
    Resolution0.01 N-m / 0.1 in-lb / 0.01 ft-lb
    Sampling Frequency500 Hz (500 samples/sec)
    Display Update Rate4 Hz (4 times/sec)
    Memory50 Readings
    Operation ModePeak hold/ Track
    Unit Selectionft-lb, in-lb, N-m

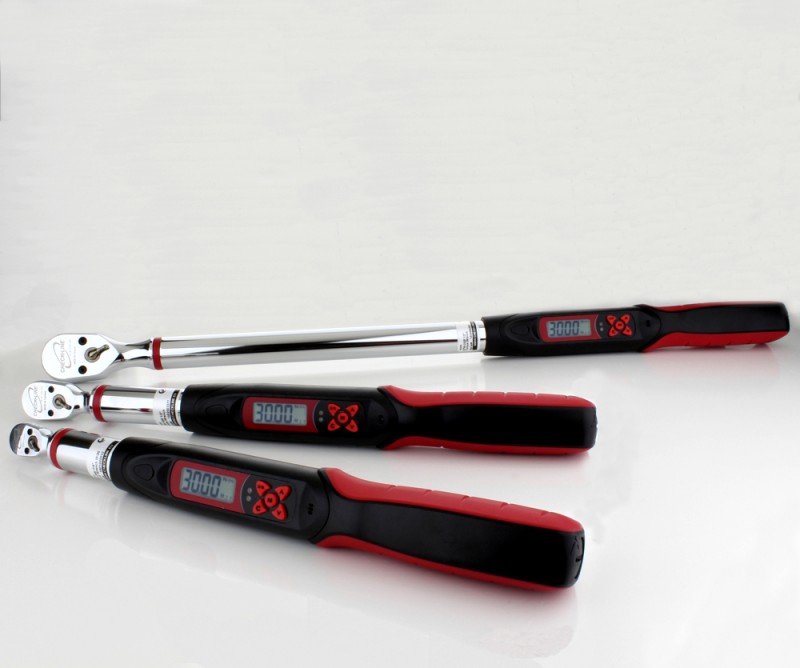

    LengthDTW-265i - 390 mm
    DTW-1200i - 415 mm
    DTW-100f - 445 mm
    DTW-250f - 650 mm
    DTW-625f - 1200 mm

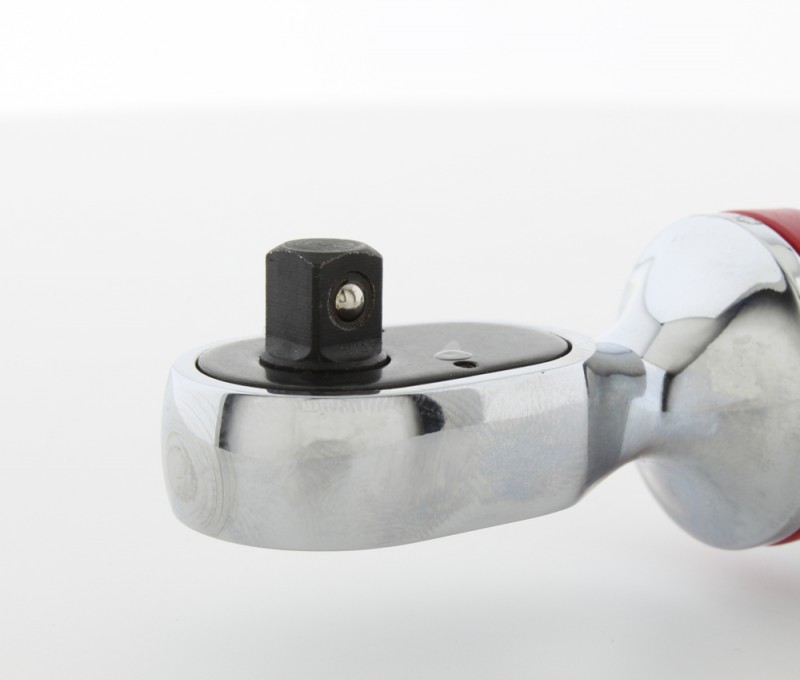

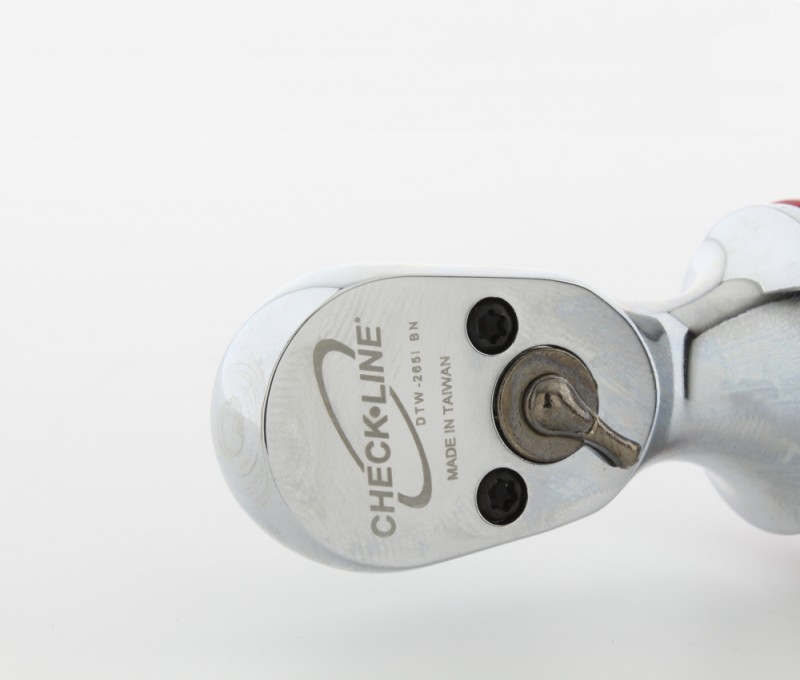

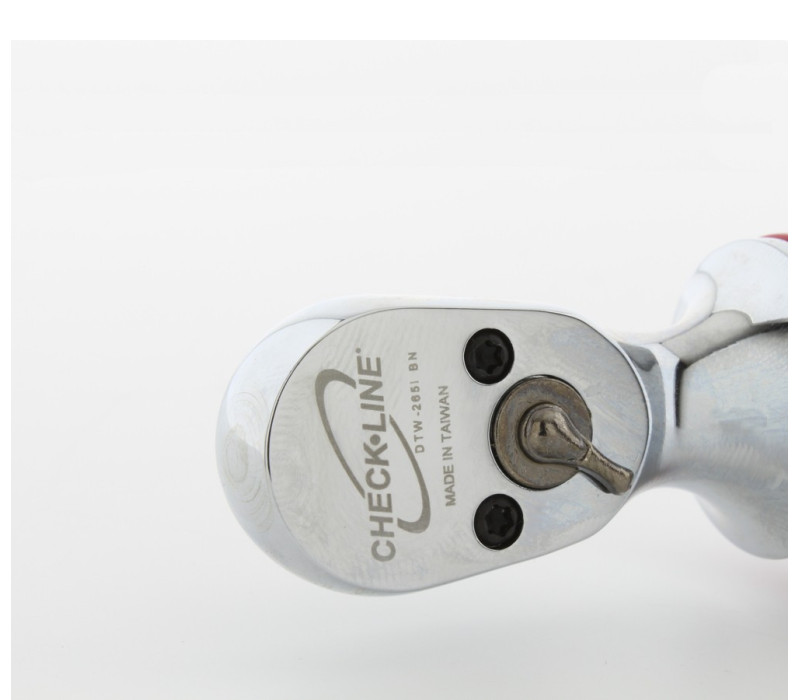

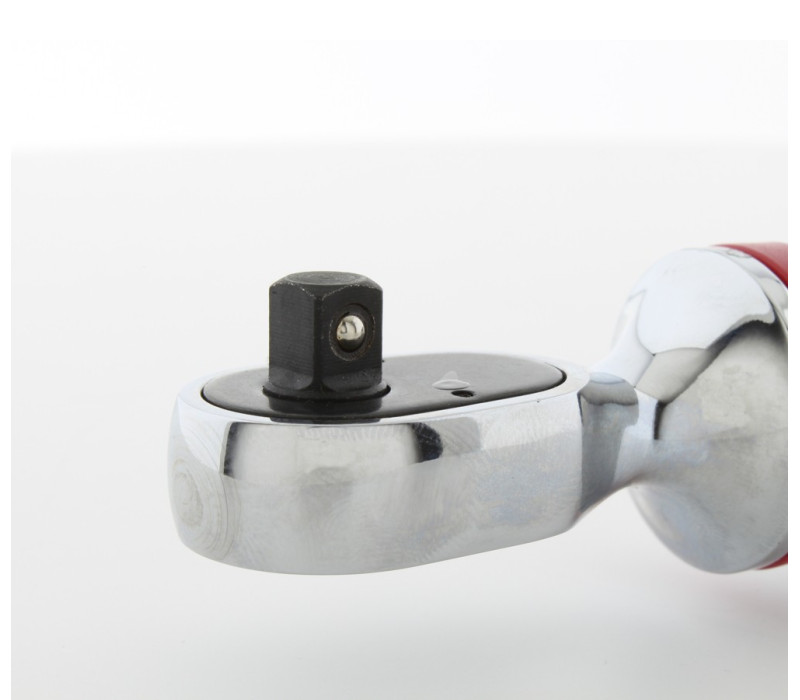

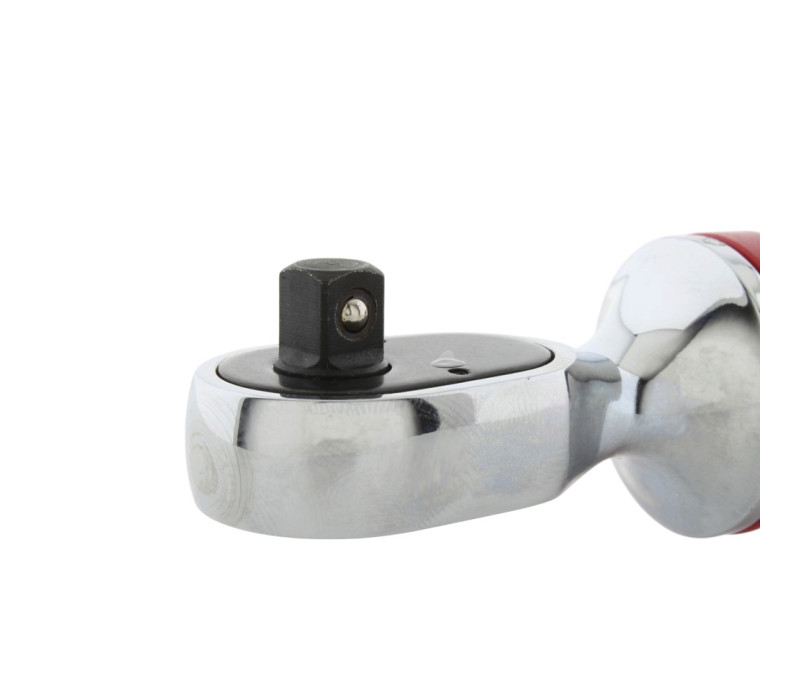

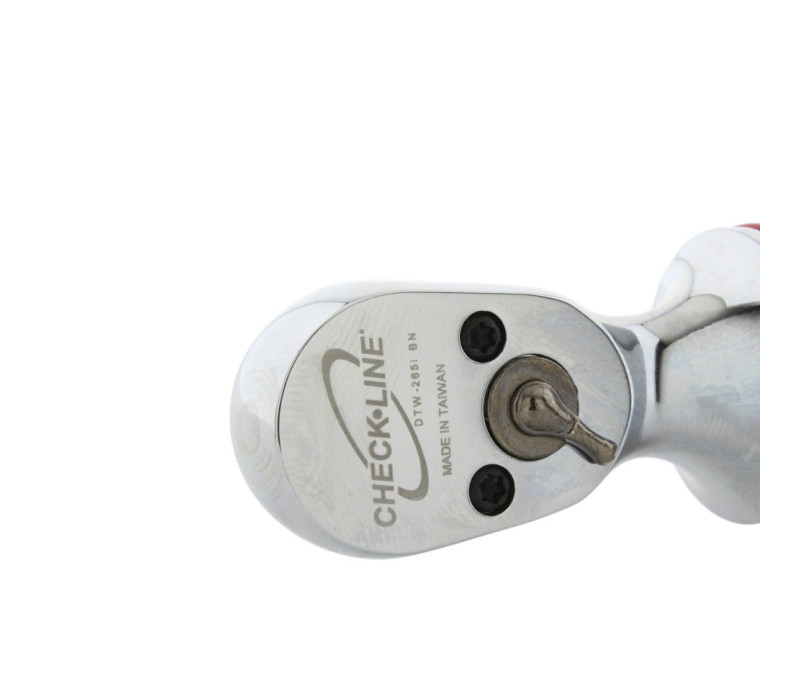

    Head TypeLever type Ratchet
    Gear Teeth36

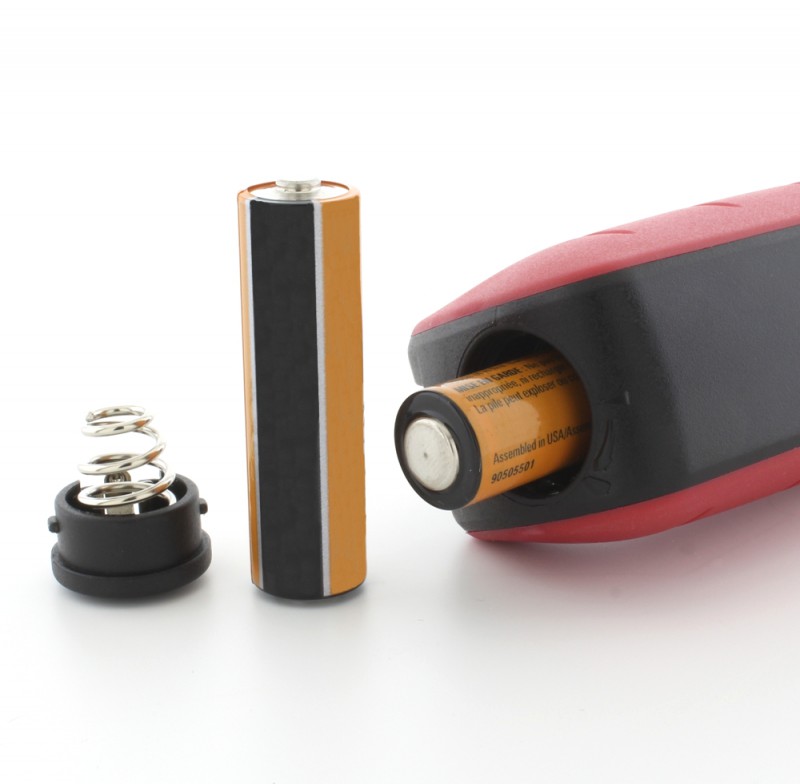

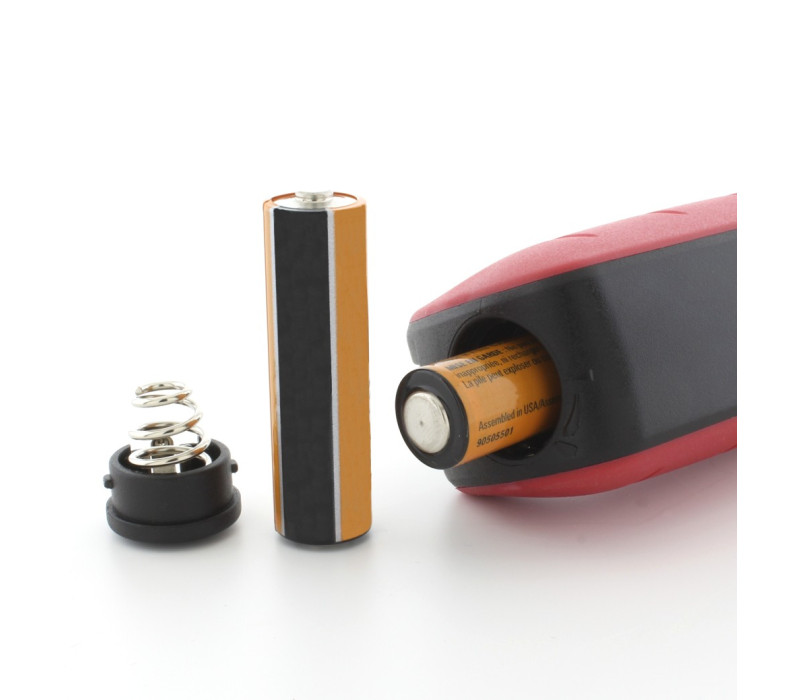

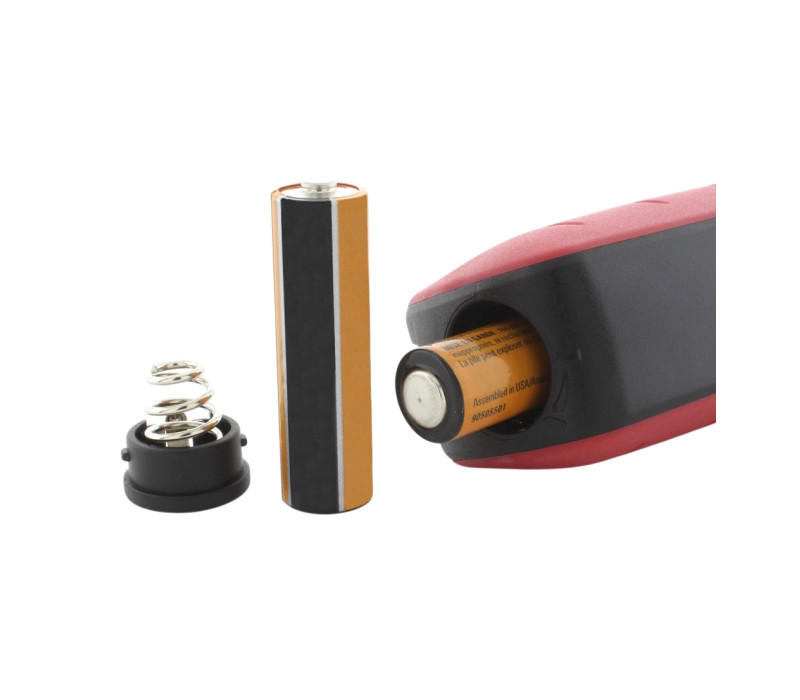

    Battery2x AA
    Battery Life110 Continuous Hours
    1 Year Standby
    Operating Temperature-10°C ~ 60°C
    Storage Temperature-20°C ~ 70°C
    HumidityUp to 90% non-condensing
    Warranty1 year

    Related Products

    Browse Related Products

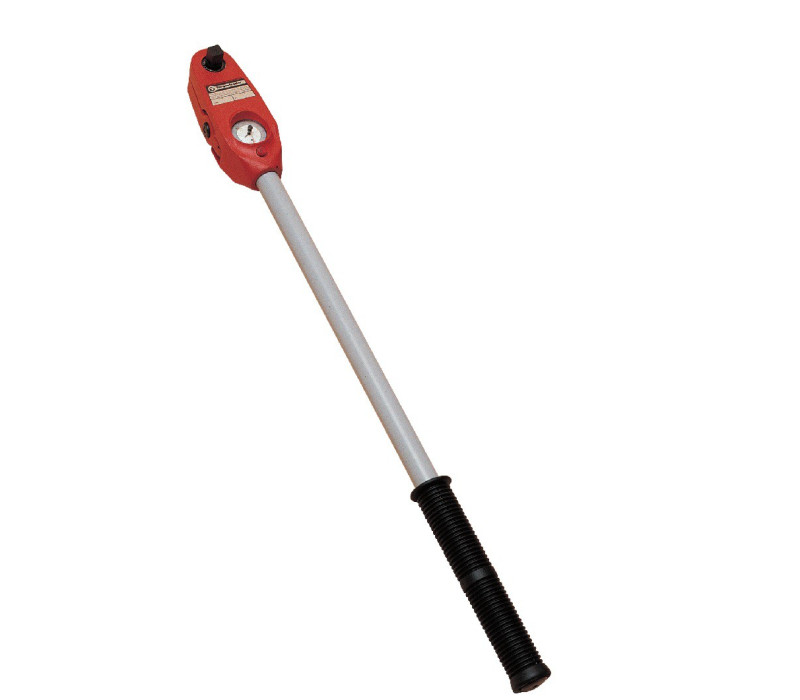

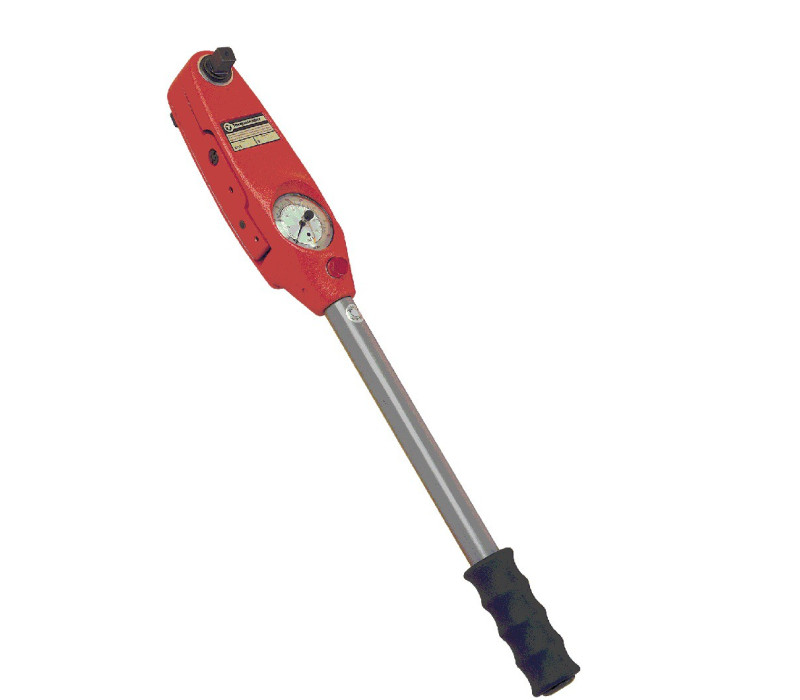

    Mechanical Dial Torque Wrench

    Mechanical Dial Torque Wrench

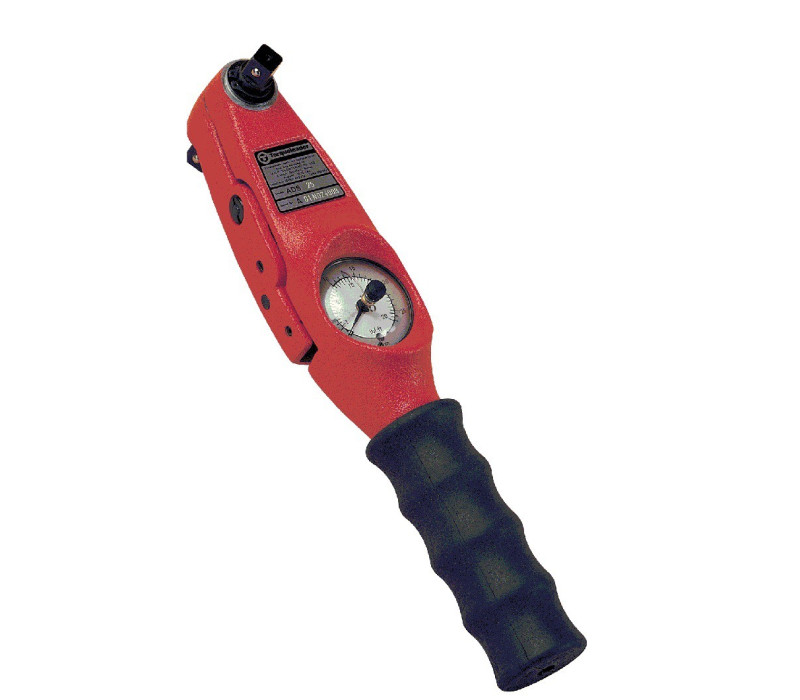

    Mechanical Dial Torque Wrench: light and robust

    Mechanical Dial Torque Wrench: light and robust

    Mechanical Dial Torque Wrench

    Mechanical Dial Torque Wrench

    Torque Wrench Test Stand

    Torque Wrench Test Stand

    Cic-Torque Torque Instrument Calibration

    Cic-Torque Torque Instrument Calibration

    Accessories

    Browse Accessories

    Li-Ion Rechargeable AA Batteries
    Li-Ion Rechargeable AA Batteries

    Order Now

    Products
    Item Product Price  Quantity Action
    130260DTW-265i 1/4" Digital Torque Wrench (1.5 -30 N-m) € 217,00
    130261DTW-1200i 3/8" Digital Torque Wrench (7-135 N-m) € 217,00
    130262DTW-100f 1/2" Digital Torque Wrench (7 -135 N-m) € 217,00
    130263DTW-250f 1/2" Digital Torque Wrench (17-340 N-m) € 254,00
    133368DTW-625f 3/4" Digital Torque Wrench (85 -850 N-m) € 825,00
    Accessories
    Item Product Price  Quantity Action
    139547Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable) € 25,00

    All prices shown exclude VAT and shipping costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
