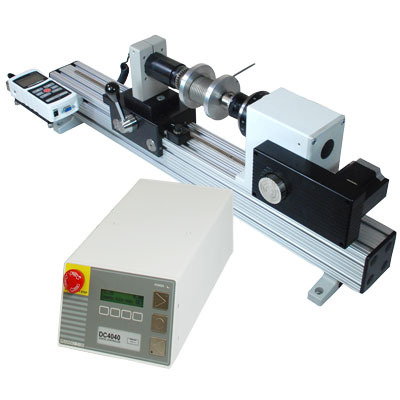

TSTMH-DC Advanced Motorized Horizontal Torque Test Stand


Made in the USAThe TSTMH-DC Advanced Motorized Torque Test Stand is similar to  the TSTMH motorized test stand, but is delivered with expanded capabilities such as full PC control, programmable angle limits, programmable cycling and auto return.

The TSTMH-DC also offers a torque capacity up to 22 Nm and comes in a versatile modular design. Furthermore this Advanced Motorized Horizontal Torque Test Stand is quick & easy to use due to the quick engagement and disengagement of samples, fixture mounting plate and stepper motor design (to prevent speed variations while loading).

6 Models available:

TSTM-DC: Vertical model, Capacity 11.5 Nm, Speed Range 0,01 – 15 RPM
TSTMH-DC: Horizontal model, Capacity 11.5 Nm, Speed Range 0,01 – 15 RPM

TSTM-DC-1: Vertical model, Capacity 22 Nm, Speed Range 0,01 – 15 RPM
TSTMH-DC-1: Horizontal model, Capacity 22 Nm, Speed Range 0,01 – 15 RPM

TSTM-DC-2: Vertical model, Capacity 11.5 Nm, Speed Range 0,04 – 60 RPM
TSTMH-DC-2: Horizontal model, Capacity 11.5 Nm, Speed Range 0,04 – 60 RPM

The maximum torque depends on the speed setting. It is reduced proportionately with the speed. Examples:

  •     Maximum torque at 60 RPM = 2.8 Nm (25 lbFin)
  •     Maximum torque at 30 RPM = 5.6 Nm (50 lbFin)



*The TSTMH-DC is a test bench only. For measuring torques, a torque sensor, a display and appropriate test fixtures are required.


Features
  • Angle dial with 2° resolution
  • The TSTMH is supplied with a wrench set
  • No speed variation with load
  • Digital display of angle
  • Programmable angle limits
  • CE Mark

Related Products

Series-TT03 Digital Torque Meter


  • Peak memory for clockwise and counter clockwise readings saved and displayed
  • High-speed 2,000 Hz sampling rate

More details

Series-TT03 Digital Torque Meter

Series-3I Force/Torque Indicator


  • Interchangeable force and torque sensors through Plug & Test® technology (sensors are sold separately)
  • High-speed 2.000 Hz sampling rate
  • Ultra-compact size

More details

Series-3I Force/Torque Indicator

Series-5I Advanced Digital Force/Torque Indicator


  • Interchangeable force and torque sensors through, separately sold, Plug & Test® technology
  • High-speed 7.000 Hz sampling rate
  • USB, RS-232, Mitutoyo, and analog outputs

More details

Series-5I Advanced Digital Force/Torque Indicator

Accessories

Category Torque Accessories


Grips & Attachments for torque gauges and torque test stands. Universal torque grips and special attachments for specific applications.

More details

Category  Torque Accessories 0

Jacobs Chuck Grip For TST Jacobs Chuck Grips For TST Test Stand


  • Jacobs Chuck Grips For TST Test Stand

More details

Jacobs Chuck Grip For TST Jacobs Chuck Grips For TST Test Stand 126097

AC1004 Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands


  • Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands

More details

AC1004 Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands 126115

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software


  • Sends data from a force or torque gauge and travel display to a PC for further analysis

More details

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software 126514

Dimensions
Dimensions-TSTMH-DC


Controller Features / Specifications
Computer Control
  • A bi-directional RS-232 port is provided to interface with a PC. For full control from a PC a command set is provided.
    The following additional items are required for PC control:
    - Series 3I / 5I force gauge
    - 09-1056 serial cable
    - 09-1143 multi-function cable


Digital Angle Indication
  • Rotational travel is indicated in degrees or revolutions, with RS-232 output of angle data.


Programmable Angle Limits
  • The TSTMH-DC can stop at or cycle between programmable upper and lower angle limits. Programmable in degrees or revolutions.


Overload Protection
  • Protects the torque sensor against overload (requires a Series 3I/5I force/torque gauge and 09-1143 multi-function cable). The desired percentage of full scale of the sensor can be user-programmed.


Auto-return
  • The torque table rotates to an angle limit or torque set point (requires a Series 3I/5I force/torque gauge and 09-1143 cable), stops, and reverses direction at full speed to the other angle limit or torque set point.


Cycling / Dwell Time
  • Same as Auto-return, but with the ability to program the number of cycles up to 99,999 cycles. Dwell time allows the operator to program the length of time, up to 9,999.9 seconds, in 0.1 second intervals, for which the torque table pauses between cycles. Independent CW and CCW speeds may be programmed.


Programmable Button Functions
  • Expands CW and CCW button operation to three user-configurable modes:
    1. Maintained (standard): short push produces continuous motion until STOP is pressed
    2. Momentary: torque table rotates only while the button is pressed
    3. Auto: short push produces maintained motion, while holding the button down will produce momentary motion


Independent CW and CCW Speeds
  • Configurable speeds for CW and CCW directions.


Selectable speed units of measurement (RPM and °/s)

Password protection
  • Prevents unauthorized changes to test parameters.

Specifications
Maximum load11,5 Nm: TSTMH-DC & TSTMH-DC-2
22 Nm: TSTMH-DC-1
Full capacity depends on speed setting
Speed range0,01 - 15 RPM (0,05 - 90°/s) TSTM-DC & TSTM-DC-1
0,04 - 60 RPM (0,2 - 360 °/s) TSTM-DC-2
Speed accuracy±0.2% of setting, ±0% variation with load
Throat4.10" (104 mm)
Manual adjustment12°/knob rev
Maximum slider travel15.5" (394 mm)
Slider travel rate.047" (26.6 mm) / lever rev
Line voltage80-240 VAC 50/60 Hz
Rotational travel accuracy±0.7° / 0.002 rev.
Rotational travel repeatability0.1° / 0.01 Rotation
Rotational travel resolution0.1° / 0.01 rev.

Buy Now
Products

Product
Price
Quantity
131901
TSTMH-DCE - Advanced Motorized Torque Test Stand 11.5 Nm, horizontal
€ 8.575,00
131900
TSTM-DCE - Advanced Motorized Torque Test Stand 11.5 Nm, vertical
€ 8.450,00
137444
TSTM-DC-1E - Advanced Motorized Torque Test Stand 22Nm, vertical
€ 9.419,00
137450
TSTMH-DC-1E - Advanced Motorized Torque Test Stand 22Nm, horizontal
€ 9.419,00
137452
TSTMH-DC-2E - Motorized Torque Test Stand 11.5 Nm, horizontal
€ 9.146,00
137451
TSTM-DC-2E - Motorized Torque Test Stand 11.5 Nm, vertical
€ 9.146,00

Accessories

Product
Price
Quantity
131904
TSF002 Horizontal/wall mounting kit for Series TSF and TST stands
€ 244,00
132522
AC1108 Multi-function cable, gauge to test stand controller
€ 134,00
130824
Serial cable, test stand controller to PC
€ 30,00
132517
AC1029 Axial Compensator
€ 229,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
