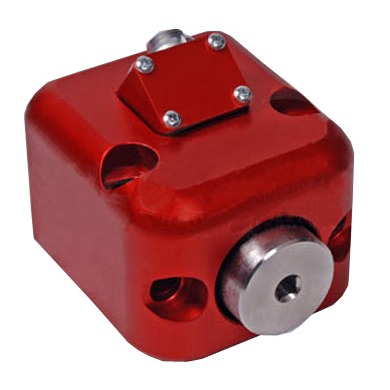

Series IT Bench Mounted Torque Sensor


Made in the USAThe Series IT static torque transducers is especially designed for use with torque analyzers and data loggers. Thanks to the integrated, heavy-duty aluminum tripod, the Series IT can be mounted directly on the work surface. Optional anti-torque protection rings prevent overloading on smaller transducers and all transducers can be calibrated bidirectionally.

Important to note:
Models ITF-3000 & ITF-5000 are supplied without bench stands (mounting brackets). Please contact us to discuss your application. We are happy to advise you on the planning of a suitable system. Customized measuring ranges are available on request.

Please also note that a screw simulator is required for the use of electrical, hydraulic and pneumatic tools. This device is not suitable for inspection of impact wrenches or for use with force multipliers.





Torque ranges
Oz-in Lb-in Lb-ft N-m N-cm Kgf-m Kgf-cm Gf-cm

Model Range Drive Size
ITIO-10 0.007 - 0.070 N-m 1/4"
ITIO-50 0.033 - 0.33 N-m 1/4"
ITIO-100 0.066 - 0.66 N-m 1/4"
ITI-10 0.11 - 1,1 N-m 1/4"
ITI-25 0.27 - 2.7 N-m 1/4"
ITI-50 0.54 - 5.4 N-m 1/4"
ITI-100 1.1 - 11 N-m 1/4"
ITI-250 2,7 - 27 N-m 3/8"
ITI-500 5.4 - 54 N-m 3/8"
ITI-1000 11.29 - 112.9 N-m 3/8"
ITF-100 13 - 135 N-m 1/2"
ITF-150 20 - 200 N-m 1/2"
ITF-250 33 - 330 N-m 1/2"
ITF-600 81 - 810 N-m 3/4"
ITF-1000 135 - 1350 N-m 1"
ITF-2000 270 - 2700 N-m 1 1/2"
ITF-3000 400 - 4000 N-m 1 1/2"
ITF-5000 677 - 6770 N-m 1 1/2"

Dimensions
Dimensions Series IT


Related Products

AWS-4050 Digital Torque Display


  • Eight (8) available engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm.
  • Can be calibrated to virtually any manufacturer’s strain gauge transducers.
  • Bidirectional accuracy of ±0.5% of indicated reading with AWS transducers, ±1% of indicated reading with rotary transducers.
  • 3 modes of operation: Track, Peak and 1st Peak.
  • Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz.

More details

AWS-4050 Digital Torque Display

AWS-4050LC Portable Torque Display


  • Bidirectional accuracy of ±0.5% of indicated reading with AWS transducers, ±1% of indicated reading with rotary transducers.
  • Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz.
  • Can be calibrated to virtually any manufacturer’s strain gauge transducers.

More details

AWS-4050LC Portable Torque Display

AWS-7000 Torque Display


  • A 24-bit AD converter with no analog circuitry to drift.
  • All filter settings rated to Nyquist frequency. This all be eliminates roll-off error.

More details

AWS-7000 Torque Display

Buy Now
Products

Product
Price
Quantity
ITIO-10 - 7ncm Intellect Transducer with Bench Stand, 1/4" Dr.
€ 985,00
ITIO-50 - 33 Ncm Intellect Transducer with Bench Stand, 1/4" Dr.
€ 985,00
ITIO-100 100 Ozf. In. Intellect Transducer with Bench Stand, 1/4" Dr.
€ 845,00
ITI-10 - 1,1 Nm Intellect Transducer with Bench Stand, 1/4" Dr.
€ 845,00
ITI-25 - 2,7 Nm Intellect Transducer with Bench Stand, 1/4" Dr.
€ 845,00
ITI-50 - 5,4 Nm Intellect Transducer with Bench Stand, 1/4" Dr.
€ 845,00
ITI-100 - 11 Nm Intellect Transducer with Bench Stand, 1/4" Dr.
€ 845,00
ITI-250 - 27 Nm Intellect Transducer with Bench Stand, 3/8" Dr.
€ 845,00
ITI-500 - 54 Nm Intellect Transducer with Bench Stand, 3/8" Dr.
€ 845,00
ITI-1000 Intellect Transducer with Bench Stand, 112 Nm 3/8" Dr.
€ 845,00
ITF-100 - Intellect Transducer with Bench Stand, 1/2" Dr., 135 Nm
€ 940,00
ITF-150 External Bench mounted Torque sensor 1/2" 200 Nm
€ 940,00
ITF-250 Intellect Transducer with Bench Stand, 338 Nm 1/2" Dr.
€ 940,00
ITF-600 Intellect Transducer with Bench Stand, 813 Nm 3/4" Dr.
€ 992,00
ITF-1000 External Bench mounted Torque sensor 1" 1355 Nm
€ 1.496,00
ITF-2000 2000 Lbf. Ft. Intellect Transducer with Bench Stand, 1 1/2" Dr.
€ 1.683,00
ITF-3000 3000 Lbf. Ft. Intellect Transducer, 1 1/2" Dr. (w/o Bench Stand)
€ 2.044,00
ITF-5000 5000 Lbf. Ft. Intellect Transducer, 1 1/2" Dr. (w/o Bench Stand)
€ 2.137,00

Accessories

Product
Price
Quantity
ICBL-5000-L Lemo -> Lemo Cable 2.5 m
€ 246,00
TTS-SC Advanced Software for TT-Series with cable
€ 330,00
TTS-SOFT Software for TT-Series with cable
€ 198,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
