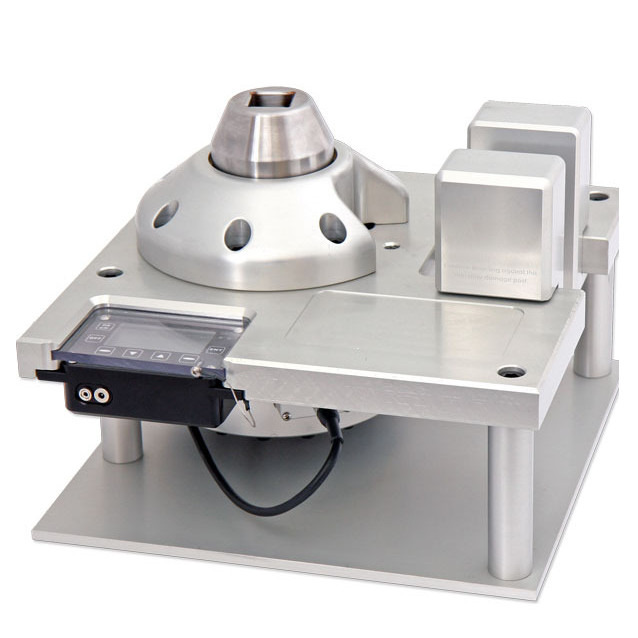

HYRD Torque Tester for multipliers, rotating and geared torque wrenches


Made in the USAThe torque testers of the HYRD series were specially developed for the precise testing of rotating torque tools such as driven torque multipliers, pneumatic, electric torque wrenches and power wrenches.

The stable aluminum frame is light and robust at the same time, so that no additional screwing of the test device is required. The ball-bearing joint simulator enables dynamic torque build-up under real conditions and protects the measuring cell from lateral forces. It also comes with a recess in the aluminum frame for the power screwdriver's support arm to enable safe testing at any time.

The accuracy is ± 0.5% of the displayed measured value, within the calibrated 5 - 100% of the capacitance measuring range.

The TT-HYRD torque tester can be ordered either with an integrated display unit or without a display. The version without display is more convenient for customers who prefer an external display or for those who use one display unit for several test devices.


Features
  • Including NIST traceable calibration certificate
  • Ball-bearing screw joint simulator
  • Robust design
  • Double support points for support arms of power screwdrivers
  • No screw connection of the test device necessary
  • Production on customer order, individual adjustments possible

Torque ranges
ModelCalibrated measuring rangeDimensionsWeightDrive
41011-HYRD67.75 - 1355 Nm / 50 - 1000 lb-ft20,32 x 20,32 cm9,10 kg1.5 "square inside
41012-HYRD170 - 3400 Nm / 125 - 2500 lb-ft30,48 x 30,48 cm11,34 kg1.5 "square inside
41013-HYRD340 - 6800 Nm / 250 - 5000 lb-ft30,48 x 30,48 cm13,61 kg1.5 "square inside
41013-HYRD505 - 10100 Nm / 375 - 7500 lb-ft30,48 x 30,48 cm15,88 kg1.5 "square inside

Related Products

TT-IMP Impact Wrench Torque Tester


  • Heavy Duty Construction
  • Solid machined aluminium plate for weight reduction and long term durability
  • Spline engagement of run-down into torque transducers improves durability of transducer

More details

TT-IMP Impact Wrench Torque Tester

AWS-4050 Digital Torque Display


  • Eight (8) available engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm.
  • Can be calibrated to virtually any manufacturer’s strain gauge transducers.
  • Bidirectional accuracy of ±0.5% of indicated reading with AWS transducers, ±1% of indicated reading with rotary transducers.
  • 3 modes of operation: Track, Peak and 1st Peak.
  • Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz.

More details

AWS-4050 Digital Torque Display

QCMBS Torque tester for power screwdrivers


  • RS-232 data output
  • 2 years warranty
  • Complete test system, including test stand, screwdriver simulator and TT-QCM torque tester

More details

QCMBS Torque tester for power screwdrivers

HYDP Hydraulic Torque Wrench Tester System


  • Heavy Duty Construction
  • Integrated reaction arm posts or slot as required
  • 4 Digital LCD Display

More details

HYDP Hydraulic Torque Wrench Tester System

Specifications
Calibrated measuring range 5-100% of the capacity, in both directions
Accuracy ± 0.5% of the displayed measured value (within the calibrated range)
Overload protection 200% of the capacity, in both directions
Warranty 1 year
Operating temperature 0-50 °C
Display specifications (HYRD-DP model only)
Operating modes Track (real time), Peak (peak value) and 1st Peak (first peak value)
Resolution 4 active positions
Filtre Selectable: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz und 2000Hz
Data memory For up to 999 measurements
Data ouput RS-232
Display 62x62mm backlit LCD
Alarm limits LEDs for visual alarm limits
Power supply Rechargeable NiMH batteries for 10-12 hours of continuous use

Buy Now
Products

Product
Price
Quantity
TT-HYRD-41011 Muliplier, Rotating & Geared Wrench Tester (1335 N-m) WITHOUT display
€ 4.312,00
TT-HYRD-41012 Muliplier, Rotating & Geared Wrench Tester (3400 N-m) WITHOUT display
€ 4.523,00
TT-HYRD-41013 Muliplier, Rotating & Geared Wrench Tester (6800 N-m) WITHOUT display
€ 4.628,00
TT-HYRD-41014 Muliplier, Rotating & Geared Wrench Tester (10100 N-m) WITHOUT display
€ 5.155,00
TT-HYRD-DP-41011 Muliplier, Rotating & Geared Wrench Tester (1335 N-m) WITH display
€ 5.891,00
TT-HYRD-DP-41012 Muliplier, Rotating & Geared Wrench Tester (3400 N-m) WITH display
€ 6.102,00
TT-HYRD-DP-41013 Muliplier, Rotating & Geared Wrench Tester (6800 N-m) WITH display
€ 6.207,00
TT-HYRD-DP-41014 Muliplier, Rotating & Geared Wrench Tester (10100 N-m) WITH display
€ 6.734,00

Accessories

Product
Price
Quantity
AWS-4050 - Portable Torque Display with Memory
€ 1.513,00
ICBL-5000-L Lemo -> Lemo Cable 2.5 m
€ 249,00
All mentioned prices are excluding VAT & excluding shipment costs.
