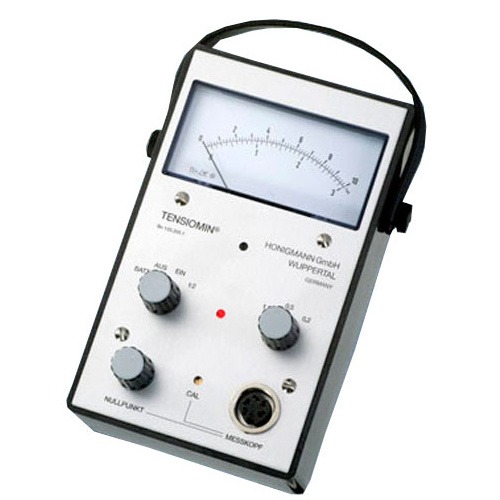

TM-353 Analog Tension Indicator with Built-In Amplifier


Made in GermanyThe new CHECK LINE Model TM-353 analog tension indicator features precision electronics for connection to all Capacitive-Based hand-held Tension Sensors.
The scale can be marked with empirical units (0-100%) or, optionally, calibrated to display values in two(2) different tension ranges with any units of measure (grams, cN, daN, Kg, Newtons, etc.)
The analog display, permits the user to quickly observe the range of tension fluctuations, as well as the frequency of change, by viewing the motion of the "sweeping" pointer.


Features
  • Zero adjustment compensates for all measurement positions
  • Provides 0-1 VDC analog output for recording purposes
  • Powered by a single 9 volt battery
  • Three amplification settings are user-selected to provide maximum display resolution

Specifications
Display Type Analog Meter
Scale Marking 0-10 and 0-3 (custom scales are available for any range)
Amplification 1X, 2X or 5X (connector located on top panel of housing)
Output 0 to 1 VDC proportional to user-selected full scale range
Dimensions 6.2" x 3.8" x 2" (H x W x D)
158 x 96 x 50 mm (H x W x D)
Weight 1.3 lbs (0.6 kg)
