SC-PM Display Unit

SC-PM Display Unit

2 Available Models

Model	Connectable Sensors	Output signal
SC-PM	Sensors with measuring amplifier	0 - 10 V DC, Open Collector
SC-PMD	Sensors without measuring amplifier	0 - 10 V DC, Open Collector

Panel mount digital display (1/8 Din Cutout), RS 232 output signal, analog output and user-set MIN and MAX alarm limits. All tension sensors series TS and LTS with analog output signal 0 - 1 V can be connected.

3 different calibrations for customer supplied material can be saved at this display unit

Available with digital output for data processing with PC

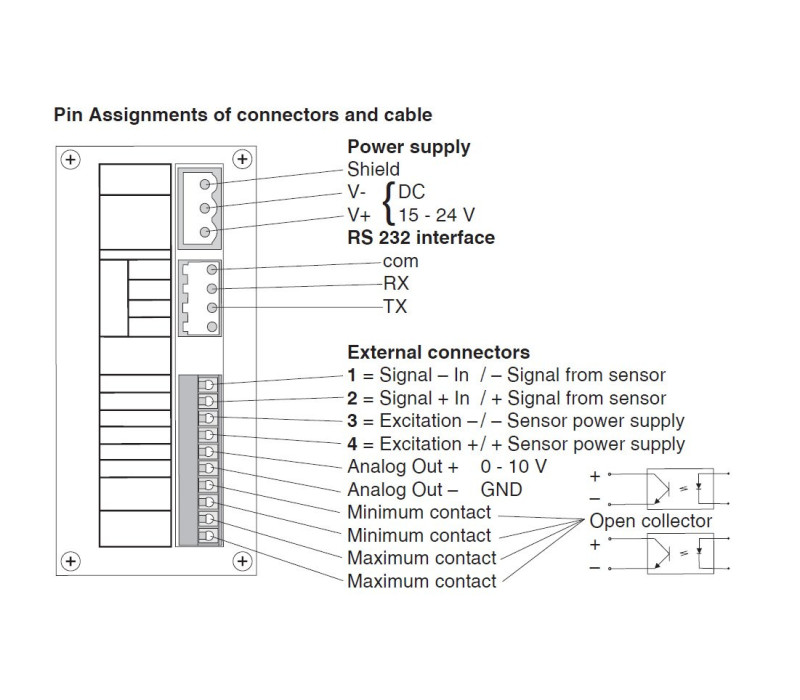

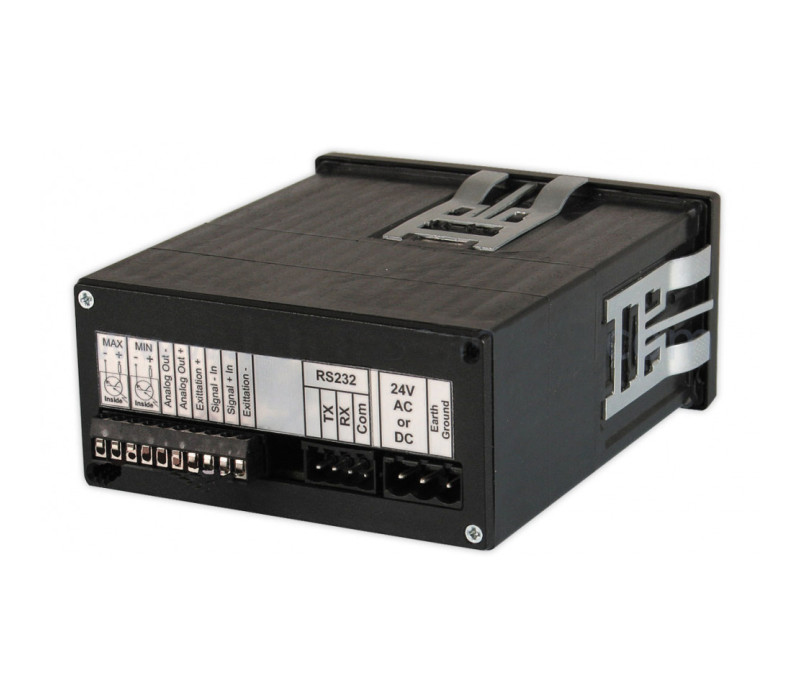

Rear Panel of Indicator: Terminal strip for power supply, output signals (RS 232, 0 - 10 V DC, Open Collector)

Request price >>

Connection of series TS and LTS with analog output 0 - 1 V DC, optionally series without integrated amplifier
User set limits (Min and Max alarms) with LED and Open Collector output for external signal unit
Adjustable damping for easier reading if tension fluctuates

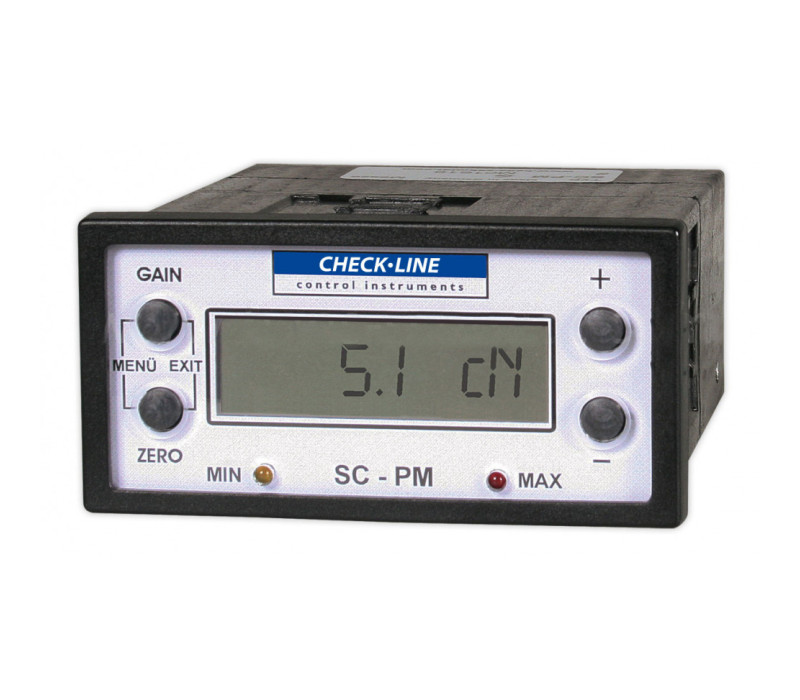

Panel mounted digital display
Display unit with Dotmatrix LCD display, 12 mm high with backlight
Interfaces:
Analog: 0 - 10 V DC (standard)
Digital (optional): RS 232 or RS 422
Current (optional): 4 - 20 mA (instead of 0 - 10 V DC output)
Adjusting and storaging of 3 different materials
Menu for configurating the device (alarm limits, damping, units, tension range, adjustment graph)
Adjustment for connected sensor (Zero and Gain)
CE certified with sensor connected

Output Signal

Name	Output Signal
Standard	analog 0 - 10 V DC open collector
Code A3	4 - 20 mA instead of 0 - 10 V DC open collector
Code 232	digital RS-232 analog 0 - 10 V DC open collector Up to 100 readings can be transferred per second
Code 422	digital RS-422 analog 0 - 10 V DC open collector Up to 100 readings can be transferred per second
Click picture for more information

Display unit with transport packaging, operating instruction in English and German, Certificate of Compliance with the order 2.1 according EN 10204

Digital display	Dotmatrix LCD, 12 mm high with backlight
Measuring to be measured units	cN, daN, g or kg selectable depending on range
Selectable Damping	9 adjustable settings (electronic damping, moving averaging)
Output signal	analog: 0 - 10 V DC /R (Last) ¡Ã 5k§Ù digital (option): RS 232 or RS 422 (19200, 8, N, 1), 100 measurings/s current (option): 4 - 20 mA instead of 0 - 10 V DC
Input signal	0 - 1 V DC, option mV
Alarm limits	Programmable MIN/MAX limits with LED
Alarm output	Open Collector max. 30 V DC, 10 mA
Adjustment	Storage for 3 different materials (standard adjustment + 2 customer supplied materials)
Power supply	15 - 24 V DC, 100 mA
Temperature range	10 - 45°C
Air humidity	85 % RH, max.
Housing	Plastics
Dimensions	115 x 95 x 48 mm (LxWxH), mounting cut out 92 x 44 mm
Weight, net (gross)	Approx. 300 g (Approx. 1000 g)
