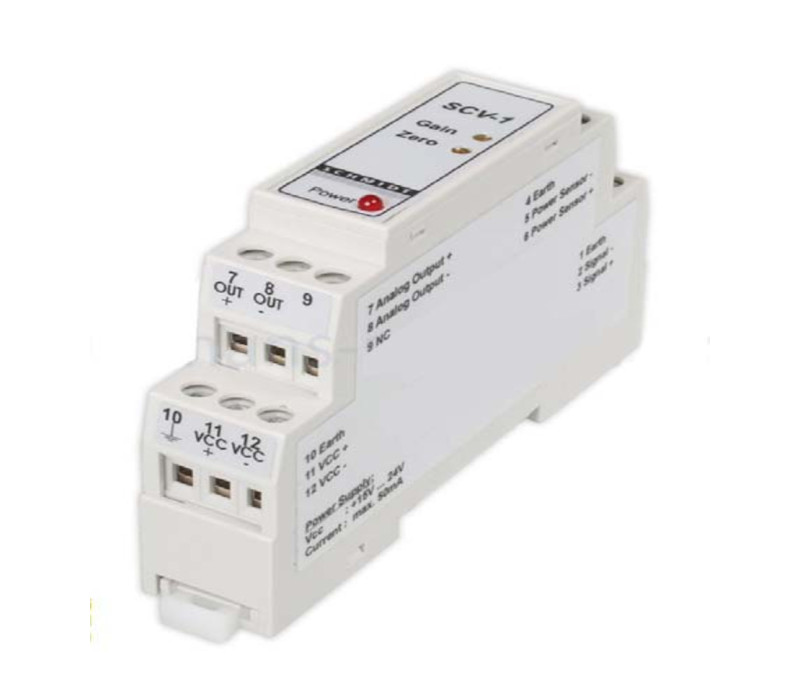

SCV-1 Amplifier

Name: SCV-1 Amplifier
SKU: 127394

The SCV-1 is a strain gauge amplifier for sensors without integrated amplifier (mV/V output) and suits all sensors of TS2, TSC as well as the sensors of the SF series.

This amplifier has been designed for DIN rail mountrovides and several output signals are at your disposal:

SCV-1: Analog: 0 - 1 V DC (standard),
SCV-1-A2: Analog: 0 - 10 V DC (option A2) and
SCV-1-A3: Current: 4 - 20 mA (option A3).

It further provides ZERO and GAIN adjustment pots for calibration purposes and is CE certified with sensor connected.

The SCV-1 amplifier is delivered in a transport packaging together with the manual in German and English and the certificate of compliance.

For use with sensors providing mV/V output
For use with sensors providing mV/V output
Provides ZERO and GAIN Adjustment Pots for Calibration purposes
Output signals: Analog: 0 - 1 V DC (standard) Analog: 0 - 10 V DC (option A2) Current: 4 - 20 mA (option A3)
Requires 15-24V DC power source
CE certified with sensor connected
LED Indicator shows Power to Amplifier

SCV-1-Manual

SCV-1 Dimensions

SCV-1 Product sheet

Output signal:	analog: 0 - 1 V DC /R (Last) ≥ 5kΩ analog 0 - 10 V DC (option) 4 - 20 mA instead of 0 - 10 V DC
Input signal:	mV/V
Power supply:	15 - 24 V DC, 50 mA
Temperature range:	10 - 45°C
Air humidity:	85 % RH, max.
Housing:	Plastics
Dimensions:	90 x 56 x 18 mm (LxWxH), DIN EN 60715 tophat rail box
Weight, net (gross):	Approx. 53 g

Products

Item	Product	Price	Quantity	Action
137470	SCV-1 Straingauge Amplifier with 0-1 VDC output
138128	SCV-1-A2 Straingauge Amplifier with 0-10 VDC output

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
