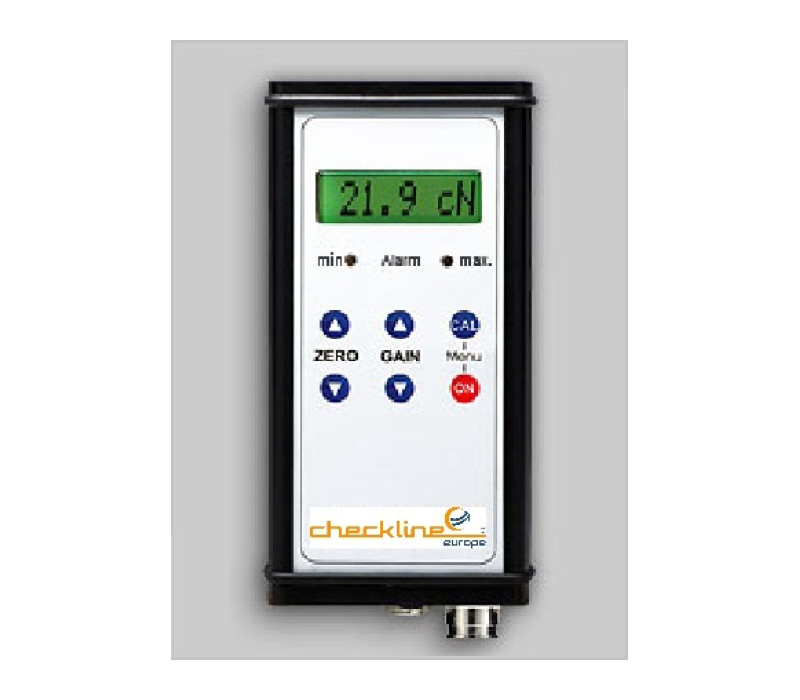

SCD-1 Display Unit
Display unit with LCD display for 1 sensor. All tension sensors series TS and FS with analog output signal 0 - 1 V can be connected.
Display for wall-mounting or as desktop device
Indicator with digital output signal for data processing with PC
Special Features
- Connecting sensors of series TS and FS with output signal 0 - 1 V
- Display unit with small, compact housing
- Interfaces:
- digital: RS 232 for connection to a PC
- analog: 0 - 10 V DC for connection to a line recorder or for signal processing
Features
- Connecting sensors of series TS and FS with output signal 0 - 1 V
- Display unit with small, compact housing
- Wall-mounting possible
- Menu for configurating the device (alarm limits, damping, units, tension range, adjustment graph)
- Power supply by separate AC adapter
- Adjustable damping for output signal and display for easier reading if tension fluctuates
- User set limits with LED and Open Collector for external signal unit MIN - MAX interface (Open Collector) for connecting an external signal unit
- Power supply (+12 V DC) for the connected sensor
- Sensor calibration adjustment (gain and zero) for each sensor
- Display unit with Dotmatrix LCD display, 12 mm high with backlight
- CE certified with sensors connected
Delivery Includes:
- Display unit with transport packaging,
- AC-adapter,
- Operating instruction in German and English,
- Certificate of Compliance with the order 2.1 according to EN 10204
Specifications
| Digital display: | Dotmatrix LCD, 12 mm high with backlight |
| Measuring units: | cN, daN, g or kg adjustable |
| Tension range: | Adjustable |
| Damping (fg): | 16 steps adjustable |
| Output signal: | Analog: 0 - 10 V DC R (Last) ≥ 5 kOhm Digital: RS 232 (19200, 8, N, 1), 80 values/s |
| Setpoints: | Programmable MIN/MAX limits with LED-diode |
| Output signal setpoints: | Open Collector max. 30 V DC, 10 mA |
| Voltage output for sensor: | Yes |
| Power supply: | 12 ... 24 V DC/AC 100 mA AC adapter 100 - 240 V AC, 50 - 60 Hz with 3 adapters (EU/USA/UK) |
| Temperature range: | 10 - 45°C |
| Air humidity: | 85 % RH, max. |
| Housing: | Aluminum |
| Dimensions: | 182 x 85 x 34 mm (LxWxH) |
| Weight: | Approx. 300 g (approx. 1000 g) |
