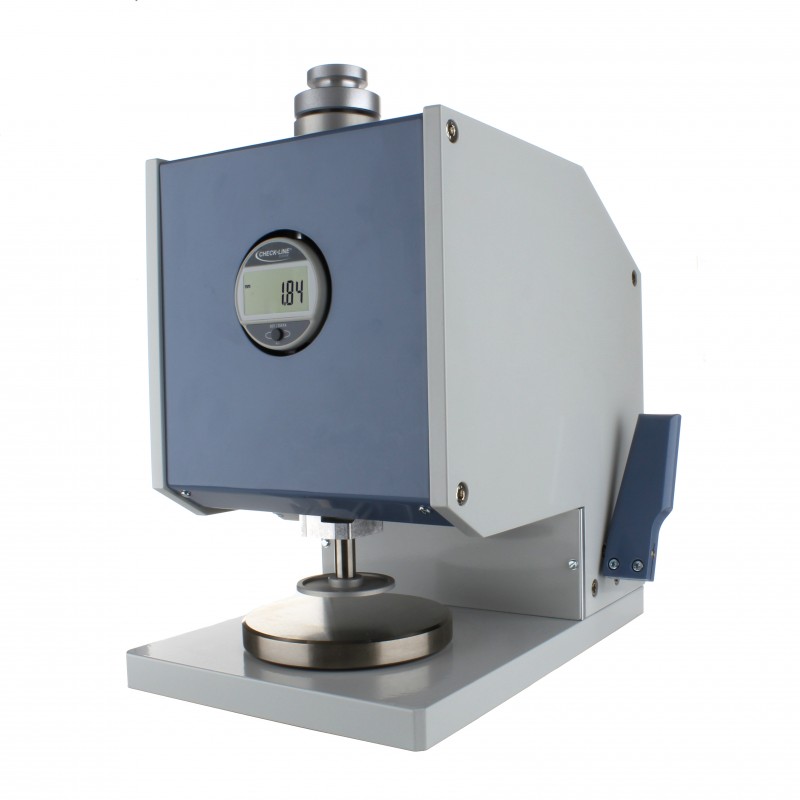

D-2000 Manual Precision Material Thickness Gauge


Made in GermanyThe D-2000 Manual Precision Material Thickness Gauge has a stable and rigid base frame with an encapsulated, separate measuring block. And is a top choice if you appreciate high precision (up to 0.001 mm), easy operation, automatic processing and objective, reproducible measurement results.

The device can be adapted to the materials to be measured according to your requirements. Thus, the calliper surfaces, the calliper materials and the measurement pressures fit in exactly with the guidelines of ISO, EN, DIN or also with your own test regulations.

Common Standards
For textiles and non-woven textiles according to DIN EN ISO 5084 (measuring face 20 cm²/pressure 0.1 kPa and 1 kPa)

For fleece according to DIN EN ISO 9073-2 (measuring face 25 cm²/pressure 0.1 kPa and 0.5 kPa)

For geomaterials according to DIN EN ISO 964-1 (measuring face 25 cm²/pressure 2 kPa and 20 kPa, not 200 kPa)

The D-2000 device is also available with different measurement ranges:
Ranges 0 – 10 mm, 0 – 25 mm and 0 – 50 mm (or with the equivalents in inch, switchable).

With this instrument the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, rubber, plastic films etc.

The D-2000 has data outputs for the digital processing of the measurement results or for the transmission to a printer.


Features
  • Rigid housing frame
  • Separate measuring block, encased against outside external impacts, for highest accuracy and repeatability
  • Switch-selectable measuring units mm / inch
  • RS 232 data output
  • Resolution 0.01 mm - standard, 0.001 mm - optional
    (0.001 mm is standard for D-2000-P, D-2000-F)
  • Feeler movement manual by plunger
  • Includes Calibration Certificate
  • Optional software for data transfer and analysis - Part No. SW-50

Related Products

J-40 Thickness Gauge


  • Swing-out foot for on-table operation
  • Digital display with selectable units inch or mm

More details

J-40 Thickness Gauge

FD-50 Digital Thickness Gauge


  • Operating by lifting device - self closing
  • Resolution 0.001 mm (0.0001 inch)

More details

FD-50 Digital Thickness Gauge

JD-50 Digital Thickness Gauge


  • Operating by lifting device - self closing
  • Easy to read LCD Display

More details

JD-50 Digital Thickness Gauge

Specifications
Measuring range:
0 - 10 mm, option 0 - 25 mm
Resolution:
0.01 mm, option 0.001 mm
Accuracy:
±0.02 mm, option ±0.002 mm
Depth of jaw:
160 mm
Measuring system:
Capazitive -> Sylvac
Display:
LCD 6 digit, 8.5 mm high
Feeler shape and surface pressure:
According international Standards DIN, EN and ISO
Output signal:
RS 232
Temperature range:
10 - 45 °C
Air humidity:
85 % RH, max
Dimensions:
300 x 240 x 300 mm (LxWxH)
Weight, net (gross):
22.5 kg

Complete Kit

Available models
ModelStandard Application Feeler dia. (mm) Feeler area (cm²) Pressure
D-2000-T DIN EN ISO 5084 Textiles50.42200.1 kPa and 1 kPa
D-2000-V DIN EN ISO 9073-2 Standard fleece56.42250.5 kPa
D-2000-G DIN EN ISO 964-1 Geomaterials56.42252 kPa
D-2000-G1 DIN EN ISO 964-1 Geomaterials56.42252 kPa, 20 kPa and 200 kPa
D-2000-NW DIN EN ISO 53855 Non-woven textiles56.42
35.68
25
10
0.5 kPa, 1 kPa and 5 kPa
D-2000-P* DIN EN ISO 53105 Paper162100 kPa
D-2000-HY* DIN EN ISO 54540 Hygenic Paper56.42252 kPa
D-2000-L1 DIN EN ISO 53326 (out of date) Leather100.78550 kPa
D-2000-L2 DIN EN ISO 2589 Leather100.78549.1 kPa
D-2000-Gi* Rubber36.68105 kPa
D-2000-CF ISO 2286-3 Rubber- or plastics-coated fabrics121.132 kPa, 10 kPa and 24 kPa
D-2000-CF1 ISO 2286-3 Rubber- or plastics-coated fabrics121.132 kPa, 5 kPa, 10 kPa and 24 kPa
 Feeler Calotte
D-2000-F* DIN 53370 FoilsR 30 mm 0.5 N
*Model D-2000P, D-2000-HY, D-2000-Gi and D-2000-F have an resolution of 0.001mm Individual configurations to an required standard are available upon request.

Downloads

Options
Code R Higher resolution 0.001 instead of 0.01 mm
(0.001 mm is standard for D-2000-P, D-2000-F)
Code E Extended measuring range 0 - 25 mm
Code E2 Extended measuring range 0 - 50 mm
Code P External power supply of the display
DKD-Cal Calibration report from a DKD authorized laboratory
Code S Software & Cable




Special models can be requested!




Buy Now
Products

Product name
Price
Quantity
D-2000-T - Material Thickness Gauge for Textiles
€ 3.590,00
D-2000-V - Material Thickness Gauge for standard Fleece
€ 3.560,00
D-2000-G - Material Thickness Gauge for Geotextiles
€ 3.850,00
D-2000-NW - Material Thickness Gauge for Non-woven
€ 3.695,00
D-2000-P - Precision Material Thickness Gauge for Paper (0.001mm)
€ 3.865,00
D-2000-HY - Precision Material Thickness Gauge for Hygienic Paper
€ 3.865,00
D-2000-L2 - Material Thickness Gauge for Leather
€ 3.850,00
D-2000-F - Precision Material Thickness Gauge for Foils (0.001mm)
€ 3.925,00
D-2000-Gi - Precision Material Thickness Gauge for Rubber
€ 3.770,00
D-2000-CF - Material Thickness Gauge for Coated Fabrics
DIN EN ISO 2286-3
€ 3.800,00
D-2000-G1 - Material Thickness Gauge
€ 6.240,00

Accessories

Product name
Price
Quantity
Code R - Higher resolution 0.001 instead of 0.01 mm
€ 245,00
Code E - Extended measuring range 0 - 25 mm
€ 295,00
Code E2 - Extended measuring range 0 - 50 mm
€ 675,00
Code P - External power supply of the display
€ 195,00
DKD-Cal - Calibration report done by a DKD approved laboratory for new instrument
€ 150,00
Code S - Software & Cable
€ 139,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
