TSC/TSCH1000 Manual Precision Force Measurement Test Stand

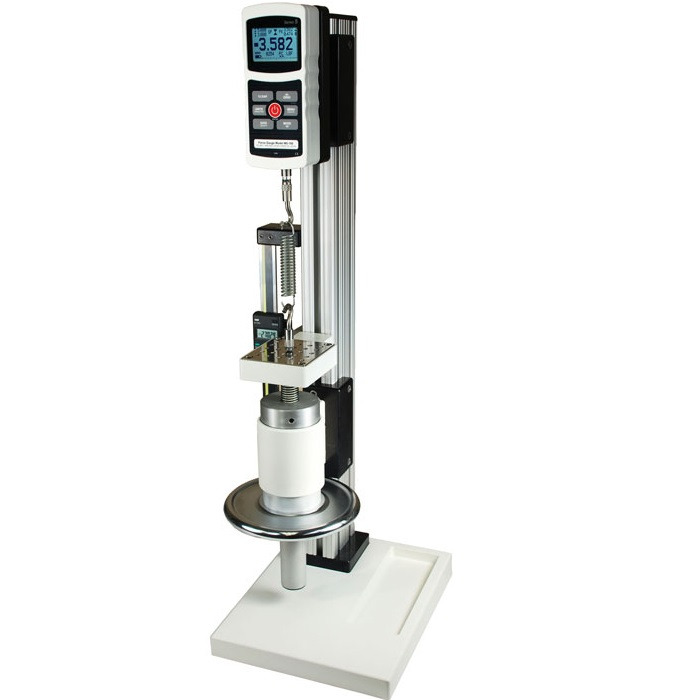

Made in the USAThe TSC1000 Force Measurement Test Stand is built for precision testing with a large hand wheel with nut that runs over an acme thread and moves 2,5mm per revolution.
The moving part of the stand is mounted on the bottom of the column and therefore moves the loading table up or down for compression or tension measuring.

The solidly build TSC1000 series has a capacity op 5kN (5000 N) and is available in a horizontal and vertical version.
The stand includes a loading table with threaded holes for fixture or grip mounting with a 76mm space between the center of the measuring table to the column.
With the force gauge mounted in a fixed position above the moving table, all Mark 10 digital force gauges fit to the standard mounting plate.
A test setup can be completed in combination with Mark 10, attachments and gripping fixtures.

The TSC1000 test stands come in a complete kit with a number of standard accessories, depending on the version, vertical or horizontal.
In addition to the standard setup a digital travel display, TSA001, is available. For output to a pc a cable, AC1112, and a communication adapter, MRS100A, are required.
A set of wall mounts, TSA002, makes it possible to adapt the test stand to a bench or wall mounted instead of the base.
Column extensions accommodate for larger samples. Column extensions just increase the sample clearance they do not change the travel distance.

  • Precision Acme screw and nut
  • Loading table with 25 #10-32 UNF holes for fixture mounting
  • Mounting holes for bench mounting
  • Compatible with all Mark-10 force gauges, fixtures and grips
  • Optional digital travel display

Manual test stand comparison
ModelForce capacityMaximum test travelLoading methodTravel rateMaximum, sample clearance
ES10500N229mmSpring loaded lever26,7mm / lever rev.229mm
ES10500N229mmSpring loaded lever26,7mm / lever rev.229mm
ES20500N229mmTop mounted hand wheel1,5mm / wheel rev.229mm
ES301000N330mmSide mounted hand wheel1,3mm / wheel rev.356mm
TSA750(H)3750N95mm with travel stops
152 without travel stops
Lever with rack & pinion, lever can be positioned in 30° increments76,2mm / lever rev.Vertical 267mm
Horizontal 368mm
TSB100500N95mm with travel stops
152 without travel stops
Lever with rack & pinion, lever can be positioned in 30° increments76,2mm / lever rev.330mm
TSC1000(H)5000N89mmInline hand wheel2,5mm / wheel rev.Vertical 254mm
Horizontal 330mm
TSF(H)5000N102mmSide mounted hand wheel0,34mm / wheel rev.Vertical 356mm
Horizontal 459mm
- Maximum travel and/or clearence depends on the grips or fixtures used during testing. The dimensions indicate distances without the use of grips or fixtures. - Column extensions are available for all test stands except ES05, ES10 and ES20. - Models with (H) are available in vertical and horizontal versions

Complete Kit

The TSC1000 and/or TSC1000H test stands come with the following accessories:

  • G1009 compression plate, 2” dia.
  • G1009-1 compression plate, 3” dia.
  • G1028 small hook
  • G1030 thread adapter, 5/16-18M to #10-32F
  • G1035 large hook
  • G1037 coupling, 5/16-18 F/F
  • G1038 medium hook
  • G1039 coupling, #10-32 F/F
  • G1041 thread adapter, 5/16-18M to #1/2-20M
  • G1042 extra large hook
  • G1044 1/2-20F adapter plate with mounting hardware
  • 5/16-18 stud with jam nuts
  • #10-32 stud with jam nuts
  • Base (TSC1000)
  • 2 Mounting leg with hardware (TSC1000H)
  • Additional column cap with hardware (TSC1000H)
  • 4 Thumb screw for force gauges with 0.12 - 500 lbF capacities
  • 4 Thumb screw for force gauges with 1,000 - 2,000 lbF capacities
  • Allen wrench set


Size measurements for the TSC1000 Manually operated Force Test Stand

All sizes in inch and (mm)


Size measurements for the TSC1000H Manually operated Force Test Stand

All sizes in inch and (mm)


Category Mark-10 Attachments

More details

Category  Mark-10 Attachments 0

Load capacity:5 kN (500kg / 1,000 lb)
Maximum travel:89 mm (3.5”)
Dimensions:152 mm x 203 mm x 660 mm (6”W x 8”D x 26”H)
Travel Rate:25 mm (0.1") per revolution
Weight:TSC1000 11.3 kg (25 lbs)
TSC1000H 9,1 kg (20 lbs)
Shipping weightTSC1000 13.6 kg (30 lbs)
TSC1000H 12,7 kg (28 lbs)
Waranty3 years
