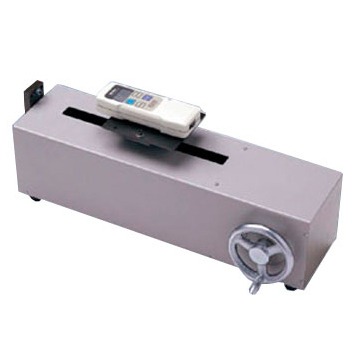

SH-220 Horizontal Hand Wheel Test Stand


The SH-220 horizontal test stand is ideal for peel tests and other force measurements where a horizontal test stand is required. The SH-220 offers all the advantages of the hand wheel design, which is relatively consistent speed, precise gauge positioning and bi-directional movement. In a low-profile horizontal package, the SH-220 accepts many of the standard range force gauges and special attachments.

*FORCE GAUGE NOT INCLUDED

Designed to work with the DS2 & Z2 force gauges.


Features
  • Hand wheel provides relatively consistent speed for repeatable tests
  • Gauge remains in place when hand wheel is released
  • Continuous stroke 11.8"

Specifications
Capacity220 lbs
Stroke11.8" (300 mm)
Travel Rate1.2mm/rev of hand wheel
DimensionsDownload PDF
Compatible GaugesZ2 and DS2
Warranty2 years

Buy Now
Product

Product
Price
Quantity
132309
SH-220 Test Stand
€ 2.574,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
