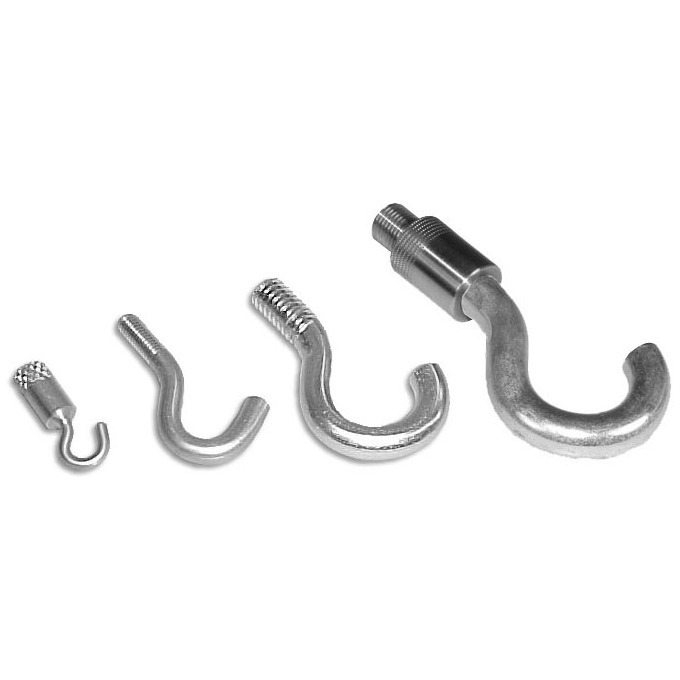

G1028-G1038-G1035-G1042 Hooks


Made in the USAThese hooks are ideal for a variety of tensile tests. Use them with a force gauge and a test stand to create a complete testing system.


Features
  • General tensile testing
  • Bluedot Capacities up to 1,000 lb
  • Select from four sizes, snap hook is available

Specifications
G1028Small hook, #10-32F
G1038Medium hook, #10-32M
G1035Large hook, 5/16-18M
G1042Extra-large hook, 1/2-20M

Dimensions
Dimensions-G1028-G1038-G1035-G1042


Model

Capacity
N (lb)
Weight
kg (lb)
RA
mm
B
mm
ØC

D

G1028 100
(20)
0.005
(0.01)
1.3
(0.05")
25.4
(1.00")
2.5
(0.10")
#10-32F
G1038 1000
(200)
0.009
(0.02)
5.1
(0.20")
38.1
(1.50")
4.8
(0.19")
#10-32M
G1035 2500
(500)
0.023
(0.05)
7.6
(0.30")
48.3
(1.90")
7.1
(0.28")
5/16-18M
G1042 4500
(1000)
0.145
(0.32)
12.7
(0.5")
104.1
(4.1")
11.4
(0.45")
1/2-20M

Downloads

Related Products

G Series Thread Adapters & Couplings



More details

G Series Thread Adapters & Couplings

G1018 Swivel Adapters


  • Swiveling adapter, for use between certain grips and force gauges.
  • Designed for tensile (pull) testing applications only.

More details

G1018 Swivel Adapters

Buy Now
Products

Product
Price
Quantity
G1028 Hook, small, #10-32F
€ 23,00
G1038 Hook, medium, #10-32M
€ 18,00
G1035 Hook, large, 5/16-18M
€ 28,00
G1042 Hook, extra large, 1/2-20M
€ 34,00

Accessories

Product
Price
Quantity
G1018-1 Swivel adapter, #10-32M to #10-32F
€ 76,00
G1018-2 Swivel adapter, 5/16-18M to 5/16-18F
€ 76,00
G1037 Coupling, 5/16-18F/F
€ 23,00
G1039 Coupling, #10-32F/F
€ 18,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1-3 days , Delivery time: 1-3 weeks , special order, request
