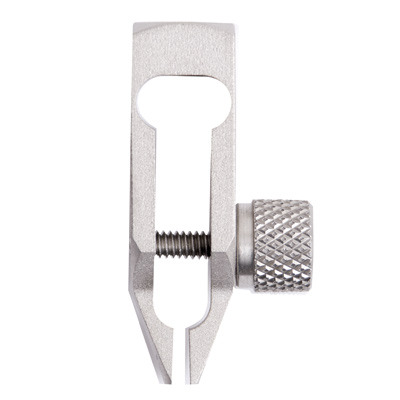

G1003 Miniature Component Grip


Made in the USAThe G1003 grip is a compact versatile grip that is used to perform pull tests on smaller, hard to reach items like PCB components on a electronics board.
Its slender profile allows it to grip components in a wide range of applications.

The G1003 miniature component grip can be connected to a test stand, load cell or force gauge by means of an (quick-change) eye end adapter and/or swivel adapter.
Eye end adapters make it easier to quickly change a test setup or run a number of tests with different samples and prevent grip rotation during testing.

This grip has a capacity of 150 N.


Features
  • Capacity 150 N (30lbF)
  • weight 20 gr (0.05lb)
  • Max sample thickness 1.8 mm (0.07 in)

Dimensions
Dimensions-G1003


Specifications
Capacity:150 N (30 lb)
Size:1.3 x 1.3 x 4.3 cm (L x W x H)
0.5" x 0.5" x 1.7"
Weight:0.02 kg [0.05 lb]
Shipping weight:0.5 kg [1 lb]
Thread:#10-32 UNF
Sample size:1.8 mm (0.07") max
Country of originUSA

Related & Optional Products

G1018 Swivel Adapters


  • Swiveling adapter, for use between certain grips and force gauges.
  • Capacity G1018-1: 1000 N
    Capacity G1018-2: 2500 N
  • Designed for tensile (pull) testing applications only.

More details

G1018 Swivel Adapters

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands



More details

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

G Series Thread Adapters & Couplings



More details

G Series Thread Adapters & Couplings

Downloads

Buy Now
Product

Product
Price
Quantity
130798
G1003 Miniature component grip, #10-32F
€ 199,00

Accessories

Product
Price
Quantity
130807
G1018-1 Swivel adapter, #10-32M to #10-32F
€ 70,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
