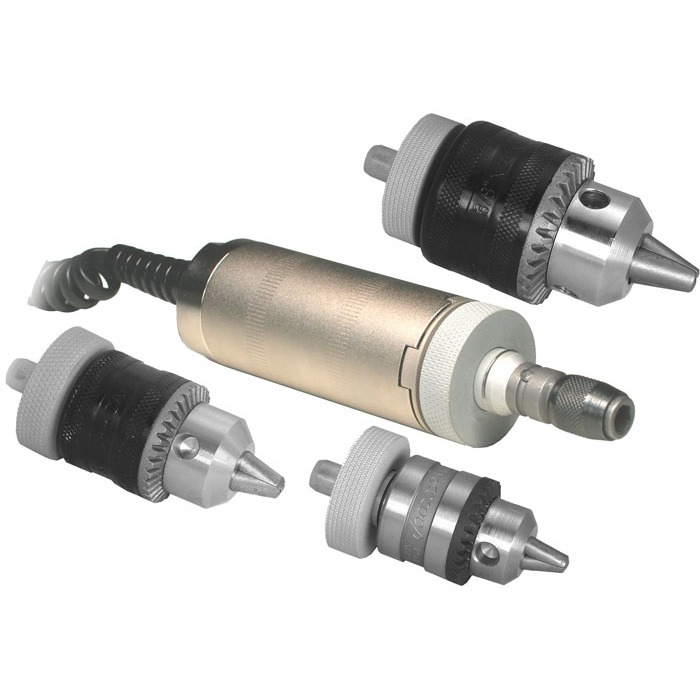

The Series R51 torque sensors are developed to accommodate a variety of testing applications across a wide industrial spectrum. This series features a unique interchangeability with three different size chucks and a bit holder (sold separately), measures in both directions and is available in 6 versions ranging from 7 Ncm to 11,5 Nm.
The sensor connects to an I3, I5 or I7 indicator (sold separately) using the Plug & Test® system. This stores the calibration and configuration data in its internal PCB.
Delivery includes a certificate of calibration which contains 10 data points in each measuring direction.
A R51 Series sensor in combination with an Indicator can be used as handheld devices or as a complete torque test system with a TSTM-DC motorized torque test stand.
We are happy to assist you in finding the most suitable configuration for your needs. Please contact us for more information.
Mark-10 M7I, M5I, and M3I indicators are used in combination with Plug & Test® sensors and can therefore accommodate numerous force and torque measurement requirements, from 1 N to 50 kN (0.25 to 10,000 lbF) of force, and from 7 Ncm to 550 Nm (10 ozFin to 5,000 lbFin) of torque.
Plug & Test® sensors can be used handheld or mounted to a fixture or test stand for more accurate and repeatable testing results.
The sensors are separately calibrated therefore they can be disconnected from one indicator and connected to another without the need for re-calibration or re-configuration as this is stored in the PCB located inside the smart connector.
System accuracy is determined by the combination of Indicator and sensor combined. To determine the total system accuracy the accuracy value of the sensor is added to the value of the indicator.
As the Indicators have different accuracy values the total system accuracy may vary between the different indicator/sensor combinations. Indicator Model Accuracy M7I / M5I ±0,1% of full scale M3I ±0,2% of full scale.
Example 1 Model MR01-100 sensor with Model M5I Indicator MR01-100 ±0,15% of full scale + M5I ±0,1% of full scale = Total ±0,25% of full scale This translates into a fixed error of up to: 0,25% x 500 N = 1,25 N
Example 2 Model MR50-50Z sensor with Model M3I Indicator MR50-50Z ±0,35% of full scale + M3I ±0,2% of full scale = Total ±0,55% of full scale This translates into a fixed error of up to: 0,55% x 50 Ncm = 0,275 Ncm
Because accuracy is defined as a percentage of full scale, the fixed error is possible anywhere on the scale from 0 to the capacity. As such, this value represents an increasingly large error as percentage of reading towards the low end of the scale. It is, therefore, recommended that a sensor is selected with capacity as close as possible to the expected load. The resolution may be different for some sensors depending on whether a M7I, M5I, or M3I indicator is being used. For example, a Series R01 force sensor will display finer resolution when connected to a M5I indicator than when connected to a M3I indicator.
Dimensions of the R51 torque sensor with Plug & Test connector and optional chucks and bit holder.
All dimensions are in Inch with [mm] behind.
|MR51-10Z||-||7 x 0,005||70 x 0,05||7 x 0,005||700 x 0.5||-||10 x 0,005||-|
|MR51-20Z||-||14 x 0,01||140 x 0,1||14 x 0,01||1400 x 1||-||20 x 0,01||-|
|MR51-50Z||-||35 x 0,02||350 x 0,2||36 x 0,02||3600 x 2||-||50 x 0,02||-|
|MR51-12||1,35 x 0,001||135 x 0,1||-||-||-||1 x 0,0005||192 x 0,1||12 x 0,005|
|MR51-50||5,7 x 0,005||570 x 0,5||-||-||-||4 x 0,002||800 x 0,5||50 x 0,02|
|MR51-100||11,5 x 0,005||1150 x 0,5||-||-||-||8 x 0,005||1600 x 1||100 x 0,05|
|MR51-10Z||7 x 0,005||7 x 0,005||10 x 0,01||-|
|MR51-20Z||14 x 0,01||14 x 0,01||20 x 0,02||-|
|MR51-50Z||36 x 0,05||36 x 0,05||50 x 0.05||-|
|MR51-10||135 x 0,1||-||192 x 0,2||12 x 0,01|
|MR51-50||570 x 0,5||-||800 x 1||50 x 0,05|
|MR51-100||1150 x 1||-||1600 x 2||100 x 0,1|
|Accuracy:||± 0,20% of full scale + indicator|
|Shipping weight||1,4 kg|
