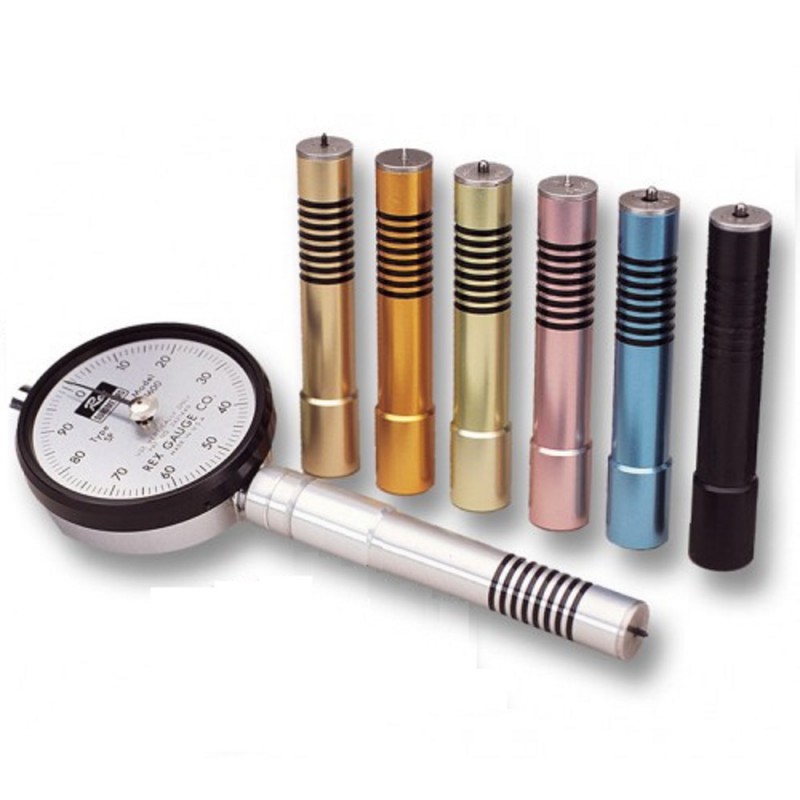

RX-MS Multi-Scale Durometer


Made in the USACheckline Europe introduces the Multi-Scale durometer test kit.
The Checkline Multi-Scale durometer test kit is ideal for the technician that must perform hardness tests on various types of non-metallic materials.

The Multi-Scale base kit consists of an analog display with a,

  • type A durometer barrel
  • type D durometer barrel
  • type OO durometer barrel.


A complete kit is supplied with an analog display and,

  • type A durometer barrel
  • type D durometer barrel
  • type B durometer barrel
  • type C durometer barrel
  • type DO durometer barrel
  • type O durometer barrel
  • type OO durometer barrel
  • type OOO durometer barrel


Changing scales is accomplished by unscrewing one barrel and replacing it with another - no supplementary calibration or adjustments are necessary.

A test block, calibrated to the selected scale is included.
The block allows the user to perform quick functional checks on the instrument.

The indicator and barrels are calibrated to the ASTM-D2240 standard for durometer hardness testers.


Features
  • NIST Calibration Certificate - Optional
  • Multi-Scale Durometer allows user to measure in a variety of scales with one guage.

Related Products

RX-TBK-A Type A Durometer Test Block Kit


  • Enables the user to perform a quick check for proper durometer operation

More details

RX-TBK-A Type A Durometer Test Block Kit

RX-BF 'Big Foot' Durometer Foot Adapter


  • The Big Foot increases the diameter of the foot from 1/2" to 1 3/8" diameter

More details

RX-BF 'Big Foot' Durometer Foot Adapter

RX-CLW Constant Load Weight for Types A, B, O, OO & OOO


  • The Constant Load Weight for gauges with an 822g springload (types A, B, O) slides onto the lower barrel of the gauge, gives it a wider foot, and raises the mass of the gauge to the suggested 1kg

More details

RX-CLW Constant Load Weight for Types A, B, O, OO & OOO

RX-DD-MS Digital Multi-Scale Durometer Test Kit


  • Includes NIST-Traceable Calibration Certificate
  • For the technician that must perform hardness tests on various types of non-metallic materials

More details

RX-DD-MS Digital Multi-Scale Durometer Test Kit

RX-ORF O-Ring Fixturing Set


  • Measures O-Rings 1/16" to 1/4"
  • 5 standard English sized fixtures and set plug included
  • Stainless steel construction

More details

RX-ORF O-Ring Fixturing Set

Cic-Duro Durometer Calibration


  • Exclusively NIST-certified testing equipment
  • Possibility to adjust and repair

More details

Cic-Duro Durometer Calibration

RX-DIN-FA ASTM to DIN 53505 Adapter for RX durometers


  • Special attachment gives you two gauges in one model.
    With attached, the gauge confirms to DIN 55305 norm.
    When taken off, the gauge is conform ASTM D2240.

More details

RX-DIN-FA ASTM to DIN 53505 Adapter for RX durometers

Durometer Test Stands

durometer test stands We offer a complete line of durometer test stands. The stand, when used in conjunction with a Durometer, eliminates operator error sometimes associated with hand-held durometer testing. Our stands feature a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment. Click here for more info on Durometer Test Stands.

Complete Kit
The RX-MS-A-D-OO kit consists of an analog display with a type A, D and OO durometer barrel.

The RX-MS-KIT is supplied with an A, D, B, C, DO, O, OO and OOO durometer barrels.

Supplied in a hard shell carrying case including instruction manual, durometer test block.

Optional:
- NIST traceable certificates
- RX-DIN-FA adapter

Specifications
Measuring Range
0 - 100 units
Accuracy*
±1 durometer unit (A,B,C,D,E,O,DO)
±2 durometer units (OO,OOO)
±4 durometer units (M)
Dimensions
2.25" x 6.125"H
Weight
6 oz.
* Note
per ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.

Buy Now
Products

Product name
Price
Quantity
RX-MS-A-D-OO - RX-MS-MS-A-D-OO Multi-Scale Durometer Kit with Type A, D, OO Barrels
€ 1.188,00
RX-MS-KIT Multi-Scale Durometer Kit with Type A, B, C, D, DO, O, OO, OOO Barrels
€ 3.383,00

Accessories

Product name
Price
Quantity
RX-DIN-FA - ASTM to DIN 53505 foot adapter
€ 131,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
